1. Product Overview & Field Operational Value
Onshore and offshore power generation facilities relying on FT8 gas turbine generator units frequently face unplanned downtime triggered by aging precision sensors, clogged filter elements, failed electrical fuses, faulty hydraulic control components, and degraded vibration monitoring parts. In high-vibration, high-temperature, and high-pressure continuous operating environments, minor component failures often lead to system signal deviation, lubrication interruption, fuel supply instability, and even unit shutdown, severely affecting power generation continuity and field operational safety. A complete set of matched FT8 gas turbine spare parts serves as the core guarantee for stable, long-cycle operation of the gas turbine generator system, solving common field pain points such as poor part interchangeability, insufficient high-temperature and vibration resistance, and short service life of generic replacement components.
This full-range spare part suite is fully adapted to FT8 gas turbine generator units, covering 17 core subsystem components including vibration monitoring systems, lubrication oil systems, liquid fuel systems, gas turbine instrumentation, hydraulic start systems, and generator auxiliary systems. The product lineup includes proximity probes, monitoring modules, power supply units, various specification fuses and indicator lamps, filter elements, pressure/temperature sensors, solenoid valves, clutches, fuel pumps, and special maintenance kits. All parts are manufactured per original equipment dimensional and performance parameters, ensuring 100% on-site compatibility and direct replacement without secondary modification. These components are widely applicable to offshore power platforms, onshore industrial power stations, high-vibration continuous operation sites, high-temperature heat radiation zones, and flammable and explosive hazardous areas, fully adapting to the extreme working conditions of FT8 gas turbine long-cycle operation.
2. Core Function & Structural Characteristics
Functionally, these FT8 gas turbine spare parts undertake four core system operation responsibilities: real-time condition monitoring, fluid system purification and regulation, electrical circuit protection and power supply, and mechanical transmission and auxiliary control. Vibration system components including proximity probes, keyphasor modules, and transient data interfaces achieve full-time monitoring of turbine vibration displacement and rotational speed, accurately capturing abnormal mechanical vibration signals to avoid fatigue damage of high-speed rotating parts. Lubrication and fuel system filter elements, O-rings, and oil mist eliminators effectively remove particulate impurities and moisture from lubricating oil and fuel, preventing pipeline blockage and component wear, and maintaining fluid system cleanliness and stable pressure. Pressure and temperature transmitters, switches, and solenoid valves realize precise parameter regulation and state switching of each subsystem, ensuring coordinated operation of fuel supply, lubrication, and hydraulic start systems. Electrical accessories such as fuses, diodes, and power supply modules provide stable power supply and circuit overcurrent protection for the entire control system.
Structurally, all FT8 gas turbine spare parts adopt industrial-grade optimized design for heavy-duty continuous operation. Precision sensing components adopt anti-vibration reinforced structures to resist long-term mechanical impact and vibration interference. Fluid system accessories use integrated sealing and filtering structures to reduce leakage risks and improve dirt holding capacity. Electrical components adopt flame-retardant and explosion-proof structural configurations, adapting to hazardous area operation standards. All standardized parts feature modular installation design, realizing fast disassembly and replacement on site, greatly shortening equipment maintenance and downtime. Key wearing parts adopt high-strength wear-resistant and corrosion-resistant structural optimization, effectively extending service life under cyclic load operation.
3. Applicable Working Conditions & Practical Field Maintenance Advice
This series of FT8 gas turbine spare parts is tailored for harsh industrial power generation working conditions, with excellent environmental adaptability. It can operate stably in offshore salt spray corrosion environments (-20℃ to 95℃), onshore high-temperature dust workshops, high-vibration continuous load operation sites, and high-pressure flammable and explosive hazardous areas. All core components pass environmental simulation tests of continuous vibration impact, temperature alternation, and corrosive medium erosion, maintaining stable working performance under 24-hour uninterrupted unit operation.
From a field maintenance engineer’s perspective, scientific and standardized maintenance can effectively extend the service life of FT8 gas turbine components and reduce failure rates. First, replace lubricating oil and fuel filter elements every 2000 operating hours to avoid filter blockage leading to insufficient system pressure and poor fuel combustion. Second, calibrate vibration probes, pressure and temperature transmitters every six months to ensure monitoring accuracy within ±0.5% FS error range. Third, regularly inspect fuses, diodes, and power supply modules, replace aging electrical accessories quarterly to prevent circuit short circuit and signal interruption. Fourth, check sealing elements and oil mist eliminator O-rings monthly, replace deformed and aging parts in time to avoid fluid leakage. Fifth, conduct regular functional tests on solenoid valves and pressure switches to ensure sensitive switching and accurate pressure response.
4. Authoritative Certification & Measured Technical Parameters
All FT8 gas turbine generator spare parts comply with multiple international authoritative industry standards, including MSDS material safety specifications, EExd explosion-proof certification, UL electrical safety certification, and ASME B18.3 mechanical manufacturing standards, fully meeting gas turbine power generation equipment operation specifications. Multiple field measured data verify excellent product performance: the continuous working temperature range of core components covers -25℃ to 105℃, the maximum withstand pressure of hydraulic and fluid accessories reaches 6000 PSI, the standard tightening torque of threaded installation parts is 25–30N·m, the surface hardness of metal structural parts reaches HRC 40–46, and the fatigue life of precision sensors and wearing parts exceeds 150,000 cyclic operations. All raw materials have traceable test reports, and each batch of products undergoes dimensional accuracy detection, pressure resistance test, high and low temperature aging test, and electrical performance sampling inspection to ensure stable and consistent quality.
5. Core Advantage Summary & Dual Implementation Standards
This complete set of FT8 gas turbine spare parts has four core advantages in field application and procurement. First, high operational reliability, with customized anti-vibration, high-temperature resistant, and corrosion-resistant materials adapting to harsh power generation environments, effectively reducing equipment failure rate. Second, complete interchangeability, fully matching original equipment installation dimensions and operating parameters, supporting plug-and-play replacement without equipment modification. Third, high safety performance, with all electrical, pressure-bearing, and explosion-proof components passing authoritative certification, eliminating hidden safety hazards in hazardous area operation. Fourth, long service life, optimized structural design and high-precision manufacturing reducing friction loss and performance attenuation, extending component replacement cycle and reducing overall maintenance costs. These advantages provide reliable technical support and cost-effective procurement solutions for FT8 unit daily maintenance, fault repair, and periodic overhaul.
Unified dual standards are formulated for procurement selection and field maintenance to standardize operation specifications. For procurement selection, four core criteria must be followed: strictly match FT8 unit subsystem model requirements, verify dimensional consistency of installation accessories, confirm material performance meets high-temperature and pressure resistance standards, and check complete qualification certifications including explosion-proof and material safety reports. For field fault judgment and maintenance, implement unified operation standards: judge sensor failure by data deviation and signal loss, judge fluid system failure by pressure fluctuation and medium leakage, judge electrical failure by circuit tripping and power supply instability, and judge mechanical accessory failure by abnormal vibration and noise, realizing rapid fault location and efficient repair.
6. Typical Field Fault Repair Cases
Case 1: Offshore Platform Vibration Probe Signal Drift Fault
Working load: Long-term 90% rated load continuous operation, persistent high vibration offshore environment; Fault data: 205MM proximity probe (VQCT116819-13) had 12% monitoring data drift, unable to accurately capture turbine vibration amplitude; Repair index: Replace matched proximity probe, after installation and calibration, data drift is controlled within 0.8%, vibration monitoring accuracy returns to factory standard; Customer feedback: The replacement part has precise installation size, strong anti-interference ability, and completely solves the problem of inaccurate vibration monitoring under high vibration conditions.
Case 2: Onshore Power Station Fuel Filter Blockage Fault
Working load: 24-hour continuous power generation operation, dusty industrial environment; Fault data: 20 micron fuel filter element (VQCT118089-2) was severely blocked, resulting in 18% drop of fuel supply pressure and reduced unit power generation efficiency; Repair index: Replace new filter element and clean fuel pipeline, fuel supply pressure recovers to standard range, unit power output is fully restored; Customer feedback: The filter element has high filtration precision and strong dirt holding capacity, effectively avoiding fuel system blockage faults.
Case 3: Generator Lubrication Pressure Switch Failure
Working load: Long-cycle high-temperature operation of generator lubrication system; Fault data: 35PSIG pressure switch (VQCT117443-1) failed to trigger pressure protection, resulting in hidden danger of lubrication system overpressure; Repair index: Replace matched pressure switch, after calibration, switching action accuracy reaches ±1PSIG, meeting system protection standards; Customer feedback: The part has sensitive response and stable performance, effectively improving the safety and stability of the lubrication system.
Case 4: Gas Turbine Electrical Fuse Aging Tripping Fault
Working load: Long-term variable load operation of power generation unit, frequent current fluctuation; Fault data: 2A specification fuse (VQCT116999-3) aged and caused accidental tripping, resulting in temporary signal system interruption; Repair index: Replace full set of matched standard fuses, continuous 3000-hour operation without tripping fault, circuit operation is stable; Customer feedback: The fuse has stable current resistance and long aging life, solving the frequent tripping problem of the control circuit.
7. Customer FAQ
No. | Question | Answer |
1 | Are these spare parts fully compatible with all FT8 gas turbine generator versions? | All components are manufactured strictly according to FT8 gas turbine original drawing parameters and subsystem matching standards, achieving 100% installation and operational compatibility, supporting all batch versions of FT8 units, and can be directly replaced without on-site modification. |
2 | What is the standard replacement cycle for FT8 turbine filter elements and wearing parts? | Under conventional onshore working conditions, fuel and lubrication filter elements are replaced every 2000 operating hours, electrical fuses and sealing parts are replaced every 6–12 months; under offshore high-corrosion and high-vibration environments, the replacement cycle is shortened to 3–6 months to ensure system stability. |
3 | Do these FT8 spare parts have complete international certification documents? | All core components including sensors, electrical parts, and pressure-bearing accessories have complete MSDS, EExd, UL, and ASME standard certification documents, with traceable material test reports and factory inspection reports, meeting global power generation equipment operation standards. |
4 | What are the key points for on-site installation of FT8 vibration probes and transmitters? | During installation, ensure clean and firm installation base to avoid vibration interference, control standard tightening torque of 25–30N·m, complete parameter calibration and signal testing after installation, and verify data accuracy to ensure real-time and effective system monitoring data. |
Group No | # | FT8-3 P/N | DESCRIPTION | SUBSYSTEMS |
Group-1 | 1 | VQCT116819-14 | PROBE,PROXIMITY,PROXPAC,250 MM | VIBRATION SYTEM |

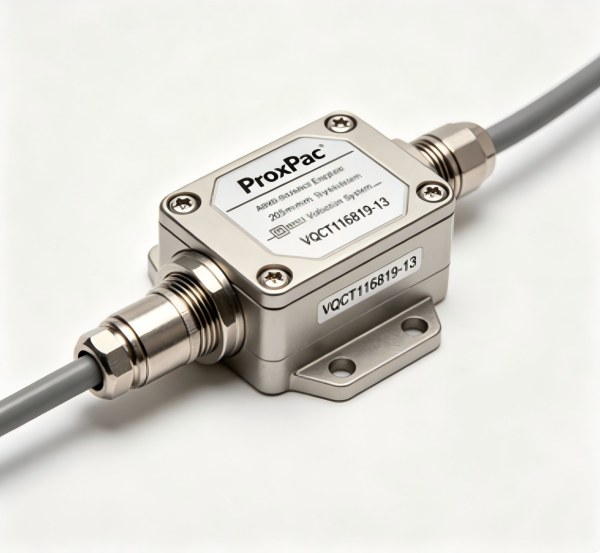

2 | VQCT116819-13 | PROBE,PROXIMITY,PROXPAC,205 MM | VIBRATION SYTEM | |
3 | VQCT117711-7 | RELAY MODULE | VIBRATION SYTEM | |
4 | VQCT117492-2 | 24VDC POWER SUPPLY | VIBRATION SYTEM | |
5 | VQCT117711-5 | KEYPHASOR MODULE (ET) | VIBRATION SYTEM | |
6 | VQCT117492-16 | COMMUNICATION GATEWAY | VIBRATION SYTEM | |
7 | VQCT117711-6 | PROXIMITOR/SEISMIC MONITOR(ET) | VIBRATION SYTEM | |
8 | VQCT117492-5 | PROXIMITOR INPUT | VIBRATION SYTEM | |
9 | VQCT117711-40 | TRANSIENT DATA INTERFACE | VIBRATION SYTEM | |
10 | VQCT117115-1 | KIT,VELOCITY XDCR,MOUNTING | VIBRATION SYTEM | |
Group-2 | 1 | VQCT116331-20 | FUSE, 5x20mm, MED, TIME,10 AMP | MISC ITEMS-1 |
2 | VQCT116999-3 | FUSE,250V,2A | MISC ITEMS-1 | |
3 | VQCT116999-1 | FUSE,6A | MISC ITEMS-1 | |
4 | VQCT116999-2 | FUSE,250V,1A | MISC ITEMS-1 | |
5 | VQCT116010-6 | FUSE,10AMP,250V,MDA-10 | MISC ITEMS-1 | |
6 | VQCT116999-6 | FUSE, 600V, 1A | MISC ITEMS-1 | |
7 | VQCT116999-7 | FUSE, 600V, 2A | MISC ITEMS-1 | |
8 | VQCT116999-5 | FUSE, 6A | MISC ITEMS-1 | |
9 | VQCT117003-1 | FUSE, 10A, 250V | MISC ITEMS-1 | |
Group-3 | 1 | VQCT117001-1 | LAMP, 6 VAC | MISC ITEMS-2 |
2 | VQCT117001-2 | LAMP, 120-130 VAC | MISC ITEMS-2 | |
3 | VQIPB21077GR1 | DIODE ASSY 24VDC FT8 ENGINE | MISC ITEMS-2 | |
4 | VQIPB20541GR1 | NO BOM ASSY, DIODE 125VDC FT8 ENGINE | MISC ITEMS-2 | |
5 | VQCT113430-1 | DIODE | MISC ITEMS-2 | |
Group-4 | 1 | VQCT115594-SP2 | OIL MIST ELIM, O-RING, VITON | LUBE OIL SYSTEM |
2 | VQCT117190-8 | DEDECTOR, CHIP O-RING | LUBE OIL SYSTEM | |
3 | VQCT115594-SP1 | OIL MIST ELIM.ELEMENT,FILTER | LUBE OIL SYSTEM | |
4 | VQCT118124-2 | ELEMENT, 3 MICRON | LUBE OIL SYSTEM | |
Group-5 | 1 | VQCT114361 | TRANSDUCER, PRESSURE, 0-200 PSIG | LIQUID FUEL SYSTEM-1 |
2 | VQCT113069 | VALVE, RELIEF | LIQUID FUEL SYSTEM-1 | |
3 | VQCT117004-10 | PRESSURE, TRANSDUCER, 6000 PSI | LIQUID FUEL SYSTEM-1 | |
4 | VQCT117004-18 | PRESSURE, TRANSDUCER, 600 PSI | LIQUID FUEL SYSTEM-1 | |
5 | VQCT116938-1 | FILTER,FUEL,ELEMENT | LIQUID FUEL SYSTEM-1 | |
6 | VQCT118089-2 | ELEMENT,FILTER, (20 MICRON) | LIQUID FUEL SYSTEM-1 | |
Group-6 | 1 | VQ1084940 | CLUTCH | LIQUID FUEL SYSTEM-2 |
2 | VQCT821250 | FUEL PUMP | LIQUID FUEL SYSTEM-2 | |
Group-7 | 1 | VQCT-CLUTCH | CLUTCH REMOVAL KIT | LIQUID FUEL SYSTEM-3 |
Group-8 | 1 | VQCT116171 | TEMPERATURE, SENSOR, DUAL RTD | GT LUBE SYSTEM |
2 | VQCT116783 | GAUGE-SWITCH, 0-2 BAR D,DUAL | GT LUBE SYSTEM | |
3 | VQCT116567 | TRANSDUCER, PRESSURE | GT LUBE SYSTEM | |
4 | VQCT114357 | TRANSDUCER, PRESSURE, 0-100 PSIG | GT LUBE SYSTEM | |
5 | VQCT115567-2 | TRANSDUCER, PRESS. 0-50 PSIA | GT LUBE SYSTEM | |
6 | VQCT113044 | VALVE, SOLENOID, BREATHER SHUTOFF | GT LUBE SYSTEM | |
7 | VQCT116295 | TRANSDUCER, PRESSURE, 0-10 PSID | GT LUBE SYSTEM | |
8 | VQCT113863 | VALVE, SOLENOID, 3-WAY, 125 VDC | GT LUBE SYSTEM | |
9 | VQCT112599 | CHIP, DEDECTOR LUBE OIL | GT LUBE SYSTEM | |
10 | VQCT116853 | VALVE, SOLENOID, 1/2, 2 WAY, L.O. | GT LUBE SYSTEM | |
11 | VQCT117443-1 | SWITCH, PRESSURE, 35PSIG FALLING | GT LUBE SYSTEM | |
12 | VQCT117915-1 | TRANSDUCER, DIFF, PRESS, LUBE SYS | GT LUBE SYSTEM | |
13 | VQCT118096-9 | SWITCH, PRESS,EP, 1/4″ 8-30 PSIG | GT LUBE SYSTEM | |
14 | VQCT118096-8 | SWITCH, PRESS,EP, 1/4″ 15-60 PSIG | GT LUBE SYSTEM | |
15 | VQCT117588-2 | MIST COLLECTOR 50 Hz | GT LUBE SYSTEM | |
16 | VQCT116285-SP2 | FILTER,PRIMARY,LUBE OIL | GT LUBE SYSTEM | |
Group-9 | 1 | VQCT118032-45 | HEATER, GEN. LUBE OIL TANK 4250W | GENERATOR LUBE OIL SYSTEM |
2 | VQCT116288 | MOTOR, 3 HP DC, LUBE OIL PUMP | GENERATOR LUBE OIL SYSTEM | |
Group-10 | 1 | VQCT112559 | TEMPERATURE, SENSOR, RTD 5 IN | GAS TURBINE INSTRUMENTATION |
2 | VQCT118044-1 | TRANS, PRESSURE, 12-18 PSIA | GAS TURBINE INSTRUMENTATION | |
3 | VQ1080498 | (U) TRANSDUCER MOTIONAL PICK UP | GAS TURBINE INSTRUMENTATION | |
4 | VQCT117915-2 | TRANSDUCER, DIFF, PRESS, FLT HSE | GAS TURBINE INSTRUMENTATION | |
5 | VQ1088046 | TRANSDUCER MOTIONAL PICKUP, SPEED | GAS TURBINE INSTRUMENTATION | |
6 | VQCT112509 | TRANSDUCER, PRESSSURE | GAS TURBINE INSTRUMENTATION | |
Group-11 | 1 | VQMS9386-111 | (C) PACKING-PREFORMED, O-RING | GAS GENERATOR |
2 | VQ1088177 | (U) IGNITER PLUG-GAS TURBINE ENGINE | GAS GENERATOR | |
3 | VQ1080274 | (U) CABLE-EXCTR TO LEFT SPARK IGNITER | GAS GENERATOR | |
4 | VQ1080275 | (U) CABLE-EXCTR TO RIGHT SPARK IGNITER | GAS GENERATOR | |
5 | VQCT118700-1-1 | PROBE, EGT T4.0, SINGLE CHANNEL, FT8 | GAS GENERATOR | |
Group-12 | 1 | VQCT117015-229 | DEDECTOR, TEMPERATURE | ELECTRIC GENERATOR |
2 | VQCT116998-16 | FUSE, 1A | ELECTRIC GENERATOR | |
3 | VQCT116998-15 | FUSE,250 mA | ELECTRIC GENERATOR | |
4 | VQCT116998-14 | FUSE,100 mA | ELECTRIC GENERATOR | |
5 | VQCT116998-1 | FUSE, 20 ET, 2A | ELECTRIC GENERATOR | |
6 | VQCT116998-17 | FUSE, 5A | ELECTRIC GENERATOR | |
Group-13 | 1 | VQCT118032-68 | ELEMENT, FILTER, L.O SIMPLEX(6 MICRON) | ELECTRIC GENERATOR L.O. |
Group-14 | 1 | VQCT117925-3 | MOTOR, AC COLD AIR BUFFER | COLD AIR BUFFER |
2 | VQCT116809 | TEMPERATURE, SENSOR, RESIS.(RTD) | COLD AIR BUFFER | |
3 | VQCT119387-1 | VFD,5HP,50/60HZ,380-480VAC | COLD AIR BUFFER | |
Group-15 | 1 | VQCT114359 | TRANSDUCER, PRESSURE, 0-1000 PSIG | GG HYDRAULIC SYSTEM |
2 | VQCT117442-1 | SWITCH, PRESSURE, 10 PSIG RISING | GG HYDRAULIC SYSTEM | |
3 | VQCT117948-1 | SENSOR, RVIT ROTARY POSITION | GG HYDRAULIC SYSTEM | |
Group-16 | 1 | VQCT117004-44 | FILTER,ELEM,H PRESS.10 MICRON | HYDRAULIC START SYSTEM |
2 | VQCT118117-7 | FILTER ELEMENT, HYD.START PAC, 10 MICRON | HYDRAULIC START SYSTEM | |
3 | VQCT117004-29 | FILTER ELEMENT,CHARGE SUPPLY | HYDRAULIC START SYSTEM | |
Group-17 | 1 | VQCT113805 | FILTER,CARTRIDGE HYD. PUMP | HYDRAULIC SYSTEM |
8. Final Procurement Guidance
This full set of FT8 gas turbine generator spare parts covers all core vulnerable parts, precision monitoring components, fluid system accessories, and electrical control parts required for 17 major subsystems, fully meeting the daily maintenance, fault repair, and periodic overhaul needs of FT8 gas turbine units. All products undergo multi-process strict quality inspection, with unified dimensional tolerance control and traceable material qualification, effectively solving the problems of poor compatibility, unstable performance, and incomplete certification of generic replacement parts on the market. With excellent high-temperature and vibration resistance, precise matching performance, and long service life, these components can significantly reduce unit downtime and maintenance costs. If you need to confirm model matching, inquire about technical parameters, obtain complete certification documents, or customize batch procurement solutions, you can consult for professional technical verification and one-stop spare parts supply services to ensure long-term efficient and safe operation of your FT8 gas turbine generator units.
