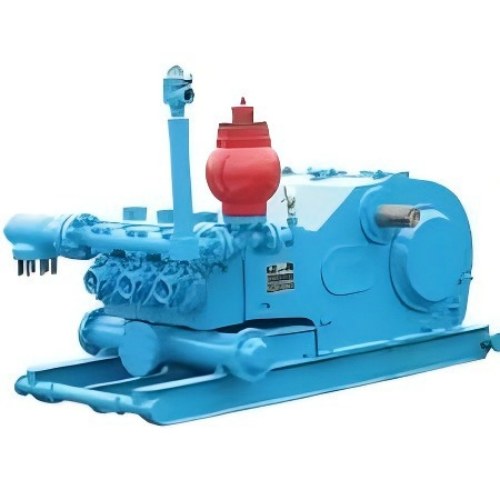

PZ & PAH Series Mud Pumps

PZ & PAH Series Mud Pumps: Engineering Reliability for Extreme Drilling

In the high-stakes environment of modern drilling—from deep water well construction to mineral prospecting and onshore oil & gas exploration—the PZ Series (PZ-7, PZ-8, PZ-9, PZ-11, PZ-11-HL) and PAH Series (PAH-275, PAH-310) are the industry-standard horizontal triplex pumps. Engineered to meet strict API 7K standards, these units are designed to handle abrasive drilling fluids, extreme temperature swings, and the continuous workloads that define deep drilling operations.

However, standard PZ and PAH units often suffer from specific failure modes that lead to costly downtime. Drawing on 22 years of on-site experience across 65+ countries, we have reverse-engineered these common problems. Our targeted upgrades fix these pain points, reducing unplanned downtime by up to 75% compared to generic models.

This guide provides a detailed breakdown of each model’s specifications, common quality issues, our reliability solutions, and the genuine spare parts we supply.

1. Model Specifications & Core Features

The PZ and PAH series share a rugged horizontal triplex design, known for smoother fluid delivery and lower vibration than older duplex alternatives. A key advantage is their modular componentry, which simplifies maintenance and reduces inventory costs.

1.1 PZ-7: Compact Power for Shallow Drilling

· Target Application: Shallow water wells, geothermal drilling, and light exploration (up to 800m).

· Key Specs:

· Power: 70 HP (52 kW)

· Stroke: 3.75" (95 mm)

· Max Liner: 3.25" (82.6 mm)

· Core Feature: Its small footprint and light weight make it ideal for mobile rigs. The simplified splash lubrication system is optimized for low-power, continuous operation, minimizing maintenance frequency.

1.2 PZ-8: Versatile Performer for Light-to-Medium

· Target Application: Medium-shallow oil & gas wells (800–1,800m) and abrasive soil conditions.

· Key Specs:

· Power: 85 HP (63 kW)

· Stroke: 4.5" (114 mm)

· API Valve: API 4

· Core Feature: Combines a durable forged steel frame with a dual lubrication system (splash + forced). An anti-clog suction screen protects the fluid end from abrasive particles, extending component life.

1.3 PZ-9: Reliable Workhorse for Medium Drilling

· Target Application: Medium-depth oil & gas wells (1,500–3,000m) and pipeline construction support.

· Key Specs:

· Power: 100 HP (75 kW)

· Stroke: 5" (127 mm)

· Max Pressure: 35 MPa

· Core Feature: Designed for 24/7 operation, it features hardened gears and a precision-machined crankshaft to reduce friction. High-chromium alloy liners and polyurethane pistons provide excellent wear resistance in abrasive mud.

1.4 PZ-11: Enhanced Power for Medium-Deep

· Target Application: Medium-deep oil wells (2,500–4,000m), high-pressure water injection, and shallow offshore.

· Key Specs:

· Power: 130 HP (97 kW)

· Stroke: 5.5" (140 mm)

· API Valve: API 5

· Core Feature: Features a forced lubrication system with a large oil cooler for thermal stability. The modular fluid end allows for quick changes, while an anti-cavitation suction design protects parts from premature wear.

1.5 PZ-11-HL: High-Temperature Ready

· Target Application: HPHT formations and geothermal drilling (3,000–4,500m).

· Key Specs:

· Power: 130 HP (97 kW)

· Temp Rating: Up to 180°C

· Max Pressure: 42 MPa

· Core Feature: Upgraded with heat-resistant seals, gaskets, and lubricants. The electrical cabinet is heat-shielded, providing critical protection for HPHT environments.

1.6 PAH-275: High-Pressure Heavyweight

· Target Application: Deep wells (4,000–6,000m), offshore drilling, and heavy-duty mining.

· Key Specs:

· Power: 275 HP (205 kW)

· Stroke: 7" (178 mm)

· API Valve: API 6

· Core Feature: Built with a forged alloy steel fluid end to resist cracking under extreme pressure (55 MPa). Nitrided gears and heavy-duty bearings handle continuous high loads. Variable stroke control adjusts flow for different drilling phases.

1.7 PAH-310: Peak Performance for Ultra-Deep

· Target Application: Ultra-deep wells (>6,000m) and large offshore platforms.

· Key Specs:

· Power: 310 HP (231 kW)

· Stroke: 8" (203 mm)

· Max Pressure: 65 MPa

· Core Feature: The flagship model features a massive forged steel frame with vibration-damping mounts (reducing vibration transfer by 70%). Chrome-ceramic liners and tungsten carbide pistons offer extreme wear resistance. The IP67-rated electrical cabinet ensures reliability in harsh offshore conditions.

2. Common Failure Points & Our Reliability Solutions

We don't just supply pumps; we engineer solutions to the specific mechanical stresses that cause downtime.

2.1 Fluid End Erosion & Liner Extrusion

· The Problem: Standard single-metal liners suffer from wire-line cutting and pitting in abrasive mud. Under high pressure, liners can extrude or deform, leading to seal failure.

· Our Solution: We utilize Bimetallic Liners and Chrome-Ceramic Liners.

· Bimetallic: High-carbon steel outer sleeve with a high-chromium white iron inner sleeve (HRC > 62), resisting both wear and corrosion.

· Chrome-Ceramic: For extreme chemical resistance and a low friction coefficient, drastically extending service life.

2.2 Valve & Seat Leakage (Cavitation & Hammering)

· The Problem: Standard valves suffer from spring fatigue and "hammering" as they close. This leads to seat deformation, pitting, and pressure drops.

· Our Solution:

· Hard-Facing Alloys: Valve bodies and seats are treated with specialized tungsten carbide overlays to resist erosion.

· Spring Dynamics: Variable-pitch springs prevent resonance and ensure a soft, consistent return, eliminating the shock of hard hammering.

2.3 Power End Gear & Bearing Wear

· The Problem: Misalignment and inadequate lubrication are the primary causes of gear scoring. Dust and moisture ingress in electrical cabinets cause electrical failures.

· Our Solution:

· Precision Engineering: Laser alignment during assembly ensures perfect gear meshing.

· Environmental Control: Positive pressurization with filtered air keeps dust and moisture out of electrical cabinets.

· Lubrication: Upgraded forced-lubrication systems with high-viscosity synthetic oils ensure film strength under heavy loads.

2.4 Vibration & Crankshaft Misalignment

· The Problem: Heavy vibration can knock the crankshaft out of alignment, causing rapid bearing failure.

· Our Solution: Incorporation of self-aligning spherical roller bearings and precision alignment pins into the crankshaft assembly. This allows the system to accommodate minor shifts without catastrophic wear.

3. Genuine Equipment & Spare Parts Supply

We maintain a global inventory to support both legacy and modern drilling operations.

3.1 Complete Pump Units

· New Builds: Full range of PZ and PAH models, built with our reliability upgrades and API 7K certification.

· Refurbished/Remanufactured: Rigorously inspected and rebuilt units (including OEM variants) that undergo load testing to meet API standards.

3.2 Critical Spare Parts & Brands

We supply high-wear items designed for direct interchangeability with major OEM equipment.

Why Choose Our Supply Chain?

· Quality Control: Every part undergoes dimensional inspection and material certification (ISO 9001 & API 7K).

· Rapid Deployment: Strategic stocking locations ensure fast delivery of critical parts within 24–72 hours.

· Technical Support: Backed by certified field engineers with hands-on experience in PZ/PAH pump maintenance and troubleshooting.

By focusing on material science and precision engineering, we ensure your mud pump fleet operates at peak efficiency, reducing your total cost of ownership and eliminating unplanned downtime.
