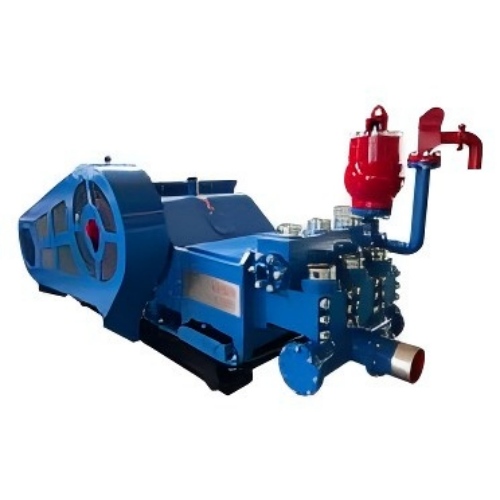

F Series Mud Pumps

F Series Mud Pumps: Technical Specifications & Reliability Guide

In the oil and gas drilling industry, the F Series Mud Pumps (F-500 through F-2200) are the backbone of hydraulic circulation. These triplex single-acting pumps are engineered to meet API 7K standards, delivering the pressure and flow required to clean the hole, cool the bit, and maintain wellbore stability.

While these pumps are renowned for their robustness, standard models often suffer from specific failure modes—especially in harsh environments. Based on over 15 years of field experience supporting drilling fleets globally, we have identified these pain points and engineered specific solutions to maximize Mean Time Between Failures (MTBF).

Below is a comprehensive guide to the F Series specifications, common failure modes, our reliability enhancements, and the genuine parts we supply.

1. F Series Models: Technical Parameters & Applications

The F Series is designed with a modular philosophy. While power ratings increase from the F-500 to the F-2200, key components like fluid ends and valves are often interchangeable, simplifying maintenance logistics.

1.1 F-500: The Compact Entry-Level Pump

· Target Application: Shallow water wells, geothermal drilling, and small-scale exploration.

· Key Specs:

· Power: 500 HP (373 kW)

· Stroke: 7.5" (191 mm)

· Max Liner: 6.75" (171 mm)

· Weight: ～21,500 lbs

· Core Feature: Its compact footprint and lower cost make it ideal for light-duty rigs. The triplex design ensures lower vibration compared to older duplex models.

1.2 F-800: The Balanced Performer

· Target Application: Medium-depth oil & gas wells (up to 3,000m).

· Key Specs:

· Power: 800 HP (597 kW)

· Stroke: 9" (229 mm)

· API Valve Size: API 6

· Weight: ～26,600 lbs

· Core Feature: The extended stroke length reduces strokes per minute (SPM) for a given flow rate, which significantly reduces wear on valves and seats compared to the F-500.

1.3 F-1000: The Deep Drilling Standard

· Target Application: Moderate deep drilling where reliability is paramount.

· Key Specs:

· Power: 1000 HP (746 kW)

· Stroke: 10" (254 mm)

· Frame: Reinforced for higher pressure.

· Weight: ～33,770 lbs

· Core Feature: Optimized fluid dynamics to handle the pressure fluctuations common in deeper formations without frame flexing.

1.4 F-1300: Heavy-Duty Deep Well

· Target Application: Deep wells (3,000m–5,000m) requiring high torque.

· Key Specs:

· Power: 1300 HP (969 kW)

· Stroke: 12" (305 mm)

· Max Liner: 7" (178 mm)

· Weight: ～45,650 lbs

· Core Feature: Heavy-duty crankshafts and connecting rods designed to handle the rigorous side loads of deep drilling. Features a large suction inlet to minimize cavitation.

1.5 F-1600: High-Pressure Powerhouse

· Target Application: Ultra-deep wells and high-pressure formations.

· Key Specs:

· Power: 1600 HP (1176 kW)

· Stroke: 12" (305 mm)

· Pressure Rating: Up to 70 MPa.

· Weight: ～46,800–55,400 lbs

· Core Feature: Thick-walled fluid ends capable of sustaining extreme pressures. Highly versatile with a wide range of liner sizes for drilling and cementing jobs.

1.6 F-2200: The Extreme Environment Leader

· Target Application: Ultra-deep wells and HPHT (High-Pressure High-Temperature) environments.

· Key Specs:

· Power: 2200 HP (1640 kW)

· Stroke: 14" (356 mm)

· API Valve Size: API 8

· Weight: ～95,000 lbs

· Core Feature: The longest stroke in the series minimizes SPM, drastically extending the life of易损件 (wear parts). Built with vibration-damping technology to protect the rig floor.

2. Common Failure Points & Our Reliability Solutions

We don't just supply pumps; we engineer solutions to the specific mechanical and environmental stresses that cause downtime.

2.1 Fluid End Erosion & Liner Extrusion

· The Problem: Standard single-metal liners suffer from scoring and pitting in abrasive mud. Under high pressure, liners can extrude or deform, leading to catastrophic seal failure.

· Our Solution: We utilize Bimetallic Liners and Ceramic Liners.

· Bimetallic: A high-carbon steel outer sleeve with a high-chromium white iron inner sleeve. Hardness exceeds HRC 62, resisting both wear and corrosion.

· Ceramic: Zirconia-toughened alumina (ZTA) for extreme chemical resistance and a low friction coefficient.

2.2 Valve & Seat Leakage (Cavitation & Hammering)

· The Problem: Standard valves suffer from spring fatigue and "hammering" as they close. This leads to seat deformation, pitting, and pressure drops.

· Our Solution:

· Hard-Facing Alloys: We treat valve bodies and seats with specialized tungsten carbide overlays to resist wire-line cutting.

· Spring Dynamics: Variable-pitch springs prevent resonance and ensure a soft, consistent return, eliminating the shock of hard hammering.

2.3 Power End Gear & Bearing Wear

· The Problem: Misalignment and inadequate lubrication are the primary causes of gear scoring and bearing brinelling. Dust and moisture ingress in SCR cabinets can also cause electrical failures (F-1600/F-2200).

· Our Solution:

· Precision Engineering: Laser alignment during assembly ensures perfect gear meshing.

· Environmental Control: For electrical cabinets, we use positive pressurization with filtered air to keep out desert dust and tropical moisture.

· Lubrication: Upgraded forced-lubrication systems with high-viscosity synthetic oils ensure film strength under heavy loads.

2.4 Vibration & Crankshaft Misalignment (F-1300 & F-1600)

· The Problem: Heavy vibration in deep drilling can knock the crankshaft out of alignment, causing rapid bearing failure.

· Our Solution: We incorporate self-aligning spherical roller bearings and precision alignment pins into the crankshaft assembly. This allows the system to accommodate minor shifts without catastrophic wear.

3. Genuine Equipment & Spare Parts Supply

We maintain a global inventory to support both legacy and modern drilling operations.

3.1 Complete Pump Units

· New Builds: F-500 to F-2200, manufactured to strict API 7K standards, compatible with major OEM power transmission systems.

· Refurbished/Remanufactured: Rigorously inspected and rebuilt units (including NOV and BOMCO variants) for clients needing premium reliability at a reduced cost.

3.2 Critical Spare Parts & Brands

We supply high-wear items designed for direct interchangeability with major OEM equipment.

Why Choose Our Supply Chain?

· Quality Control: Every part undergoes dimensional inspection and material certification.

· Rapid Deployment: Strategic stocking locations ensure fast delivery to drilling sites worldwide.

· Technical Support: Backed by field engineers who understand the specific maintenance challenges of F Series pumps.

By focusing on material science and precision engineering, we ensure your mud pump fleet operates at peak efficiency, reducing your total cost of ownership and eliminating unplanned downtime.
