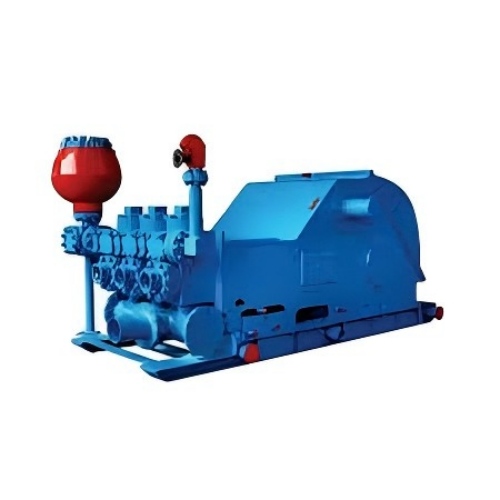

3NB Series Mud Pumps

3NB Series Mud Pumps: The Ultimate Guide to Specifications, Reliability & Maintenance

In the demanding world of oil & gas drilling, water well excavation, and mining exploration, the 3NB Series Mud Pump is the industry-standard workhorse. Engineered to meet rigorous API 7K standards, this horizontal triplex pump series delivers the hydraulic power and durability required to handle everything from shallow surface wells to ultra-deep, high-pressure formations.

While the 3NB series is renowned for its robustness, standard units often suffer from specific failure modes—especially in harsh operating environments. Based on over 18 years of field experience across 50+ countries, we have reverse-engineered these common pain points.

This guide provides a detailed breakdown of the 3NB350 to 3NB2200 models, our proprietary reliability enhancements, and the genuine spare parts we supply to keep your operation running.

1. 3NB Series Models: Technical Specifications & Applications

The 3NB series utilizes a horizontal triplex configuration, which provides smoother fluid delivery and lower vibration compared to older duplex designs. A key advantage is the modular design of critical components, allowing for rapid maintenance and reduced inventory costs.

1.1 3NB350: The Compact Entry-Level Solution

· Target Application: Shallow water wells, geothermal drilling, and small-scale exploration (up to 1,500m).

· Key Specs:

· Power: 350 HP (261 kW)

· Stroke: 6" (152 mm)

· Max Liner: 5.5" (139.7 mm)

· Core Feature: Its compact footprint and lightweight design make it ideal for mobile rigs and remote locations with limited accessibility.

1.2 3NB500: Versatile Performer for Medium-Depth

· Target Application: General onshore drilling, coalbed methane (1,500–2,500m).

· Key Specs:

· Power: 500 HP (373 kW)

· Stroke: 7" (178 mm)

· API Valve: API 5

· Core Feature: Features an anti-cavitation suction manifold and a dual lubrication system (splash + forced), making it adaptable to both cold and arid climates.

1.3 3NB600: Enhanced Stability for Medium Drilling

· Target Application: Medium-depth oil & gas wells (2,000–3,000m).

· Key Specs:

· Power: 600 HP (447 kW)

· Stroke: 8" (203 mm)

· Frame: High-strength forged steel.

· Core Feature: Utilizes polyurethane/Kevlar-reinforced pistons and high-chromium alloy liners to combat abrasive mud conditions.

1.4 3NB800: Heavy-Duty Power for Medium-Deep

· Target Application: Demanding medium-deep drilling (2,500–4,000m).

· Key Specs:

· Power: 800 HP (597 kW)

· Stroke: 9" (229 mm)

· Max Liner: 6.75" (171.5 mm)

· Core Feature: Precision-machined large-diameter crankshafts reduce friction. The quick-change liner design cuts maintenance time by 40%.

1.5 3NB1000: High-Pressure Deep Drilling

· Target Application: Deep wells and high-pressure formations (3,500–5,000m).

· Key Specs:

· Power: 1000 HP (746 kW)

· Stroke: 10" (254 mm)

· Pressure Rating: Up to 55 MPa.

· Core Feature: Forged alloy steel fluid end resists cracking. Equipped with variable stroke control and advanced filtration to protect the power end.

1.6 3NB1300: Ultra-Reliable for Ultra-Deep

· Target Application: Ultra-deep wells and HPHT (High-Pressure High-Temperature) conditions (4,500–6,000m).

· Key Specs:

· Power: 1300 HP (969 kW)

· Stroke: 12" (305 mm)

· API Valve: API 7

· Core Feature: Nitrided gears and heavy-duty roller bearings handle continuous high-load operation. Features a quick-disconnect fluid end module for rapid field maintenance.

1.7 3NB1600: Extreme Pressure & Offshore

· Target Application: Deep offshore platforms and ultra-deep onshore wells (5,000–7,000m).

· Key Specs:

· Power: 1600 HP (1176 kW)

· Stroke: 12" (305 mm)

· Construction: Marine-grade corrosion-resistant steel.

· Core Feature: Chrome-ceramic liners and tungsten carbide pistons provide extreme wear resistance. Certified for offshore use with IP67-rated electrical cabinets.

1.8 3NB2200: Peak Power for Ultra-Extreme

· Target Application: Ultra-deep wells exceeding 7,000 meters.

· Key Specs:

· Power: 2200 HP (1640 kW)

· Stroke: 14" (356 mm)

· Weight: ～95,800 lbs

· Core Feature: The flagship model features a triple-circuit lubrication system and a massive forged frame with vibration-damping mounts to protect the rig structure.

2. Common Failure Points & Our Reliability Solutions

We don't just supply pumps; we engineer solutions to the specific mechanical stresses that cause downtime.

2.1 Fluid End Erosion & Liner Extrusion

· The Problem: Standard single-metal liners suffer from scoring and pitting in abrasive mud. Under high pressure, liners can deform, leading to seal failure.

· Our Solution: We utilize Bimetallic Liners and Ceramic Liners.

· Bimetallic: High-carbon steel outer sleeve with a high-chromium white iron inner sleeve (HRC > 62).

· Ceramic: Zirconia-toughened alumina (ZTA) for extreme chemical resistance.

2.2 Valve & Seat Leakage (Cavitation & Hammering)

· The Problem: Standard valves suffer from spring fatigue and "hammering." This leads to seat deformation and pressure drops.

· Our Solution:

· Hard-Facing Alloys: Valve bodies and seats are treated with specialized tungsten carbide overlays to resist wire-line cutting.

· Spring Dynamics: Variable-pitch springs prevent resonance, ensuring a soft, consistent return.

2.3 Power End Gear & Bearing Wear

· The Problem: Misalignment and inadequate lubrication cause gear scoring. Dust and moisture ingress in SCR cabinets cause electrical failures.

· Our Solution:

· Precision Engineering: Laser alignment during assembly ensures perfect gear meshing.

· Environmental Control: Positive pressurization with filtered air keeps dust and moisture out of electrical cabinets.

· Lubrication: Upgraded forced-lubrication systems with high-viscosity synthetic oils ensure film strength under heavy loads.

2.4 Vibration & Crankshaft Misalignment

· The Problem: Heavy vibration can knock the crankshaft out of alignment, causing rapid bearing failure.

· Our Solution: Incorporation of self-aligning spherical roller bearings and precision alignment pins into the crankshaft assembly.

3. Genuine Equipment & Spare Parts Supply

We maintain a global inventory to support both legacy and modern drilling operations.

3.1 Complete Pump Units

· New Builds: 3NB350 to 3NB2200, manufactured to strict API 7K standards.

· Refurbished/Remanufactured: Rigorously inspected and rebuilt units (including NOV and BOMCO variants).

3.2 Critical Spare Parts & Brands

We supply high-wear items designed for direct interchangeability with major OEM equipment.

Why Choose Our Supply Chain?

· Quality Control: Every part undergoes dimensional inspection and material certification.

· Rapid Deployment: Strategic stocking locations ensure fast delivery to drilling sites worldwide.

· Technical Support: Backed by field engineers who understand the specific maintenance challenges of 3NB pumps.

By focusing on material science and precision engineering, we ensure your mud pump fleet operates at peak efficiency, reducing your total cost of ownership and eliminating unplanned downtime.
