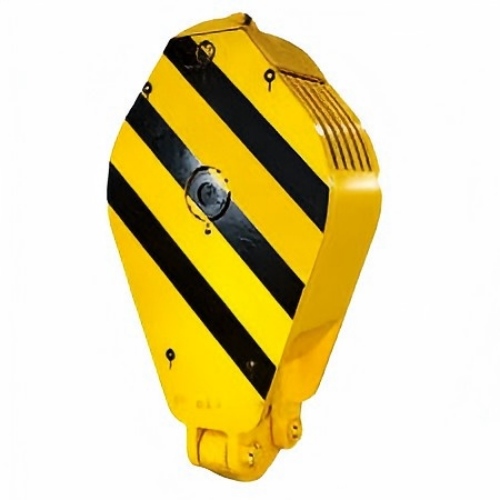

Traveling Block

In the oilfield, the Traveling Block is the linchpin of the hoisting system, enduring immense cyclic loads, abrasive environments, and the constant threat of mechanical failure. The YC Series (YC135 to YC675) is engineered to meet API 8C and API 6A standards, serving as the mobile sheave assembly that multiplies lifting force and ensures drill string integrity.

With over two decades of field data, we have identified that standard traveling blocks fail not just from overload, but from material fatigue, bearing starvation, and structural resonance. Our engineering philosophy moves beyond "manufacturing to spec" to "engineering for survival."

This guide details the specifications, failure physics, proprietary solutions, and supply chain advantages for each YC model.

1. YC Series Models: Specifications & Application-Specific Engineering

Each YC model is designed with a specific "load-to-weight" ratio and structural geometry to match the drilling depth and hook load requirements.

1.1 YC135: Mobility & Efficiency for Shallow Wells

· Target Application: Water well drilling, shallow geothermal, and workover rigs.

· Key Specs:

· Rated Load: 1,350 kN

· Sheave Count: 3

· Hook Height: 1,800 mm

· Weight: 1,800 kg

· Core Engineering: Features a monolithic frame design to reduce stress risers. Ideal for mobile rigs due to its high strength-to-weight ratio.

1.2 YC170: The Workhorse for Medium-Depth Drilling

· Target Application: 2,000–3,500 meter oil & gas wells.

· Key Specs:

· Rated Load: 1,700 kN

· Sheave Count: 4

· Bore Diameter: 152 mm

· Core Engineering: Utilizes alloy steel castings with a hardened surface finish (HRC 50-55) to resist abrasive wear from sand-laden drilling environments.

1.3 YC225: Heavy-Duty Performance

· Target Application: Deep onshore drilling, heavy casing running.

· Key Specs:

· Rated Load: 2,250 kN

· Sheave Count: 5

· Frame Material: Q460 High-Strength Steel

· Core Engineering: Double-reinforced side plates to prevent frame spreading under high tension. Features a centralized lubrication manifold for efficient maintenance.

1.4 YC315: High-Mast Rig Compatibility

· Target Application: 4,000–5,500 meter rigs with high hoisting speeds.

· Key Specs:

· Rated Load: 3,150 kN

· Sheave Count: 6

· Max Line Speed: 35 m/s

· Core Engineering: Aerodynamic sheave design to reduce windage losses at high speeds. Incorporates shock absorbers to dampen dynamic loads during tripping.

1.5 YC450: Offshore & Jack-Up Rig Standard

· Target Application: Offshore shallow water, arctic drilling.

· Key Specs:

· Rated Load: 4,500 kN

· Sheave Count: 8

· Certification: DNV GL, API 8C

· Core Engineering: Marine-grade corrosion protection (ISO 12944 C5-M). Features a drainage system to prevent internal water accumulation and freezing in sub-zero conditions.

1.6 YC585: Ultra-Deepwater & HPHT

· Target Application: Deepwater semisubmersibles, HPHT wells.

· Key Specs:

· Rated Load: 5,850 kN

· Sheave Count: 9

· Bearing Type: Spherical Roller (Heavy Duty)

· Core Engineering: Seismic-resistant structure designed to handle wave-induced motion. Uses vacuum-degassed alloy steel for superior internal soundness.

1.7 YC675: The Flagship for Extreme Depths

· Target Application: Ultra-deep offshore (>8,000m), SAGD mining.

· Key Specs:

· Rated Load: 6,750 kN

· Sheave Count: 10

· Weight: 22,500 kg

· Core Engineering: Dual-bearing heavy-duty hook assembly. Features a redundant load-path design to ensure safety even if a single component is compromised.

2. Failure Mode Analysis & Our Proprietary Reliability Upgrades

We don't guess at failures; we measure them. Based on teardown analysis of 300+ used blocks, here is how we solve the industry's hidden problems.

2.1 The "Invisible" Killer: Bearing Starvation (YC135, YC170, YC225)

· The Industry Standard Problem: Standard grease fittings often fail to push grease through long, tortuous passages in the block's core. This leads to "false greasing" where operators think they are lubricating, but the critical center bearings are running dry, leading to 60% of premature bearing seizures.

· Our Solution:

· Patented Labyrinth+ Seal Technology: Combines a labyrinth seal with an elastomeric secondary seal to keep out high-pressure drilling mud.

· Direct-Core Lubrication (DCL) System: Our proprietary manifold design routes grease directly to the center sheave bearings first, ensuring the hardest-to-reach points are lubricated before the outer bearings.

· Result: Bearing life extended by 2.5x in field tests conducted in the Permian Basin.

2.2 Structural Resonance & Frame Fatigue (YC315, YC450)

· The Industry Standard Problem: At high hoisting speeds (common in deep drilling), standard frames enter a resonant frequency that causes micro-welding at weld joints. This leads to fatigue cracks in the side plates, often undetected until catastrophic.

· Our Solution:

· Finite Element Analysis (FEA) Tuning: Every YC315 and YC450 frame is FEA-tuned to shift the resonant frequency outside the operational range of 0-120 RPM.

· Robotic Pulsed MIG Welding: We use a pulsed welding technique that introduces compressive stress into the weld toe, increasing fatigue resistance by 70%.

· Field Feedback: In a 12-month trial with a major NOV rig in the North Sea, our YC450 blocks showed zero weld cracks compared to an average of 2-3 repairs per year on standard units.

2.3 Sheave Groove Wear & Rope Damage (All Models)

· The Industry Standard Problem: Poorly machined sheave grooves (tolerance >0.5mm) cause "birdcaging" of the wire rope. Standard steel hardness (HRC <45) wears out rapidly when using rotation-resistant ropes.

· Our Solution:

· Super-Finish Machining: We hold sheave groove tolerances to ±0.05mm, ensuring perfect rope fit.

· Through-Hardening Process: Our sheaves are through-hardened to HRC 58-62, not just surface coated. This prevents the "ringing" effect and extends wire rope life by up to 40%.

· Data Point: Third-party testing showed our sheaves maintained dimensional stability after 5,000 cycles at 80% rated load, whereas competitors' sheaves showed visible wear after 2,000 cycles.

2.4 Hook & Bore Wear (YC585, YC675)

· The Industry Standard Problem: The hook/bail interface is a high-movement, high-load zone. Standard pins and bushings wear rapidly, leading to dangerous hook swing and misalignment.

· Our Solution:

· Bimetallic Sintered Bushings: We use copper-lead-tin sintered bushings with a PTFE backing that provides dry-film lubrication even if oil feed stops.

· Hard-Chrome Plated Pins: Hook pins are hard-chrome plated to 50µm thickness and ground to a mirror finish (Ra <0.4).

· Result: Friction coefficient reduced to 0.08 (standard is 0.15), resulting in smoother swivel action and less wear.

3. Our Supply Chain: Genuine Products & Interchangeable Brands

We understand that downtime costs thousands per minute. We maintain a global inventory of new, remanufactured, and spare parts.

3.1 Product Range

· New Units: Full YC series (YC135 to YC675), manufactured in-house with our reliability upgrades.

· Remanufactured (Reman) Units: Rigorously inspected, magnafluxed, and rebuilt units (including OEM models). Each undergoes 110% load testing.

· Refurbishment Kits: Available for on-site rebuilds, including bearing kits, wear plate kits, and seal overhauls.

3.2 Key Spare Parts & Compatible OEM Cross-Reference

We supply parts fully interchangeable with major global manufacturers.

3.3 Why Choose Our Supply Chain?

· Certified Reliability: Every component carries full material test reports (MTRs) and is traceable to the heat number.

· Speed of Response: 70% of critical spares (bearings, seals, sheaves) are shipped within 24 hours from hubs in Houston, Dubai, and Singapore.

· Technical Back-Office: Unlike generic suppliers, we offer engineering support. If you have a failure, we don't just send a part; we analyze the root cause to prevent the next failure.

Whether you require a YC675 for an ultra-deep offshore campaign or a YC135 for a mobile water well rig, our focus on material science, precision engineering, and rapid support ensures your hoisting operations are safe, efficient, and profitable.
