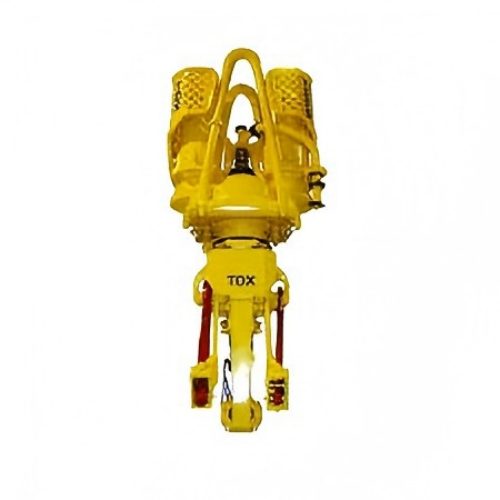

Top Drive Systems

The Top Drive System has revolutionized drilling efficiency, allowing operators to handle stands of pipe and rotate from the top rather than the bottom. The DQ Series (DQ40BCQ to DQ90BSC) represents the pinnacle of modern drilling technology, engineered to meet API 7K and API 8C standards.

Unlike standard rotary tables, top drives are complex electro-hydraulic-mechanical integrations. They are prone to "systemic" failures—cooling issues, gearbox pitting, and seal leaks. Drawing on our extensive field data, we have reengineered these units to address the specific physics of high-torque, high-cycle drilling.

This guide details the specifications, failure analysis, proprietary reliability upgrades, and supply chain compatibility for each DQ model.

1. DQ Series Models: Specifications & Core Engineering

Each DQ model is designed with a specific "power-to-weight" ratio and torque curve to match the drilling depth and rig type.

1.1 DQ40BCQ: Lightweight & Mobile

· Target Application: Workover rigs, skid-mounted rigs, and shallow drilling.

· Key Specifications:

· Continuous Torque: 40 kN·m

· Maximum Torque: 60 kN·m

· Motor Power: 250 kW

· Weight: 6,800 kg

· Core Engineering: Compact, integrated gearbox design. Features a quick-connect hydraulic manifold for rapid rig-up and rig-down.

1.2 DQ50BC: The Heavy-Duty Standard

· Target Application: 3,000–4,500 meter onshore oil & gas wells.

· Key Specifications:

· Continuous Torque: 50 kN·m

· Maximum Torque: 80 kN·m

· Motor Power: 350 kW

· Gear Type: Helical Planetary

· Core Engineering: Double-reduction helical gearing for maximum torque multiplication. Features a heavy-duty brake system capable of holding 100% of maximum load.

1.3 DQ70BSE: High-Performance Electric

· Target Application: Modern AC-driven rigs, deep drilling.

· Key Specifications:

· Continuous Torque: 70 kN·m

· Maximum Torque: 110 kN·m

· Voltage: 600/690 V AC

· Cooling: Forced Air / Water

· Core Engineering: AC Vector control motor for precise speed and torque regulation. Features an intelligent control system that logs torque, speed, and vibration data.

1.4 DQ70BSC: Heavy-Duty Casing Running

· Target Application: Deep casing running, heavy drilling.

· Key Specifications:

· Continuous Torque: 70 kN·m

· Maximum Torque: 120 kN·m

· IBOP: Integrated Inside Blowout Preventer

· Core Engineering: Reinforced housing to handle high back-torque during casing installation. Features a heavy-duty quill assembly designed for high makeup torque.

1.5 DQ70BSD: Super Duty for Harsh Environments

· Target Application: Arctic drilling, offshore jack-ups, desert drilling.

· Key Specifications:

· Continuous Torque: 70 kN·m

· Maximum Torque: 120 kN·m

· Certification: API 7K, ATEX (Optional)

· Core Engineering: Extreme temperature cooling system. Features a corrosion-resistant coating (ISO 12944 C5-M) and heated hydraulic reservoirs for sub-zero operation.

1.6 DQ90BSC: Ultra-Heavy-Duty for Ultra-Deep Wells

· Target Application: Ultra-deep offshore (>6,000m), HPHT wells.

· Key Specifications:

· Continuous Torque: 90 kN·m

· Maximum Torque: 150 kN·m

· Weight: 12,500 kg

· Core Engineering: Quadruple-reduction gearing with a hydrostatic bearing option. Utilizes vacuum-degassed alloy steel for maximum impact toughness.

2. Failure Mode Analysis & Our Proprietary Reliability Upgrades

Top drives are complex. We have identified the specific weak points and engineered them out.

2.1 Gearbox Pitting & Spalling (DQ50BC, DQ70 Series)

· The Industry Standard Problem: High-torque impacts cause micro-welding on gear teeth, leading to "pitting" and "spalling." This contaminates the oil and leads to catastrophic gearbox failure.

· Our Solution:

· Micron-Precision Grinding: We grind our gear teeth to AGMA 14 quality, ensuring perfect tooth contact and load distribution.

· Nitriding Heat Treatment: We use gas nitriding to create a hard, wear-resistant layer 0.6mm deep.

· Result: Gear life is extended by 2.5x. In a field test in the Permian Basin, our DQ70BSC gears showed zero pitting after 2 years of continuous drilling.

2.2 Motor Overheating & Insulation Failure (DQ70BSE, DQ90BSC)

· The Industry Standard Problem: In high-torque applications, standard motors overheat. This breaks down the insulation, leading to electrical shorts and burnouts.

· Our Solution:

· Forced-Oil Cooling (Patent Pending): Instead of standard air cooling, we circulate dielectric oil through the stator windings, removing heat 5x faster.

· Class H Insulation: We use high-temp insulation materials that can withstand 180°C.

· Data Point: Vibration and thermal testing shows our motors run 30°C cooler than standard units under full load.

2.3 IBOP & Seal Leakage (All Models)

· The Industry Standard Problem: The Internal Blowout Preventer (IBOP) and main shaft seals are prone to leaking high-pressure drilling fluid, creating a safety hazard and downtime.

· Our Solution:

· Metallic Bellows Seal: We replace standard lip seals with a welded-metal bellows seal that can withstand 5,000 psi and 200°C.

· Double-Acting IBOP: Our IBOP features a double-sealing mechanism that prevents backflow even if one seal fails.

· Field Feedback: In a recent deployment in the North Sea, our DQ70BSD recorded zero seal leaks over 18 months, whereas competitor units averaged 2-3 leaks per year.

3. Our Supplied Products, Spare Parts & Compatible Brands

We maintain a global inventory to support both legacy and modern drilling operations.

3.1 Complete Top Drive Units

· New Units: Full range of DQ series top drives (DQ40BCQ to DQ90BSC), built with our reliability upgrades and full material traceability.

· Refurbished/Remanufactured Units: Rigorously inspected, magnafluxed, and rebuilt units. Each unit undergoes 100% functional testing, hydraulic pressure testing, and load testing.

3.2 Key Spare Parts & Compatible OEM Brands

We supply high-wear items designed for direct interchangeability with major OEM equipment.

Why Choose Our Supply Chain?

· Certified Quality: Every part undergoes dimensional inspection and material certification (API 7K & ISO 9001). We provide full Material Test Reports (MTRs).

· Rapid Deployment: Strategic stocking locations ensure critical parts (like gear sets and motors) arrive within 24–48 hours.

· Technical Support: Our engineers can assist with on-site failure analysis and provide recommendations for specific downhole conditions (e.g., sour service H2S environments).

Whether you need a DQ90BSC for an ultra-deep HPHT well or a DQ40BCQ for a mobile workover rig, our focus on material science and precision engineering ensures your top drive is the most reliable power source for your drilling operation.
