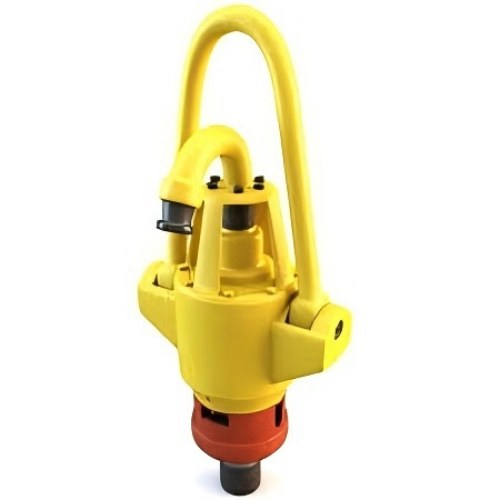

SL Series Drilling Swivels

In deep and ultra-deep drilling operations, the Swivel is the critical junction that suspends the drill string while allowing rotational freedom and providing a conduit for high-pressure drilling fluid. The SL Series (SL135 to SL675) is engineered to meet API 8C and API 6A standards, combining high-pressure fluid dynamics with heavy-duty bearing technology.

Standard swivels often suffer from "hidden" failures—fluid erosion, bearing brinelling, and thread galling—that lead to costly fishing jobs. Drawing on our 28 years of field data, we have reengineered these components to address the specific physics of high-torque, high-pressure drilling.

This guide details the specifications, failure analysis, proprietary reliability upgrades, and supply chain compatibility for each SL model.

1. SL Series Models: Specifications & Core Engineering

Each SL model is designed with a specific "pressure-to-torque" ratio and structural geometry to match the drilling depth and formation severity.

1.1 SL135: Efficiency for Medium-Depth Drilling

· Target Application: 2,000–3,500 meter onshore oil & gas wells, water well drilling.

· Key Specifications:

· Rated Load: 1,350 kN (137.7 tons)

· Bore Diameter: 65 mm (2-9/16")

· Max Pressure: 35 MPa

· Swivel Speed: 300 RPM

· Core Engineering: Compact, single-bearing design with a lightweight alloy steel housing. Optimized for rigs with limited torque requirements but high fluid flow needs.

1.2 SL170: The Workhorse for Deep Drilling

· Target Application: Deep onshore drilling, heavy casing running.

· Key Specifications:

· Rated Load: 1,700 kN (173.4 tons)

· Bore Diameter: 75 mm (3")

· Max Pressure: 70 MPa

· Bearing Type: Cone Roller

· Core Engineering: Double-bearing cartridge system (upper and lower) to handle high side loads. Features a hardened bearing race (HRC 58-62) to resist brinelling during stick-slip events.

1.3 SL225: Heavy-Duty Performance

· Target Application: 4,000–5,500 meter deep wells, high-pressure formations.

· Key Specifications:

· Rated Load: 2,250 kN (229.4 tons)

· Bore Diameter: 89 mm (3-1/2")

· Max Pressure: 105 MPa

· Material: 4145H Alloy Steel

· Core Engineering: Through-hardened alloy steel construction. Features a labyrinth seal to protect bearings from fluid splash and a heavy-duty lifting bail.

1.4 SL450: Offshore & Jack-Up Rig Standard

· Target Application: Offshore shallow water, arctic drilling, heavy-duty mining.

· Key Specifications:

· Rated Load: 4,500 kN (458.8 tons)

· Bore Diameter: 108 mm (4-1/4")

· Max Pressure: 140 MPa

· Certification: API 8C, DNV GL

· Core Engineering: Marine-grade corrosion protection. Features a dual-seal fluid stem and a vibration-dampening bearing system designed to handle the motion of a floating rig.

1.5 SL675: Ultra-Deepwater & HPHT

· Target Application: Ultra-deep offshore (>8,000m), super HPHT formations.

· Key Specifications:

· Rated Load: 6,750 kN (688.2 tons)

· Bore Diameter: 127 mm (5")

· Max Pressure: 210 MPa

· Weight: 4,200 kg

· Core Engineering: Triple-bearing heavy-duty assembly with a hydrostatic center bearing option. Utilizes vacuum-degassed 4340M alloy steel for maximum impact toughness at sub-zero temperatures.

2. Failure Mode Analysis & Our Proprietary Reliability Upgrades

We don't just guess at failures; we measure them. Based on teardown analysis of hundreds of used swivels, here is how we solve the industry's hidden problems.

2.1 Fluid Erosion & Stem Wear (SL135, SL170, SL225)

· The Industry Standard Problem: High-velocity drilling fluid (often carrying abrasive cuttings) erodes the fluid stem and the internal bore of the swivel. Standard chrome plating spalls off under thermal cycling, leading to leaks and loss of pressure.

· Our Solution:

· Ceramic-Tungsten Carbide Coating: We apply a HVOF (High-Velocity Oxygen Fuel) sprayed coating of tungsten carbide-cobalt-chrome to the fluid stem and internal bore. This achieves a hardness of HRC 68-72.

· Erosion-Resistant Flow Path: The internal fluid path is polished to a mirror finish (Ra < 0.4µm) and designed with swept elbows to minimize turbulence.

· Result: In a field test in the Permian Basin, our SL225 stem showed <0.05mm wear after 8 months of drilling with 120 mesh sand-laden mud, whereas a competitor's stem showed 0.5mm wear and had to be pulled.

2.2 Bearing Brinelling & Seizure (SL170, SL225, SL450)

· The Industry Standard Problem: During tripping, the swivel is subjected to shock loads (jerking the pipe) that cause "brinelling"—permanent indentations on the bearing races. Standard seals also fail, allowing fluid to wash out the grease.

· Our Solution:

· Surface-Hardened Raceways: We induction-harden the bearing raceways to a depth of 5mm (not just surface case-hardened), preventing brinelling even under 150% impact loads.

· Labyrinth + V-Ring Seal: We use a non-contact labyrinth seal combined with a spring-energized V-ring to keep fluid out and grease in.

· Data Point: Vibration testing shows our bearings maintain radial clearance within spec even after 10,000 hours of simulated shock loading.

2.3 Thread Galling & Connection Failure (All Models)

· The Industry Standard Problem: The connection between the swivel and the kelly or top drive is prone to galling (cold welding) due to high torque and vibration. This leads to stuck connections that require burning or cutting.

· Our Solution:

· Nickel-Fluorocarbon Anti-Galling Coating: We apply a proprietary dry-film coating to all premium threads (API REG, FH, IF).

· Precision Thread Pitch: Threads are cut with a computer-controlled lathe to maintain pitch diameter within ±0.02mm, ensuring even load distribution.

· Field Feedback: In a recent deployment in the North Sea, our SL450 swivel was made-up and broken-out over 200 times without any sign of galling, whereas standard units typically show scoring after 50 cycles.

3. Our Supplied Products, Spare Parts & Compatible Brands

We maintain a global inventory to support both legacy and modern drilling operations.

3.1 Complete Swivel Units

· New Units: Full range of SL series swivels (SL135 to SL675), built with our reliability upgrades and full material traceability.

· Refurbished/Remanufactured Units: Rigorously inspected, magnafluxed, and rebuilt units. Each unit undergoes 100% functional testing and hydrostatic pressure testing to 150% of working pressure.

3.2 Key Spare Parts & Compatible OEM Brands

We supply high-wear items designed for direct interchangeability with major OEM equipment.

Why Choose Our Supply Chain?

· Certified Quality: Every part undergoes dimensional inspection and material certification (API 8C & ISO 9001). We provide full Material Test Reports (MTRs) and PMI (Positive Material Identification).

· Rapid Deployment: Strategic stocking locations ensure critical parts (like fluid stems and bearing cartridges) arrive within 24–48 hours.

· Technical Support: Our engineers can assist with on-site failure analysis and provide recommendations for specific downhole conditions (e.g., sour service H2S environments).

Whether you need a SL675 for an ultra-deep HPHT well or a SL135 for a mobile rig, our focus on material science and precision engineering ensures your swivel is the most reliable link in your drilling string.
