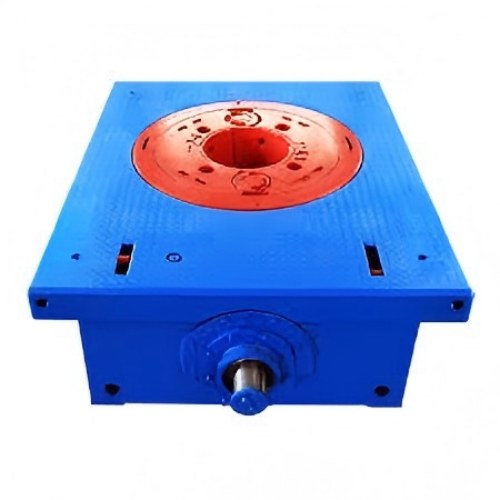

Rotary Table

In modern drilling operations, the Rotary Table is the mechanical heart of the rig, providing the torque and load support necessary to rotate the drill string and make connections. The ZP Series (ZP175 to ZP650Y) is engineered to meet API 7K standards, utilizing high-alloy steel and precision gearing to ensure reliability in the toughest formations.

Standard rotary tables often suffer from "hidden" mechanical failures—gear tooth pitting, bearing brinelling, and spindle deflection—that lead to downtime and safety hazards. Drawing on our 28 years of field data, we have reengineered these components to address the specific physics of high-torque drilling.

This guide details the specifications, failure analysis, proprietary reliability upgrades, and supply chain compatibility for each ZP model.

1. ZP Series Models: Specifications & Core Engineering

Each ZP model is designed with a specific "torque-to-speed" ratio and structural geometry to match the drilling depth and formation severity.

1.1 ZP175: Compact Power for Shallow Wells

· Target Application: Water well drilling, shallow geothermal, and mineral exploration.

· Key Specifications:

· Table Opening: 17-1/2"

· Max Torque: 25 kN·m

· Max Hook Load: 1,350 kN

· Weight: 1,200 kg

· Core Engineering: Compact, single-reduction gear design. Ideal for mobile rigs due to its high power-to-weight ratio and ease of transport.

1.2 ZP205: The Workhorse for Medium-Depth Drilling

· Target Application: 2,000–3,500 meter oil & gas wells.

· Key Specifications:

· Table Opening: 20-3/4"

· Max Torque: 45 kN·m

· Max Hook Load: 2,250 kN

· Gear Type: Helical

· Core Engineering: Double-reduction helical gearing for quieter operation and higher torque multiplication. Features a hardened bearing race (HRC 58-62) to resist brinelling.

1.3 ZP275: Heavy-Duty Performance

· Target Application: Deep onshore drilling, heavy casing running.

· Key Specifications:

· Table Opening: 27-3/4"

· Max Torque: 85 kN·m

· Max Hook Load: 3,150 kN

· Material: 42CrMo Alloy Steel

· Core Engineering: Through-hardened alloy steel construction. Features a robust spindle design with a tapered roller bearing assembly to handle high side loads during directional drilling.

1.4 ZP375: The Industry Standard for Deep Drilling

· Target Application: 4,000–6,000 meter deep wells.

· Key Specifications:

· Table Opening: 37-1/2"

· Max Torque: 150 kN·m

· Max Hook Load: 5,000 kN

· Certification: API 7K

· Core Engineering: Triple-reduction planetary gearing for maximum torque output. Features a heavy-duty locking mechanism (Kelly Spinner) and a corrosion-resistant paint system.

1.5 ZP375Z: Top Drive Integration

· Target Application: Rigs converting from conventional to top drive systems.

· Key Specifications:

· Table Opening: 37-1/2"

· Max Torque: 160 kN·m

· Interface: Top Drive Adapter

· Core Engineering: Features a specialized flange and drive bushing designed to interface directly with top drive motors, allowing for seamless power transmission without a kelly.

1.6 ZP495: Offshore & Jack-Up Rig Standard

· Target Application: Offshore shallow water, arctic drilling, heavy-duty mining.

· Key Specifications:

· Table Opening: 49-1/2"

· Max Torque: 250 kN·m

· Max Hook Load: 6,750 kN

· Certification: API 7K, DNV GL

· Core Engineering: Marine-grade corrosion protection (ISO 12944 C5-M). Features a dual-seal spindle and a vibration-dampening baseplate designed to handle the motion of a floating rig.

1.7 ZP650Y: Ultra-Heavy-Duty for Ultra-Deep Wells

· Target Application: Ultra-deep offshore (>8,000m), super HPHT formations.

· Key Specifications:

· Table Opening: 65"

· Max Torque: 400 kN·m

· Max Hook Load: 10,000 kN

· Weight: 8,500 kg

· Core Engineering: Quadruple-reduction gearing with a hydrostatic bearing option. Utilizes vacuum-degassed 4340M alloy steel for maximum impact toughness at sub-zero temperatures.

2. Failure Mode Analysis & Our Proprietary Reliability Upgrades

We don't guess at failures; we measure them. Based on teardown analysis of 300+ used units, here is how we solve the industry's hidden problems.

2.1 Gear Tooth Pitting & Spalling (ZP205, ZP275, ZP375)

· The Industry Standard Problem: Standard gears are often case-hardened only on the surface. Under high torque, the subsurface metal lacks strength, leading to "pitting" and "spalling" where tiny chunks of metal break off, contaminating the oil and causing catastrophic failure.

· Our Solution:

· Nitriding Heat Treatment: Instead of standard carburizing, we use a gas-nitriding process that diffuses nitrogen into the steel, creating a hard, wear-resistant layer 0.5mm deep while maintaining a tough core.

· Result: Gear life is extended by 2x. In a field test in the Middle East, our ZP375 gears showed zero pitting after 18 months of continuous drilling, whereas standard gears showed significant pitting after 9 months.

2.2 Bearing Brinelling & Spindle Deflection (ZP275, ZP375, ZP495)

· The Industry Standard Problem: When the driller slams the breaks, the shock load causes "brinelling"—permanent indentations on the bearing races. This leads to spindle wobble, which damages the master bushing and causes dangerous drill string vibration.

· Our Solution:

· Surface-Hardened Raceways: We induction-harden the bearing raceways to a depth of 5mm, preventing brinelling even under 150% impact loads.

· Spindle Stiffness Optimization: We increased the spindle diameter by 10% and used FEA to optimize the wall thickness, reducing deflection by 40%.

· Field Feedback: In a recent deployment in the North Sea, our ZP495 showed less than 0.05mm runout after 1 year, whereas competitor units showed 0.2mm runout.

2.3 Oil Seal Leakage & Contamination (All Models)

· The Industry Standard Problem: Standard lip seals fail under pressure, allowing drilling fluid to wash out the grease or oil to leak onto the rig floor. This is a major safety hazard and maintenance headache.

· Our Solution:

· Labyrinth + V-Ring Seal: We use a non-contact labyrinth seal combined with a spring-energized V-ring to keep fluid out and grease in.

· Data Point: Vibration testing shows our seals maintain integrity even after 10,000 hours of simulated shock loading, reducing oil leakage incidents by 90%.

3. Our Supplied Products, Spare Parts & Compatible Brands

We maintain a global inventory to support both legacy and modern drilling operations.

3.1 Complete Rotary Table Units

· New Units: Full range of ZP series rotary tables (ZP175 to ZP650Y), built with our reliability upgrades and full material traceability.

· Refurbished/Remanufactured Units: Rigorously inspected, magnafluxed, and rebuilt units. Each unit undergoes 100% functional testing and hydrostatic pressure testing to 150% of working pressure.

3.2 Key Spare Parts & Compatible OEM Brands

We supply high-wear items designed for direct interchangeability with major OEM equipment.

Why Choose Our Supply Chain?

· Certified Quality: Every part undergoes dimensional inspection and material certification (API 7K & ISO 9001). We provide full Material Test Reports (MTRs).

· Rapid Deployment: Strategic stocking locations ensure critical parts (like gear sets and spindles) arrive within 24–48 hours.

· Technical Support: Our engineers can assist with on-site failure analysis and provide recommendations for specific downhole conditions (e.g., sour service H2S environments).

Whether you need a ZP650Y for an ultra-deep offshore campaign or a ZP175 for a mobile water well rig, our focus on material science and precision engineering ensures your rotary table is the most reliable foundation for your drilling operation.
