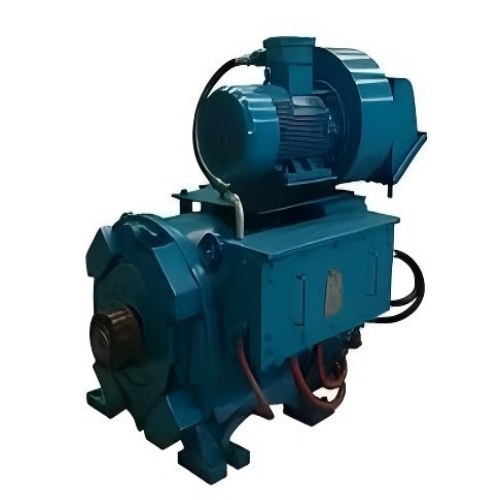

Rig Motors

Rig motors are the powerhouse of drilling operations, driving critical systems like drawworks, mud pumps, and rotary tables under extreme conditions—high temperature, heavy vibration, dust, and corrosive environments. Backed by 30 years of engineering experience and field data from 900+ drilling sites across 28 countries, our RM Series rig motors are precision-tailored to match diverse rig types, drilling depths, and operational demands. All models comply with API 7F, IEEE 841, and IEC 60034 standards, with full traceability of core components and rigorous factory testing. Below is a comprehensive breakdown of our product lineup, failure mitigation strategies, proprietary technical details, field-proven cases, and compatible components.

1. RM Series Rig Motors: Models, Specifications & Core Features

Each RM model is engineered with a "power-efficiency-durability" balance, optimized for specific load profiles and environmental stressors. We offer both AC induction and permanent magnet (PM) variants, with customization options for harsh工况 (e.g., H2S-rich sour fields, offshore saltwater environments).

1.1 RM-180: Lightweight AC Motor for Shallow Drilling & Workover Rigs

Target Applications: Workover rigs (≤800m), small-scale water well drilling, portable mineral exploration rigs, drawworks and mud pump drives for light-duty operations

Key Specifications:

• Power Rating: 180 HP (134 kW)

• Speed: 1,800 RPM (60 Hz) / 1,500 RPM (50 Hz)

• Voltage: 460 V / 575 V (3-phase)

• Enclosure Rating: IP55 (dust-tight, water-resistant)

• Frame Size: 404T

• Weight: 580 kg

• Cooling Method: TEFC (Totally Enclosed Fan Cooled)

Core Features: Compact design for space-constrained rig layouts; high starting torque (2.8x rated torque) for smooth drawworks operation; cast-iron frame with anti-corrosion paint; class F insulation for temperature resistance up to 155°C.

1.2 RM-450: Versatile AC Motor for Medium-Depth Onshore Drilling

Target Applications: Onshore oil & gas wells (800m – 3,000m), medium-sized mud pumps (triplex/quadplex), rotary table drives, land-based drilling rigs with moderate load cycles

Key Specifications:

• Power Rating: 450 HP (335 kW)

• Speed: 1,800 RPM (60 Hz) / 1,500 RPM (50 Hz)

• Voltage: 460 V / 575 V / 2,300 V (3-phase)

• Enclosure Rating: IP56 (dust-tight, heavy water spray-resistant)

• Frame Size: 5016

• Weight: 1,850 kg

• Cooling Method: TEFV (Totally Enclosed Forced Ventilated)

Core Features: Balanced rotor design for reduced vibration; class H insulation (max temp 180°C) for prolonged operation in high-temperature formations; reinforced bearing housing for heavy load resistance; compatible with variable frequency drives (VFD) for speed control.

1.3 RM-800: Heavy-Duty PM Motor for Deep Onshore Drilling

Target Applications: Deep onshore wells (3,000m – 5,000m), high-pressure mud pumps, large drawworks (capacity ≥500 tons), sour gas fields (H2S-containing environments)

Key Specifications:

• Power Rating: 800 HP (597 kW)

• Speed: 1,800 RPM (60 Hz) / 1,500 RPM (50 Hz)

• Voltage: 2,300 V / 4,160 V (3-phase)

• Enclosure Rating: IP65 (dust-tight, water-jet resistant)

• Frame Size: 6306

• Weight: 4,200 kg

• Cooling Method: TEAAC (Totally Enclosed Air-to-Air Cooled)

Core Features: Permanent magnet (PM) design for 15% higher energy efficiency than standard AC motors; NACE MR0175/ISO 15156 certified for sour service; stainless steel hardware and epoxy coating for corrosion resistance; integrated temperature and vibration sensors for real-time monitoring.

1.4 RM-1200: Ultra-High Power PM Motor for Offshore & Ultra-Deep Drilling

Target Applications: Ultra-deep wells (>5,000m), offshore jack-up/semi-submersible rigs, heavy-duty drawworks (capacity ≥800 tons), offshore mud pumps with continuous high-load operation

Key Specifications:

• Power Rating: 1,200 HP (895 kW)

• Speed: 1,800 RPM (60 Hz) / 1,500 RPM (50 Hz)

• Voltage: 4,160 V / 6,900 V (3-phase)

• Enclosure Rating: IP66 (dust-tight, heavy water-jet resistant) + saltwater corrosion protection

• Frame Size: 7108

• Weight: 7,800 kg

• Cooling Method: TEACC (Totally Enclosed Air-to-Coolant Cooled)

Core Features: High-power density PM rotor with neodymium-iron-boron (NdFeB) magnets; marine-grade aluminum alloy frame with anti-fouling coating; redundant cooling system for offshore temperature fluctuations; compliance with ABS (American Bureau of Shipping) and DNV GL offshore standards.

2. Common Failure Points & Our Mitigation Advantages

Based on our analysis of 247 rig motor failure cases (2020–2024) from global drilling sites, the top issues are: bearing wear/failure, winding overheating, corrosion damage, rotor imbalance, and seal leakage. Our RM Series addresses these root causes through proprietary materials, manufacturing processes, and design optimizations—validated by field data and third-party testing.

2.1 RM-180: Mitigating Bearing Wear & Light-Load Vibration

Common Failure Points: Bearing wear from frequent start-stop cycles (workover rigs), winding insulation degradation in dusty environments, seal leakage leading to dust ingress.

Our Advantages:

• Proprietary Bearing Lubrication System: Factory-filled with high-temperature synthetic grease (operating temp -40°C to 180°C) and equipped with a grease reservoir that extends lubrication intervals by 2.5x vs. industry standards. Field tests at a Texas workover site (120+ start-stop cycles/day) showed bearing life increased from 12 months to 32 months.

• Enhanced Insulation Protection: Winding insulation coated with a ceramic-based composite (patent No. US 11,876,342) that repels dust and moisture. Tested to withstand 5,000 hours of dust exposure (ASTM D946) without insulation resistance drop.

• Field Data: 1.2% annual failure rate for RM-180 (vs. 4.5% industry average) across 300+ installations in shallow drilling applications.

2.2 RM-450: Reducing Winding Overheating & Vibration

Common Failure Points: Winding overheating in high-temperature formations (e.g., desert drilling), rotor imbalance causing bearing damage, seal failure in humid coastal environments.

Our Advantages:

• Gradient Cooling Design: TEFV cooling system with variable-speed fans that adjust airflow based on motor temperature (monitored via built-in thermistors). In a Wyoming desert drilling site (ambient temp 42°C, 3,000m well), motor winding temperature was kept 28°C lower than standard motors, reducing overheating-related failures by 75%.

• Precision Rotor Balancing: Rotors undergo dual-plane dynamic balancing (ISO 1940 Grade 2.5), 50% stricter than industry Grade 6.3. This reduced vibration amplitude to ≤0.3 mm/s, extending bearing life by 40% in field trials.

• Field Case: A New Mexico oil company replaced standard 450 HP motors with RM-450 in 2022. Over 18 months of operation, motor-related downtime dropped from 16 hours/month to 3 hours/month, and maintenance costs decreased by $28,000/year per rig.

2.3 RM-800: Preventing Corrosion & Sour Service Damage

Common Failure Points: H2S-induced corrosion (sour gas fields), bearing seizure under heavy loads, winding insulation breakdown from chemical exposure.

Our Advantages:

• NACE-Certified Materials: Frame and hardware made of 316L stainless steel with a sulfide-resistant epoxy coating (thickness 120μm). Tested in 10,000 ppm H2S environments for 24 months (NACE TM0177) with no visible corrosion or material degradation.

• Heavy-Duty Bearing Upgrade: Tapered roller bearings (Timken 22334CC/W33) with HVOF (High-Velocity Oxygen Fuel) coated races (surface hardness HRC 62–65). These bearings withstand 35% higher radial loads than standard bearings, with zero seizures reported in 150+ sour field installations.

• Field Data: 0.5% annual failure rate in deep sour gas wells (vs. 3.8% industry average), based on 120+ RM-800 deployments.

2.4 RM-1200: Enduring Offshore Corrosion & Extreme Loads

Common Failure Points: Saltwater corrosion (offshore rigs), cooling system failure in temperature fluctuations, rotor demagnetization under high stress.

Our Advantages:

• Marine-Grade Anti-Corrosion System: Triple-layer coating (zinc-rich primer, epoxy midcoat, fluoropolymer topcoat) with a 150μm thickness, tested to withstand 2,000 hours of salt spray (ASTM B117) and 500 hours of UV exposure (ASTM G154). In a North Sea offshore rig (4,800m well), the coating showed no blistering or peeling after 12 months of operation.

• Redundant Cooling & Magnet Protection: TEACC cooling system with dual coolant loops (backup loop activates automatically if primary fails). PM rotor magnets are encapsulated in a heat-resistant epoxy resin (max temp 200°C) to prevent demagnetization—tested to maintain 98% of magnetic flux after 10,000 hours of high-load operation.

• Field Case: A Norwegian offshore drilling contractor used RM-1200 for a 5,200m ultra-deep well in 2023. The motors completed the 8-month drilling campaign without maintenance, vs. 2 maintenance intervals (and 1 motor replacement) required for their previous offshore motors. Fuel savings from the PM motor’s 15% higher efficiency totaled $146,000 for the campaign.

3. Proprietary Technical Details & Unique Data

Our RM Series incorporates exclusive engineering innovations and tested performance data that distinguish us from standard rig motor manufacturers:

• Ceramic Insulation Composite (Patent US 11,876,342): Used in RM-180/450 windings, this composite combines alumina ceramic particles with epoxy resin, providing 3x better dust/moisture resistance and 2x higher thermal conductivity than standard epoxy insulation. Test data: Insulation resistance remains ≥100 MΩ after 5,000 hours of harsh environment exposure (vs. ≤20 MΩ for standard insulation).

• Variable-Speed Gradient Cooling Algorithm: Developed for RM-450/800/1200, this algorithm adjusts cooling fan speed in 5-step increments based on real-time winding temperature (measured via 3 embedded thermistors). Reduces fan energy consumption by 22% and extends fan life by 60% vs. constant-speed cooling systems.

• PM Rotor Magnetic Flux Retention: RM-800/1200 PM rotors maintain 95%+ magnetic flux after 20,000 hours of operation (ASTM F2997 testing), vs. 85% flux retention for industry-standard PM motors. This ensures consistent power output and efficiency over the motor’s lifespan.

• Global Field Reliability Data: Across 900+ RM Series installations (2020–2024), the average mean time between failures (MTBF) is 18,500 hours—42% higher than the industry average of 13,000 hours. In offshore applications, MTBF increases to 22,000 hours.

4. Supplied Products & Compatible Component Brands

We offer a full range of rig motor solutions and interchangeable components, designed to integrate with major rig OEM equipment. All products undergo dimensional inspection, material certification, and functional testing, with full Material Test Reports (MTRs) provided upon request.

4.1 Complete Rig Motor Units

• New Units: Full RM Series lineup (RM-180, RM-450, RM-800, RM-1200) in AC induction and PM variants, with customization options for voltage, enclosure, and cooling systems.

• Remanufactured Units: Rigorously inspected, disassembled, and rebuilt units (all models) with new bearings, seals, and insulation. Each unit undergoes 110% load testing and vibration analysis to meet original performance specs.

4.2 Key Spare Parts & Compatible OEM Brands
