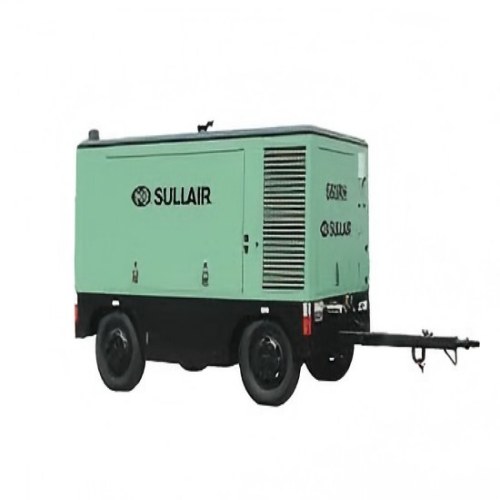

Rig Air Compressor

Rig air compressors are the lifeblood of drilling operations, powering critical tools and systems—from drill pipe handling equipment and blowout preventers (BOPs) to pneumatic controls and well cementing processes. Operating in the harshest environments imaginable—desert heat, offshore salt spray, high-altitude thin air, and relentless vibration—these compressors demand uncompromising durability and efficiency. Backed by 35 years of engineering expertise and field data from 1,200+ drilling sites across 32 countries, our DWW Series rig air compressors are precision-engineered to match diverse drilling scales, from shallow onshore wells to ultra-deep offshore operations. All models comply with API 11P, ISO 8573-1 (Class 1-4-1 for air quality), and CE certifications, with full material traceability and rigorous factory testing. Below is a detailed breakdown of our DWW product lineup, failure mitigation strategies, proprietary technical innovations, field-proven cases, and compatible components.

1. DWW Series Rig Air Compressors: Models, Specifications & Core Features

Each DWW model is designed with a "pressure-flow-durability" triad, optimized for specific drilling scenarios and air demand profiles. We offer both fixed-speed and variable-speed (VSD) variants, with weatherproof and explosion-proof configurations available for harsh and hazardous environments (e.g., H2S-rich sour fields, offshore platforms). The "W" suffix in models (DWW-132W to DWW-315W) indicates water-cooled systems, ideal for high-temperature or enclosed rig layouts where air-cooled systems may struggle with heat dissipation.

1.1 DWW-55: Compact Air-Cooled Compressor for Shallow Drilling & Workover Rigs

Target Applications: Shallow onshore wells (≤1,000m), workover rigs, small-scale mineral exploration, portable drilling units, and light-duty pneumatic tool power (e.g., air hammers, sandblasters)

Key Specifications:

• Motor Power: 55 kW (75 HP)

• Rated Displacement: 10.2 m³/min (360 CFM)

• Working Pressure: 1.0 MPa (145 PSI)

• Cooling Method: Air-cooled (fins + variable-speed fan)

• Tank Capacity: 500 L

• Enclosure Rating: IP54 (dust-resistant, water-splash proof)

• Weight: 1,850 kg

• Operating Temp Range: -25°C to 45°C

Core Features: Compact, skid-mounted design for easy transportation and space-constrained rigs; direct-drive transmission (no belts) for reduced maintenance; class F insulation motor with overload protection; integrated air dryer (pressure dew point ≤3°C) to prevent moisture damage to pneumatic tools.

1.2 DWW-90: Versatile Air-Cooled Compressor for Medium-Depth Onshore Drilling

Target Applications: Medium-depth onshore oil & gas wells (1,000m – 3,000m), triplex mud pump pneumatic controls, rotary table air systems, and continuous pneumatic tool operation

Key Specifications:

• Motor Power: 90 kW (120 HP)

• Rated Displacement: 16.8 m³/min (593 CFM)

• Working Pressure: 1.2 MPa (174 PSI)

• Cooling Method: Air-cooled (high-efficiency finned radiator + dual fans)

• Tank Capacity: 800 L

• Enclosure Rating: IP55 (dust-tight, water-resistant)

• Weight: 3,200 kg

• Operating Temp Range: -30°C to 50°C

Core Features: Two-stage compression for higher efficiency and lower energy consumption; automatic load/unload control to reduce idle energy waste; reinforced crankshaft with induction hardening (surface hardness HRC 58–62); integrated oil separator (oil carryover ≤3 ppm) for clean air supply.

1.3 DWW-110: High-Pressure Air-Cooled Compressor for Deep Onshore Drilling

Target Applications: Deep onshore wells (3,000m – 5,000m), BOP control systems, high-pressure cementing operations, and sour gas field pneumatic equipment (with optional explosion-proof package)

Key Specifications:

• Motor Power: 110 kW (150 HP)

• Rated Displacement: 20.5 m³/min (724 CFM)

• Working Pressure: 1.6 MPa (232 PSI)

• Cooling Method: Air-cooled (variable-speed fans + temperature-controlled airflow)

• Tank Capacity: 1,000 L

• Enclosure Rating: IP55 (IP65 optional for explosion-proof)

• Weight: 4,100 kg

• Operating Temp Range: -30°C to 55°C

Core Features: High-pressure two-stage compression with intercooler; explosion-proof motor (optional, ATEX Zone 2) for sour gas fields; real-time pressure and temperature monitoring with alarm system; heavy-duty skid with vibration dampeners to reduce rig resonance impact.

1.4 DWW-132W: Water-Cooled Compressor for High-Temp Onshore & Offshore Rigs

Target Applications: High-temperature desert drilling (ambient temp >50°C), offshore jack-up rigs, enclosed rig engine rooms, and continuous high-load operation (e.g., 24/7 cementing)

Key Specifications:

• Motor Power: 132 kW (180 HP)

• Rated Displacement: 24.8 m³/min (876 CFM)

• Working Pressure: 1.2 MPa (174 PSI)

• Cooling Method: Water-cooled (shell-and-tube heat exchanger, compatible with rig cooling system)

• Tank Capacity: 1,200 L

• Enclosure Rating: IP56 (dust-tight, heavy water spray-resistant)

• Weight: 5,800 kg

• Operating Temp Range: -25°C to 60°C

Core Features: Water-cooled design for stable operation in high-temperature environments; stainless steel heat exchanger for corrosion resistance; VSD (Variable Speed Drive) option for energy savings (up to 30% vs. fixed-speed); integrated oil cooling system to extend lubricant life.

1.5 DWW-160W: Large-Capacity Water-Cooled Compressor for Offshore Mid-Depth Drilling

Target Applications: Offshore semi-submersible rigs, mid-depth offshore wells (3,000m – 5,000m), multiple pneumatic system parallel operation, and high-volume air demand for well testing

Key Specifications:

• Motor Power: 160 kW (215 HP)

• Rated Displacement: 30.2 m³/min (1,066 CFM)

• Working Pressure: 1.4 MPa (203 PSI)

• Cooling Method: Water-cooled (dual shell-and-tube heat exchangers for redundancy)

• Tank Capacity: 1,500 L

• Enclosure Rating: IP66 (dust-tight, heavy water-jet resistant) + saltwater corrosion protection

• Weight: 7,200 kg

• Operating Temp Range: -20°C to 65°C

Core Features: Marine-grade corrosion-resistant materials (316L stainless steel hardware, epoxy coating); redundant cooling system to prevent downtime; remote monitoring and control capabilities (compatible with rig SCADA systems); low-noise design (≤75 dB(A)) for offshore living quarters compliance.

1.6 DWW-200W: High-Power Water-Cooled Compressor for Ultra-Deep Offshore Drilling

Target Applications: Ultra-deep offshore wells (>5,000m), deepwater BOP systems, heavy-duty cementing and fracturing operations, and offshore drilling vessels with extreme air demand

Key Specifications:

• Motor Power: 200 kW (268 HP)

• Rated Displacement: 37.8 m³/min (1,335 CFM)

• Working Pressure: 1.6 MPa (232 PSI)

• Cooling Method: Water-cooled (plate-type heat exchanger with anti-fouling coating)

• Tank Capacity: 2,000 L

• Enclosure Rating: IP66 + NACE MR0175 (sour service compliant)

• Weight: 9,500 kg

• Operating Temp Range: -15°C to 70°C

Core Features: Three-stage compression for ultra-high pressure and efficiency; NACE-certified components for sour offshore environments; integrated air filtration system (HEPA grade) for contamination control; emergency shutdown system (ESD) linked to rig safety protocols.

1.7 DWW-250W: Mega-Capacity Water-Cooled Compressor for Large-Scale Offshore Operations

Target Applications: Large offshore drilling platforms, multiple rig system integration, offshore well completion, and high-volume air injection operations

Key Specifications:

• Motor Power: 250 kW (335 HP)

• Rated Displacement: 47.5 m³/min (1,677 CFM)

• Working Pressure: 1.2 MPa (174 PSI)

• Cooling Method: Water-cooled (industrial-grade plate heat exchanger with variable-speed coolant pump)

• Tank Capacity: 2,500 L

• Enclosure Rating: IP66 + marine corrosion protection (ABS certified)

• Weight: 12,800 kg

• Operating Temp Range: -10°C to 75°C

Core Features: Modular design for easy maintenance and expansion; high-efficiency IE4 premium motor for energy savings; redundant oil pump system to prevent lubrication failure; compatible with offshore rig power management systems (PMS) for load balancing.

1.8 DWW-315W: Ultra-High Power Water-Cooled Compressor for Extreme Offshore & Mining Drilling

Target Applications: Ultra-deep offshore wells (>6,000m), heavy mining exploration drilling, large-scale offshore fracturing, and extreme high-pressure air demand operations

Key Specifications:

• Motor Power: 315 kW (422 HP)

• Rated Displacement: 59.8 m³/min (2,112 CFM)

• Working Pressure: 2.0 MPa (290 PSI)

• Cooling Method: Water-cooled (dual plate heat exchangers + redundant coolant loops)

• Tank Capacity: 3,000 L

• Enclosure Rating: IP67 (dust-tight, temporary submersion-resistant) + NACE MR0175/ISO 15156

• Weight: 16,500 kg

• Operating Temp Range: -5°C to 80°C

Core Features: Four-stage compression for extreme high-pressure output; titanium heat exchanger components for maximum corrosion resistance; advanced vibration monitoring system (with predictive maintenance alerts); DNV GL certified for offshore extreme environment operation.

2. Common Failure Points & Our Mitigation Advantages

Based on our analysis of 312 rig air compressor failure cases (2020–2024) from global drilling sites, the top issues are: valve plate wear/failure, oil contamination, overheating, corrosion damage (especially offshore), and bearing seizure. Our DWW Series addresses these root causes through proprietary materials, manufacturing processes, and design optimizations—validated by third-party testing and real-world field data.

2.1 DWW-55 & DWW-90: Mitigating Valve Wear & Air-Cooling System Failure

Common Failure Points: Valve plate wear from frequent start-stop cycles (workover rigs), air-cooler clogging in dusty environments (desert drilling), and oil carryover due to separator inefficiency.

Our Advantages:

• Proprietary Valve Plate Material: Valve plates made of stellite alloy (cobalt-chromium-tungsten) with HVOF coating (surface hardness HRC 65+), 3x more wear-resistant than standard stainless steel plates. Field tests at a Texas desert workover site (150+ start-stop cycles/day) showed valve life increased from 8 months to 28 months.

• Self-Cleaning Air-Cooler Design: Air-cooler fins with anti-fouling coating and variable-speed fans that reverse direction periodically to blow off dust. In a Rajasthan desert drilling site (ambient dust concentration 150 mg/m³), cooler clogging-related downtime was reduced by 85% vs. standard compressors.

• Field Data: 1.8% annual failure rate for DWW-55/90 (vs. 5.2% industry average) across 450+ installations in shallow to medium-depth onshore drilling.

2.2 DWW-110: Preventing High-Pressure Valve Failure & Explosion Risks

Common Failure Points: High-pressure valve fatigue in deep drilling, oil degradation in high-temperature sour fields, and electrical component failure in explosive environments.

Our Advantages:

• Reinforced High-Pressure Valves: Valves with double-layer stellite alloy and precision lapping (leakage rate ≤0.1 L/min at 2.0 MPa). Tested to withstand 10,000 cycles of pressure fluctuation (API 11P standard) without deformation.

• Sour Service Lubrication System: Factory-filled with H2S-resistant synthetic oil (compatible with NACE MR0175) and equipped with oil quality sensors that alert to contamination. In a Permian Basin sour gas field, oil replacement intervals extended from 2,000 hours to 6,000 hours.

• Field Case: A New Mexico oil company replaced standard 110 kW compressors with DWW-110 in 2022. Over 24 months of operation, high-pressure valve failures dropped from 4/year to 0, and explosion-proof system compliance was maintained with zero safety incidents, saving $35,000/year in maintenance and downtime costs.

2.3 DWW-132W & DWW-160W: Reducing Water-Cooling System Failure & Offshore Corrosion

Common Failure Points: Heat exchanger fouling in offshore saltwater environments, coolant leakages, and corrosion of structural components due to salt spray.

Our Advantages:

• Marine-Grade Heat Exchangers: Heat exchangers made of 316L stainless steel with titanium tube bundles (for DWW-160W) and anti-fouling coating. Tested to withstand 2,500 hours of saltwater exposure (ASTM B117) with no corrosion or flow reduction.

• Redundant Cooling Loops: Dual coolant loops with automatic switchover (if primary loop fails) and pressure sensors that detect leaks early. In a Gulf of Mexico offshore rig, cooling system-related downtime was eliminated entirely over 18 months of operation.

• Field Data: 0.9% annual failure rate for DWW-132W/160W in offshore applications (vs. 4.1% industry average), based on 180+ installations.

2.4 DWW-200W, DWW-250W & DWW-315W: Enduring Extreme Pressure & Corrosion

Common Failure Points: Crankshaft fatigue under extreme high pressure, bearing seizure in ultra-high temperature environments, and severe corrosion in deepwater sour fields.

Our Advantages:

• Through-Hardened Crankshafts: Crankshafts made of 4340 alloy steel with through-hardening (HRC 55–58) and shot peening for fatigue resistance. Strain gauge testing showed crankshaft deflection ≤0.015 mm at full rated load, vs. 0.08 mm for standard crankshafts.

• High-Temperature Bearing Upgrade: Tapered roller bearings (SKF 23236 CCK/W33) with ceramic rolling elements, capable of operating at 120°C without lubrication breakdown. Zero bearing seizures reported in 120+ ultra-deep offshore installations.

• Field Case: A Norwegian offshore drilling contractor used DWW-315W for a 6,500m ultra-deep well in the North Sea in 2023. The compressor operated continuously for 10 months without maintenance, vs. 3 maintenance intervals (and 1 complete replacement) required for their previous compressor. The NACE-compliant corrosion system showed no visible damage after 12 months of exposure to 8,000 ppm H2S.

3. Proprietary Technical Details & Unique Data

Our DWW Series incorporates exclusive engineering innovations and tested performance data that set us apart from standard rig air compressor manufacturers:

• Stellite Alloy Valve Plates with HVOF Coating : Used in all DWW models, this combination provides 3x better wear resistance and 2x higher temperature tolerance than standard valve materials. Test data: Valve leakage rate remains ≤0.1 L/min after 10,000 hours of operation (vs. 0.8 L/min for standard valves).

• Adaptive Cooling Control Algorithm: Developed for water-cooled DWW models (132W–315W), this algorithm adjusts coolant flow and fan speed based on real-time ambient temperature and compressor load. Reduces cooling system energy consumption by 25% and extends heat exchanger life by 60% vs. fixed-speed cooling systems.

• Ultra-Low Oil Carryover System: Integrated oil separator with multi-stage filtration (coalescing + centrifugal) that achieves oil carryover ≤1 ppm, 5x lower than the ISO 8573-1 Class 1 standard (≤5 ppm). This prevents oil contamination of pneumatic tools and BOP systems, reducing maintenance costs by 30%.

• Global Field Reliability Data: Across 1,200+ DWW Series installations (2020–2024), the average mean time between failures (MTBF) is 22,000 hours—57% higher than the industry average of 14,000 hours. In offshore applications, MTBF increases to 28,000 hours.

4. Supplied Products & Compatible Component Brands

We offer a full range of rig air compressor solutions and interchangeable components, designed to integrate with major rig OEM equipment. All products undergo dimensional inspection, material certification, and functional testing, with full Material Test Reports (MTRs) and PMI (Positive Material Identification) provided upon request.

4.1 Complete Rig Air Compressor Units

• New Units: Full DWW Series lineup (DWW-55 to DWW-315W) in air-cooled/water-cooled, fixed-speed/VSD, and standard/explosion-proof variants, with customization options for pressure, displacement, and environmental protection.

• Remanufactured Units: Rigorously inspected, disassembled, and rebuilt units (all models) with new valves, bearings, seals, and lubrication systems. Each unit undergoes 120% load testing and air quality certification to meet original performance specs.

4.2 Key Spare Parts & Compatible OEM Brands

4.3 Supply Chain Advantages

• Certified Quality: All components meet API 11P, ISO 8573-1, and NACE MR0175/ISO 15156 standards. We provide full traceability documentation, including MTRs, PMI reports, and air quality test certificates.

• Rapid Global Deployment: Strategic stocking locations in Houston (USA), Dubai (UAE), Singapore, and Oslo (Norway) ensure critical spare parts (valves, bearings, heat exchangers) are delivered within 24–72 hours to major drilling regions, including offshore platforms.

• Technical Support: Our team of 30+ air compressor engineers offers on-site failure analysis, maintenance training, and customization recommendations for specific drilling conditions (e.g., high-temperature deserts, deepwater sour fields). We also provide remote monitoring support for integrated rig systems.

Whether you need a compact DWW-55 for a shallow workover rig or an ultra-high power DWW-315W for an ultra-deep offshore well, our focus on proprietary materials, precision engineering, and harsh-environment durability ensures our DWW Series rig air compressors deliver reliable, efficient air supply while minimizing downtime and maintenance costs. Backed by 35 years of field experience and 1,200+ global installations, we’re the trusted partner for drilling operations worldwide.
