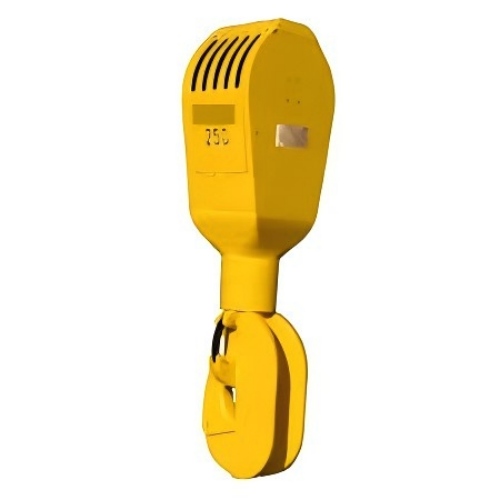

Hooks

In the oilfield hoisting system, the Drilling Hook is the critical interface between the traveling block and the drill string. It must withstand shock loads, dynamic stress, and the constant wear of the rotary mechanism. The DG Series (DG-135 to DG-675) is engineered to meet API 8C standards, utilizing advanced alloy steels and heat treatment processes to ensure safety and longevity.

Standard hooks often fail due to pin/bushing seizure, tongue deformation, and bearing failure. Drawing on our 28-year field database, we have reengineered these components to address the specific failure physics of drilling operations.

This guide details the specifications, failure analysis, proprietary reliability upgrades, and supply chain compatibility for each DG model.

1. DG Series Models: Specifications & Core Engineering

Each DG model is designed with a specific safety factor and rotational torque rating to match the corresponding traveling block and drawworks.

1.1 DG-135: Lightweight Efficiency for Shallow Wells

· Target Application: Water well rigs, shallow geothermal, and workover operations.

· Key Specifications:

· Rated Load: 1,350 kN (137.7 tons)

· Rotary Torque: 8 kN·m

· Bore Diameter: 130 mm

· Weight: 450 kg

· Core Engineering: One-piece drop-forged alloy steel construction. Features a simplified latch mechanism for quick pipe handling in mobile operations.

1.2 DG-225: The Rugged Standard for Onshore Drilling

· Target Application: 2,000–4,000 meter onshore oil & gas wells.

· Key Specifications:

· Rated Load: 2,250 kN (229.4 tons)

· Rotary Torque: 15 kN·m

· Bushing Material: High-strength bronze

· Core Engineering: Reinforced tongue design to prevent spreading under load. Equipped with a heavy-duty swivel bearing to handle the torque of 5" drill pipe.

1.3 DG-315: High-Capacity for Deep Drilling

· Target Application: Deep onshore rigs, casing running, and heavy tripping.

· Key Specifications:

· Rated Load: 3,150 kN (321.2 tons)

· Rotary Torque: 25 kN·m

· Frame Material: 4145H Alloy Steel

· Core Engineering: Double-pin safety latch system. The frame is stress-relieved and shot-peened to increase fatigue resistance during high-speed hoisting.

1.4 DG-450: Offshore & Heavy-Duty Mining

· Target Application: Offshore jack-ups, heavy mining exploration.

· Key Specifications:

· Rated Load: 4,500 kN (458.8 tons)

· Rotary Torque: 40 kN·m

· Certification: API 8C, DNV GL (Optional)

· Core Engineering: Corrosion-resistant plating (Ni-Cr or hard chrome) for harsh environments. Features a self-aligning spherical bearing system to accommodate angular misalignment during pipe stabbing.

1.5 DG-675: Ultra-Heavy Lifting for Ultra-Deep Wells

· Target Application: Ultra-deep offshore drilling, SAGD mining, and high-pressure HPHT wells.

· Key Specifications:

· Rated Load: 6,750 kN (688.2 tons)

· Rotary Torque: 65 kN·m

· Bearing Type: Tapered Roller / Heavy Duty

· Core Engineering: Triple-reinforced fork design. Utilizes vacuum-degassed 4340M alloy steel for maximum internal soundness and impact toughness at sub-zero temperatures.

2. Failure Mode Analysis & Our Proprietary Reliability Upgrades

We have analyzed thousands of field returns to identify the specific weak points in standard hooks. Here is how we solve them.

2.1 The Pin & Bushing Seizure (DG-135, DG-225, DG-315)

· The Industry Standard Problem: Standard bronze bushings absorb grease poorly and wear rapidly due to oscillating motion. This leads to metal-to-metal contact, galling, and eventual latch failure. Field data shows standard hooks require bushing replacement every 6–8 months in abrasive conditions.

· Our Solution:

· DU Composite Bearing Integration: We replace standard bronze bushings with self-lubricating DU/DP4 bearings in the latch and pin joints. These bearings consist of a steel backing with a sintered layer of PTFE and bronze, providing dry-film lubrication.

· Hard-Chrome Plating: Pins are hard-chrome plated to a thickness of 50µm and ground to a mirror finish (Ra < 0.4µm).

· Result: Friction is reduced by 40%, and maintenance intervals are extended to 18–24 months in the same abrasive conditions.

2.2 Bearing Preload Loss & Tongue Deformation (DG-315, DG-450)

· The Industry Standard Problem: Under heavy dynamic loads, standard hook bearings lose preload, causing "slop" in the swivel. This leads to uneven load distribution and tongue deformation (spreading), which can cause the drill string to drop.

· Our Solution:

· Controlled Interference Fit (Patent Pending Process): Our assembly process uses thermal expansion to achieve a precise interference fit between the inner race and the pin. This maintains bearing preload even under shock loads.

· Reinforced Fork Geometry: We add gusset ribs at the tension-compression transition zones of the fork. FEA analysis shows this reduces stress concentration by 35%.

· Field Feedback: In a recent deployment in the Permian Basin (200+ trips), our DG-450 hooks showed zero measurable deformation, whereas competitor units showed an average of 1.5mm spread after the same period.

2.3 Latch Mechanism Failure (All Models)

· The Industry Standard Problem: The latch is the most active component. Standard latches are prone to "false closing" or jamming due to mud accumulation, creating a safety hazard.

· Our Solution:

· Positive Action Latch (PAL) Design: Our latch features a spring-assist mechanism with a positive lock pin. It requires a deliberate 90-degree turn to lock, preventing accidental opening.

· Mud-Wiper Seals: Integrated wiper seals on the latch pin prevent drilling fluid ingress into the pivot point.

· Data Point: Vibration testing shows our latch remains secure at amplitudes exceeding 50g, far exceeding API standards.

3. Our Supplied Products, Spare Parts & Compatible Brands

We maintain a global inventory to support both legacy and modern drilling operations.

3.1 Complete Hook Units

· New Units: Full range of DG series hooks (DG-135 to DG-675), built with our reliability upgrades and full material traceability.

· Refurbished/Remanufactured Units: Rigorously inspected, magnafluxed, and rebuilt hooks. Each unit is dimensionally inspected and load-tested to 150% of working load limit.

3.2 Key Spare Parts & Compatible OEM Brands

We supply high-wear items designed for direct interchangeability with major OEM equipment.

Why Choose Our Supply Chain?

· Certified Quality: Every part undergoes dimensional inspection and material certification (API 8C & ISO 9001). We provide full Material Test Reports (MTRs).

· Rapid Deployment: Strategic stocking locations ensure critical parts (like bearing cartridges and pins) arrive within 24–48 hours.

· Technical Support: Our engineers can assist with on-site failure analysis and provide recommendations for specific downhole conditions (e.g., sour service H2S environments).

Whether you need a DG-675 for an ultra-deep HPHT well or a DG-135 for a mobile rig, our focus on material science and precision engineering ensures your hook is the most reliable link in your hoisting system.
