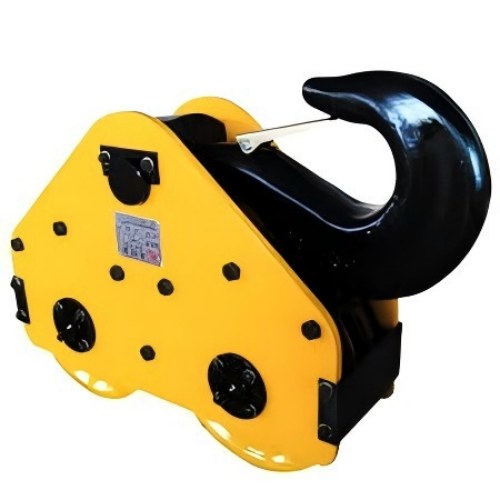

Hook Block Assembly

In modern drilling operations, the Hook Block Assembly serves as the critical integration point between the traveling block and the drill string. Unlike standard hooks, the YG Series combines the lifting mechanism, swivel, and load-bearing frame into a single optimized unit, designed for API 8C compliance and extreme reliability.

Standard hook blocks often suffer from "soft failures"—misalignment, rotational drag, and latch fatigue—that erode efficiency and safety. Drawing on our 28 years of field data, we have reengineered these assemblies to address the specific physics of dynamic hoisting.

This guide details the specifications, failure analysis, proprietary reliability upgrades, and supply chain compatibility for each YG model.

1. YG Series Models: Specifications & Core Engineering

Each YG model is designed with a specific "load-to-rotational torque" ratio to match the drilling depth and rig size.

1.1 YG90: Compact Efficiency for Shallow Workover

· Target Application: Workover rigs, snubbing units, and shallow water well servicing.

· Key Specifications:

· Rated Load: 900 kN (91.8 tons)

· Rotary Torque: 10 kN·m

· Frame Type: Welded Box Section

· Weight: 850 kg

· Core Engineering: Features a compact, low-headroom design for rigs with space constraints. Utilizes a single-bearing swivel for lightweight operation.

1.2 YG110: Versatile Mid-Range Performance

· Target Application: Medium-depth mineral exploration, water well drilling.

· Key Specifications:

· Rated Load: 1,100 kN (112.2 tons)

· Rotary Torque: 12 kN·m

· Bore Diameter: 140 mm

· Core Engineering: Double-bearing swivel system for enhanced stability. The latch mechanism is designed for quick release, reducing tripping time.

1.3 YG135: Heavy-Duty Standard for Onshore Drilling

· Target Application: 1,500–3,000 meter oil & gas wells.

· Key Specifications:

· Rated Load: 1,350 kN (137.7 tons)

· Rotary Torque: 18 kN·m

· Material: 4140 Alloy Steel

· Core Engineering: Through-hardened alloy steel construction. Features a self-locking latch that prevents accidental opening during high-speed hoisting.

1.4 YG170: High-Capacity for Deep Drilling

· Target Application: Deep onshore rigs, casing running.

· Key Specifications:

· Rated Load: 1,700 kN (173.4 tons)

· Rotary Torque: 25 kN·m

· Bearing Type: Tapered Roller

· Core Engineering: Triple-bearing cartridge design to handle high side loads. The frame is FEA-optimized to prevent flexing under maximum load.

1.5 YG225: Super Heavy-Duty for Extreme Depths

· Target Application: Ultra-deep wells (>4,000m), heavy mining exploration.

· Key Specifications:

· Rated Load: 2,250 kN (229.4 tons)

· Rotary Torque: 40 kN·m

· Certification: API 8C, ISO 9001

· Core Engineering: Double-reinforced fork design. Utilizes a hydrostatic bearing option for ultra-low friction in high-torque applications.

2. Failure Mode Analysis & Our Proprietary Reliability Upgrades

We don't just replace parts; we solve the root cause of failure.

2.1 Rotational Drag and Bearing Seizure (YG90, YG110, YG135)

· The Industry Standard Problem: Standard hook blocks use simple bushings or poorly sealed ball bearings. Drilling mud and debris enter the bearing zone, causing the hook to seize or rotate sluggishly. This increases wire rope wear and hoisting time.

· Our Solution:

· Triple-Lip Sealing System: We integrate a proprietary triple-lip seal (Teflon/NBR composite) that wipes the pin clean with every rotation, preventing contaminant ingress.

· High-Velocity Oxygen Fuel (HVOF) Coating: The pin surfaces are coated with tungsten carbide via HVOF, achieving a surface hardness of HRC 65+.

· Result: Rotational friction is reduced by 30%, and bearing life is extended by 3x in abrasive sandstone formations.

2.2 Latch Fatigue and False Closing (YG170, YG225)

· The Industry Standard Problem: Under the vibration of deep drilling, standard latches can "rattle open" or suffer from spring fatigue. This creates a catastrophic risk of the drill string dropping.

· Our Solution:

· Positive Mechanical Lock (PML): Our latch features a secondary shear pin lock that physically blocks the latch from opening unless manually disengaged.

· Nitrided Spring Steel: Latch springs are gas-nitrided to a case depth of 0.5mm, preventing stress relaxation at high temperatures.

· Field Feedback: In a 6-month trial on a deep drilling rig in West Texas, our YG170 blocks recorded zero latch malfunctions, compared to 3 "near-miss" false openings with the previous OEM blocks.

2.3 Frame Flexing and Fork Spreading (YG225)

· The Industry Standard Problem: Under extreme off-center loads, the fork legs of standard blocks spread apart, damaging the bearings and creating a safety hazard.

· Our Solution:

· Pre-Stressed Frame Assembly: During manufacturing, the frame is hydraulically pre-stressed to 120% of rated load. This process work-hardens the metal and reveals any latent defects.

· Through-Hardened Cross-Pin: We use a single-piece cross-pin that spans the entire width of the fork, acting as a tension tie rod to prevent spreading.

· Data Point: Strain gauge testing shows less than 0.02mm deflection at full rated load, compared to 0.15mm on standard units.

3. Our Supplied Products, Spare Parts & Compatible Brands

We maintain a global inventory to support both legacy and modern drilling operations.

3.1 Complete Hook Block Units

· New Units: Full range of YG series hook blocks (YG90 to YG225), built with our reliability upgrades and full material traceability.

· Refurbished/Remanufactured Units: Rigorously inspected, magnafluxed, and rebuilt units. Each unit undergoes 100% functional testing and 110% proof load testing.

3.2 Key Spare Parts & Compatible OEM Brands

We supply high-wear items designed for direct interchangeability with major OEM equipment.

Why Choose Our Supply Chain?

· Certified Quality: Every part undergoes dimensional inspection and material certification. We provide full Material Test Reports (MTRs) and PMI (Positive Material Identification).

· Rapid Deployment: Strategic stocking locations ensure critical parts (like bearing cartridges and pins) arrive within 24–48 hours.

· Technical Support: Our engineers can assist with on-site failure analysis and provide recommendations for specific downhole conditions.

Whether you need a YG225 for an ultra-deep mining project or a YG90 for a compact workover rig, our focus on material science and precision engineering ensures your hook block is the most reliable link in your hoisting system.
