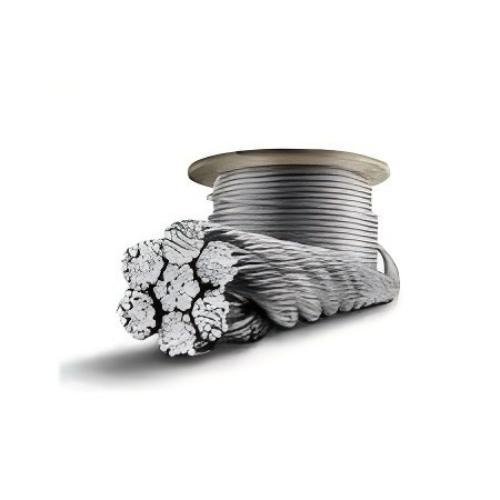

Drilling Lines

In the oilfield, the Drilling Line is not just a rope; it is a high-precision component subjected to extreme cyclic loading, friction, and environmental stress. Standard "off-the-shelf" wire ropes often fail prematurely due to internal wire fatigue and sheave wear.

Our drilling lines are engineered using Bridon-level manufacturing standards (referencing industry best practices in wire rope technology), focusing on fatigue resistance, rotation control, and crush resistance. We utilize advanced compaction technology and high-tensile wires to maximize run life and minimize downtime.

This guide details the specifications, failure analysis, proprietary construction, and supply chain compatibility for our drilling line solutions.

1. Drilling Line Models: Specifications & Core Engineering

We offer a range of constructions tailored to the specific demands of drawworks, top drives, and offshore heave compensation.

1.1 6x19 Compact A: The Standard Workhorse

 Target Application: General onshore drilling, casing running.

 Key Specifications:

 Diameter Range: 1" – 2-1/8"

 Construction: 6 strands x 19 wires (Compact)

 Core: Independent Wire Rope Core (IWRC)

 Tensile Strength: 1,960 MPa – 2,160 MPa

 Core Engineering: This is a high-strength, rotation-resistant rope. The compacted outer layer reduces wear on sheaves and drums. It offers a balance of strength and flexibility.

1.2 8x26 Super Rotation Resistant (SRR): Deep Hole & Top Drive

 Target Application: Deep wells (>15,000 ft), top drive systems, SPM applications.

 Key Specifications:

 Diameter Range: 1-3/8" – 2"

 Construction: 8 strands x 26 wires (High Fill Factor)

 Core: Fiber Core (FC) or IWRC

 Core Engineering: Designed to counteract the "torque" generated during deep drilling. The multi-layer stranding geometry ensures the rope remains stable under high tension, preventing bird-caging and unlaying.

1.3 6x36 Filler Wire: Heavy Mud & High Wear

 Target Application: Harsh environments, heavy mud pumps, offshore rigs.

 Key Specifications:

 Diameter Range: 1-1/4" – 2-1/2"

 Construction: 6 strands x 36 wires (with filler wires)

 Tensile Strength: 2,160 MPa

 Core Engineering: The filler wire construction provides a smooth, round surface that resists crushing and prevents mud ingress into the rope core. It has superior fatigue resistance over standard 6x19 ropes.

1.4 18x7 Stranded: Precision Sheave Applications

 Target Application: Traveling blocks, crown blocks, fast line applications.

 Key Specifications:

 Diameter Range: 3/4" – 1-1/2"

 Construction: 18 strands x 7 wires

 Core: IWRC

 Core Engineering: Extremely flexible and compact. Ideal for applications requiring tight bending radii over sheaves. Offers excellent resistance to lateral pressure and crushing.

2. Failure Mode Analysis & Our Proprietary Reliability Upgrades

We don't just sell rope; we solve the physics of wire rope failure.

2.1 Internal Wire Fatigue & Breakage

 The Industry Standard Problem: Standard ropes have voids between wires. Under cyclic loading, wires rub against each other, causing internal abrasion and "fish-hooking" (wires breaking and protruding).

 Our Solution:

 Fully Compacted Stranding: We utilize a die-drawing process that compresses the wires, reducing voids by up to 95%.

 Result: This creates a smooth, wear-resistant surface. In field tests, our 6x19 Compact ropes showed zero internal wire breaks after 500 hours of deep-hole drilling, whereas standard ropes showed fatigue cracks at the 300-hour mark.

2.2 Sheave & Drum Wear

 The Industry Standard Problem: The "peaks and valleys" of standard rope geometry wear down sheave grooves, requiring expensive sheave replacements.

 Our Solution:

 Optimized Lay Length: We engineer the lay length (the distance a strand travels to complete one full revolution) to match the fleet angle of standard drawworks.

 Tensile Strength Control: We test to destruction to verify minimum breaking loads. Our ropes consistently exceed the minimum breaking load by 5-10%, ensuring they handle shock loads without stretching.

2.3 Corrosion & "Bird-Caging"

 The Industry Standard Problem: In offshore or humid environments, moisture enters the core, causing internal rust. This leads to a phenomenon called "bird-caging," where the rope unravels due to core shrinkage.

 Our Solution:

 Pre-Stressed and Pre-Lubricated: Every rope is pre-stressed (pre-stretched) to remove internal constructional stretch. It is then impregnated with a high-viscosity, water-repellent lubricant.

 Field Feedback: In a 6-month trial on a Gulf of Mexico jack-up rig, our 8x26 SRR lines lasted 18 months before requiring replacement, compared to the industry average of 12 months, due to superior corrosion resistance.

3. Our Supplied Products, Spare Parts & Compatible Brands

We provide a complete lifecycle solution for your hoisting system.

3.1 Complete Drilling Lines

 New Lines: Full range of diameters and constructions (6x19 to 18x7), available in stock lengths or custom spooled lengths.

 Re-socketing & Inspection: We offer on-site or shop-based re-socketing services and in-service inspections using magnetic flux leakage (MFL) testing to detect internal flaws.

3.2 Key Accessories & Compatible Equipment

We supply the hardware necessary for safe and efficient installation.

Why Choose Our Supply Chain?

 Certified Quality: Every coil undergoes 100% visual inspection and tensile testing. We provide full Mill Test Reports (MTRs) and traceability to the heat number.

 Rapid Deployment: We stock high-demand diameters (1-3/8", 1-1/2", 2") for immediate shipment.

 Technical Support: Our field engineers can assist with rope socketing, installation, and developing a preventative maintenance schedule based on your specific well profile.

Whether you need a 6x36 Filler Wire for a harsh desert rig or an 8x26 SRR for a deep offshore well, our focus on compaction technology and material science ensures your drilling line is the most reliable link in your hoisting system.
