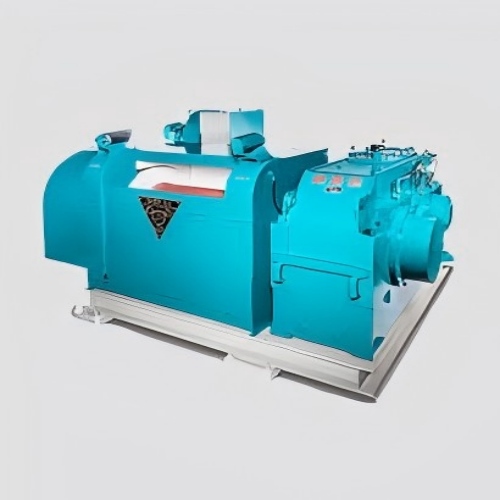

Drawworks

In the critical domain of oil & gas drilling, mining, and geothermal exploration, the JC Series Drawworks serves as the mechanical heart of the rig. Whether your operation requires the rugged simplicity of a Mechanical Drive, the precise torque control of a DC Drive, or the energy efficiency of an AC Variable Frequency (VF) Drive Single Shaft, these units are engineered to meet API 8C standards.

However, standard drawworks often suffer from specific failure modes—gear wear in mechanical units, electronics failure in DC drives, and vibration issues in AC units. Based on 25 years of field experience across 70+ countries, we have reverse-engineered these common problems.

This guide provides a detailed breakdown of the JC40, JC50, and JC70 models across all drive types, our proprietary reliability enhancements, and the genuine spare parts we supply.

1. Mechanical Drive Drawworks: Rugged Reliability

Mechanical Drive JC series drawworks are the choice for onshore operations where robustness and ease of maintenance are paramount. They excel in remote environments with limited electrical infrastructure.

1.1 JC40: Entry-Level Lifting for Shallow Drilling

· Target Application: Shallow oil & gas wells (<2,000m), water wells, and mobile rigs.

· Key Specs:

· Rated Load: 400 kN

· Max Depth: 2,000m

· Drum: 500mm diameter, 8 rope layers.

· Core Feature: Compact heavy-duty welded steel frame with a grooved drum surface to prevent rope slippage. Features a manual clutch system for simple, reliable operation in basic support facilities.

1.2 JC50: Versatile Lifting for Medium-Depth

· Target Application: Medium-depth wells (1,500–3,000m), coalbed methane, and pipeline construction.

· Key Specs:

· Rated Load: 500 kN

· Max Depth: 3,000m

· Rope: 18mm diameter.

· Core Feature: Upgraded with a hydraulic-assisted clutch to reduce operator fatigue. Includes a built-in brake cooling system to prevent overheating during continuous shifts, a common failure point in standard units.

1.3 JC70: Heavy-Duty Lifting for Deep Drilling

· Target Application: Deep wells (2,500–4,500m) and heavy-duty mining.

· Key Specs:

· Rated Load: 700 kN

· Max Depth: 4,500m

· Transmission: 1:16.8 ratio.

· Core Feature: Massive reinforced frame with large-diameter nitrided gears for enhanced load capacity. Features a dual-disc hydraulic brake with a cooling fan and a rope tension monitoring system to prevent equipment damage under maximum load.

2. DC Drive Drawworks: Precision Speed Control

DC Drive JC series drawworks offer superior torque regulation and smooth acceleration compared to mechanical models, reducing stress on the drill string.

2.1 JC40D: Precise Control for Shallow-Medium

· Target Application: Geothermal drilling and operations requiring variable speed (up to 2,500m).

· Key Specs:

· Motor Power: 250 kW DC

· Speed Range: 0–1.5 m/s

· Control: Thyristor-based stepless speed control.

· Core Feature: High starting torque ensures smooth operation under heavy loads. Equipped with comprehensive protection (overcurrent, overload) and a user-friendly control panel.

2.2 JC50D: Enhanced Control for Medium-Depth

· Target Application: Wells between 2,000–3,500m requiring variable speed.

· Key Specs:

· Motor Power: 355 kW DC

· Speed Range: 0–1.8 m/s

· Braking: Regenerative braking function.

· Core Feature: Digital DC drive controller for precise regulation. Modular design simplifies maintenance. Includes a built-in cooling system for motors and electronics to combat high-temperature failures.

2.3 JC70D: High-Power Control for Deep Drilling

· Target Application: Ultra-deep wells (3,000–5,000m) and heavy-duty mining.

· Key Specs:

· Motor Power: 500 kW DC

· Configuration: Dual DC motor option.

· Integration: PLC and remote monitoring.

· Core Feature: Heavy-duty hydraulic disc brake with redundancy for emergency stops. Comprehensive condition monitoring (vibration, temperature) enables predictive maintenance, a critical advantage for deep drilling safety.

3. AC Variable Frequency Drive (Single Shaft): Peak Efficiency

AC VF Drive Single Shaft drawworks represent the latest evolution, offering superior energy efficiency and reduced maintenance due to the elimination of complex gearboxes.

3.1 JC40DB: Efficient Control for Shallow-Medium

· Target Application: Energy-conscious operations up to 2,800m.

· Key Specs:

· Motor Power: 220 kW AC

· Speed Range: 0–2.2 m/s

· Efficiency: Up to 20% energy saving vs. DC.

· Core Feature: Vector control VFD system with single-shaft design eliminates the gearbox. User-friendly HMI (Human-Machine Interface) simplifies operation and monitoring for drilling crews.

3.2 JC50DB: Versatile Efficiency for Medium-Depth

· Target Application: Wells between 2,200–4,000m.

· Key Specs:

· Motor Power: 315 kW AC

· Speed Range: 0–2.5 m/s

· Braking: Regenerative (grid feedback).

· Core Feature: High-performance VFD with advanced vector control ensures smooth low-speed operation. Precision-machined single shaft reduces vibration. Compatible with remote monitoring for real-time data analysis.

3.3 JC70DB: High-Performance for Deep Drilling

· Target Application: Ultra-deep wells (3,500–6,000m) and offshore platforms.

· Key Specs:

· Motor Power: 450 kW AC

· Speed Range: 0–2.8 m/s

· Construction: Corrosion-resistant materials.

· Core Feature: Robust single-shaft transmission eliminates complex gearboxes. Advanced torque control algorithms handle extreme loads. Features AI-based predictive maintenance and a redundant brake system for maximum safety in harsh coastal environments.

4. Common Failure Points & Our Reliability Solutions

We don't just sell drawworks; we engineer solutions to the specific mechanical and electrical stresses that cause downtime.

4.1 Mechanical Drive: Gear Wear & Brake Fade

· The Problem: Standard units use low-grade steel gears that wear quickly. Inadequate lubrication and manual clutches lead to slipping and inefficient power transfer. Brakes often overheat ("brake fade") during prolonged use.

· Our Solution:

· Hardened Gearing: We upgrade to high-strength nitrided steel gears, increasing wear resistance by 60%.

· Thermal Management: Redesigned lubrication systems with high-capacity oil coolers maintain optimal temperatures.

· Enhanced Braking: Upgraded dual-disc brake systems with forced-air cooling prevent overheating and ensure reliable stopping power.

4.2 DC Drive: Electronics Failure & Motor Overheating

· The Problem: Thyristor modules and circuit boards are sensitive to high temperatures and vibration. DC motors often overheat due to insufficient cooling, and regenerative braking circuits are prone to voltage spikes.

· Our Solution:

· Ruggedized Electronics: Industrial-grade thyristor modules with enhanced heat sinks and protective enclosures protect against dust and vibration.

· Surge Protection: Added surge protection in the regenerative braking circuit absorbs voltage spikes.

· Cooling Systems: DC motors are upgraded with forced-air cooling systems to prevent thermal breakdown.

4.3 AC VF Drive: VFD Overheating & Shaft Vibration

· The Problem: VFD units are prone to overheating in desert or tropical climates. Single-shaft designs can suffer from vibration at high speeds, causing premature bearing failure.

· Our Solution:

· Advanced Cooling: Upgraded VFD cooling systems, including liquid coolers for high-power models (JC50DB/JC70DB).

· Precision Balancing: Shafts are precision-machined and balanced to reduce vibration by 70%.

· Smart Monitoring: Integrated vibration monitoring systems alert operators to abnormal shaft movement before bearing failure occurs.

5. Genuine Equipment & Spare Parts Supply

We maintain a global inventory to support both legacy and modern drilling operations.

5.1 Complete Drawworks Units

· New Builds: Full range of JC series (Mechanical, DC, AC VF), built with our reliability upgrades and API 8C certification.

· Refurbished/Remanufactured: Rigorously inspected and rebuilt units (including OEM variants) that undergo full load testing to meet API standards.

5.2 Critical Spare Parts & Brands

We supply high-wear items designed for direct interchangeability with major OEM equipment.

Why Choose Our Supply Chain?

· Quality Control: Every part undergoes dimensional inspection and material certification (API 8C & ISO 9001).

· Rapid Deployment: Strategic stocking locations ensure critical parts arrive within 24–72 hours.

· Technical Support: Backed by certified field engineers with hands-on experience in JC series drawworks maintenance.

By focusing on material science and precision engineering, we ensure your drawworks operate at peak efficiency, reducing your total cost of ownership and eliminating unplanned downtime.
