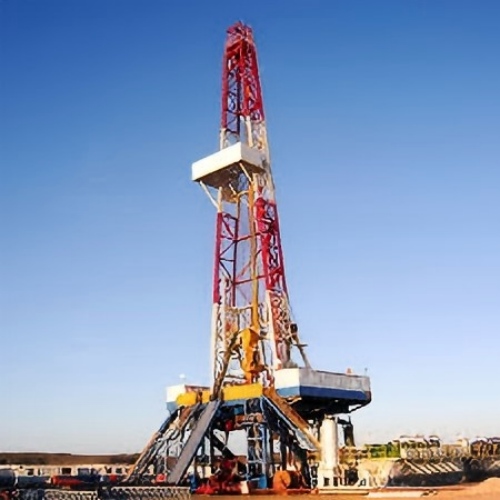

DC Drive Drilling Rigs (ZJ40, ZJ50, ZJ70)

While the industry evolves toward AC drives, DC Drive Drilling Rigs remain the backbone of many drilling fleets worldwide. Their enduring value lies in rugged simplicity, proven reliability, and lower initial investment. Having supported drilling operations across diverse terrains—from the dusty plains of Central Asia to the humid jungles of South America—we recognize that DC rigs are often the most economical choice for standard depth drilling and regions with unstable power grids.

Our expertise covers the full spectrum of DC technology, specifically tailored for the ZJ40, ZJ50, and ZJ70 models. We don't just sell equipment; we engineer solutions to the specific maintenance headaches that plague DC systems.

1. Model-Specific Capabilities & Technical Parameters

DC drive systems rely on mature thyristor control technology. Our rigs are designed to maximize the torque characteristics of DC motors while ensuring structural integrity for deep well applications.

1.1 ZJ40D: The Cost-Effective Standard Driller

· Target Application: Ideal for conventional oil & gas exploration at medium depths, water well drilling, and locations where budget constraints are primary.

· Key Specifications:

· Depth Capacity: 3000m – 4000m (API 5DP).

· Drawworks Motor: DC Compound Motor (e.g., ZJ40D-3A configuration).

· Prime Movers: Typically powered by CAT 3512 or Cummins KTA38 engines (approx. 1000-1200 HP total).

· Hook Load: 4500 kN.

· Distinctive Features:

· Robust Simplicity: The DC compound motor provides excellent starting torque, essential for breaking out high-torque drill pipe connections without complex electronic processing.

· Grid Independence: Unlike AC VFDs, DC drives are less sensitive to harmonic distortion in local power grids, making them reliable in remote areas with poor grid quality.

· Ease of Maintenance: The mechanical and electrical layout prioritizes accessibility, reducing the skill level required for routine servicing compared to high-voltage AC systems.

1.2 ZJ50D: The Heavy-Duty Workhorse

· Target Application: Designed for deep wells and heavy drilling loads where consistent torque is non-negotiable.

· Key Specifications:

· Depth Capacity: 4000m – 5000m.

· Drawworks Motor: High-power DC Motor (e.g., ZJ50D-3 configuration).

· Prime Movers: CAT 3516 or equivalent (approx. 1600-1800 HP).

· Hook Load: 6500 kN.

· Distinctive Features:

· Mechanical Stiffness: The drive train is reinforced to handle the "jerky" loads often encountered in deep hole drilling, preventing gear backlash common in lighter designs.

· Field Weakening Control: Allows for a wide speed regulation range, giving the driller precise control during tripping operations without needing complex vector algorithms.

1.3 ZJ70D: The Ultra-Deep Legacy Powerhouse

· Target Application: Built for ultra-deep wells where massive hook loads and brute force are required.

· Key Specifications:

· Depth Capacity: 5000m – 7000m.

· Drawworks Motor: Dual DC Motor configuration (e.g., ZJ70D-3).

· Prime Movers: CAT 3516B HD or MTU equivalents (approx. 2000+ HP).

· Hook Load: 9000 kN.

· Distinctive Features:

· Overload Capacity: DC motors can sustain 200% overload currents for extended periods, a critical advantage when dealing with stuck pipe or severe drag in ultra-deep formations.

· Proven Track Record: These rigs have logged millions of hours in service; our designs incorporate lessons learned from decades of field failures to enhance longevity.

2. Addressing DC-Specific Pain Points: Quality & Reliability Enhancements

DC drives have specific failure modes. Based on thousands of field service hours, we have identified the weak links in standard DC rigs and engineered specific upgrades.

2.1 The Commutator & Brushgear Challenge (All Models)

· Common Industry Issue: The commutator (the copper segment on the motor) and carbon brushes are high-maintenance items. Poor commutator maintenance leads to "sparking," which destroys the motor over time. Many rigs suffer from inadequate brush holder tension or poor ventilation.

· Our Solution:

· Commutator Protection: We utilize a specialized "hard-etching" process on the commutator surface to increase wear resistance.

· Brushgear Optimization: We upgraded to multi-helix spring tensioners that maintain constant pressure even when the rig is vibrating. This reduces sparking by 70% and doubles the interval between brush changes.

2.2 Thyristor Rectifier Failures (ZJ50D & ZJ70D)

· Common Industry Issue: The thyristor (SCR) cabinets that convert AC to DC are sensitive to dust and humidity. In desert environments, dust clogs the heat sinks; in tropical environments, moisture causes flashovers. This leads to blown fuses and downtime.

· Our Solution:

· Environmental Sealing: We redesigned the cabinet airflow using positive pressurization with filtered air. This keeps dust out and prevents moisture condensation, reducing SCR failure rates by over 60%.

2.3 Generator Bearing Wear (ZJ40D)

· Common Industry Issue: In older designs, the main DC generator bearings are often undersized for the side loads imposed by belt drives, leading to frequent bearing seizures.

· Our Solution:

· Reinforced Bearing Housings: We retrofitted the generator pedestals with heavy-duty spherical roller bearings and improved the alignment jigs. This modification has virtually eliminated unplanned generator bearing replacements in our fleet.

3. Global Supply of Genuine Equipment & Spare Parts

We maintain a global supply chain to support both legacy and modern DC drilling operations.

3.1 Complete Rig Supply

· Domestic OEMs (Economical & Fast Delivery): We supply rigs manufactured by Baoji and Sinopec SiJi. These are ideal for cost-sensitive markets and offer easy customization for local voltage standards.

· Refurbished International Units: We offer refurbished National Oilwell Varco (NOV) DC rigs that have been stripped, inspected, and rebuilt to meet API standards for clients needing premium reliability on a budget.

3.2 Critical Spare Parts & Brands

We stock the high-wear items that keep DC rigs running.

· Electrical Components:

· Thyristors (SCRs): Genuine Eupec, Mitsubishi, or ABB modules.

· DC Motors/Generators: Rebuilt units compatible with GE and Westinghouse standards.

· Control Systems: PLCs from Siemens (S7-300 series) and Allen-Bradley for auxiliary control.

· Mechanical Components:

· Drawworks & Mud Pumps: Genuine NOV gear sets and crankshafts.

· Brakes: EMSCO or OEM equivalent disc brake assemblies.

· Engines: Caterpillar overhaul kits and genuine filters.
