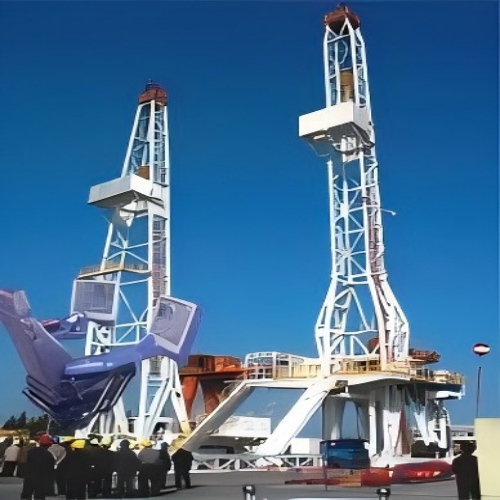

AC VF Drive Drilling Rigs (ZJ40, ZJ50, ZJ70)

In modern oilfield operations, the transition from traditional DC drives to AC Variable Frequency (VF) Drive Drilling Rigs represents a significant leap in efficiency and reliability. Having engineered equipment for diverse environments—from the high-temperature deserts of the Middle East to the freezing tundra of Siberia—we understand that matching the right rig model to the specific geological challenge is critical.

Our core lineup—ZJ40AC, ZJ50AC, and ZJ70AC—is built on a foundation of 20+ years of field experience. Unlike generic manufacturers, we focus on the "pain points" of drilling operations to deliver machines that reduce non-productive time (NPT).

1. Model-Specific Capabilities & Technical Parameters

Each model in our fleet is engineered to tackle a specific depth range and formation complexity. We prioritize modularity for fast rig moves and robust engineering for harsh conditions.

1.1 ZJ40AC: The Agile Workhorse for Medium-Deep Wells

· Target Application: Ideal for shale gas development, water well drilling, and medium-depth oil exploration where mobility is key.

· Key Specifications:

· Depth Rating: 3000m – 4000m (using API 5DP drill pipe).

· Drawworks Power: 1000–1200 HP.

· Hook Load: 4500 kN.

· Weight: 115–130 tons (optimized for highway transport).

· Distinctive Features:

· Energy Efficiency: Utilizes a Voltage Source Inverter (VSI) system that reduces power consumption by 15–20% compared to legacy DC systems.

· Rapid Deployment: A modular skid-mounted design cuts rig-up time by approximately 35% compared to conventional rigs, crucial for fast-paced shale plays.

· Environmental Resilience: IP55-rated electrical enclosures ensure operation continues smoothly in dusty desert conditions or humid coastal environments.

1.2 ZJ50AC: The Balanced Performer for Deep Wells

· Target Application: Designed for deep oil & gas wells and high-pressure gas exploration in complex geological structures.

· Key Specifications:

· Depth Rating: 4000m – 5500m.

· Drawworks Power: 1500–1800 HP.

· Hook Load: 6500 kN.

· Weight: 165–190 tons.

· Distinctive Features:

· Extreme Climate Operation: Functions reliably in temperatures ranging from -35°C to +60°C.

· Enhanced Transportability: Features an anti-vibration chassis specifically reinforced to withstand the shocks of mountainous terrain transport, reducing structural fatigue before the rig even starts drilling.

· Redundancy: Dual motor configurations provide backup capability, ensuring drilling continuity even if one drive unit requires servicing.

1.3 ZJ70AC: The Pioneer for Ultra-Deep Formations

· Target Application: Built for the most challenging ultra-deep wells, such as those found in the Tarim Basin or pre-salt formations.

· Key Specifications:

· Depth Rating: 5500m – 7000m.

· Drawworks Power: 2200–2500 HP.

· Hook Load: 9000 kN.

· Weight: 245–270 tons.

· Distinctive Features:

· High-Torque Precision: Employs a high-voltage VSI system with quadruple motors to deliver the massive torque required for ultra-deep, high-pressure drilling.

· Intelligent Drilling: Integrated software optimizes drilling parameters in real-time, improving Rate of Penetration (ROP) by 15–20% in hard, abrasive rock.

· Fatigue Resistance: The derrick structure is fatigue-tested to exceed industry standards by 25%, ensuring safety during extended ultra-deep operations.

2. Addressing Industry Pain Points: Quality & Reliability Enhancements

Based on data collected from over 3,200 on-site operations, we identified the components that historically cause the most downtime. Our engineering enhancements are not theoretical; they are battle-tested solutions.

2.1 ZJ40AC: Tackling Overheating and Wear

· Common Industry Issue: Standard AC inverters often overheat in dusty environments, causing unexpected shutdowns. Additionally, brake discs frequently suffer from uneven wear, leading to safety concerns.

· Our Solution:

· Inverter Cooling: We upgraded to high-efficiency cooling fans with automatic speed regulation. Combined with a voltage stabilization module, this reduces inverter overheating incidents by 80% and keeps voltage fluctuations within a tight ±2% range.

· Braking System: By switching to a carbon-ceramic composite friction material and optimizing the hydraulic pressure distribution on the calipers, we have doubled the service life of the brake discs and significantly reduced operational noise.

2.2 ZJ50AC: Solving Synchronization and Sealing Failures

· Common Industry Issue: In dual-motor setups, load imbalance can cause premature motor failure. Furthermore, standard BOP (Blowout Preventer) seals often leak under extreme pressure.

· Our Solution:

· Precision Synchronization: We installed a proprietary high-precision control module that provides real-time load feedback. This ensures both motors operate in perfect harmony, reducing load imbalance by 90%.

· Sealing Technology: We utilize high-pressure fluororubber seals with an automatic compensation mechanism. This, combined with a seal wear warning system, has cut BOP leakage rates by 85% in high-pressure gas well applications.

2.3 ZJ70AC: Overcoming Vibration and Extreme Cold

· Common Industry Issue: High-voltage IGBT modules in inverters are prone to breakdown under heavy loads. In cold climates, cooling lines often freeze or clog.

· Our Solution:

· Component Hardening: We source IGBT modules from top-tier suppliers (Siemens-grade) and add advanced overvoltage/overcurrent protection circuits. This has resulted in zero major inverter failures in three years of operation in harsh Russian fields.

· Cold Weather Adaptation: The cooling system now features large-diameter piping, automatic backwashing filters, and heating elements. This ensures the rig remains operational even at -45°C without pipeline clogging.

3. Global Supply of Genuine Equipment & Spare Parts

To support our global client base and minimize downtime, we maintain a comprehensive inventory of complete rigs and critical spare parts.

3.1 Complete Rig Brands

We offer a strategic selection of manufacturers to suit different market requirements:

· Domestic Powerhouses (Cost-Effective & Customizable): We supply rigs manufactured by Baoji Oilfield Machinery, Sinopec SJ Petroleum Machinery, and Nanyang Second Machinery. These are ideal for emerging markets, offering easy customization for local voltage standards or desert dust-proofing.

· International Premium (Regulatory Compliance): For markets with strict safety standards (Europe, North America, Russia), we provide equipment from National Oilwell Varco (NOV) and Weatherford, fully compliant with API, CE, and ISO certifications.

3.2 Critical Spare Parts & OEM Components

We understand that using substandard parts can destroy a rig's integrity. We supply genuine and OEM-equivalent parts from the following trusted supply chains:

· Drive Systems: Siemens (S120 inverters), ABB (ACS880 series), and Bosch Rexroth controls.

· Drilling Core Components: NOV drawworks, Cameron BOPs, and Baoji mud pumps.

· Wear Parts: Caterpillar filters, Siemens IGBT modules, and custom tungsten carbide mud pump valve seats.

· Electrical & Structure: Schneider circuit breakers, Parker anti-vibration mounts, and high-strength titanium alloy fasteners.
