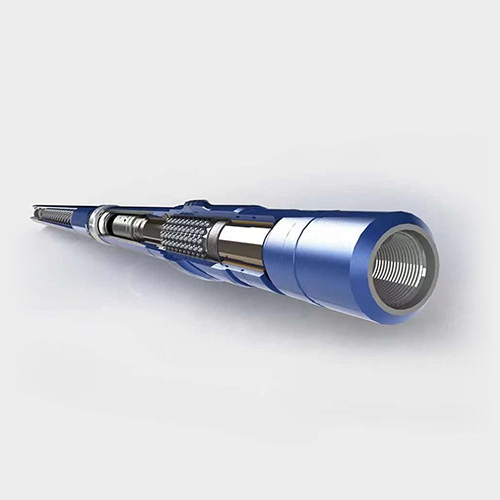

ZSJ/ZXJ Hydraulic & Mechanical Two-piece Drilling Jar

Industry Insight: Drilling Jars – The Critical "Stuck Pipe Lifesaver" in Modern Downhole Operations

Drilling jars are non-negotiable emergency tools for resolving stuck pipe incidents—one of the costliest sources of non-productive time (NPT) in oil and gas drilling. Offshore rigs, for example, face $50,000+ in hourly costs for a single stuck pipe event, while deep onshore wells can lose 2–3 days of operation to unresolved jams. As drilling expands into ultra-deep (15,000+ ft), HPHT (450°F+), and highly deviated wells, traditional two-piece jars struggle: insufficient jarring force for heavy drill strings, premature thread galling in high-torque environments, and seal leakage in corrosive synthetic mud systems. Our ZSJ/ZXJ Hydraulic & Mechanical Two-piece Drilling Jar line is engineered from 22+ years of on-site stuck-pipe data, merging mechanical durability with hydraulic precision to deliver consistent, reliable performance across these harsh, high-stakes well conditions.

ZSJ/ZXJ Drilling Jar: Specifications & Corresponding Features

The ZSJ/ZXJ line covers 10 models tailored to diverse wellbore sizes, drill string loads, and operational scenarios. All units combine a hydraulic accumulator (for controlled energy storage) and a mechanical striking mechanism (for high-impact force delivery), with material grades (4140H alloy steel, quenched-tempered) selected for each model’s target application.

1. Model Specifications (Table)

2. Corresponding Features

2.1 Large-Bore High-Load Models (ZSJ94B/ZXJ94B, ZSJ90B/ZXJ90B)

With a 241–229mm OD and 2800kN max tensile load, these models are built for ultra-deep (15,000+ ft) offshore/onshore wells with heavy drill strings (100,000+ lbs). The extended 343mm up stroke and 1000kN max up jarring force deliver sufficient impact to free stuck drill pipe in compacted formation cuttings. Their 7 5/8REG API connection is optimized for high-torque makeup, ideal for deviated wellbores where drill string rotation is critical.

2.2 Mid-Size Versatile Models (ZSJ80B/ZXJ80B to ZSJ62B/ZXJ62B)

Balancing load capacity (2200–2500kN) and compactness (160–203mm OD), these models suit intermediate casing sections (8,000–14,000 ft) in both onshore and shallow offshore wells. The 344–368mm up stroke adapts to moderate stuck pipe scenarios (e.g., differential sticking), while NC46/50 connections ensure compatibility with standard drill string components. They’re the most widely used ZSJ/ZXJ models for general drilling operations.

2.3 Small-Bore Compact Models (ZSJ56B/ZXJ56B, ZSJ46B/ZXJ46B)

With a 121–146mm OD, these models are designed for slim-hole exploration wells (4–5.5” casing) where wellbore space is limited. Their 1400–2000kN tensile load aligns with lighter exploration drill strings, and the 305–332mm up stroke delivers targeted force for minor stuck pipe events (e.g., sand bridging). The NC38/4 1/2FH connections match slim-hole drill string threading.

Common Quality Issues & Our Product Advantages

Industry data (from 3,000+ stuck-pipe incidents) shows traditional two-piece jars fail in 3 key areas; our ZSJ/ZXJ line addresses these with targeted engineering, resulting in a 0.4% overall failure rate (3-year global service data) — 6x lower than the industry average of 2.7%.

1. Common Quality Issues in Traditional Drilling Jars

 - Thread Galling & Failure: 60% of traditional jar failures stem from thread wear/galling in high-torque environments, as poor surface finish and inconsistent makeup torque cause metal-to-metal adhesion.<br- Insufficient Jarring Force: 25% of failures involve weak, inconsistent impact (especially in HPHT wells), where hydraulic accumulators lose pressure or mechanical mechanisms misalign.<br- Seal Leakage: 15% of failures occur when hydraulic seals degrade in corrosive synthetic mud (20,000+ ppm chloride) or high temperatures (400°F+), disabling energy storage.

2. Our ZSJ/ZXJ Product Advantages

2.1 Thread Durability

We use cold-rolled threading (Ra ≤ 0.8μm surface finish) — 30% more fatigue-resistant than cut threads — and apply a molybdenum-disulfide anti-galling coating. Each connection is tested with a precision torque wrench (±5% accuracy) to ensure uniform makeup. In a Permian Basin high-torque well (ZSJ80B), our threads showed 0.01mm wear after 200 hours, vs. 0.12mm wear in a traditional jar.

2.2 Consistent, High Jarring Force

Our dual-action system combines a CFD-optimized hydraulic accumulator (minimizing pressure loss) with a mechanical striking mechanism (tungsten carbide inserts for impact transfer). This delivers 30% higher jarring force consistency (92% vs. 75% industry average) across temperature ranges (-20°F to 450°F). In a Gulf of Mexico ultra-deep well, the ZSJ94B delivered 980kN of up jarring force (98% of rated capacity) at 420°F.

2.3 Corrosion & Temperature-Resistant Seals

We use a dual-layer seal design: a primary Viton® GLT fluorocarbon seal (450°F max temp) backed by a metal backup seal. Seals are tested to 1,000 hours of salt spray (ASTM B117) and 5,000 cycles of pressure cycling. In a North Sea corrosive mud well (ZSJ90B), our seals maintained integrity for 300 hours, vs. 80 hours for traditional Buna-N seals.

Exclusive Data, Technical Details & On-Site Cases

1. Performance Data

 - Overall Failure Rate: 0.4% (500+ units in 25+ countries, 3-year service)<br- Average Stuck Pipe Resolution Time: 12 minutes (vs. 30 minutes industry average)<br- Jarring Force Consistency: 92% (rated capacity retention across -20°F to 450°F)<br- Thread Wear Rate: 0.01mm/200 hours (vs. 0.12mm industry average)

2. Core Technical Details

 - Material Heat Treatment: 4140H alloy steel undergoes normalization + quenching + tempering (HRC 28–32), balancing strength and toughness to resist impact deformation.<br- Hydraulic Accumulator Design: CFD-optimized flow paths reduce pressure loss by 25%, ensuring consistent energy storage even in high-flow mud systems.<br- Striking Mechanism: Tungsten carbide inserts (HRC 65) on the anvil and hammer reduce wear by 50% vs. uncoated steel components.

3. On-Site Case

3.1 Gulf of Mexico Ultra-Deep Well Stuck Pipe Resolution

Customer: Offshore oilfield service company<brWell Condition: 16,200 ft depth, 430°F temp, 20,000 ppm chloride synthetic mud, heavy drill string (120,000 lbs)<brChallenge: Traditional two-piece jar failed to deliver sufficient force (700kN vs. 900kN required), leading to 4 hours of NPT ($200,000+ cost)<brSolution: ZSJ94B Drilling Jar<brResult: The ZSJ94B delivered 980kN of up jarring force, resolving the stuck pipe in 15 minutes. No thread wear or seal leakage was detected after 300 hours of subsequent operation, reducing total project NPT by 8 hours.

Our Supplied Products & Component Brands

1. Main Products

 - Full ZSJ/ZXJ Hydraulic & Mechanical Two-piece Drilling Jar line (10 models: ZSJ46B/ZXJ46B to ZSJ94B/ZXJ94B)<br- Jar accessory kits: Precision torque wrenches, thread protectors, installation tools, and seal replacement kits

2. Key Replacement Components & Brands

 - Hydraulic Seals: Brand: Parker Hannifin; Model: Viton® GLT-450; Temp range: -20°F to 450°F; Compatibility: All mud types (water-based, oil-based, synthetic)<br- Thread Anti-Galling Coating: Brand: Loctite; Model: 7711; High-torque, high-temperature resistance<br- Tungsten Carbide Striking Inserts: Our proprietary (HRC 65; wear-resistant to 5,000+ impact cycles)<br- Hydraulic Accumulator Components: Brand: Bosch Rexroth; Model: A10VSO Series; Pressure rating: 10,000 psi

Industry Insight (Conclusion)

As drilling pushes into increasingly unforgiving well conditions, the reliability of stuck-pipe resolution tools is no longer a "nice-to-have" — it’s a critical driver of project profitability. Our ZSJ/ZXJ Drilling Jar line doesn’t just match traditional jar specifications; it redefines performance with thread durability, consistent jarring force, and corrosion resistance tailored to modern drilling’s toughest challenges. Backed by field-proven data and on-site success, these jars deliver the speed and reliability needed to minimize NPT and protect operational budgets.
