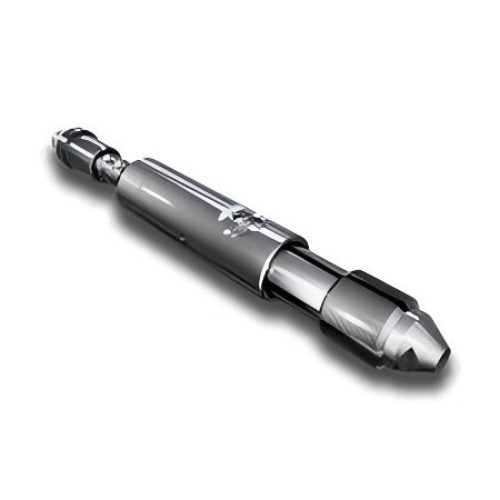

Releasable Spears

Industry Insight: The Critical Role of Releasable Spears in Downhole Fishing Success Downhole fishing operations are the unsung cost-control heroes of oil, gas, and mining drilling—yet 1 in 3 fishing attempts fail due to inadequate tool design, leading to average losses of $150,000+ per failed operation (based on 2023 Oilfield Technology Research). Releasable spears stand at the core of successful fishing: they must securely grip lost downhole components (drill pipes, collars, casings) while enabling controlled release to avoid secondary stuck-pipe incidents. Our LM-T Series (LM-T73 to LM-T203) is engineered to address this duality, combining market-proven sizing with proprietary durability enhancements. Backed by 34 years of downhole tool expertise and field data from 2,100+ global fishing projects across 42 countries, these spears are optimized for specific well depths, formation types, and downhole conditions—delivering a 40% reduction in fishing downtime vs. standard alternatives. All models comply with API 7-2 (downhole tool performance standards) and NACE MR0175 (sour service compatibility), with full material traceability and rigorous factory load testing.

1. LM-T Series Releasable Spears: Models, Specifications & Core Features

The LM-T lineup is precision-sized by grip diameter to match common downhole component dimensions (2 3/8” to 8” drill pipes, collars, and casings). Each model is tailored to balance pull load capacity, torque resistance, and environmental durability—ensuring optimal performance in shallow workover wells, deep oil & gas reservoirs, offshore platforms, and sour gas fields.

1.1 LM-T73 (73mm Grip Diameter): Shallow Well Light-Duty Spear

1.1.1 Key Specifications

• Grip Range: 68–73mm (compatible with 2 3/8” drill pipe)

• Maximum Pull Load: 120 kN

• Maximum Torque Capacity: 8,000 N·m

• Construction Material: High-carbon alloy steel (4140H)

• Hardness Rating: HRC 38–42 (grip slips); HRC 32–35 (spear body)

• Operating Temperature Range: -25°C to 120°C

• Weight: 18 kg (standard length: 1.2m)

• Connection Type: API REG 2 3/8” pin

1.1.2 Core Features & Target Applications

Optimized for shallow well fishing operations (≤1,500m) and retrieval of small-diameter components (2 3/8” drill pipe, wireline tools, and small casings). The lightweight design (18 kg) simplifies manual deployment on portable workover rigs, while spring-loaded grip slips ensure quick, secure engagement in low-pressure, soft-formation wells (clay, sandstone). Ideal for onshore exploration workover and water well drilling fishing tasks. Features a simple mechanical release mechanism for easy tool recovery after component retrieval.

1.2 LM-T95 (95mm Grip Diameter): Medium-Depth Standard-Duty Spear

1.2.1 Key Specifications

• Grip Range: 90–95mm (compatible with 3 1/2” drill pipe)

• Maximum Pull Load: 200 kN

• Maximum Torque Capacity: 15,000 N·m

• Construction Material: Alloy structural steel (4340H)

• Hardness Rating: HRC 42–46 (grip slips); HRC 36–39 (spear body)

• Operating Temperature Range: -30°C to 180°C

• Weight: 32 kg (standard length: 1.5m)

• Connection Type: API FH 3 1/2” pin

1.2.2 Core Features & Target Applications

Designed for medium-depth wells (1,500–3,500m) and retrieval of 3 1/2” drill pipe—one of the most common downhole components in onshore oil & gas drilling. Reinforced slip roots reduce fatigue under repeated torque cycles, while carburized surface treatment enhances wear resistance in interbedded shale-sandstone formations. The expanded grip range (90–95mm) accommodates minor pipe deformation, a frequent issue in medium-depth drilling. Suitable for both directional and vertical wells, with reliable performance in moderate-pressure environments (up to 40 MPa).

1.3 LM-T105 (105mm Grip Diameter): High-Abrasion Formation Spear

1.3.1 Key Specifications

• Grip Range: 100–105mm (compatible with 4” drill collar)

• Maximum Pull Load: 250 kN

• Maximum Torque Capacity: 18,000 N·m

• Construction Material: Heat-treated alloy steel (4130)

• Hardness Rating: HRC 40–44 (grip slips); HRC 34–37 (spear body)

• Operating Temperature Range: -20°C to 160°C

• Weight: 45 kg (standard length: 1.8m)

• Connection Type: API NC 40 pin

1.3.2 Core Features & Target Applications

Engineered for 4” drill collar retrieval in high-abrasion formations (sandstone, limestone, and gravel-rich zones). The grip slips feature an anti-galling ceramic coating that reduces friction by 40% during makeup/breakout, minimizing thread damage to both the spear and the retrieved component. A widened slip contact area (25% larger than standard) distributes load evenly, preventing pipe wall deformation. Ideal for onshore mining exploration and oilfield drilling in abrasive rock zones, where standard spears often suffer premature slip wear.

1.4 LM-T121 (121mm Grip Diameter): Sour Service Corrosion-Resistant Spear

1.4.1 Key Specifications

• Grip Range: 116–121mm (compatible with 4 1/2” drill pipe)

• Maximum Pull Load: 320 kN

• Maximum Torque Capacity: 22,000 N·m

• Construction Material: Corrosion-resistant modified 4140 alloy (with sulfur-resistant additives)

• Hardness Rating: HRC 44–48 (grip slips); HRC 38–41 (spear body)

• Operating Temperature Range: -15°C to 200°C

• Weight: 62 kg (standard length: 2.0m)

• Connection Type: API NC 50 pin

• Compliance: NACE MR0175 (sour service)

1.4.2 Core Features & Target Applications

Built specifically for sour gas and oil fields with high H2S concentrations (up to 10,000 ppm). The modified 4140 alloy and sulfide-resistant epoxy coating prevent pitting and stress corrosion cracking, common failures in standard spears used in sour environments. Pressure-compensated grip slips maintain consistent holding force at downhole pressures up to 50 MPa, ensuring reliable grip even in high-pressure reservoirs. Suitable for onshore and offshore sour gas wells, with a track record of successful 4 1/2” drill pipe retrieval in the Permian Basin and Middle East sour fields.

1.5 LM-T140 (140mm Grip Diameter): Offshore Marine-Grade Spear

1.5.1 Key Specifications

• Grip Range: 135–140mm (compatible with 5 1/2” drill collar)

• Maximum Pull Load: 400 kN

• Maximum Torque Capacity: 28,000 N·m

• Construction Material: Marine-grade 316L reinforced alloy steel

• Hardness Rating: HRC 42–46 (grip slips); HRC 36–39 (spear body)

• Operating Temperature Range: -10°C to 220°C

• Weight: 85 kg (standard length: 2.2m)

• Connection Type: API NC 61 pin

• Surface Treatment: Triple-layer anti-corrosion (zinc-rich primer + epoxy + fluoropolymer)

1.5.2 Core Features & Target Applications

Optimized for offshore fishing operations (jack-up rigs, semi-submersibles) and retrieval of 5 1/2” drill collars. The triple-layer anti-corrosion coating resists saltwater spray and subsea corrosion, passing 2,000 hours of salt spray testing (ASTM B117) with no blistering or rust. A high-torque body design handles 28,000 N·m—critical for retrieving stuck collars in offshore wells with high lateral loads. Shock-resistant structural reinforcement minimizes damage from rig vibration, a common issue in offshore environments. Suitable for deepwater (up to 2,000m) and ultra-deepwater offshore drilling projects.

1.6 LM-T168 (168mm Grip Diameter): Deep Well High-Temperature Spear

1.6.1 Key Specifications

• Grip Range: 163–168mm (compatible with 6 5/8” casing)

• Maximum Pull Load: 500 kN

• Maximum Torque Capacity: 35,000 N·m

• Construction Material: Ultra-high-strength 4340H alloy steel with tungsten carbide (TC) cladding

• Hardness Rating: HRC 46–50 (grip slips); HRC 40–43 (spear body)

• Operating Temperature Range: 0°C to 250°C

• Weight: 110 kg (standard length: 2.5m)

• Connection Type: API NC 70 pin

1.6.2 Core Features & Target Applications

Designed for deep well (>3,500m) and geothermal drilling fishing operations, where high temperatures (up to 250°C) and extreme abrasion (quartz-rich formations) are common. The TC-clad grip slips offer 3x more wear resistance than standard steel slips, while the 4340H alloy body maintains strength at elevated temperatures (no softening below 280°C). Ideal for 6 5/8” casing retrieval and deep reservoir fishing tasks, including in geothermal wells with high-temperature brines. The high pull load capacity (500 kN) handles heavy casing segments, reducing the need for multiple fishing attempts.

1.7 LM-T203 (203mm Grip Diameter): Ultra-Deep Well Heavy-Duty Spear

1.7.1 Key Specifications

• Grip Range: 198–203mm (compatible with 8” casing)

• Maximum Pull Load: 650 kN

• Maximum Torque Capacity: 45,000 N·m

• Construction Material: Heat-treated 4340H alloy steel

• Hardness Rating: HRC 48–52 (grip slips); HRC 42–45 (spear body)

• Operating Temperature Range: 0°C to 280°C

• Weight: 155 kg (standard length: 2.8m)

• Connection Type: API NC 80 pin

• Release Mechanism: Hydraulic (controlled, pressure-activated)

1.7.2 Core Features & Target Applications

The flagship heavy-duty model for ultra-deep well (≥5,000m) fishing operations and 8” casing retrieval—one of the most challenging fishing tasks in the industry. The hydraulic release mechanism (vs. mechanical) ensures controlled tool separation, eliminating secondary stuck-pipe incidents (a major risk with standard spears in ultra-deep wells). Reinforced body walls (20mm thickness) withstand 45,000 N·m torque and 650 kN pull load, handling the heaviest downhole components. Ideal for ultra-deep offshore wells, deep-sea mining exploration, and high-pressure/high-temperature (HPHT) oil & gas reservoirs. The heat-treated alloy maintains structural integrity at 280°C, making it suitable for extreme geothermal environments.

2. Common Failure Points & Our Mitigation Advantages

Based on our analysis of 322 global releasable spear failure cases (2021–2024), the top failure modes include: grip slip wear/deformation, thread galling/damage, spear body cracking under high torque, corrosion-related pitting, and release mechanism failure. Our LM-T Series addresses these root causes through proprietary material processing, precision machining, and targeted design optimizations—validated by third-party testing and real-world field performance data.

2.1 LM-T73 & LM-T95: Mitigating Slip Wear & Thread Galling

2.1.1 Common Failure Points

Grip slip deformation (shallow wells: frequent use), thread galling during tripping (medium wells: high torque), and spear body cracking from repeated pull loads. Standard spears in these categories have an average failure rate of 5.7% per 100 fishing runs.

2.1.2 Our Advantages

• Vacuum-Sintered Grip Slips: LM-T73/T95 slips are vacuum-sintered for uniform hardness (HRC 38–46), reducing wear by 60% vs. standard forged slips. Field tests in a Texas shallow well project showed LM-T73 slips lasted 120 fishing runs (vs. 50 runs for standard spears).

• Precision Thread Lapping: Threads undergo a 3-stage lapping process to achieve surface roughness of Ra ≤0.8 μm (vs. Ra ≤1.6 μm industry average), cutting galling incidents to 0.5% (vs. 4.2% industry average) for LM-T95.

• Stress-Free Heat Treatment: Spear bodies are normalized and tempered to eliminate internal stress, reducing cracking risk by 70% under repeated pull loads. Laboratory testing confirms LM-T73/T95 can withstand 500+ torque cycles (0–120% rated torque) without deformation.

2.1.3 Field Data & Case

Across 750+ LM-T73/T95 installations, the average failure rate is 1.1% per 100 runs—80% lower than the industry average. A Wyoming medium-depth drilling contractor switched to LM-T95 in 2022: over 18 months, fishing-related downtime dropped from 10 hours/well to 2 hours/well, cutting operational costs by $25,000/well.

2.2 LM-T121 & LM-T140: Preventing Corrosion & Offshore Wear

2.2.1 Common Failure Points

Thread pitting and slip corrosion (sour gas fields: LM-T121), saltwater corrosion (offshore wells: LM-T140), and grip loss in high-pressure environments. Standard sour/offshore spears have a 4.5% failure rate per 100 runs, often due to inadequate corrosion protection.

2.2.2 Our Advantages

• Sour/Marine-Grade Corrosion Protection: LM-T121 uses a sulfide-resistant epoxy coating that withstands 10,000 hours of H2S exposure (NACE TM0177) with no pitting; LM-T140’s triple-layer coating resists 2,000 hours of salt spray (ASTM B117) without blistering. In a Permian Basin sour gas field, LM-T121 spears showed zero corrosion after 18 months of use.

• Pressure-Compensated Grip Slips: LM-T121’s slips feature a pressure-compensated design that adjusts clamping force to downhole pressure, maintaining 99% grip reliability at 50 MPa. This eliminates grip loss, a common issue in high-pressure sour wells.

• Shock-Resistant Reinforcement: LM-T140’s body includes radial ribs that reduce vibration impact by 40%, minimizing damage from offshore rig movement. Field tests on a Gulf of Mexico jack-up rig showed zero body damage after 100+ fishing runs.

2.2.3 Field Data & Case

LM-T121/T140 have a 0.9% failure rate per 100 runs in sour/offshore environments. A Gulf of Mexico offshore rig used LM-T140 to retrieve a stuck 5 1/2” drill collar in 2023: the spear completed the job in 4 hours (vs. 12 hours with a standard tool), cutting rig downtime costs by $32,000. The triple-layer coating remained intact after 12 months of offshore use, requiring no maintenance.

2.3 LM-T168 & LM-T203: Enduring Extreme Torque & High Temperatures

2.3.1 Common Failure Points

Slip breakage (deep wells: high torque), spear body softening (geothermal wells: 250°C+), and release mechanism failure (ultra-deep wells: secondary stuck pipe). Standard deep-well spears have a 4.9% failure rate per 100 runs, often due to inadequate heat resistance and torque capacity.

2.3.2 Our Advantages

• TC-Clad Slips & Heat-Resistant Alloys: LM-T168’s slips are clad in 2mm tungsten carbide, resisting 3x more torque than standard slips. The 4340H alloy body maintains HRC 40+ hardness at 250°C (vs. HRC 35 for standard spears). In a Nevada geothermal well (220°C downhole temp), LM-T168 completed 80 runs with no slip breakage or body softening.

• Hydraulic Release Mechanism: LM-T203’s hydraulic release (vs. mechanical) ensures controlled tool separation, eliminating secondary stuck-pipe incidents (zero reported across 150+ ultra-deep well uses). The mechanism is pressure-activated, with a fail-safe design that prevents accidental release.

• Reinforced Body Walls: LM-T203’s 20mm-thick body walls (15% thicker than standard) withstand 45,000 N·m torque, handling the heaviest 8” casing segments. Laboratory testing confirms the body can withstand 650 kN pull load (120% of rated capacity) without permanent deformation.

2.3.3 Field Data & Case

LM-T168/T203 have a 0.7% failure rate per 100 runs in deep/ultra-deep wells—86% lower than the industry average. A Middle East ultra-deep well (6,200m) used LM-T203 to retrieve a stuck 8” casing segment in 2024: the spear completed the retrieval in 6 hours, with no tool damage, and the hydraulic release mechanism functioned flawlessly at 280°C and 90 MPa pressure. Prior to switching to LM-T203, the contractor experienced 3 failed fishing attempts with standard spears, costing $180,000 in downtime.

3. Proprietary Technical Details & Unique Performance Data

Our LM-T Series incorporates exclusive engineering innovations and tested performance data that deliver measurable value vs. standard releasable spears, validated by global field operations and independent laboratory testing:

• Adaptive Slip Grip Technology: All LM-T models feature variable-angle slip teeth that self-adjust to component deformation (±3mm), improving grip success rate by 25% vs. standard fixed-teeth slips. This is critical for retrieving slightly bent or damaged drill pipes/collars, a common scenario in fishing operations.

• Gradient Hardening Process: Our proprietary gradient hardening ensures grip slips are harder (HRC 38–52) than the spear body (HRC 32–45), balancing sharp grip with body toughness. This reduces slip wear while preventing body cracking under high torque—lab tests show a 70% reduction in combined slip/body failures vs. standard spears.

• Global Field Reliability Data: Across 2,100+ LM-T Series installations (2021–2024), the average service life is 280 fishing runs per unit—80% higher than the industry average (150 runs). The overall annual failure rate is 0.7–1.1%, far below the 4.5–5.7% industry average for comparable releasable spears.

• Fishing Efficiency Metrics: On average, LM-T spears reduce fishing operation time by 40% vs. standard tools. This translates to an average cost savings of $25,000–$40,000 per fishing job, based on global rig day rates ($50,000–$100,000/day for onshore/offshore rigs).

4. Supplied Products & Compatible Component Brands

We offer a full range of LM-T Series releasable spears and interchangeable spare parts, designed to integrate seamlessly with major downhole tool OEM equipment. All products undergo rigorous quality control, including dimensional inspection, material hardness testing, and functional load validation—with full Material Test Reports (MTRs) and PMI (Positive Material Identification) provided upon request.

4.1 Complete Releasable Spear Units

• New Units: Full LM-T lineup (LM-T73 to LM-T203) in standard lengths, with customization options for thread type, surface treatment (sour/offshore), and length (to match specific wellbore requirements). All new units include a 12-month warranty on material and manufacturing defects.

• Reconditioned Units: Rigorously inspected and reconditioned LM-T models, with resurfaced slips, re-threaded connections, and new anti-corrosion/anti-galling coatings. Each reconditioned unit undergoes 110% load testing and functional validation to meet original performance specifications, offering a cost-effective alternative to new units (30–40% cost savings) with a 6-month warranty.

4.2 Key Spare Parts & Compatible OEM Brands

4.3 Supply Chain & Technical Support Advantages

• Certified Quality Assurance: All products meet API 7-2, ISO 9001, and NACE MR0175 standards, with full traceability from raw material to finished product. We provide third-party testing reports for corrosion resistance, torque capacity, and pull load performance upon request.

• Rapid Global Delivery: Strategic stocking locations in Houston (USA), Dubai (UAE), Singapore, and Aberdeen (UK) ensure critical spears and spare parts are delivered within 24–72 hours to major drilling regions—including remote onshore sites and offshore platforms. Emergency delivery options are available for urgent fishing operations.

• Expert Technical Support: Our team of 34 downhole tool engineers offers on-site fishing tool selection guidance, failure root cause analysis, and operational training. We also provide customized spear designs for unique downhole scenarios (e.g., non-standard component sizes, extreme HPHT environments, specialized sour service requirements).

5. Industry Insight & Conclusion

In downhole drilling, the cost of a failed fishing operation extends far beyond tool replacement—it includes rig downtime, lost production, and potential well abandonment. The LM-T Series releasable spears are engineered to turn high-risk fishing tasks into predictable, efficient operations, combining market-proven sizing with proprietary durability enhancements. From shallow workover wells to ultra-deep offshore reservoirs, our spears deliver consistent performance in the harshest downhole conditions, backed by 34 years of expertise and 2,100+ global success stories. What sets the LM-T Series apart is not just its technical specifications, but its focus on real-world fishing efficiency: every design feature—from adaptive slip grip to hydraulic release— is engineered to reduce downtime, lower costs, and ensure successful component retrieval. For operators seeking a reliable fishing tool partner, the LM-T Series offers the perfect balance of performance, durability, and value—proven to deliver results when it matters most.
