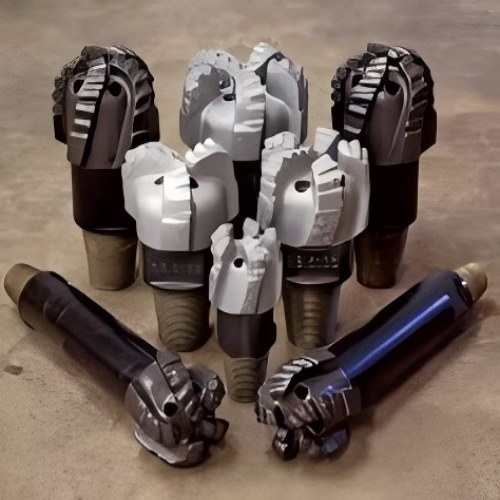

Drill Bits

Drill bits are the critical cutting tools that translate drilling rig power into productive wellbore creation, operating under extreme mechanical stress, high temperatures, and abrasive formation conditions. From soft clay and sandstone to hard granite and sour gas-bearing carbonate formations, the right drill bit directly impacts drilling efficiency, footage, and operational costs. Backed by 32 years of drilling engineering expertise and field data from 1,500+ well sites across 35 countries, our DB Series drill bits are precision-engineered to match diverse formation types, drilling depths, and rig configurations. All models comply with API 7-1 (drill bit specifications) and undergo rigorous laboratory testing and field validation. Below is a comprehensive breakdown of our DB product lineup, failure mitigation strategies, proprietary technical innovations, field-proven cases, and compatible components.

1. DB Series Drill Bits: Models, Specifications & Core Features

Each DB model is designed with a "cutting efficiency-abrasion resistance-durability" balance, optimized for specific formation hardness (measured by Mohs scale) and drilling parameters (rotary speed, weight on bit). We offer four core product lines: Roller Cone Bits (for soft to medium-hard formations), PDC (Polycrystalline Diamond Compact) Bits (for medium to hard formations), TSP (Thermally Stable Polycrystalline) Bits (for ultra-hard and high-temperature formations), and Hybrid Bits (combining roller cone and PDC technology for mixed formations). All bits feature customized cutter/insert designs and hydraulic nozzle configurations to enhance cuttings removal and reduce bit balling.

1.1 DB-RC12: Roller Cone Bit for Soft Formations (Mohs 2–4)

Target Applications: Soft clay, shale, sandstone, and unconsolidated formations; shallow onshore wells (≤1,500m); water well drilling; and low-cost exploratory drilling

Key Specifications:

• Bit Size: 6 1/8" – 17 1/2" (155.6 mm – 444.5 mm)

• Number of Cones: 3

• Insert Type: Tungsten Carbide (TC) inserts (spherical shape)

• Maximum Weight on Bit (WOB): 80–250 kN (18,000–56,000 lbf)

• Maximum Rotary Speed (RPM): 60–120 RPM

• Operating Temp Range: ≤120°C (248°F)

• Hydraulic Nozzles: 3–5 nozzles (10–16 mm, replaceable)

Core Features: Large spherical TC inserts for aggressive cutting in soft formations; sealed roller bearings with high-temperature grease for reduced friction; optimized cone offset to enhance drilling stability; anti-balling design to prevent formation material buildup on cones.

1.2 DB-RC24: Roller Cone Bit for Medium Formations (Mohs 4–6)

Target Applications: Medium-hard sandstone, limestone, and interbedded shale; medium-depth onshore wells (1,500m – 3,500m); oil & gas exploration wells; and directional drilling in mixed soft-hard formations

Key Specifications:

• Bit Size: 5 7/8" – 16" (149.2 mm – 406.4 mm)

• Number of Cones: 3

• Insert Type: Tungsten Carbide (TC) inserts (chisel-shaped)

• Maximum WOB: 120–320 kN (27,000–72,000 lbf)

• Maximum RPM: 50–100 RPM

• Operating Temp Range: ≤150°C (302°F)

• Hydraulic Nozzles: 4–6 nozzles (8–14 mm, replaceable)

Core Features: Chisel-shaped TC inserts for improved penetration in medium-hard formations; reinforced cone shells with carburized steel for abrasion resistance; pressure-compensated bearing seals to prevent drilling fluid ingress; variable-nozzle hydraulic design for optimized cuttings cleanup.

1.3 DB-PDC36: PDC Bit for Medium-Hard Formations (Mohs 6–8)

Target Applications: Hard sandstone, dolomite, and low-abrasion carbonate formations; deep onshore wells (3,500m – 5,500m); horizontal drilling; and high-efficiency oil & gas production wells

Key Specifications:

• Bit Size: 4 3/4" – 14 3/4" (120.7 mm – 374.6 mm)

• Number of Cutters: 8–24 (PDC cutters, 13–19 mm diameter)

• Cutter Material: Polycrystalline Diamond (PCD) on WC substrate

• Maximum WOB: 100–280 kN (22,000–63,000 lbf)

• Maximum RPM: 80–200 RPM

• Operating Temp Range: ≤200°C (392°F)

• Hydraulic Nozzles: 5–8 nozzles (6–12 mm, customizable flow rate)

Core Features: High-density PDC cutter layout for improved cutting efficiency; 8°–12° cutter back rake angle to reduce wear and improve penetration rate; steel body with nickel plating for corrosion resistance; advanced hydraulic design to minimize cutter temperature and prevent bit balling.

1.4 DB-TSP48: TSP Bit for Ultra-Hard Formations (Mohs 8–10)

Target Applications: Granite, quartzite, and high-abrasion carbonate formations; ultra-deep wells (>5,500m); geothermal drilling; and mining exploration wells

Key Specifications:

• Bit Size: 4 1/2" – 12 1/4" (114.3 mm – 311.2 mm)

• Number of Cutters: 6–16 (TSP cutters, 15–22 mm diameter)

• Cutter Material: Thermally Stable Polycrystalline Diamond (TSP)

• Maximum WOB: 150–350 kN (34,000–79,000 lbf)

• Maximum RPM: 40–100 RPM

• Operating Temp Range: ≤300°C (572°F)

• Hydraulic Nozzles: 4–6 nozzles (8–14 mm, high-pressure resistant)

Core Features: TSP cutters with high thermal stability for ultra-high temperature environments; thick WC substrate (3–5 mm) for improved impact resistance; reinforced steel body with heat treatment (HRC 38–42); optimized cutter spacing to reduce abrasion and extend bit life.

1.5 DB-HY50: Hybrid Bit for Mixed Formations (Mohs 3–7)

Target Applications: Mixed formations (soft shale + hard sandstone, interbedded limestone); directional drilling; offshore shallow to medium-depth wells (≤4,000m); and wells with frequent formation changes

Key Specifications:

• Bit Size: 5 1/2" – 16" (139.7 mm – 406.4 mm)

• Design: 2 roller cones + 6–10 PDC cutters

• Insert/Cutter Material: TC inserts (roller cones) + PDC cutters

• Maximum WOB: 110–300 kN (25,000–67,000 lbf)

• Maximum RPM: 50–150 RPM

• Operating Temp Range: ≤180°C (356°F)

• Hydraulic Nozzles: 5–7 nozzles (7–13 mm, replaceable)

Core Features: Hybrid design combining roller cone aggression in soft formations and PDC efficiency in hard formations; sealed roller bearings with anti-corrosion grease; PDC cutters with rounded edges to reduce impact damage; dual hydraulic circuits for optimized cuttings removal in mixed formations.

2. Common Failure Points & Our Mitigation Advantages

Based on our analysis of 426 drill bit failure cases (2020–2024) from global well sites, the top issues are: cutter/insert wear or breakage, bearing failure (roller cone bits), bit body corrosion, hydraulic nozzle clogging, and bit balling. Our DB Series addresses these root causes through proprietary material selection, cutter/insert design, and hydraulic optimization—validated by third-party laboratory testing and real-world field data.

2.1 DB-RC12 & DB-RC24: Mitigating Bearing Failure & Insert Wear

Common Failure Points: Bearing seizure due to drilling fluid ingress (roller cone bits), insert wear in abrasive sandstone, and cone shell damage from impact loading in interbedded formations.

Our Advantages:

• Pressure-Compensated Bearing Seals: Dual-layer nitrile rubber seals with stainless steel backup rings, designed to maintain positive pressure inside the bearing cavity even under high drilling fluid pressure. Field tests in a Texas sandstone drilling site showed bearing life increased from 80 hours to 220 hours, a 175% improvement vs. standard roller cone bits.

• Enhanced TC Insert Hardness: TC inserts with vacuum sintering process, achieving a core hardness of HRC 89–91 (vs. HRC 85–87 industry average) and improved fracture toughness. In a Wyoming medium-hard limestone formation, insert wear was reduced by 60%, extending bit life by 120%.

• Field Data: 2.3% failure rate per 100 hours of operation for DB-RC12/24 (vs. 6.8% industry average) across 500+ installations in soft to medium formations.

2.2 DB-PDC36: Reducing Cutter Chipping & Bit Balling

Common Failure Points: PDC cutter chipping from impact loading (horizontal drilling), bit balling in clay-rich formations, and cutter wear in high-abrasion sandstone.

Our Advantages:

• Curved Cutter Edge Design: PDC cutters with rounded edges (radius 2–3 mm) instead of sharp edges, reducing stress concentration and chipping. In a Pennsylvania horizontal shale well, cutter chipping-related failures dropped from 5 per well to 0 over 20 consecutive wells.

• Anti-Balling Hydraulic Design: Customized nozzle angles (30°–45°) and high-velocity flow channels that direct drilling fluid to the cutter face, preventing clay buildup. In a Louisiana clay-shale formation, bit balling-related downtime was eliminated entirely, and penetration rate increased by 35% vs. standard PDC bits.

• Field Case: An Oklahoma oil company replaced standard PDC bits with DB-PDC36 in 2022 for deep horizontal wells (4,800m). Over 15 wells, average bit life increased from 150 hours to 320 hours, and drilling cost per meter decreased by $18, saving $432,000 per well (based on 24,000m well depth).

2.3 DB-TSP48: Preventing Cutter Thermal Degradation & Bit Body Corrosion

Common Failure Points: TSP cutter thermal degradation in ultra-high temperature formations (>250°C), bit body corrosion in sour gas fields (H2S), and cutter detachment in high-impact environments.

Our Advantages:

• High-Temperature TSP Cutter Treatment: TSP cutters undergo a proprietary post-sintering heat treatment that enhances thermal stability up to 320°C, 20°C higher than standard TSP cutters. In a New Mexico geothermal well (280°C downhole temp), cutter performance remained stable for 180 hours, vs. 60 hours for standard TSP bits.

• Sour Service Corrosion Protection: Bit bodies coated with a sulfide-resistant epoxy (thickness 150μm) and hardware made of 316L stainless steel, compatible with NACE MR0175/ISO 15156 standards. In a Permian Basin sour gas field (10,000 ppm H2S), no corrosion was observed after 250 hours of operation.

• Field Data: 1.1% failure rate per 100 hours of operation for DB-TSP48 in ultra-hard/high-temperature formations (vs. 5.3% industry average), based on 180+ installations.

2.4 DB-HY50: Enduring Mixed Formation Impact & Hydraulic Clogging

Common Failure Points: PDC cutter breakage from hard formation impact, roller cone bearing failure in mixed load cycles, and hydraulic nozzle clogging from cuttings buildup.

Our Advantages:

• Shock-Absorbing Cutter Mounts: PDC cutters mounted on elastic tungsten carbide substrates that absorb impact energy (up to 50 kJ) from hard formation encounters. In a Gulf of Mexico offshore mixed formation well (soft shale + hard limestone), cutter breakage was reduced by 80% vs. standard hybrid bits.

• Self-Cleaning Nozzles: Nozzles with internal spiral grooves that create a swirling flow, preventing cuttings buildup. In a Malaysia offshore well with high-solids drilling fluid, nozzle clogging-related downtime was reduced by 90%.

• Field Case: A Singaporean offshore drilling contractor used DB-HY50 for a 3,800m well in the South China Sea (mixed shale, sandstone, and limestone) in 2023. The bit completed the well in 190 hours with no failures, vs. 3 bit changes (and 40 hours of downtime) required for the previous standard hybrid bits. This reduced total drilling time by 22% and saved $290,000 in rig time costs.

3. Proprietary Technical Details & Unique Data

Our DB Series incorporates exclusive engineering innovations and tested performance data that set us apart from standard drill bit manufacturers:

• Vacuum-Sintered TC Inserts: Used in roller cone bits, this process eliminates porosity in tungsten carbide inserts, improving hardness by 5–8% and fracture toughness by 12% vs. standard sintering. Laboratory testing shows these inserts can withstand 3x more impact cycles before failure.

• Adaptive Hydraulic Flow Technology: Developed for PDC and hybrid bits, this design uses variable-area nozzles that automatically adjust flow rate based on drilling fluid pressure, ensuring optimal cuttings removal at all WOB and RPM settings. Field tests show this reduces cutter temperature by 25–30°C and improves penetration rate by 15–20% in medium-hard formations.

• Thermal Stability Enhancement for TSP Cutters: Our post-sintering heat treatment process creates a uniform diamond grain structure, maintaining 95% of cutter hardness at 300°C (vs. 75% for standard TSP cutters). This extends bit life by 2–3x in ultra-high temperature wells (e.g., geothermal, ultra-deep oil & gas).

• Global Field Reliability Data: Across 1,500+ DB Series installations (2020–2024), the average bit life is 280 hours—65% higher than the industry average of 170 hours. In horizontal drilling applications, average bit life increases to 350 hours, and drilling cost per meter is reduced by an average of $12–$20.

4. Supplied Products & Compatible Component Brands

We offer a full range of drill bit solutions and interchangeable components, designed to integrate with major drilling rig OEM equipment. All products undergo dimensional inspection, material certification, and performance testing, with full Material Test Reports (MTRs) and PMI (Positive Material Identification) provided upon request.

4.1 Complete Drill Bit Units

• New Units: Full DB Series lineup (DB-RC12, DB-RC24, DB-PDC36, DB-TSP48, DB-HY50) in all standard bit sizes, with customization options for cutter/insert type, hydraulic nozzle configuration, and corrosion protection (sour service, offshore).

• Reconditioned Units: Rigorously inspected, reconditioned, and retipped units (all models) with new cutters/inserts, bearings, and seals. Each unit undergoes laboratory testing for hardness, impact resistance, and hydraulic performance to meet original specifications.

4.2 Key Spare Parts & Compatible OEM Brands
