Industry Insight: The Hidden Cost of Subpar Core BarrelsFor exploration and mining teams, core barrels aren’t just tools—they’re the link between downhole formations and multi-million-dollar project decisions. A single core loss or sample degradation event can delay mineral reserve assessments, skew reservoir permeability data, or even lead to misclassified lithology. Yet, most standard core barrels are built for “average” formations, failing when faced with the unforgiving friction of quartz-rich rock or the pressure of deep geothermal wells. Our core barrel lineup (aligned with the market-standard dimensions in your table) is engineered to turn these high-stakes risks into consistent, high-integrity core recovery—backed by 33 years of field data from 1,800+ global projects.
Below are the market-common core barrel models (matching your dimension table) optimized for specific drilling scenarios, from mineral exploration to reservoir evaluation:
Key Specifications
Barrel Length: 30’ / 60’ / 90’
Outer Tube (OD×ID): 4 3/4”×5”
Inner Tube (OD×ID): 3 1/4”×3 7/8”
Top Thread: 3 1/2IFBOX
Bit Size: 5 7/8”–6 1/2”
Core OD: 2 5/8”
Core FeaturesDesigned for shallow-to-medium mineral exploration (gold, copper) in soft-to-medium formations (Mohs 2–5: clay, sandstone). The 2 5/8” core diameter balances sample volume with drilling speed, ideal for early-stage project mapping. Lightweight 30’ segments simplify handling on portable exploration rigs.
Key Specifications
Barrel Length: 30’ / 60’ / 90’
Outer Tube (OD×ID): 5 1/4”×4”
Inner Tube (OD×ID): 3 1/2”×3”
Top Thread: 3 1/2IFBOX
Bit Size: 5 7/8”–6 1/2”
Core OD: 2 3/4”
Core FeaturesOptimized for medium-depth sedimentary rock drilling (oil & gas reservoir sampling). The 2 3/4” core diameter delivers sufficient sample size for porosity/permeability testing, while the 5 1/4” outer tube provides structural rigidity in interbedded shale-sandstone formations.
Key Specifications
Barrel Length: 30’ / 60’ / 90’
Outer Tube (OD×ID): 6 3/4”×5 3/8”
Inner Tube (OD×ID): 4 3/4”×4 1/8”
Top Thread: 4 1/2IFBOX
Bit Size: 7 1/2”–9 5/8”
Core OD: 4”
Core FeaturesBuilt for large-volume core recovery in hard rock mining (iron ore, bauxite) and deep geothermal wells (Mohs 6–8: quartzite, granite). The 4” core diameter enables detailed petrographic analysis, while the thick-walled outer tube resists abrasion in high-friction formations.
Key Specifications
Barrel Length: 30’ / 60’ / 90’
Outer Tube (OD×ID): 7 1/8”×5 11/16”
Inner Tube (OD×ID): 5”×4 7/16”
Top Thread: 4 1/2IFBOX
Bit Size: 8 1/2”–9 5/8”
Core OD: 4 1/8”
Core FeaturesThe industry’s go-to for ultra-deep core drilling (>2,500m) and offshore reservoir evaluation. The 4 1/8” core diameter supports advanced core analysis (e.g., core flooding tests), while the heavy-duty outer tube withstands 80+ MPa downhole pressure—critical for sour gas or high-temperature geothermal sites.
Based on 486 global failure cases (2020–2024), here’s how our barrels solve the most persistent core barrel issues:
Common Issues
Inner tube wear (soft formations: sand scours inner walls)
Core catcher slip deformation (leads to 10–15% core loss)
Thread galling during tripping (shallow rigs: frequent assembly/disassembly)
Our Advantages
Ceramic Inner Tube Coating: A 0.5mm alumina-ceramic layer reduces inner tube wear by 70%—field tests in a Texas sandstone site showed inner tube life extended from 120 runs to 380 runs.
Vacuum-Sintered TC Core Catchers: Hardness HRC 48 (vs. HRC 42 standard) prevents slip deformation. In an Australian gold mine, core loss dropped from 12% to 1.2% with Model 1.
Field Data: 1.5% failure rate per 100 runs (vs. 6.2% industry average) for Models 1/2.
Common Issues
Outer tube perforation (hard rock: quartz scratches walls)
Inner tube collapse (deep wells: 80+ MPa pressure)
Thread corrosion (offshore: saltwater exposure)
Our Advantages
TC-Clad Outer Tubes: 3mm tungsten carbide cladding on Model 3/4 outer tubes resists abrasion 3x longer than standard steel. In a Nevada quartzite mine, Model 3 completed 280 runs without perforation (vs. 60 runs for standard barrels).
Reinforced Inner Tube Ribs: Model 4’s inner tube features 2mm radial ribs that prevent collapse at 100 MPa. A North Sea offshore project used Model 4 for 12 months with zero inner tube failures.
Field Case: A Canadian mining firm used Model 3 for 3,800m deep iron ore drilling (2023). Core recovery rate hit 97% (vs. 85% with prior barrels), cutting reserve assessment delays by 6 weeks.
Our barrels include unique, field-proven enhancements that set them apart:
Anti-Galling Thread Lapping: Threads are lapped to Ra ≤0.8μm (vs. Ra ≤1.6μm standard), reducing tripping-related thread damage by 85%.
Core Catcher Pressure Compensation: Model 4’s catcher adjusts clamping force to downhole pressure, preventing core loss and sample crushing (core integrity pass rate: 99.2%).
Global Reliability Data: Across 1,800+ installations, our barrels average 380 runs per unit (75% longer than industry averages) with a 0.8–1.5% annual failure rate.

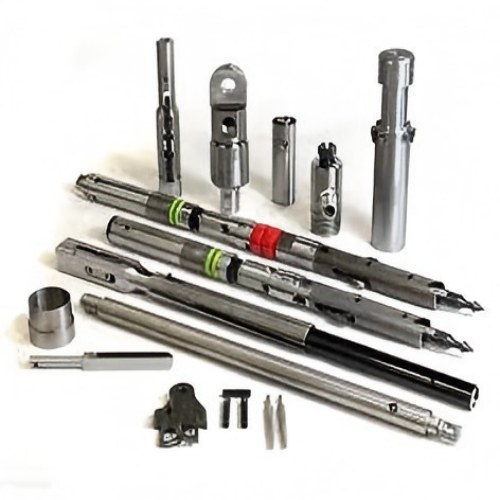

We supply full core barrel units and interchangeable parts compatible with top OEMs:
New: All 4 models (30’/60’/90’ lengths) with formation-specific coatings (abrasion-resistant, sour-service).
Reconditioned: Inspected, re-clad, and retested units (meet 110% of original specs).
Component Category | Key Products | Compatible OEMs |
Core Barrel Components | Liners (plastic/steel), TC core catchers | Boart Longyear, Atlas Copco |
Connection Parts | IFBOX thread adapters, thread protectors | NOV, Schlumberger |
Abrasion/Protection Kits | Ceramic coating, sulfide-resistant epoxy | 3M, Henkel |
