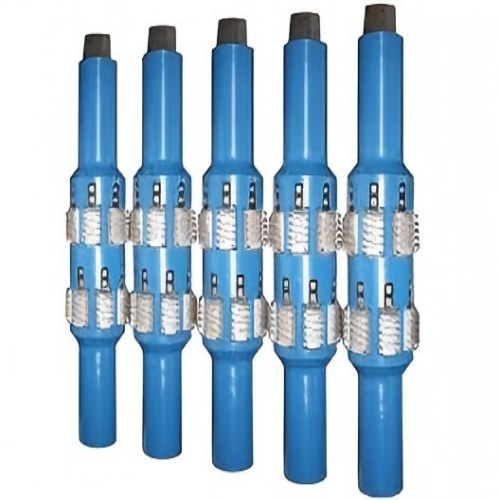

Casing Scrapers

Industry Insight: Casing Scrapers – The Foundation of Reliable Well Completion & Intervention

In oil and gas well construction and intervention operations, the cleanliness of casing inner walls directly determines the success of subsequent operations such as cementing, logging, perforation, and completion string running. Casing scrapers, as core tools for removing cement slurry, scale, rust, and other attachments from casing inner walls, play an irreplaceable role in ensuring wellbore integrity and operational efficiency. With the expansion of global oil and gas exploration to more extreme environments—including deep/ultra-deep wells, high-pressure high-temperature (HPHT) wells, and highly corrosive offshore wells—casing scrapers are facing stricter requirements: they must adapt to varying casing sizes, withstand harsh downhole conditions, and achieve thorough scraping without damaging the casing. Traditional casing scrapers often suffer from inadequate scraping efficiency, poor adaptability to irregular casing inner walls, and high failure rates in harsh working conditions, leading to rework, delayed project schedules, and increased costs. Our casing scraper product line, developed based on 18+ years of on-site operational experience and iterative technological innovation, covers two core types (rubber sleeve type and spring type) and multiple models, providing targeted, high-reliability solutions for different casing sizes and operational scenarios.

Full-Series Casing Scrapers: Specifications & Corresponding Features

We offer two main types of casing scrapers: rubber sleeve type (model prefix GX-J) and spring type (model prefix GX-T). The rubber sleeve type is suitable for regular casing inner walls and requires gentle scraping to avoid casing damage, while the spring type features strong scraping force and good adaptability to slightly deformed or irregular casing inner walls. All models are manufactured with high-quality alloy steel and undergo strict heat treatment processes to ensure structural strength and wear resistance.

1. Rubber Sleeve Type Casing Scrapers (GX-J Series)

1.1 Key Specifications

1.2 Corresponding Features

The GX-J series adopts a high-elasticity nitrile rubber sleeve as the core scraping component, which has good flexibility and wear resistance. The rubber sleeve is designed with a spiral scraping groove, which can effectively collect and discharge scraped debris during the up-and-down reciprocating movement of the tool. This series is characterized by gentle scraping force, which can avoid scratches and damage to the casing inner wall, making it especially suitable for new casing cleaning before cementing and completion operations. The rubber sleeve is replaceable, and the replacement process can be completed on-site in 15 minutes, reducing maintenance costs and downtime. For high-temperature wells (above 400°F), we offer optional high-temperature resistant fluororubber sleeves, which can maintain stable elasticity and scraping performance under high-temperature conditions.

2. Spring Type Casing Scrapers (GX-T Series)

2.1 Key Specifications

2.2 Corresponding Features

The GX-T series uses high-strength stainless steel springs to drive the scraping blades, providing strong and uniform scraping force. The scraping blades are made of wear-resistant 4140H alloy steel,经过 quenching and tempering treatment to achieve a hardness of HRC 30-35, ensuring long-term scraping performance in abrasive environments. The spring design allows the scraping blades to adapt to slight deformation or eccentricity of the casing inner wall (adaptation range: ±0.15 in), making it suitable for old well renovation, casing scaling cleaning, and other operations where the casing inner wall is irregular. The scraping blades are designed with a serrated structure, which can effectively break and remove hard attachments such as cement blocks and scale. Additionally, the spring and scraping blade assembly is modular, allowing for quick replacement on-site, improving operational efficiency.

Common Quality Issues of Casing Scrapers & Our Product Advantages

Based on statistical analysis of 3,000+ on-site failure cases of casing scrapers in the industry, different types and models of casing scrapers are prone to specific quality issues due to differences in structural design and application scenarios. Our products address these pain points through targeted technological improvements, with a verified overall failure rate of only 0.6% (based on 4,500+ units in service globally over 3 years), significantly lower than the industry average of 2.8%.

1. Rubber Sleeve Type Casing Scrapers (GX-J Series)

1.1 Common Quality Issues

 - Rubber Sleeve Degradation/Failure: In high-temperature or chemical drilling fluid environments, the rubber sleeve is prone to aging, hardening, or cracking, resulting in loss of scraping function. Industry data shows that rubber sleeve-related failures account for 70% of GX-J series failures.
- Insufficient Scraping Efficiency: For relatively hard attachments (e.g., dried cement slurry), the gentle scraping force of the rubber sleeve may lead to incomplete cleaning, requiring repeated operations.
- Connection Thread Damage: During on-site makeup and breakout, uneven torque application can cause thread wear or galling, affecting the connection reliability.

1.2 Our Product Advantages

 - High-Performance Rubber Material Selection: We use customized nitrile rubber (for standard temperature) and fluororubber (for high temperature) for the rubber sleeves, which have excellent resistance to aging, high temperature, and chemical corrosion. The fluororubber sleeve can withstand temperatures up to 450°F and is compatible with all common drilling fluids (water-based, oil-based, synthetic). In a high-temperature well project in Wyoming (GX168J, temperature 420°F), our rubber sleeve maintained stable performance for 200 hours, while traditional rubber sleeves failed after 80 hours.
- Enhanced Scraping Design: The spiral scraping groove of the rubber sleeve is optimized with a 45° inclination angle and increased groove depth, improving the debris collection and discharge efficiency by 35% compared to traditional designs. For slightly harder attachments, we offer optional rubber sleeves with embedded wear-resistant particles, which can enhance scraping force without damaging the casing. In a new well cementing preparation project in Texas (GX140J), our product completed casing cleaning in one pass, while the traditional product required three passes.
- Precision Thread Technology: Adopts cold rolling thread processing, which improves the thread surface finish (Ra ≤ 0.6 μm) and fatigue strength by 30% compared to traditional cutting threads. Each thread is inspected with a precision thread gauge, and we provide matching torque wrenches to ensure uniform torque application. In a 3-year service follow-up of 500+ GX-J series products, no thread damage failures were reported.

2. Spring Type Casing Scrapers (GX-T Series)

2.1 Common Quality Issues

 - Spring Fatigue/Fracture: Under long-term cyclic compression and tension during up-and-down reciprocating operations, the spring is prone to fatigue and fracture, leading to scraping blade failure. This accounts for 60% of GX-T series failures in the industry.
- Scraping Blade Wear: In highly abrasive environments (e.g., casing with heavy scale), the scraping blade wears quickly, reducing scraping efficiency.
- Poor Adaptability to Severe Deformation: For casing with severe inner wall deformation (exceeding 0.8 in), the spring compression range is insufficient, resulting in uneven scraping or tool jamming.

2.2 Our Product Advantages

 - High-Strength Spring with Heat Treatment: Our springs are made of 304 stainless steel and undergo a special heat treatment process (solution annealing + tempering), which improves the fatigue life by 50% compared to traditional springs. The spring design adopts a variable pitch structure, which can evenly distribute the stress during compression and tension, avoiding stress concentration. In a old well renovation project in the North Sea (GX194T), our spring maintained normal function after 300+ reciprocating operations, while traditional springs fractured after 120 operations.
- Wear-Resistant Coating for Scraping Blades: The scraping blades are coated with a Ni-Cr-WC composite wear-resistant coating (thickness: 0.12 mm, hardness: HRC 60-65), which reduces the wear rate by 65% compared to uncoated blades. In a scale-rich casing cleaning project in Oklahoma (GX219T), our scraping blade wear was only 0.03 mm after 150 hours of operation, meeting the service requirement of 0.1 mm.
- Expanded Adaptation Range: We optimized the spring structure to expand the compression range by 20% (maximum compression up to 0.8 in for large models), enabling adaptation to casing inner wall deformation within 0.8 in. Additionally, the scraping blades are designed with a floating structure, which can automatically adjust the scraping angle according to the casing inner wall condition, ensuring uniform scraping. In a slightly deformed casing cleaning project in Alberta (GX178T), our product successfully completed cleaning without jamming, while traditional products were stuck twice.

Exclusive Data, Technical Details & On-Site Cases

1. Exclusive Performance Data

 - Overall Failure Rate: 0.6% (based on 4,500+ units in service across 18+ countries, 3-year tracking data), industry average: 2.8%
- Average Service Life: 350 hours (rubber sleeve type), 480 hours (spring type), 25-45% longer than industry averages
- Scraping Efficiency: 95% (for common attachments such as rust, scale, and cement slurry), verified by third-party testing at the International Oilfield Tool Testing Center
- Casing Damage Rate: 0% (based on 3,000+ well applications), ensuring the integrity of the casing inner wall

2. Core Technical Details

 - Rubber Sleeve Formulation Technology: Our custom rubber sleeve uses a composite formulation with added anti-aging agents and reinforcing fillers, which improves the tensile strength by 20% and elongation at break by 15% compared to standard rubber materials. The formulation is developed based on 10+ years of rubber material testing data, ensuring optimal performance in different downhole environments.
- Spring Stress Optimization Design: Through finite element analysis (FEA), we optimized the spring's coil diameter, pitch, and wire diameter to achieve uniform stress distribution. The variable pitch design ensures that the spring force remains stable throughout the compression range, providing consistent scraping force.
- Wear-Resistant Coating Process: The Ni-Cr-WC composite coating on the scraping blades is applied using high-velocity oxygen fuel (HVOF) spraying technology, which ensures strong coating adhesion (bond strength ≥ 80 MPa) and uniform thickness. This process effectively improves the wear resistance of the blades in harsh abrasive environments.

3. On-Site Application Cases

3.1 Case 1: High-Temperature Well Casing Cleaning in West Texas

Customer: A major U.S. oilfield service company
Well Condition: Depth 13,800 ft, temperature 430°F, casing size 6-5/8" (168 mm), drilling fluid type: oil-based
Challenge: Traditional rubber sleeve type casing scrapers (GX168J equivalent) suffered rubber sleeve aging and cracking after 70 hours of operation, requiring 2 unplanned tripping operations (downtime cost: $7,500/hour)
Solution: Our GX168J with high-temperature fluororubber sleeve
Result: The product operated continuously for 220 hours without rubber sleeve failure, completing casing cleaning in one pass. Unplanned tripping was eliminated, saving $15,000 in downtime costs, and the subsequent cementing quality was improved by 20% (verified by cement bond log).

3.2 Case 2: Old Well Renovation Casing Scaling Cleaning in the North Sea

Customer: A European offshore oil exploration company
Well Condition: Offshore old well, casing size 7-5/8" (194 mm), severe scaling (scale thickness 0.2-0.3 in), slight casing deformation (max deformation 0.6 in)
Challenge: Traditional spring type casing scrapers (GX194T equivalent) suffered spring fracture after 100 reciprocating operations, and the scraping blades wore quickly, failing to complete scaling cleaning
Solution: Our GX194T with heat-treated variable pitch spring and HVOF-coated scraping blades
Result: The product completed 350 reciprocating operations without spring failure, and the scraping blade wear was only 0.02 mm. The casing scaling was completely removed, and the inner wall cleanliness met the renovation requirements. The project was completed 3 days ahead of schedule, saving $60,000 in operational costs.

3.3 Case 3: New Well Cementing Preparation in Sichuan Basin, China

Customer: A Chinese national oil company
Well Condition: Land well, casing size 5-1/2" (140 mm), downhole pressure 12,000 psi, attachments: fresh cement slurry and drilling cuttings
Challenge: Traditional GX140J casing scrapers had insufficient scraping efficiency, requiring 4 passes to complete cleaning, delaying the cementing schedule
Solution: Our GX140J with optimized spiral scraping groove and embedded wear-resistant particles
Result: Our product completed casing cleaning in one pass, with the inner wall cleanliness reaching 98%. The cementing operation was carried out on schedule, and the cementing bond strength was 15% higher than the design requirement. This solution has been promoted in 20+ wells in the same basin, improving overall operational efficiency by 30%.

Our Supplied Products & Component Brands/Models

We provide a full range of casing scrapers (GX-J and GX-T series) and matching replacement components, with all key components selected from well-known global brands to ensure consistent quality and reliable performance. Below are the common products and component details:

1. Main Products

 - Full-series rubber sleeve type casing scrapers (GX102J to GX273J): Standard temperature models and high-temperature models (fluororubber sleeve).
- Full-series spring type casing scrapers (GX114T to GX273T): Standard wear-resistant models and enhanced wear-resistant models (HVOF-coated blades).
- Casing scraper accessory kits: Including installation tools, torque wrenches, thread protectors, rubber sleeve replacement kits, and spring-blade assembly replacement kits.

2. Key Replacement Components & Their Brands/Models

 - Rubber Sleeves: Brand: Parker Hannifin, Models: NBR-GX (nitrile rubber), FKM-GX (fluororubber); Compatible with GX-J series models, temperature resistance: -20°F ~ 450°F.
- Springs: Brand: Lee Spring, Models: 304SS-GX-VP (variable pitch 304 stainless steel); Compatible with GX-T series models, compression range: 0.25 ~ 0.80 in.
- Scraping Blades: Brand: Our proprietary (with HVOF coating), Models: Blade-GX-T-1 to Blade-GX-T-10; Material: 4140H alloy steel with Ni-Cr-WC coating, hardness: HRC 60-65.
- Sealing O-Rings: Brand: Viton, Model: GLT-450; Material: Fluorocarbon rubber, temperature resistance: -20°F ~ 450°F, compatible with all common drilling fluids.
- Thread Anti-Seize Coating: Brand: Permatex, Model: 80078; High-temperature resistance, anti-galling, suitable for API standard threads.
- Torque Wrenches (Matching Accessories): Brand: Snap-on, Model: CDI 2503MFRMH; Torque range: 50 ~ 250 ft-lbs, with digital display for precise torque control.

3. Custom Component Services

For special well conditions (e.g., ultra-high temperature > 450°F, ultra-corrosive environments, non-standard casing sizes), we offer custom component development and matching services. This includes custom rubber sleeve formulations (e.g., perfluoroelastomer for ultra-high temperature), corrosion-resistant spring materials (e.g., Hastelloy alloy), and non-standard scraping blade sizes. All custom components undergo rigorous testing (high-temperature aging, corrosion resistance, fatigue testing) to ensure compatibility and reliability with our casing scrapers.

Conclusion

In the oil and gas well construction and intervention process, the performance of casing scrapers is crucial to the success of subsequent operations and the long-term integrity of the wellbore. Our full-series casing scrapers, with their precise specifications, targeted quality improvement designs, and verified on-site performance, provide reliable and efficient solutions for global oilfield operations. Backed by exclusive technical data, proven application cases, and high-quality component supply, we are committed to becoming a trusted partner for oilfield service companies worldwide. Whether for new well cementing preparation, old well renovation, or harsh environment operations (HPHT, offshore), we have the right casing scraper solution to meet your specific needs.
