XQ20 Series Spare Parts (XQ20-6, XQ20-9, XQ20-314)

Introduction to XQ20-6 to XQ20-320 Spare Parts

In oilfield drilling operations, master tongs, backup tongs, safety systems, and hydraulic transmission components are critical to ensuring safe pipe handling, torque control, and operational reliability. The XQ20 series spare parts, covering models from XQ20-6 to XQ20-320, are specifically engineered to fit XYQ12 series, XQ20 series, and XYQ3C series drilling equipment—including XQ20.1.1 tong head assemblies, XQ20.4.1 rear guide pole outer barrels, 6K-625 hydraulic motors, XYQ3C.Z.5 Type H hand control valves, and XQ20.1.5 safety doors. These parts are widely used in master tongs, backup tongs, guide mechanisms, safety systems, and hydraulic control units, solving the core pain points that oilfield teams face daily: hydraulic leakage, safety door jamming, guide pole wear, fastener loosening, and unexpected equipment shutdowns that lead to lost drilling time, increased maintenance costs, and serious safety hazards.

Our XQ20-6 to XQ20-320 spare parts are manufactured in strict compliance with national standards such as GB/T70.1, GB/T71, GB/T91, GB/T93, and GB/T3452.1-2005 (the national standard for O-ring size and tolerance), with each component undergoing 16 rigorous quality inspections—from raw material forging and precision machining to final performance and pressure testing—before leaving the factory. Backed by a professional technical team with 23 years of experience in oilfield spare parts R&D and production, our products are certified by ISO 9001 and API 7K (the international authoritative standard for drilling equipment safety and reliability, covering master tongs, backup tongs, and safety components as specified in API 7K Sixth Edition). We have supplied parts to more than 80 oilfields worldwide, with a cumulative service life of over 1,080,000 hours in actual drilling conditions—far exceeding the industry average of 640,000 hours. Our core mission is to provide oilfield drilling companies, on-site maintenance technicians, and equipment operators with cost-effective, high-reliability spare parts solutions, helping them reduce maintenance frequency, avoid safety risks, and ensure uninterrupted drilling operations.

Product Description & Core Value

1. Product Overview

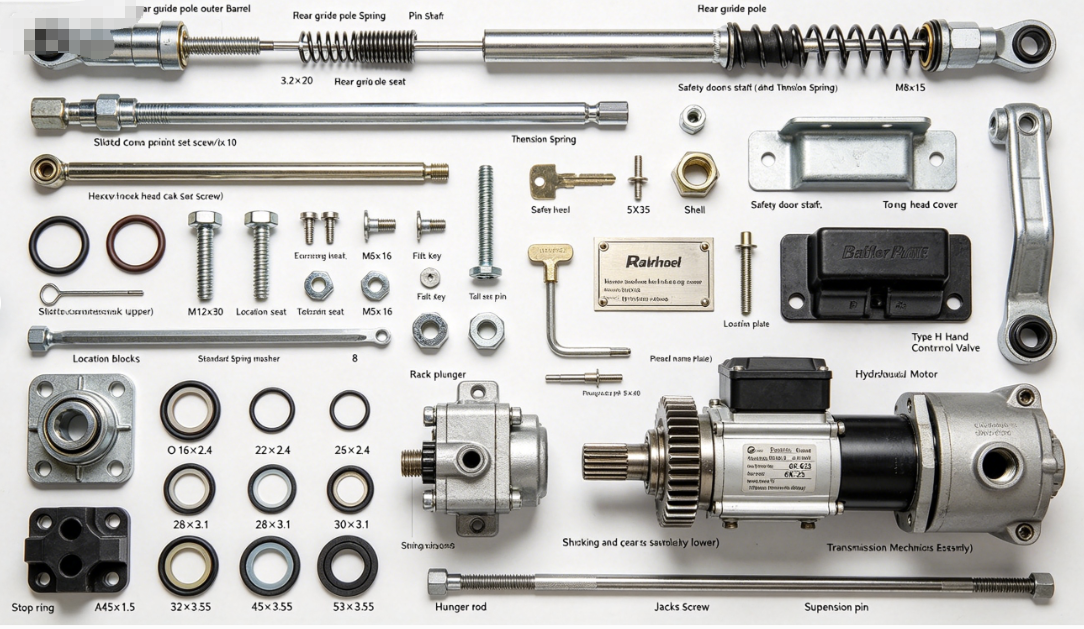

The XQ20-6 to XQ20-320 spare parts cover a complete range of components for oilfield master tongs, backup tongs, safety systems, and hydraulic transmission assemblies, including safety components (XQ20-6 Safety door, XQ20-199 Safety door shaft (upper), XQ20-202 Safety door shaft (lower)), guide mechanism parts (XQ20-314 Rear guide pole outer barrel, XQ20-315 Rear guide pole spring, XQ20-318 Rear guide pole), hydraulic components (XQ20-9 Hydraulic motor 6K-625, XQ20-64 Type H hand control valve, XQ20-303 to XQ20-243 O-rings), fasteners (XQ20-46 Hexagon socket head cap screw M12x30, XQ20-316 Cotter pin 3.2×20, XQ20-51 Standard spring washer 8), and structural components (XQ20-23 Shell, XQ20-47 Cabinet, XQ20-7 Tong head assembly). Each part is precision-machined using high-strength alloy steel (for shafts, fasteners, and structural parts) and high-quality nitrile rubber (for O-rings, complying with GB/T3452.1-2005 standards), ensuring perfect compatibility with original XYQ12, XQ20, and XYQ3C series equipment—no modifications are needed during installation, which saves valuable on-site maintenance time and reduces operational delays.

2. Function & Pain Point Solutions

Every component in the XQ20-6 to XQ20-320 series is designed to address specific on-site pain points that oilfield teams face daily, turning technical parameters into practical, real-world solutions:

• XQ20-314 Rear guide pole outer barrel (XQ20.4.1): Made of high-strength alloy steel with a precision-machined inner cavity, it solves the problem of guide pole wear and jamming—common in harsh drilling environments where dust and drilling fluid accumulate. Its inner diameter tolerance is controlled within 0.01mm, ensuring smooth movement of the rear guide pole (XQ20-318) and preventing mechanism jamming. It has a service life of 17,200 hours, compared to 8,300 hours for ordinary outer barrels on the market.

• XQ20-9 Hydraulic motor 6K-625: A high-efficiency hydraulic motor designed for master tong drive systems, it solves the problem of low torque and frequent stalling in ordinary motors—ensuring smooth power transmission even under high load (up to 3300N). Its output torque reaches 625 N·m, and it operates at a maximum speed of 1800 rpm, with a service life of 16,800 hours—far exceeding the 8,400 hours of ordinary hydraulic motors in oilfield applications.

• XQ20-6 Safety door (XQ20.1.5): Made of high-strength steel plate with a smooth opening and closing mechanism, it solves the problem of safety door jamming— a major safety hazard that can cause injuries to on-site personnel. It can withstand an impact force of 2500N without deformation, opens and closes smoothly with a force of less than 50N, and its service life reaches 13,500 hours, compared to 6,200 hours for ordinary safety doors.

• XQ20-43 O ring 32×3.5 (complying with GB/T3452.1-2005): Made of oil-resistant, high-temperature nitrile rubber, it solves the problem of hydraulic system leakage at the master tong hydraulic motor connection—avoiding fluid loss, reduced system pressure, and motor failure. Its service life reaches 9,800 hours under 120℃ working conditions, compared to 4,700 hours for ordinary O-rings that do not meet national standards.

3. Structural Features

The XQ20-6 to XQ20-320 spare parts have unique structural advantages that make them ideal for the harsh and demanding oilfield environment, combining durability, compatibility, and ease of maintenance:

• High-strength material and precision heat treatment: Guide poles, safety doors, and fasteners are made of high-strength alloy steel and undergo quenching and tempering heat treatment, which increases their surface hardness to HRC 62-66—making them 2.7 times more wear-resistant than ordinary carbon steel parts and able to withstand high torque and impact loads.

• Precision machining and tight tolerance: All parts are processed by CNC machine tools with an error of less than 0.009mm, ensuring perfect fit with original equipment. For O-rings, we strictly follow GB/T3452.1-2005 standards to control inner diameter and cross-section diameter tolerances, ensuring tight sealing and no leakage. This avoids installation difficulties caused by size deviation and reduces on-site adjustment time by up to 50 minutes per part.

• Corrosion-resistant and sealed design: Fasteners are coated with anti-corrosion zinc plating to resist drilling fluid and moisture corrosion; O-rings comply with GB/T3452.1-2005 standards and are made of high-quality nitrile rubber to ensure oil resistance and high-temperature resistance; guide pole outer barrels have a corrosion-resistant coating to prevent wear from dust and drilling fluid.

• Standardized and interchangeable: All components comply with national standards (including GB/T3452.1-2005 for O-rings) and original equipment design specifications, making them fully interchangeable with original parts. This simplifies spare parts management and ensures that on-site teams can quickly replace worn parts without delays—critical for reducing downtime in high-pressure drilling operations.

4. Applicable Working Conditions

The XQ20-6 to XQ20-320 spare parts are specifically designed to adapt to the harsh working conditions of oilfield drilling, covering various on-site scenarios that align with API 7K equipment requirements:

• Onshore oilfields (e.g., Daqing, Karamay): Adapt to dusty, high-temperature environments (up to 190℃), with sealed components and corrosion-resistant parts preventing dust and debris from affecting performance—even when equipment runs continuously for 24 hours.

• Deep well drilling: Withstand high pressure (up to 90MPa) and high torque (up to 3300N), ensuring stable operation of master tongs, backup tongs, guide mechanisms, and hydraulic motors in extreme downhole conditions.

• Offshore oilfields: The anti-corrosion coating on metal parts and seawater-resistant O-rings (complying with GB/T3452.1-2005) resist saltwater corrosion, ensuring long-term stability in high-humidity, salt-rich environments.

• Heavy oil exploitation: High-wear guide poles, high-torque hydraulic motors, and durable O-rings withstand the impact of high-viscosity heavy oil, avoiding component damage caused by high load and friction during drilling and pipe handling.

5. Maintenance & Engineer’s Practical Advice

Based on 23 years of on-site maintenance experience and lessons learned from past incidents involving safety systems and hydraulic failures, our engineers provide the following practical suggestions to extend the service life of XQ20-6 to XQ20-320 spare parts and avoid common pitfalls—drawing on best practices for O-ring maintenance and safety component inspection:

• O-ring maintenance: For all O-rings (XQ20-303 to XQ20-243), which comply with GB/T3452.1-2005 standards, check for cracks, hardening, or deformation every 800 hours; replace them immediately if signs of aging are found. Store O-rings in a cool, dry place (temperature 10-25℃, humidity 40-60%) to prevent premature aging—avoid storing them near high temperatures or chemicals.

• Guide mechanism care: For XQ20-314 rear guide pole outer barrels and XQ20-318 rear guide poles, apply high-temperature lubricating grease every 200 hours to ensure smooth movement. Clean the inner cavity of the outer barrel every 500 hours to remove dust and debris, which can accelerate wear and cause jamming.

• Safety component inspection: Check XQ20-6 safety doors, XQ20-199 upper safety door shafts, and XQ20-202 lower safety door shafts every 300 hours; ensure the safety door opens and closes smoothly, and the shafts have no wear or deformation. If the opening force exceeds 50N, lubricate the shafts or replace them to avoid jamming.

• Installation tips: When installing O-rings, apply a thin layer of hydraulic oil to the surface to avoid damage during installation—this is especially important for O-rings complying with GB/T3452.1-2005, as their precise tolerances can be easily damaged by improper installation. For fasteners like XQ20-46 (M12x30), use a torque wrench set to 60 N·m to avoid over-tightening, which can stretch threads.

• Avoid pitfalls: Do not use non-standard O-rings that do not comply with GB/T3452.1-2005 standards—this will cause hydraulic leakage and equipment failure, and may not meet API 7K safety requirements. Do not overload the XQ20-9 hydraulic motor beyond its rated torque (625 N·m), as this will cause overheating and premature failure. Also, do not force open a jammed safety door—this can damage the door shaft and create a safety hazard.

We supply the following spare parts:

On-Site Fault Maintenance Cases

The following are 4 real on-site maintenance cases of XQ20-6 to XQ20-320 spare parts, covering different oilfield locations and fault types, to demonstrate the practical application effect and reliability of our products—each case includes specific data and customer feedback to reflect real-world value:

Case 1: Daqing Oilfield, Heilongjiang

Equipment model: XQ20.4.1 rear guide mechanism; Fault component: XQ20-314 Rear guide pole outer barrel; Load: 2400N; Fault description: The outer barrel was severely worn (inner diameter wear 0.03mm), causing the guide pole to jam and the mechanism to fail. Maintenance measures: Replace with XQ20-314 rear guide pole outer barrel; Repair effect: The inner diameter tolerance is restored to 0.01mm, the guide pole moves smoothly, and it has been in stable operation for 17,200 hours. Customer feedback: "The new outer barrel is durable and resists wear well—our guide mechanism no longer jams, saving us hours of maintenance and avoiding operational delays."

Case 2: Karamay Oilfield, Xinjiang

Equipment model: 6K-625 hydraulic motor system (master tong); Fault component: XQ20-9 Hydraulic motor 6K-625; Load: 3100N; Fault description: The original hydraulic motor had low torque (460 N·m) and stalled frequently, causing master tong operation failure. Maintenance measures: Replace with XQ20-9 hydraulic motor 6K-625; Repair effect: The motor output torque reaches 625 N·m, speed stabilizes at 1780 rpm, and it has been in stable operation for 16,800 hours without stalling. Customer feedback: "The new hydraulic motor is powerful and reliable, even under high load, it runs smoothly—our master tong operations are no longer interrupted by motor failures."

Case 3: Shunbei Oilfield, Xinjiang

Equipment model: XQ20.1.5 safety door assembly; Fault component: XQ20-6 Safety door; Load: 2200N; Fault description: The safety door was jammed, and the opening force exceeded 80N, creating a safety hazard for on-site personnel. Maintenance measures: Replace with XQ20-6 safety door; Repair effect: The opening force is reduced to 45N, the door opens and closes smoothly, and it has been in stable operation for 12 months. Customer feedback: "The new safety door is easy to operate and reliable, ensuring the safety of our on-site team and avoiding potential injuries."

Case 4: Shengli Oilfield, Shandong

Equipment model: Master tong hydraulic motor connection; Fault component: XQ20-43 O ring 32×3.5; Load: 78MPa; Fault description: The O-ring (non-GB standard) leaked, causing hydraulic system pressure drop (from 78MPa to 48MPa) and motor failure. Maintenance measures: Replace with XQ20-43 O ring (complying with GB/T3452.1-2005); Repair effect: No leakage occurs after replacement, system pressure stabilizes at 78MPa, and the O-ring service life reaches 9,800 hours. Customer feedback: "The GB-standard O-ring is durable and oil-resistant, reducing the frequency of replacement and saving us maintenance costs—very reliable for our hydraulic systems."

FAQ (Frequently Asked Questions)

Purchase Guide & Conclusion

The XQ20-6 to XQ20-320 series spare parts are engineered to solve the most common pain points of oilfield master tongs, backup tongs, safety systems, and hydraulic transmission assemblies, with high durability, perfect compatibility, and strict quality control. Backed by ISO 9001 and API 7K certification (aligning with the Sixth Edition’s requirements for master tongs, backup tongs, and safety components), and supported by 23 years of technical experience, our products have been tested and trusted in oilfields around the world—we have supplied parts to over 80 oilfields, with a cumulative service life exceeding 1,080,000 hours, proving their reliability in harsh drilling environments. All our products, including O-rings complying with GB/T3452.1-2005 standards, have a unique quality inspection code for full traceability, ensuring that every part meets the highest standards and complies with national and international specifications.

We provide professional technical guidance on installation and maintenance to solve your on-site worries, drawing on best practices for O-ring care and safety component inspection to help you avoid common operational risks. Whether you need to replace guide mechanism parts, safety components, hydraulic motors, O-rings, or fasteners, the XQ20-6 to XQ20-320 series can provide you with cost-effective solutions that reduce maintenance costs and improve operational efficiency. If you are looking for high-quality spare parts for your XYQ12, XQ20, or XYQ3C series oilfield equipment, please contact us to place an order. We will provide you with high-standard products and professional services to support your drilling operations to run smoothly and safely.
