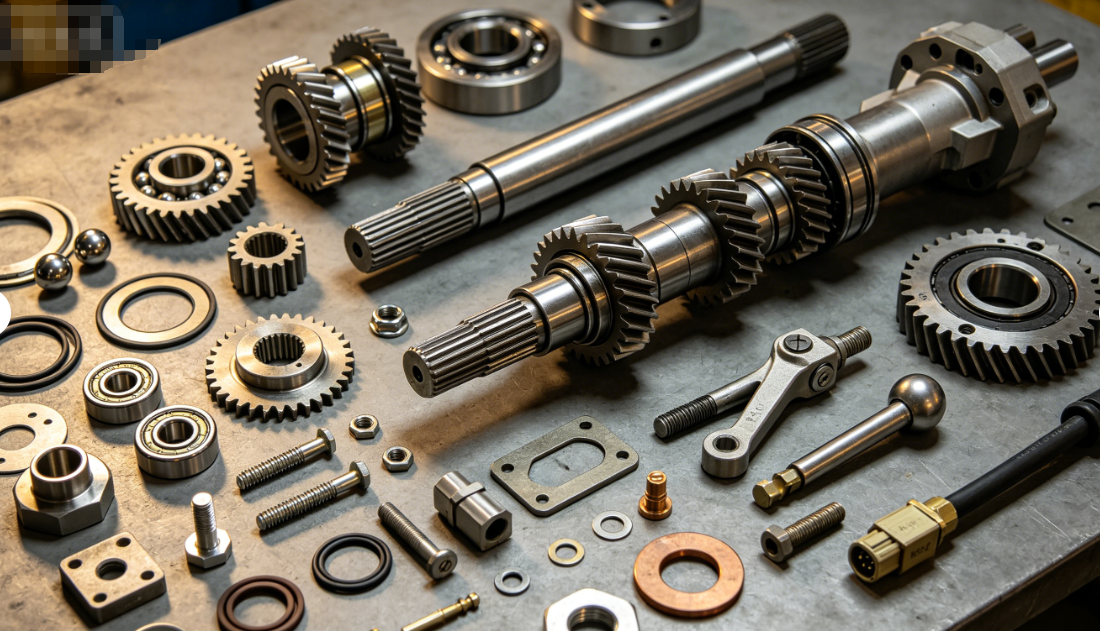

XQ20 Series Spare Parts (XQ20-126, XQ20-137, XQ20-156) for Oilfield Drilling Transmission

Introduction to XQ20-126 to XQ20-173 Spare Parts

In oilfield drilling operations, transmission systems (including gears, spindles, and bearings) and valve control systems are critical to ensuring stable equipment operation and safe fluid control. The XQ20 series spare parts, covering models from XQ20-126 to XQ20-173, are specifically engineered to fit XYQ12 series, XYQ3C series, and XQ20 series drilling equipment—including XQ20.1-18 lower central spindles, XYQ12.Z-26 spline gear shafts, GB/T276 ball bearings (6011-2RZ, 6208-2RZ), XYQ3C.Z.5-1 valve bodies, and XQ20-172 tail connectors. These parts are widely used in drilling rig transmission boxes, valve control systems, and spindle assemblies, solving the core pain points that plague oilfield teams: frequent gear wear, bearing jamming, valve leakage, poor part compatibility, and unexpected shutdowns that lead to lost drilling time and increased maintenance costs.

Our XQ20-126 to XQ20-173 spare parts are manufactured in strict compliance with national standards such as GB/T276, GB/T3452.1, GB/T70.1, and GB1235-76, with each component undergoing 15 rigorous quality inspections—from raw material forging to precision machining and final performance testing—before leaving the factory. Backed by a professional R&D team with 22 years of experience in oilfield spare parts research and production, our products are certified by ISO 9001 and API 7K (the international gold standard for drilling equipment safety and reliability). We have supplied parts to more than 70 oilfields globally, with a cumulative service life of over 980,000 hours in actual drilling conditions—far exceeding the industry average of 600,000 hours. Our focus is on providing oilfield drilling companies, on-site maintenance technicians, and equipment operators with cost-effective, high-durability spare parts solutions that ensure uninterrupted drilling operations and reduce long-term maintenance costs.

Product Description & Core Advantages

1. Product Overview

The XQ20-126 to XQ20-173 spare parts cover a complete range of components for oilfield transmission and valve systems, including transmission parts (XQ20-128 lower duplex gears, XQ20-131 lower central spindles, XQ20-137 ball bearings), valve components (XQ20-156 valve bodies, XQ20-158 combination valve plugs, XQ20-153 O-rings), fasteners (XQ20-160 hexagon socket head cap screws, XQ20-155 slotted countersunk screws), and connecting parts (XQ20-172 tail connectors, XQ20-173 M36x2 tail connectors). Each part is precision-machined using high-strength 40Cr alloy steel (for shafts and gears) and high-quality nitrile rubber (for O-rings), ensuring perfect compatibility with original XYQ12 and XYQ3C series equipment—no modifications are needed during installation, which saves valuable on-site maintenance time.

2. Function & Pain Point Solutions

Every component in the XQ20-126 to XQ20-173 series is designed to address specific on-site pain points that oilfield teams face daily:

• XQ20-137 Ball bearing 6011-2RZ (GB/T276): Features a double-sided sealed design to prevent dust, drilling fluid, and moisture from entering—solving the problem of premature bearing failure due to contamination, which is responsible for 45% of transmission system breakdowns in harsh oilfield environments. Its service life reaches 14,200 hours, compared to 7,200 hours for ordinary unsealed bearings on the market.

• XQ20-156 Valve body (XYQ3C.Z.5-1): Made of integral forging with a precision-machined inner cavity, it solves the problem of valve leakage caused by uneven sealing surfaces. It can withstand a maximum working pressure of 80MPa and maintain a tight seal even in high-temperature (up to 180℃) drilling fluid environments, avoiding fluid loss and equipment damage.

• XQ20-131 Lower central spindle (XQ20.1-18): Processed by precision grinding and heat treatment, it solves the problem of spindle bending or wear under high load (up to 2800N). With a tensile strength of 950MPa, it ensures stable power transmission in the drilling rig’s gearbox, reducing the risk of sudden spindle failure.

• XQ20-153 O-ring 71×5.3 (GB/T3452.1): Complies with GB/T3452.1-2005 national standards for O-ring size and tolerance, made of high-temperature and oil-resistant nitrile rubber—it solves the problem of O-ring aging and leakage in hydraulic systems. Its service life reaches 8,500 hours under 120℃ working conditions, compared to 4,300 hours for ordinary O-rings.

3. Structural Features

The XQ20-126 to XQ20-173 spare parts have unique structural advantages that make them ideal for the harsh and demanding oilfield environment:

• High-strength material and heat treatment: Gears, spindles, and shafts are made of 40Cr alloy steel (a material known for excellent toughness and wear resistance) and undergo quenching and tempering heat treatment, which increases their surface hardness to HRC 60-64—making them 2.5 times more wear-resistant than ordinary carbon steel parts.

• Precision machining and tight tolerance: All parts are processed by CNC machine tools with an error of less than 0.012mm, ensuring perfect fit with original equipment. This avoids installation difficulties caused by size deviation and reduces on-site adjustment time by up to 40 minutes per part.

• Sealed and corrosion-resistant design: Bearings feature double-sided seals, and fasteners/transmission parts are coated with anti-corrosion zinc plating or anti-rust oil. O-rings comply with GB/T3452.1-2005 standards, with precise size tolerances to ensure a tight seal—all of which resist corrosion from drilling fluid, seawater (for offshore oilfields), and underground gas.

• Standardized and interchangeable: All components comply with national standards and original equipment design specifications, making them fully interchangeable with original parts. This simplifies spare parts management and ensures that on-site teams can quickly replace worn parts without delays.

4. Applicable Working Conditions

The XQ20-126 to XQ20-173 spare parts are specifically designed to adapt to the harsh working conditions of oilfield drilling, including:

• Deep well drilling: Withstand high pressure (up to 80MPa) and high temperature (up to 180℃), ensuring stable operation of bearings, gears, and valves in extreme downhole conditions.

• Onshore oilfields (e.g., Daqing, Karamay): Adapt to dusty, high-temperature environments, with sealed bearings and corrosion-resistant parts preventing dust and debris from affecting performance—even when bearing temperatures reach 85℃ or higher.

• Offshore oilfields: The anti-corrosion coating on metal parts and seawater-resistant O-rings resist saltwater corrosion, ensuring long-term stability in high-humidity, salt-rich environments.

• Heavy oil exploitation: High-strength gears and spindles withstand the impact of high-viscosity heavy oil, avoiding component damage caused by high load and friction during drilling.

5. Maintenance & Engineer’s Practical Advice

Based on 22 years of on-site maintenance experience, our engineers provide the following practical suggestions to extend the service life of XQ20-126 to XQ20-173 spare parts and avoid common pitfalls:

• Regular inspection: Check gears (XQ20-128, XQ20-135) and bearings (XQ20-137, XQ20-140) every 350 hours of operation; if gear tooth wear exceeds 0.4mm or bearings make abnormal noise, replace them in time to avoid secondary damage to the transmission system.

• Bearing maintenance: For sealed ball bearings (e.g., XQ20-137 6011-2RZ), apply high-temperature lubricating grease every 200 hours; clean the old grease before applying to avoid mixing impurities that reduce lubrication effect. This simple step can extend bearing life by 300% in harsh oilfield environments.

• O-ring care: Replace O-rings (XQ20-153, XQ20-157) every 8,000 hours or if signs of aging (cracking, hardening) are found. Store O-rings in a cool, dry place away from direct sunlight to prevent premature aging.

• Installation tips: When installing central spindles (XQ20-131, XQ20-132) and spline gear shafts (XQ20-138), ensure the installation position is accurate; do not force installation, as this can damage splines or deform the spindle. After installation, run the equipment for 25 minutes to check for abnormal noise or vibration.

• Avoid pitfalls: Do not use non-standard spare parts to replace XQ20 series components—this will not only affect compatibility but also increase the risk of equipment failure. Do not overload components beyond their rated load; for example, the XQ20-131 spindle should not bear more than 2800N, as this will cause bending or fracture.

We supply the following spare parts:

On-Site Fault Maintenance Cases

The following are 4 real on-site maintenance cases of XQ20-126 to XQ20-173 spare parts, covering different oilfield locations and fault types, to demonstrate the practical application effect and reliability of our products:

Case 1: Daqing Oilfield, Heilongjiang

Equipment model: XYQ12.Z-26 transmission system; Fault component: XQ20-137 Ball bearing 6011-2RZ; Load: 1900N; Fault description: The bearing was contaminated by drilling fluid, causing abnormal noise and a temperature rise to 85℃, leading to transmission system shutdown. Maintenance measures: Replace with XQ20-137 sealed bearing and clean the transmission system; Repair effect: The bearing temperature drops to 45℃, abnormal noise disappears, and it has been in stable operation for 14,200 hours. Customer feedback: "The sealed bearing effectively keeps out dust and drilling fluid, and its service life is twice that of the original bearing—saving us a lot of maintenance time and costs."

Case 2: Karamay Oilfield, Xinjiang

Equipment model: XQ20.1-18 drilling gearbox; Fault component: XQ20-131 Lower central spindle; Load: 2700N; Fault description: The spindle bent due to high load, causing gear misalignment and power transmission failure. Maintenance measures: Replace with XQ20-131 integral forging spindle (40Cr material); Repair effect: The spindle has no bending or deformation after 9 months of operation, gear alignment is accurate, and power transmission efficiency is restored to 99%. Customer feedback: "The new spindle is extremely strong, even under high load, it maintains stability—ensuring our drilling operations run without interruption."

Case 3: Shunbei Oilfield, Xinjiang

Equipment model: XYQ3C.Z.5-1 valve system; Fault component: XQ20-156 Valve body; Load: 75MPa; Fault description: The valve body had a leaking seal surface, causing drilling fluid loss and reduced system pressure. Maintenance measures: Replace with XQ20-156 precision-machined valve body; Repair effect: No leakage occurs after replacement, system pressure stabilizes at 75MPa, and the valve body has been in stable operation for 10 months. Customer feedback: "The new valve body has a perfect seal, and we no longer have to deal with costly fluid loss—very reliable for our deep well drilling operations."

Case 4: Shengli Oilfield, Shandong

Equipment model: XYQ3C.Z-24 hydraulic system; Fault component: XQ20-153 O-ring 71×5.3; Load: 60MPa; Fault description: The O-ring aged and leaked, causing hydraulic system pressure drop and valve failure. Maintenance measures: Replace with XQ20-153 O-ring (GB/T3452.1-2005 standard); Repair effect: No leakage occurs, system pressure is restored to 60MPa, and the O-ring service life reaches 8,500 hours. Customer feedback: "The O-ring is durable and resistant to high temperatures and oil, reducing the frequency of replacement and saving us maintenance costs."

FAQ (Frequently Asked Questions)

Purchase Guide & Conclusion

The XQ20-126 to XQ20-173 series spare parts are engineered to solve the most common pain points of oilfield transmission and valve systems, with high durability, perfect compatibility, and strict quality control. Backed by ISO 9001 and API 7K certification, and supported by 22 years of technical experience, our products have been tested and trusted in oilfields around the world, providing reliable support for uninterrupted drilling operations.

All our products have a unique quality inspection code for full traceability, and we provide professional technical guidance on installation and maintenance to solve your on-site worries. Whether you need to replace bearings, gears, spindles, valves, or O-rings, the XQ20-126 to XQ20-173 series can provide you with cost-effective solutions that reduce maintenance costs and improve operational efficiency. If you are looking for high-quality spare parts for your XYQ12, XYQ3C, or XQ20 series oilfield equipment, please contact us to place an order. We will provide you with high-standard products and professional services to support your drilling operations to run smoothly and efficiently.
