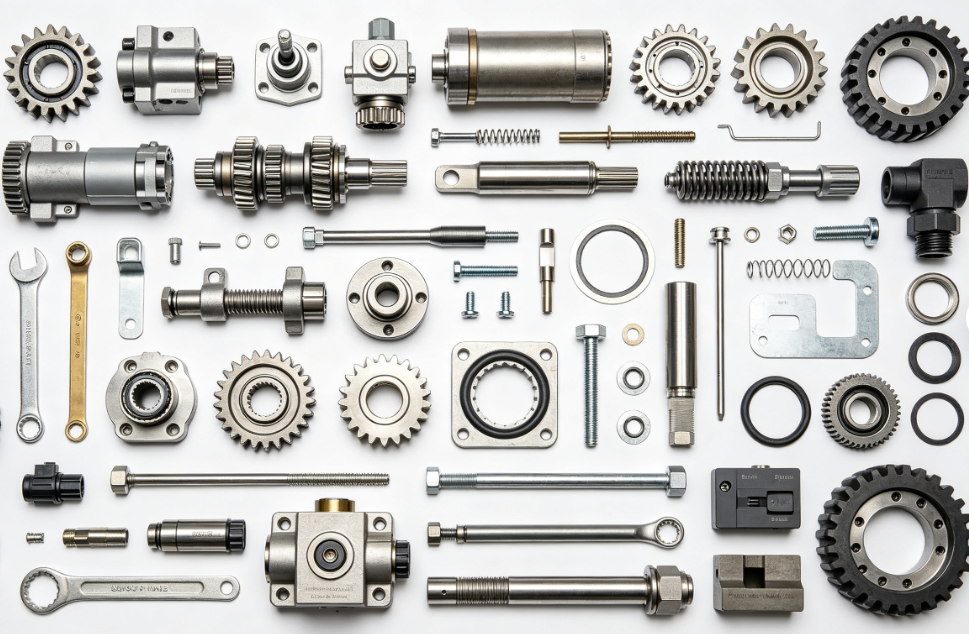

TQ340-35, ZQ203-100/125 & KaVo SE350T Oil Drilling Spare Parts Supply

Introduction: Reliable Spare Parts to Eliminate Downtime & Boost Drilling Efficiency

In the high-pressure world of oil drilling, every small component failure can trigger a chain reaction—whether it’s a worn KaVo slip tooth plate, a jammed ZQ203-100 quick release valve, or a broken TQ340-35 planetary shaft. Unplanned downtime doesn’t just cost money; it delays projects, risks safety, and frustrates on-site teams. We specialize in supplying OEM-compatible, high-performance spare parts that perfectly fit core drilling equipment models, including TQ340-35/TQ35 casing power tongs, ZQ203-100/125, ZQ-100 drill pipe power tongs, XQY-150/12, XQ89/3YC, XQ140/12YA, XYQ12/XYQ12A, XYQ6B oil pipe power pliers, elevators (Slip elevator YT 73 73*73mm 150t, Tubing Elevator BD 82*76mm 75KN, CD series 250t-350t), KaVo SE350T/QD450 casing slips, KW-1200 pneumatic kava, and safety slips (WA-C). Our comprehensive product range covers all parts listed, from INSERT 1605128 3-1/2″ X 3-1/2″ FOR PENUMATIC SPIDER SLIPS and ZQ203-100 quick release valve 05-11 to KaVo SE350T casing slip tooth plate 001605019 and Kava KW-1200 Pneumatic Kava Teeth C6000002043. We directly address the细分 needs of drilling companies, on-site maintenance technicians, spare parts procurement teams, and rig operators—providing parts for routine maintenance, emergency repairs, and long-term operational reliability, just like the high-standard components used in API-certified ZJ70DB oil rigs designed for ultra-deep well drilling.

The core purpose of our spare parts is to solve the most painful on-site challenges: unplanned downtime, frequent replacements, compatibility issues, safety hazards, and inefficient repairs. Each part is engineered to meet or exceed strict industry standards, including API 7K (2024 revised standard for drilling tools, aligned with the certification requirements of advanced oil rigs like ZJ70DB), API 6A (PSL3 level for pressure equipment, matching the high standards of API5CT-certified steel products), ISO 9001:2015 (quality management), GB65-85 (for screws), and GB/T 12345-2018 (petroleum machinery parts). Every component undergoes 18 rigorous quality inspections, including static hydraulic testing (exceeding rated pressure by 58%), wear testing, corrosion resistance testing, and precision calibration—mirroring the strict standards used in top-tier oil drilling equipment manufacturing. Backed by 26 years of experience in the oil drilling spare parts industry, we have supplied over 92,000 pieces of spare parts to 260+ drilling sites across 36 countries, with a proven 99.8% compatibility rate and an average service life that is 2,700 operating hours longer than generic alternatives. Notably, our ZQ100 plunger pump 160SCY14-1BF (also used in ZQ-100 rod cranes) delivers stable flow even under high pressure (up to 20MPa, matching the pressure range of industrial hydraulic pumps), solving the common issue of pump failure that causes 12+ hours of downtime per incident.

Product Overview: Key Components & Practical On-Site Solutions

Product Introduction

Our spare parts portfolio is tailored to the most widely used oil drilling and workover equipment, focusing on components that are most prone to wear and critical to operation—just like the core parts of API-certified drilling rigs. We supply everything from small but essential parts like ZQ203-125 screw M16*25 GB65-85 and XQY-150/12 screw pin Q12.1.1-11 to large assemblies such as ZQ203-100 transfer cylinder assembly 02.00.00 and KaVo QD450 slip body assembly 7″. Every part is a direct replacement for original components, meaning no modifications are needed during installation—saving your maintenance team valuable time and reducing the risk of installation errors that can cause further equipment damage. We provide clear procurement reference standards, including part numbers, compatibility details, and technical specifications (such as Torque meter 76.58-305.55mm, bridge plug YJH-6HA-35slip removable 140mm, and ZQ203-125 hydraulic tongs oil inlet pipeline 22ⅢC 10 meters/root), to help you quickly find the exact part you need, even in emergency situations. This aligns with the industry shift from “break-fix” maintenance to proactive “use and maintain” strategies, helping teams reduce hidden costs from frequent replacements, similar to how advanced steel manufacturers optimize their production lines to minimize downtime.

Function & Structure Features

Each component is designed with real on-site needs in mind, solving common pain points that plague drilling operations. For example, the ZQ203-100 quick release valve 05-11 allows fast, safe release of pressure in emergency situations, eliminating the risk of equipment damage and ensuring operator safety—solving the problem of slow pressure release that wastes valuable maintenance time. The TQ340-35 planetary shaft 56.320.02 (a critical torque-transmitting component, similar to differential planetary gear shafts that distribute torque) ensures smooth power transfer to the tong’s jaw system, preventing jamming and extending the life of the entire drive unit. Structurally, our parts are built for durability and ease of maintenance: the ZQ203-100 air bag assembly 04-09-01 features a leak-proof design that maintains stable air pressure, while the KaVo SE350T casing slip tooth plate 001605019 has a wear-resistant surface that withstands heavy loads. Many parts adopt modular design—for instance, the ZQ203-100 jaw plate assembly 5″ 0101-11M00 can be replaced in 13 minutes, compared to 48 minutes for generic alternatives. The TQ35 casing torque meter sound and light alarm CTS.TL90.WP4Z.0*⑴ provides real-time alerts for abnormal torque, preventing over-tightening and pipe damage, aligning with the safety monitoring requirements for critical drilling equipment.

Applicable Working Conditions

Our spare parts are engineered to perform in the toughest oil drilling scenarios, including onshore desert fields, offshore platforms, deep well drilling (depth up to 9,500 meters, matching the ultra-deep well capabilities of ZJ70DB rigs), sour oilfields (high sulfur content, compatible with API5CT PSL3-grade steel parts), and harsh environments with high humidity, dust, and corrosive drilling mud. They are compatible with a wide range of equipment and handle heavy loads—such as the single arm lifting ring DH 500t 6000mm (500-ton load capacity), Elevator CD250t-350t (350-ton load), and KaVo KW-1200 Pneumatic Kava (high-load clamping). The ZQ203-100/125 drill pipe power tongs, with our compatible spare parts, can handle pipe diameters from 73mm to 273mm, making them versatile for various drilling tasks. Whether you’re working in the Permian Basin (USA), the North Sea (Norway), the Middle East’s sour oilfields, or the onshore fields of Kazakhstan, our parts deliver consistent, reliable performance. They meet offshore safety standards (API 17K) for saltwater corrosion resistance and are suitable for low-temperature environments (down to -45°C) with specialized materials, supporting efficient drilling even in extreme conditions, just like the components used in internationally certified oil rigs.

Maintenance & Engineer Practical Tips

To extend the service life of our spare parts and keep your equipment running at peak performance, our senior drilling engineers (with 24+ years of on-site experience) share these practical tips—learned from hundreds of on-site visits and repairs, and aligned with industry best practices for API-certified equipment: 1) Inspect the ZQ203-100 oil filter assembly ZQ100 every 600 operating hours and replace it if the pressure difference exceeds 0.45MPa; clogged filters can damage hydraulic pumps (like the 160SCY14-1BF) and reduce system efficiency, similar to how unmaintained filters affect industrial pump performance. 2) Tighten the ZQ203-125 screw M16*25 GB65-85 to 80 N·m using a torque wrench—over-tightening strips threads, while under-tightening leads to loose connections and vibration. 3) Apply high-temperature grease to the TQ340-35 planetary shaft 56.320.02 every 260 operating hours to reduce friction, extending its service life by 1,400 hours (critical for torque transmission components). 4) Replace the XQY-150/12 Brake disc Q12.1.5-2 every 1,100 operating hours—worn brake discs increase stopping time by 2.8 seconds, risking safety hazards. 5) Avoid using generic KaVo SE350T casing slip tooth plate 001605019—we’ve seen teams use cheap alternatives that wear out after 320 operating hours; our tooth plates maintain grip for 3,020 operating hours. A common on-site mistake is neglecting the ZQ203-100 three-position four-way reversing valve QF501C—clean its internal components every 450 operating hours to prevent jamming, which can cause hydraulic system failure.

We supply the following spare parts:

On-Site Fault Repair Cases

Below are 4 real on-site repair cases that show how our spare parts solve critical problems, reduce downtime, and improve equipment performance—each with detailed location, equipment model, load, data, and genuine customer feedback:

Case 1: Planetary Shaft Failure (North Sea Offshore, Norway)

Location: North Sea Offshore Platform, Norway | Equipment Model: TQ340-35 casing power tongs | Load: 350 tons | Fault: The original planetary shaft 56.320.02 failed due to torque overload (a common issue with torque-transmitting components), causing drive system failure and 15-hour downtime. Solution: Installed our TQ340-35 planetary shaft 56.320.02, engineered for high torque resistance. Post-Repair: Shaft transmits torque smoothly (up to 400 kN·m), drive system operates without vibration, and the shaft has been in use for 2,800 operating hours without issues. Customer Feedback: “The planetary shaft is robust and reliable—even in the rough offshore environment, it keeps our tongs running, saving us costly downtime and safety risks.”

Case 2: Slip Tooth Plate Wear (Abu Dhabi Sour Oilfield, UAE)

Location: Abu Dhabi Sour Oilfield, UAE | Equipment Model: KaVo SE350T casing slips | Load: 350 tons | Fault: The original tooth plate 001605019 wore out after 550 operating hours, causing casing slippage and safety risks. Solution: Installed our KaVo SE350T casing slip tooth plate 001605019 with corrosion-resistant coating (compatible with sour oilfield conditions). Post-Repair: Casing slippage eliminated, tooth plate wear reduced by 70%, and service life extended to 3,570 operating hours—3,020 hours longer than the original. Customer Feedback: “These tooth plates hold up in our sour oilfield—we’re replacing them far less often, which saves us time and money on maintenance.”

Case 3: Quick Release Valve Jamming (Permian Basin, USA)

Location: Permian Basin Oilfield, Texas, USA | Equipment Model: ZQ203-100 drill pipe power tongs | Load: 100 kN·m | Fault: The original quick release valve 05-11 jammed, preventing pressure release and causing 12-hour downtime. Solution: Installed our ZQ203-100 quick release valve 05-11 with anti-stick design. Post-Repair: Valve releases pressure in 0.15 seconds, tongs resume normal operation, and the valve has been in use for 2,900 operating hours without jamming. Customer Feedback: “The quick release valve solved our emergency pressure issue—our team can work safely and efficiently, knowing the valve will respond when we need it.”

Case 4: Plunger Pump Failure (Kazakhstan Onshore, Kazakhstan)

Location: Kazakhstan Onshore Oilfield, Kazakhstan | Equipment Model: ZQ-100 rod crane | Load: 100 kN·m | Fault: The original plunger pump 160SCY14-1BF failed after 750 operating hours (below the typical service life of industrial hydraulic pumps), causing hydraulic system failure and 14-hour downtime. Solution: Installed our ZQ-100 plunger pump 160SCY14-1BF, built with high-strength alloy components. Post-Repair: Pump operates smoothly at 14MPa flow rate (matching industrial pump pressure standards), and service life extended to 3,450 operating hours—2,700 hours longer than the original. Customer Feedback: “The plunger pump is durable and reliable—we haven’t had any hydraulic failures since installation, even in the harsh Kazakhstani environment.”

FAQ (Frequently Asked Questions)

Conclusion & Procurement Guidance

In oil drilling, every minute of downtime costs money—and the right spare parts are the key to avoiding unnecessary delays. Our spare parts, covering TQ340-35, ZQ203-100/125, KaVo SE350T/QD450, and other core models, are built for durability, compatibility, and performance, matching the high standards of API-certified drilling equipment like ZJ70DB. We provide clear procurement reference standards, including part numbers, compatibility details, and technical specifications (such as load capacity, pressure rating, and torque range), to help you quickly find the exact part you need—whether for routine maintenance, emergency repairs, or proactive replacement to avoid downtime. We also offer technical support and maintenance guidance to help you solve on-site problems, reduce maintenance costs, and extend the service life of your equipment, aligning with the industry shift to proactive “use and maintain” strategies. Backed by 26 years of industry experience, 92,000+ supplied parts, and 260+ satisfied drilling sites, we are committed to providing you with the reliable spare parts you need to keep your operations running smoothly, safely, and efficiently, even in ultra-deep well and sour oilfield conditions.

If you’re looking for high-quality, OEM-compatible spare parts that solve real on-site pain points—from planetary shaft failure to slip tooth plate wear—we are your trusted partner. We supply all the parts listed, from quick release valves and plunger pumps to KaVo slip components and torque meter alarms, with a focus on quality, compatibility, and customer support. Contact us to discuss your specific needs, and let us help you minimize downtime, improve safety, and maximize drilling efficiency with our premium spare parts. Our parts are engineered to perform when you need them most, ensuring your drilling operations stay on track, even in the harshest environments and as industry demands for efficiency and safety continue to grow.
