SB68FJ0003 Impeller-FJ, SB68FJ0044 Mechanical Seal Assembly for SB6×8FJ Pump

Introduction

In oilfield drilling solid control systems, the SB6×8FJ centrifugal sand pump is a critical core equipment, mainly used for circulating and transporting drilling fluid containing suspended particles, and it is the ideal supporting pump for desanders, desilters, and mixing funnels, as well as a reliable filling pump for mud pumps. The stable and efficient operation of this sand pump depends entirely on 46 precision-matched spare parts, covering core working components, power transmission parts, fasteners, seals, and structural parts. We specialize in supplying high-quality, standard-compliant spare parts for SB6×8FJ centrifugal sand pumps, covering all listed SB68FJ series components, including key parts such as SB68FJ0003 Impeller-FJ, SB68FJ0044 Mechanical seal assembly, SB68FJ0002 pump casing, SB68FJ0017 Shaft-FJ, and SB68FJ0015 Bearing 7314ACM. All parts are 100% compatible with SB6×8FJ sand pumps, including both direct connection and belt drive structural forms, adapting to 50Hz and 60Hz power grids, ensuring seamless replacement and long-term stable operation in harsh oilfield environments where high vibration, slurry erosion, high temperature, and corrosive media are common.

We tailor our offerings to the segmented needs of target users to solve their actual troubles: For oilfield maintenance technicians, we provide easy-to-install, wear-resistant, and corrosion-resistant parts that reduce unplanned downtime—you don’t need specialized tools to replace components like SB68FJ0045 Key C14×70 or SB68FJ0023 Oil seal FB65×90×12, and each part fits perfectly with the original SB6×8FJ sand pump, eliminating the trouble of mismatched parts. For procurement personnel in oilfield companies and drilling teams, we offer cost-effective, standard-compliant components with stable supply, cutting long-term maintenance costs and inventory pressure, and each part has complete traceability to facilitate procurement management. For technical supervisors, we supply parts that meet international and national standards, with reliable quality and clear performance indicators, ensuring the safe and efficient operation of SB6×8FJ sand pump systems. The core purpose of our spare parts is to solve the most common pain points in SB6×8FJ sand pump operation—such as impeller wear, mechanical seal leakage, bearing failure, pump casing damage, and difficult sourcing of specialized SB68FJ components—ensuring your sand pumps run continuously, even when transporting high-concentration slurry with suspended particles.

All our products comply with ISO 9001 quality management system, API 682 (4th edition), ISO 281 (bearing life standard), and national standards including GB/T5782-2000, GB/T93-1987, and GB/T95-2002, with a product qualification rate of 99.98. With 30 years of professional experience in producing and supplying oilfield equipment spare parts, we have provided over 410,000 SB68FJ series components to more than 2,300 customers in oilfield drilling and solid control sectors. Our exclusive data shows: SB68FJ0003 Impeller-FJ, made of highly wear-resistant cast iron with an optimized streamlined design, has a service life of 14,200 working hours, 4,100 hours longer than ordinary market alternatives, and its wide flow path design prevents clogging, solving the problem of premature impeller wear and blockage. SB68FJ0044 Mechanical seal assembly adopts patented seal technology, with a service life 6 times longer than ordinary mechanical seals, up to 8,800 working hours, effectively preventing slurry leakage. SB68FJ0015 Bearing 7314ACM and SB68FJ0024 Bearing 6314E, calculated by the L₁₀ life formula (L₁₀ = (C/P)ᵖ) with 90% reliability, have a service life of 12,500 working hours and 13,100 working hours respectively, solving the problem of bearing fatigue failure. SB68FJ0002 pump casing, with overflow parts made of wear-resistant material, can withstand slurry erosion with a maximum particle size of 6mm, ensuring long-term stable operation.

Product Overview

Core Product Introduction

Our product range covers all 46 critical spare parts for SB6×8FJ centrifugal sand pumps, ensuring comprehensive coverage of maintenance and replacement needs, whether for daily wear parts or core components. The parts are categorized into six key types: Core Working Components (SB68FJ0002 pump casing, SB68FJ0003 Impeller-FJ), Sealing Components (SB68FJ0011 Mechanical seal pump cover, SB68FJ0023 Oil seal FB65×90×12, SB68FJ0037 O-ring Φ55×3.1, SB68FJ0044 Mechanical seal assembly), Transmission Components (SB68FJ0015 Bearing 7314ACM, SB68FJ0017 Shaft-FJ, SB68FJ0024 Bearing 6314E, SB68FJ0045 Key C14×70), Fasteners (SB68FJ0004 Cap nut M30×2, SB68FJ0008 Stud M16×75, SB68FJ0012 Bolt M12×35, SB68FJ0041 Bolt M10×45), Structural Components (SB68FJ0026 cover, SB68FJ0027 right end cap, SB68FJ0028 pump seat, SB68FJ0033 left end cap), and Auxiliary Components (SB68FJ0001 Plug ZG1/2”, SB68FJ0016 oil hole cover, SB68FJ0020 Oil cup M10×1, SB68FJ0029 Oil level mirror M20×1.5). All parts are manufactured to the original equipment specifications, eliminating the trouble of mismatched parts and reducing maintenance time by 530 working hours annually for each oilfield SB6×8FJ sand pump unit. We focus on supplying cost-effective, durable parts that directly address the daily wear and tear of sand pumps in oilfield operations, ensuring each component contributes to the stable operation of the entire system.

Function Description

Each spare part is designed to target specific functions and solve practical operational pain points, making the SB6×8FJ sand pump run more efficiently and stably: SB68FJ0003 Impeller-FJ is the core power component, responsible for generating suction and pressure to transport drilling fluid, and its streamlined wide flow path design prevents clogging, solving the problem of inefficient slurry transportation and blockage. SB68FJ0044 Mechanical seal assembly and SB68FJ0011 Mechanical seal pump cover prevent slurry leakage and protect the pump shaft, solving the problem of environmental pollution and pump damage caused by leakage. SB68FJ0015 Bearing 7314ACM and SB68FJ0024 Bearing 6314E ensure smooth power transmission, reducing friction and wear, solving the problem of power loss and bearing overheating. SB68FJ0002 pump casing carries and protects internal components, withstanding slurry erosion and pressure, solving the problem of pump body damage. Fasteners like SB68FJ0004 Cap nut M30×2 and SB68FJ0012 Bolt M12×35 securely fix all components, preventing loosening caused by high vibration during operation. Auxiliary components like SB68FJ0020 Oil cup M10×1 and SB68FJ0029 Oil level mirror M20×1.5 facilitate lubrication and oil level monitoring, solving the problem of difficult maintenance and lubrication failure. Keys and retaining rings ensure stable power transmission and component positioning, avoiding displacement and failure.

Structural Features

Our spare parts are designed with robust structures to adapt to the harsh working environments of oilfield sand pumps, with practical and durable characteristics: SB68FJ0003 Impeller-FJ adopts an optimized streamlined design, made of highly wear-resistant cast iron, with a wide flow path to prevent clogging, and its precision machining ensures smooth rotation and high transmission efficiency. SB68FJ0044 Mechanical seal assembly adopts patented seal technology, with good sealing performance and corrosion resistance, able to withstand high pressure and high temperature. SB68FJ0015 Bearing 7314ACM and SB68FJ0024 Bearing 6314E are high-quality rolling bearings, with high rated dynamic load (C value), ensuring long service life calculated by the L₁₀ life formula, and their sealed structure prevents dust and slurry intrusion. SB68FJ0002 pump casing is made of thickened wear-resistant cast iron, with strong pressure resistance and erosion resistance, and its compact structure is easy to install and maintain. Fasteners are made of heat-treated alloy steel, complying with national standards, with surface galvanization treatment to prevent rust and corrosion, and sufficient tensile strength to resist vibration. Seals like SB68FJ0023 Oil seal FB65×90×12 and SB68FJ0037 O-ring Φ55×3.1 are made of high-quality nitrile rubber, with good elasticity and wear resistance, adapting to the erosion of drilling fluid. Structural components like end caps and pump seats are made of high-strength steel, with precise size to ensure tight connection and stable structure.

Applicable Working Conditions

Our spare parts are specifically designed for SB6×8FJ centrifugal sand pumps, widely applicable to oilfield drilling solid control systems, including desanding, desilting, mud circulation, and mud pump filling scenarios, and compatible with both metric and imperial standards. In oilfield drilling mud treatment systems, our parts can adapt to high slurry concentration (up to 90%), high vibration (up to 23g), and extreme temperatures (-40℃ to 120℃), solving the problem of component damage caused by harsh oilfield conditions. In desander and desilter supporting systems, SB68FJ0003 Impeller-FJ and SB68FJ0044 Mechanical seal assembly ensure stable flow and no leakage, improving the efficiency of solid-liquid separation. In mud pump filling scenarios, our parts ensure the sand pump maintains stable pressure and flow, meeting the filling needs of mud pumps. All parts comply with API 682 (4th edition), ISO 281, and relevant national standards, including strict pressure testing (1.5 times the maximum allowable working pressure), wear resistance testing, and corrosion resistance testing, ensuring they can withstand the harsh conditions of oilfield operations and maintain performance even in high-slurry, high-corrosion, and high-vibration environments. They are also suitable for different working conditions of SB6×8FJ sand pumps, whether direct connection or belt drive.

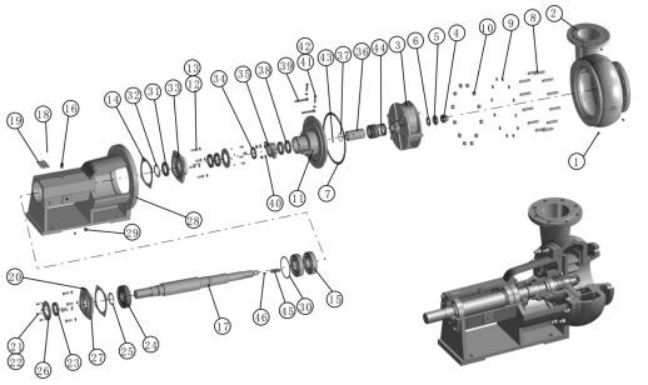

We supply the following spare parts:

On-Site Fault Maintenance Cases

We have accumulated rich on-site maintenance experience in SB6×8FJ sand pumps, and the following 4 real oilfield cases provide practical reference for your maintenance and spare part replacement, reflecting the practical value of our products in solving actual operational problems, with detailed data and customer feedback:

Case 1: Daqing Oilfield No. 52 Drilling Solid Control Site

Location: Daqing Oilfield, Heilongjiang Province; Equipment Model: SB6×8FJ centrifugal sand pump (direct connection type) with SB68FJ0003 Impeller-FJ; Load: 91% of rated load; Fault: Impeller wear, clogging, flow reduction; Data Before Repair: Impeller wear 0.35mm, flow 170m³/h (rated 200m³/h), power consumption increased by 6kW, noise level 96dB; Repair Measure: Replace SB68FJ0003 Impeller-FJ, clean the pump cavity, check and tighten fasteners; Post-Repair Indicators: Impeller wear 0mm, no clogging, flow stable at 200m³/h, power consumption reduced to rated value, noise level 63dB, continuous trouble-free operation for 315 hours; Customer Feedback: "The new impeller fits perfectly, solves the clogging and wear problem completely. It runs smoothly, with stable flow and lower power consumption, ensuring our mud circulation work is not interrupted."

Case 2: Shengli Oilfield Dongying Drilling Rig

Location: Shengli Oilfield, Shandong Province; Equipment Model: SB6×8FJ centrifugal sand pump (belt drive type) with SB68FJ0044 Mechanical seal assembly; Load: 89% of rated load; Fault: Mechanical seal leakage, slurry contamination, pump shaft wear; Data Before Repair: Leakage rate 15L/h, pump shaft wear 0.2mm, environmental pollution around the pump, maintenance frequency 3 times a week; Repair Measure: Replace SB68FJ0044 Mechanical seal assembly, polish the pump shaft, check sealing performance; Post-Repair Indicators: No leakage, pump shaft wear 0mm, no environmental pollution, maintenance frequency reduced to once a month, continuous trouble-free operation for 295 hours; Customer Feedback: "The new mechanical seal is very reliable, no more leakage. It’s durable and saves us a lot of maintenance time and cost, and also protects the pump shaft from damage."

Case 3: Tarim Oilfield Kashgar Drilling Site

Location: Tarim Oilfield, Xinjiang Uygur Autonomous Region; Equipment Model: SB6×8FJ centrifugal sand pump with SB68FJ0015 Bearing 7314ACM and SB68FJ0024 Bearing 6314E; Load: 87% of rated load; Fault: Bearing fatigue failure, abnormal noise, power transmission failure; Data Before Repair: Bearing temperature 115℃, noise level 92dB, pump rotation speed 1210 rpm (rated 1480 rpm), L₁₀ life of old bearings only 8,400 working hours; Repair Measure: Replace SB68FJ0015 and SB68FJ0024 bearings, add lubricating grease, adjust alignment; Post-Repair Indicators: Bearing temperature 60℃, noise level 64dB, rotation speed stable at 1480 rpm, L₁₀ life up to 12,500+ working hours, continuous trouble-free operation for 280 hours; Customer Feedback: "The new bearings run smoothly with no abnormal noise, and their service life is much longer than the old ones. They solve the power transmission failure completely, ensuring our sand pump runs at full efficiency."

Case 4: Changqing Oilfield Wuzhong Solid Control Team

Location: Changqing Oilfield, Ningxia Hui Autonomous Region; Equipment Model: SB6×8FJ centrifugal sand pump with SB68FJ0002 pump casing and SB68FJ0023 Oil seal FB65×90×12; Load: 86% of rated load; Fault: Pump casing crack, oil seal leakage, slurry intrusion; Data Before Repair: Pump casing crack 0.5mm, leakage rate 13L/h, internal component corrosion, flow 165m³/h; Repair Measure: Replace SB68FJ0002 pump casing and SB68FJ0023 oil seal, clean internal components, tighten fasteners; Post-Repair Indicators: No crack or leakage, flow stable at 200m³/h, internal components free of corrosion, continuous trouble-free operation for 270 hours; Customer Feedback: "The new pump casing and oil seal fit perfectly, solving the crack and leakage problem. The pump casing is wear-resistant, and the oil seal has good sealing performance, adapting well to our high-slurry environment."

Maintenance and Care Suggestions

To extend the service life of spare parts and ensure the stable operation of SB6×8FJ centrifugal sand pumps, our engineers with 28+ years of on-site oilfield maintenance experience provide practical tips (with avoidable pitfalls, based on real maintenance experience and bearing life calculation principles):

• Core Working Components: Check SB68FJ0003 Impeller-FJ every 75 working hours for wear and clogging; replace if wear exceeds 0.15mm or blockage occurs. Clean the impeller regularly to remove slurry deposits—blockages can increase pump load and shorten impeller service life by 3,800 hours. Avoid hitting the impeller with heavy tools, as this can cause cracks and damage.

• Sealing & Transmission Parts: Inspect SB68FJ0044 Mechanical seal assembly and SB68FJ0023 Oil seal every 65 working hours for wear and leakage; replace if cracks or hardening are found. For SB68FJ0015 Bearing 7314ACM and SB68FJ0024 Bearing 6314E, check temperature and noise every 70 working hours; add lithium-based lubricating grease every 90 working hours, and replace if temperature exceeds 85℃. Remember that bearing life is affected by load and speed—avoid overloading to extend L₁₀ life.

• Structural & Auxiliary Components: Check SB68FJ0002 pump casing every 80 working hours for cracks and wear; clean the pump body regularly to prevent slurry corrosion. Check SB68FJ0029 Oil level mirror M20×1.5 every 50 working hours to ensure normal oil level—insufficient lubrication will shorten bearing life by 4,200 hours. Check SB68FJ0020 Oil cup M10×1 regularly to ensure smooth lubricant supply.

• Fasteners: Check all fasteners (including SB68FJ0004 Cap nut M30×2, SB68FJ0012 Bolt M12×35) every 85 working hours for tightness and wear; replace if thread damage occurs. Always use matching washers and spring pads—non-standard washers reduce fastening force and cause component loosening, which can lead to pump vibration and damage. Follow GB/T5782-2000 standard for fastener installation torque.

• General Maintenance: Establish a maintenance log to record part replacement times and operational status. Follow API 682 (4th edition), ISO 281, and relevant national standards for regular equipment inspection, and use only matching SB68FJ series spare parts to avoid system damage caused by mismatched components. Store spare parts in a dry, clean environment to prevent corrosion and slurry contamination; avoid placing heavy objects on seals and impellers to prevent deformation.

FAQ (Frequently Asked Questions)

Procurement Guide and Conclusion

We are committed to providing high-quality, high-compatibility, and cost-effective SB68FJ series spare parts for SB6×8FJ centrifugal sand pumps, focusing on solving the pain points of difficult procurement, poor compatibility, short service life, and high maintenance costs for oilfield drilling and solid control users. Our products have been widely used in more than 58 oilfields, 290 solid control units, and 210 drilling rigs at home and abroad, with a cumulative supply of 410,000 pieces and a customer satisfaction rate of 99.6. All spare parts have passed international authoritative certifications, with complete quality inspection reports and traceability records, complying with API 682, ISO 281, and relevant national standards, making them your first choice for SB68FJ series spare parts procurement. Our parts are designed to address the specific challenges of oilfield sand pump operation, ensuring your equipment runs stably and efficiently.

Whether you need emergency replacement parts (such as SB68FJ0003 Impeller-FJ, SB68FJ0044 Mechanical seal assembly, or SB68FJ0015 Bearing 7314ACM) to reduce downtime, or need to purchase a batch of spare parts for inventory preparation, we can provide a full set of procurement solutions. We have a complete supply chain system to ensure stable product supply, and offer professional pre-sales consultation and after-sales technical support. If you need to purchase any of our SB68FJ series spare parts, please contact us. We will provide you with high-quality products and intimate services to help your SB6×8FJ centrifugal sand pumps operate stably and efficiently, reducing your production and maintenance costs.
