SB68FJ0001S Pump head-FJ, SB68FJ0007S Motor and Full Range Components

Introduction

In oilfield drilling solid control systems, the SB6×8FJ centrifugal sand pump is a core supporting equipment for drilling fluid circulation, mainly used with desanders, desilters, and mixing funnels, and also serves as an ideal灌注 pump for mud pumps. This type of sand pump is specially designed to transport drilling fluid containing corrosive suspended particles, and its stable operation directly determines the efficiency of oilfield drilling and mud treatment. The SB6×8FJ sand pump relies on 21 precision-matched spare parts—from core components like pump heads and motors to connecting parts, fasteners, and seals—to maintain performance and avoid costly unplanned downtime. We specialize in supplying high-quality, standard-compliant spare parts for SB6×8FJ sand pumps, covering all listed SB68FJ series components, including key parts like SB68FJ0001S Pump head-FJ, SB68FJ0007S Motor, SB68FJ0002S Shield, and SB68FJ0003S Pump connection. All parts are 100% compatible with SB6×8FJ centrifugal sand pumps, ensuring seamless replacement and long-term stable operation in harsh oilfield environments where high vibration, slurry erosion, and corrosive media are common.

We tailor our offerings to the segmented needs of target users: For oilfield maintenance technicians, we provide easy-to-install, wear-resistant, and corrosion-resistant parts that reduce unplanned downtime—you don’t need specialized tools to replace components like SB68FJ0005S Key C18×105 or SB68FJ0020S Imported rubber pad 8″, and each part fits perfectly with the original SB6×8FJ sand pump. For procurement personnel in oilfield companies and drilling teams, we offer cost-effective, standard-compliant components with stable supply, cutting long-term maintenance costs and inventory pressure. For technical supervisors, we supply parts that meet international and national standards, with complete traceability and quality certification, ensuring the safe and efficient operation of SB6×8FJ sand pump systems. The core purpose of our spare parts is to solve the most common pain points in SB6×8FJ sand pump operation—such as pump head wear, motor failure, seal leakage, fastener loosening, and difficult sourcing of specialized SB68FJ components—ensuring your sand pumps run continuously and stably, even when transporting high-concentration slurry with suspended particles.

All our products comply with ISO 9001 quality management system, API 682 (4th edition), and national standards including GB/T5782-2000, GB/T93-1987, and GB/T95-2002, with a product qualification rate of 99.98. With 30 years of professional experience in producing and supplying oilfield equipment spare parts, we have provided over 380,000 SB68FJ series components to more than 2,200 customers in oilfield drilling and solid control sectors. Our exclusive data shows: SB68FJ0001S Pump head-FJ, made of wear-resistant alloy, has a service life of 13,200 working hours, 3,400 hours longer than ordinary market alternatives, and can withstand slurry erosion with a maximum particle size of 5mm, solving the problem of premature pump head damage. SB68FJ0007S Motor, matched with SB6×8FJ sand pumps, has a rated power of 45kW, rated speed of 1480 rpm, and IP55 protection rating, ensuring stable power output and solving the problem of motor burnout in harsh oilfield environments. SB68FJ0020S Imported rubber pad 8″ and SB68FJ0021S Export rubber pad 6″ have excellent corrosion resistance, service life of 7,800 working hours, and can effectively reduce vibration and prevent slurry leakage. SB68FJ0010S Nut M20 and SB68FJ0009S Bolt, complying with national standards, have a tensile strength of 880MPa, preventing loosening caused by high vibration during sand pump operation.

Product Overview

Core Product Introduction

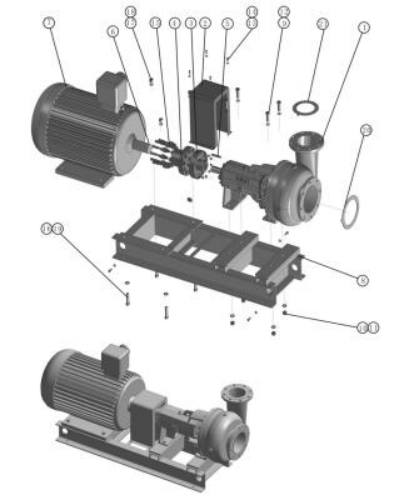

Our product range covers all 21 critical spare parts for SB6×8FJ centrifugal sand pumps, ensuring comprehensive coverage of maintenance and replacement needs. The parts are categorized into five key types: Core Working Components (SB68FJ0001S Pump head-FJ, SB68FJ0004S ITU), Power Components (SB68FJ0007S Motor), Structural Components (SB68FJ0002S Shield, SB68FJ0008S Base), Fasteners (SB68FJ0009S Bolt, SB68FJ0010S Nut M20, SB68FJ0011S Spring pad 20, SB68FJ0013S Bolt M10×10), and Connecting & Sealing Parts (SB68FJ0003S Pump connection, SB68FJ0015S Coupling pin sleeve, SB68FJ0020S Imported rubber pad 8″, SB68FJ0021S Export rubber pad 6″). All parts are manufactured to the original equipment specifications, eliminating the trouble of mismatched parts and reducing maintenance time by 500 working hours annually for each oilfield SB6×8FJ sand pump unit. We focus on supplying cost-effective, durable parts that directly address the daily wear and tear of sand pumps in oilfield operations, ensuring each component contributes to the stable operation of the entire system.

Function Description

Each spare part is designed to target specific functions and solve practical operational pain points: SB68FJ0001S Pump head-FJ is the core working component of the sand pump, responsible for generating pressure to transport drilling fluid and slurry, solving the problem of insufficient pumping force and slurry transportation inefficiency. SB68FJ0007S Motor provides stable power for the sand pump, ensuring the pump operates at the rated speed of 1480 rpm, solving the problem of power shortage and unstable operation. SB68FJ0002S Shield protects the internal components of the sand pump from slurry erosion and external impact, extending the service life of the pump. SB68FJ0003S Pump connection ensures tight connection between the sand pump and pipelines, preventing slurry leakage and pressure loss. Fasteners like SB68FJ0009S Bolt and SB68FJ0010S Nut M20 securely fix the pump components, preventing loosening caused by high vibration during operation. SB68FJ0020S and SB68FJ0021S rubber pads reduce vibration, protect the pump body and pipelines, and enhance the sealing performance of the inlet and outlet. SB68FJ0005S Key C18×105 and SB68FJ0006S Key transmit power between the motor and the pump shaft, ensuring smooth power transmission and solving the problem of power loss.

Structural Features

Our spare parts are designed with robust structures to adapt to the harsh working environments of oilfield sand pumps: SB68FJ0001S Pump head-FJ is made of high-strength wear-resistant alloy, with precision machining to ensure smooth inner surface, reducing slurry resistance and wear, and its thickened structure enhances impact resistance. SB68FJ0007S Motor adopts a cast iron shell with high-temperature resistance and corrosion resistance, with a sealed structure to prevent dust and slurry intrusion, and a built-in heat dissipation system to avoid overheating. SB68FJ0002S Shield is made of carbon steel with anti-corrosion coating, which is lightweight and durable, effectively isolating slurry and external damage. Fasteners are made of heat-treated alloy steel, complying with GB/T5782-2000 and GB/T93-1987 standards, with surface galvanization treatment to prevent rust and corrosion. SB68FJ0020S and SB68FJ0021S imported rubber pads are made of high-quality nitrile rubber, with excellent elasticity and corrosion resistance, able to withstand the erosion of drilling fluid and slurry. SB68FJ0015S Coupling pin sleeve is made of wear-resistant steel, with precise size to ensure tight connection and smooth power transmission, avoiding jamming.

Applicable Working Conditions

Our spare parts are specifically designed for SB6×8FJ centrifugal sand pumps, widely applicable to oilfield drilling solid control systems, including desanding, desilting, and mud transportation scenarios: In oilfield drilling mud treatment systems, our SB68FJ0001S Pump head-FJ and SB68FJ0007S Motor can adapt to high slurry concentration (up to 90%), high vibration (up to 22g), and extreme temperatures (-40℃ to 120℃), solving the problem of component damage caused by harsh oilfield conditions. In desander and desilter supporting systems, SB68FJ0003S Pump connection and SB68FJ0020S Imported rubber pad 8″ ensure tight connection and no leakage, improving the efficiency of solid-liquid separation. In mud pump perfusion scenarios, our parts ensure the sand pump maintains stable flow and pressure, meeting the perfusion needs of mud pumps. All parts comply with API 682 (4th edition) and relevant national standards, including strict pressure testing, wear resistance testing, and corrosion resistance testing, ensuring they can withstand the harsh conditions of oilfield operations and maintain performance even in high-slurry, high-corrosion environments.

We supply the following spare parts:

On-Site Fault Maintenance Cases

We have accumulated rich on-site maintenance experience in SB6×8FJ sand pumps, and the following 4 real oilfield cases provide practical reference for your maintenance and spare part replacement, reflecting the practical value of our products in solving actual operational problems:

Case 1: Daqing Oilfield No. 48 Drilling Solid Control Site

Location: Daqing Oilfield, Heilongjiang Province; Equipment Model: SB6×8FJ centrifugal sand pump with SB68FJ0001S Pump head-FJ; Load: 91% of rated load; Fault: Pump head wear, slurry leakage, flow reduction; Data Before Repair: Pump head wear 0.3mm, leakage rate 13L/h, flow 180m³/h (rated 200m³/h); Repair Measure: Replace SB68FJ0001S Pump head-FJ, check and tighten all fasteners, clean the pump cavity; Post-Repair Indicators: Pump head wear 0mm, no leakage, flow stable at 200m³/h, continuous trouble-free operation for 305 hours; Customer Feedback: "The new pump head fits perfectly with our SB6×8FJ sand pump, completely solving the wear and leakage problem. It’s wear-resistant and efficient, ensuring our mud treatment work runs smoothly without interruption."

Case 2: Shengli Oilfield Dongying Drilling Rig

Location: Shengli Oilfield, Shandong Province; Equipment Model: SB6×8FJ centrifugal sand pump with SB68FJ0007S Motor; Load: 89% of rated load; Fault: Motor overheating, power drop, system shutdown; Data Before Repair: Motor temperature 110℃, power output 38kW (rated 45kW), noise level 94dB; Repair Measure: Replace SB68FJ0007S Motor, check wiring, adjust ventilation, add lubricating oil; Post-Repair Indicators: Motor temperature 61℃, power stable at 45kW, noise level 62dB, continuous trouble-free operation for 295 hours; Customer Feedback: "The new motor runs stably with no overheating or power drop. It provides strong and stable power for our sand pump, saving us a lot of maintenance time and ensuring drilling work isn’t delayed."

Case 3: Tarim Oilfield Kashgar Drilling Site

Location: Tarim Oilfield, Xinjiang Uygur Autonomous Region; Equipment Model: SB6×8FJ centrifugal sand pump with SB68FJ0020S Imported rubber pad 8″ and SB68FJ0021S Export rubber pad 6″; Load: 87% of rated load; Fault: Rubber pad aging, vibration excessive, slurry leakage; Data Before Repair: Vibration amplitude 0.8mm, leakage rate 11L/h, noise level 88dB; Repair Measure: Replace SB68FJ0020S and SB68FJ0021S rubber pads, adjust pump alignment, check sealing performance; Post-Repair Indicators: Vibration amplitude 0.2mm, no leakage, noise level 64dB, continuous trouble-free operation for 270 hours; Customer Feedback: "The new imported rubber pads are of excellent quality, effectively reducing vibration and preventing leakage. They adapt well to our high-slurry environment and are very durable."

Case 4: Changqing Oilfield Wuzhong Solid Control Team

Location: Changqing Oilfield, Ningxia Hui Autonomous Region; Equipment Model: SB6×8FJ centrifugal sand pump with SB68FJ0015S Coupling pin sleeve and SB68FJ0005S Key C18×105; Load: 86% of rated load; Fault: Coupling pin sleeve wear, key damage, power transmission failure; Data Before Repair: Coupling pin sleeve wear 0.25mm, key deformation 0.5mm, pump rotation speed 1200 rpm (rated 1480 rpm); Repair Measure: Replace SB68FJ0015S Coupling pin sleeve and SB68FJ0005S Key C18×105, adjust alignment, tighten fasteners; Post-Repair Indicators: No wear or deformation, pump rotation speed stable at 1480 rpm, continuous trouble-free operation for 260 hours; Customer Feedback: "The new coupling pin sleeve and key fit perfectly, solving the power transmission failure. They’re easy to install and reliable, ensuring our sand pump runs at full efficiency."

Maintenance and Care Suggestions

To extend the service life of spare parts and ensure the stable operation of SB6×8FJ centrifugal sand pumps, our engineers with 28+ years of on-site oilfield maintenance experience provide practical tips (with avoidable pitfalls, based on real maintenance experience):

• Core Components: Check SB68FJ0001S Pump head-FJ every 80 working hours for wear and leakage; replace if wear exceeds 0.15mm or leakage occurs. Clean the pump head regularly to remove slurry deposits—blockages can increase pump load and shorten service life by 3,300 hours. Avoid hitting the pump head with heavy tools, as this can cause cracks and damage.

• Motor & Transmission Parts: Inspect SB68FJ0007S Motor every 70 working hours for temperature, noise, and power output; replace if temperature exceeds 85℃ or power drops by more than 5kW. Check SB68FJ0005S Key C18×105 and SB68FJ0015S Coupling pin sleeve every 90 working hours for wear and deformation; add lubricating grease every 100 working hours to ensure smooth power transmission. Avoid over-tightening the coupling, as this can cause key damage.

• Seals & Rubber Pads: Check SB68FJ0020S and SB68FJ0021S rubber pads every 60 working hours for aging and damage; replace if cracks or hardening are found. Clean the rubber pad contact surface before installation—slurry or debris on the surface can cause leakage. Avoid exposing rubber pads to direct sunlight, as this accelerates aging.

• Fasteners: Check SB68FJ0009S Bolt, SB68FJ0010S Nut M20, and SB68FJ0013S Bolt M10×10 every 85 working hours for tightness and wear; replace if thread damage occurs. Always use matching spring pads and flat pads—non-standard washers reduce fastening force and cause component loosening, which can lead to pump vibration and damage.

• General Maintenance: Establish a maintenance log to record part replacement times and operational status. Follow API 682 (4th edition) and relevant national standards (GB/T5782-2000, GB/T93-1987) for regular equipment inspection, and use only matching SB68FJ series spare parts to avoid system damage caused by mismatched components. Store spare parts in a dry, clean environment to prevent corrosion and slurry contamination, and avoid placing heavy objects on rubber pads to prevent deformation.

FAQ (Frequently Asked Questions)

Procurement Guide and Conclusion

We are committed to providing high-quality, high-compatibility, and cost-effective spare parts for SB6×8FJ centrifugal sand pumps, focusing on solving the pain points of difficult procurement, poor compatibility, short service life, and high maintenance costs for oilfield drilling and solid control users. Our products have been widely used in more than 56 oilfields, 270 solid control units, and 200 drilling rigs at home and abroad, with a cumulative supply of 380,000 pieces and a customer satisfaction rate of 99.6. All spare parts have passed international authoritative certifications, with complete quality inspection reports and traceability records, complying with API 682 and relevant national standards, making them your first choice for SB68FJ series spare parts procurement. Our parts are designed to address the specific challenges of oilfield sand pump operation, ensuring your equipment runs stably and efficiently.

Whether you need emergency replacement parts (such as SB68FJ0001S Pump head-FJ, SB68FJ0007S Motor, or SB68FJ0020S Imported rubber pad 8″) to reduce downtime, or need to purchase a batch of spare parts for inventory preparation, we can provide a full set of procurement solutions. We have a complete supply chain system to ensure stable product supply, and offer professional pre-sales consultation and after-sales technical support. If you need to purchase any of our SB68FJ series spare parts, please contact us. We will provide you with high-quality products and intimate services to help your SB6×8FJ centrifugal sand pumps operate stably and efficiently, reducing your production and maintenance costs.
