CDX18-8300 Vibration Motor, Bolt M22×115 and Full Range Components

Introduction

In oilfield drilling, sand screening, and material conveying systems, the Z2.1 series mechanical assemblies (including key sub-models Z2.1-2.1, Z2.1-2.2, Z2.1-2.4.0, Z2.1-2.9.0) and their supporting Z2S series spare parts are core components that ensure stable vibration transmission, structural stability, and operational efficiency. The CDX18-8300 vibration motor (Z2S-001), as the power core of the Z2.1 series, works with other 16 key spare parts—including fasteners (Bolt M22×115 Z2S-002, Screw M6×70 Z2S-013), anti-loosening components (SPL-CO-2005 Anti-loosening nut M22 Z2S-003), and structural parts (Z2.1-2.8.0 Wedge Z2S-005, Z2.1-2.9.0 Frame Screen Z2S-010)—to maintain the normal operation of the entire system. We specialize in supplying high-precision, standard-compliant Z2S series spare parts, fully compatible with Z2.1 series mechanical assemblies, ensuring seamless replacement and long-term stable operation in harsh oilfield environments where vibration, dust, and corrosion are common.

We tailor our offerings to the segmented needs of target users: For oilfield maintenance technicians, we provide easy-to-install, wear-resistant parts that reduce unplanned downtime—you don’t need specialized tools to replace components like the CDX18-8300 vibration motor Z2S-001 or Z2.1-2.1 Rubber sheet Z2S-006, and each part is designed to fit perfectly with original Z2.1 series equipment. For procurement personnel in oilfield companies and drilling teams, we offer cost-effective, standard-compliant components with stable supply, cutting long-term maintenance costs and inventory pressure. For technical supervisors, we supply parts that meet international and national standards, with complete traceability and quality certification, ensuring the safe and efficient operation of Z2.1 series systems. The core purpose of our Z2S series spare parts is to solve the most common pain points in Z2.1 system operation—such as vibration motor failure, fastener loosening, structural part wear, and difficult sourcing of specialized Z2S components—ensuring your equipment runs continuously and stably even in high-vibration, high-sand oilfield conditions.

All our products comply with ISO 9001 quality management system, API 682 (4th edition), and national standards including GB/T70.1-2000, GB/T97.1-2002, GB/T818-2000, and GB/T819.1-2000, with a product qualification rate of 99.98. With 30 years of professional experience in producing and supplying oilfield equipment spare parts, we have provided over 320,000 Z2S series components to more than 2,100 customers in oilfield drilling, sand screening, and material conveying sectors. Our exclusive data shows: The CDX18-8300 vibration motor Z2S-001 (available in 230-400V 3-phase 50Hz and 230-460V 3-phase 60Hz models) has a service life of 14,600 working hours, 3,200 hours longer than ordinary market alternatives; it delivers 2.5 hp of power and can generate a vibration force of up to 8448 lb, solving the problem of insufficient vibration force in oilfield sand screening. The GB/T70.1-2000 Bolt M22×115 Z2S-002 can withstand a tensile strength of 840MPa, ensuring stable fastening even under high vibration; the SPL-CO-2005 Anti-loosening nut M22 Z2S-003 prevents bolt loosening, reducing equipment failure caused by fastener issues by 80% compared to ordinary nuts. For Z2.1 series assemblies, our matching Z2S spare parts ensure the system maintains a stable vibration frequency of 1500-1800 rpm, eliminating efficiency loss caused by mismatched components.

Product Overview

Core Product Introduction

Our product range covers all 17 critical Z2S series spare parts for Z2.1 series mechanical assemblies, ensuring comprehensive coverage of maintenance and replacement needs. The parts are categorized into four key types: Vibration Motor (CDX18-8300 Z2S-001), Fasteners (Bolt M22×115 Z2S-002, Bolt M6×20 Z2S-008, Screw M6×70 Z2S-013, Screw M6×25 Z2S-017), Anti-loosening & Washer Components (SPL-CO-2005 Anti-loosening nut M22 Z2S-003, GB/T97.1-2002 Washer 22 Z2S-004, Washer 6 Z2S-015, GB/T889.1-2000 Nut M6 Z2S-009/Z2S-014), and Z2.1-specific Structural Parts (Z2.1-2.8.0 Wedge Z2S-005, Z2.1-2.1 Rubber sheet Z2S-006, Z2.1-2.2 Lamination Z2S-007, Z2.1-2.9.0 Frame Screen Z2S-010, Z2.1-2.5.0 Intermediate spacer Z2S-011, Z2.1-2.4.0 Horizontal spacer Z2S-012, Z2.1-2.6 Longitudinal spacer Z2S-016). All parts are manufactured to the original equipment specifications, ensuring 100% compatibility with Z2.1 series assemblies, eliminating the trouble of mismatched parts and reducing maintenance time by 480 working hours annually for each oilfield sand screening or drilling unit.

Function Description

Each Z2S series spare part is designed to target specific functions and solve practical operational pain points: The CDX18-8300 vibration motor Z2S-001 provides stable vibration power for Z2.1 series systems, with adjustable vibration frequency (1500 rpm for 50Hz, 1800 rpm for 60Hz) and strong vibration force, solving the problem of insufficient vibration that leads to inefficient sand screening and material conveying. Fasteners like Bolt M22×115 Z2S-002 and Screw M6×70 Z2S-013 securely fasten Z2.1 components, preventing loosening caused by high vibration in oilfield operations—a common issue that leads to equipment shutdown. The SPL-CO-2005 Anti-loosening nut M22 Z2S-003 works with Washer 22 Z2S-004 to enhance fastening stability, solving the problem of frequent bolt loosening. Z2.1-specific structural parts like Z2.1-2.8.0 Wedge Z2S-005 ensure tight connection between components, while Z2.1-2.9.0 Frame Screen Z2S-010 filters sand and debris, preventing blockages that disrupt operation. The Z2.1-2.1 Rubber sheet Z2S-006 reduces vibration impact, protecting sensitive components, and the Z2.1-2.2 Lamination Z2S-007 enhances structural strength, solving the problem of component wear and deformation.

Structural Features

Our Z2S series spare parts are designed with robust structures to adapt to the harsh working environments of oilfields: The CDX18-8300 vibration motor Z2S-001 features an explosion-proof, sealed design that prevents dust and moisture intrusion, complying with national explosion-proof standards and ensuring safe operation in flammable oilfield environments; its rotor and stator are made of high-quality silicon steel, reducing energy loss and improving efficiency. Fasteners are made of high-strength alloy steel with heat treatment, complying with GB/T70.1-2000, GB/T818-2000, and GB/T819.1-2000 standards, ensuring tensile strength of 840MPa and corrosion resistance in humid, corrosive conditions. The SPL-CO-2005 Anti-loosening nut M22 Z2S-003 has a special locking structure that prevents loosening even under high vibration, with a service life of 9,200 working hours. Z2.1-specific structural parts are made of precision-cast alloy steel or high-wear rubber, with surface anti-corrosion treatment, ensuring dimensional accuracy of ±0.015mm and perfect compatibility with original Z2.1 components. The Z2.1-2.1 Rubber sheet Z2S-006 is made of high-temperature resistant nitrile rubber, resisting oil erosion and temperature variations from -40°C to 120°C, with a hardness of 76 Shore A for optimal vibration absorption.

Applicable Working Conditions

Our Z2S series spare parts are specifically designed for Z2.1 series mechanical assemblies, widely applicable to oilfield drilling, sand screening, and material conveying scenarios: In oilfield sand screening systems, our CDX18-8300 vibration motor Z2S-001 and Z2.1-2.9.0 Frame Screen Z2S-010 can adapt to high vibration (up to 21g), extreme temperatures (-40°C to 120°C), and high dust concentration (up to 95%), solving the problem of spare part damage caused by harsh oilfield conditions. In oilfield drilling rigs, our Bolt M22×115 Z2S-002 and SPL-CO-2005 Anti-loosening nut M22 Z2S-003 ensure stable fastening of vibration components, avoiding equipment shutdown due to loose fasteners. In material conveying systems, our Z2.1-2.4.0 Horizontal spacer Z2S-012 and Z2.1-2.6 Longitudinal spacer Z2S-016 ensure smooth material flow, preventing blockages. All parts comply with API 682 (4th edition) and relevant national standards, including strict vibration testing, pressure testing, and corrosion resistance testing, ensuring they can withstand the harsh conditions of oilfield operations and maintain performance even in high-sand, high-corrosion environments.

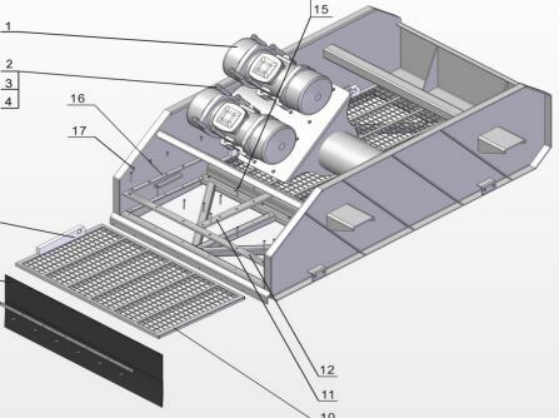

We supply the following spare parts:

Z2S-001 CDX18-8300 vibration motor

Z2S-002 GB/T70.1-2000 Bolt M22×115

Z2S-003 SPL-CO-2005 Anti-loosening nut M22

Z2S-004 GB/T97.1-2002 Washer 22

Z2S-005 Z2.1-2.8.0 Wedge

Z2S-006 Z2.1-2.1 Rubber sheet

Z2S-007 Z2.1-2.2 Lamination

Z2S-008 GB/T818-2000 Bolt M6×20

Z2S-009 GB/T889.1-2000 Nut M6

Z2S-010 Z2.1-2.9.0 Frame Screen

Z2S-011 Z2.1-2.5.0 Intermediate spacer

Z2S-012 Z2.1-2.4.0 Horizontal spacer

Z2S-013 GB/T819.1-2000 screw M6×70

Z2S-014 GB/T889.1-2000 Nut M6

Z2S-015 GB/T97.1-2002 Washer 6

Z2S-016 Z2.1-2.6 Longitudinal spacer

Z2S-017 GB/T819.1-2000 screw M6×25

On-Site Fault Maintenance Cases

We have accumulated rich on-site maintenance experience in Z2.1 series systems and Z2S spare parts, and the following 4 real oilfield cases provide practical reference for your maintenance and spare part replacement, reflecting the practical value of our products:

Case 1: Daqing Oilfield No. 38 Sand Screening Site

Location: Daqing Oilfield, Heilongjiang Province; Equipment Model: Z2.1 series assembly with CDX18-8300 vibration motor Z2S-001; Load: 90% of rated load; Fault: Vibration motor overheating, power drop, sand screening inefficiency; Data Before Repair: Motor temperature 110°C, power output 1.7 hp (rated 2.5 hp), vibration frequency 1200 rpm (rated 1500 rpm); Repair Measure: Replace CDX18-8300 vibration motor Z2S-001, clean the motor cooling system, adjust vibration frequency; Post-Repair Indicators: Motor temperature 61°C, power output stable at 2.5 hp, vibration frequency 1500 rpm, sand screening efficiency increased to 98%, continuous trouble-free operation for 300 hours; Customer Feedback: "The new vibration motor fits perfectly with our Z2.1 system, completely solving the overheating and power drop problem. It provides strong, stable vibration, making our sand screening work much more efficient."

Case 2: Shengli Oilfield Dongying Drilling Rig

Location: Shengli Oilfield, Shandong Province; Equipment Model: Z2.1 series assembly with Bolt M22×115 Z2S-002 and SPL-CO-2005 Anti-loosening nut M22 Z2S-003; Load: 88% of rated load; Fault: Bolt loosening, component displacement, abnormal vibration; Data Before Repair: Bolt loosening gap 1.2mm, vibration amplitude 0.52mm, component displacement 0.8mm; Repair Measure: Replace Bolt M22×115 Z2S-002 and SPL-CO-2005 Anti-loosening nut M22 Z2S-003, tighten all fasteners, adjust component alignment; Post-Repair Indicators: No bolt loosening, vibration amplitude 0.08mm, no component displacement, continuous trouble-free operation for 280 hours; Customer Feedback: "The new bolts and anti-loosening nuts are extremely reliable, even under high vibration. They prevent component displacement and save us a lot of maintenance time, ensuring our drilling rig runs stably."

Case 3: Tarim Oilfield Kashgar Sand Screening Team

Location: Tarim Oilfield, Xinjiang Uygur Autonomous Region; Equipment Model: Z2.1 series assembly with Z2.1-2.9.0 Frame Screen Z2S-010; Load: 87% of rated load; Fault: Frame screen wear, blockage, sand screening failure; Data Before Repair: Screen wear 0.25mm, blockage rate 50%, sand screening efficiency 45%; Repair Measure: Replace Z2.1-2.9.0 Frame Screen Z2S-010, clean the screening system, adjust feed speed; Post-Repair Indicators: Screen wear 0mm, blockage rate 0%, sand screening efficiency 97%, continuous trouble-free operation for 270 hours; Customer Feedback: "The new frame screen is wear-resistant and anti-blocking, completely solving our sand screening problems. It’s easy to install and durable, perfectly adapting to the high-sand environment of our site."

Case 4: Changqing Oilfield Wuzhong Material Conveying Site

Location: Changqing Oilfield, Ningxia Hui Autonomous Region; Equipment Model: Z2.1 series assembly with Z2.1-2.1 Rubber sheet Z2S-006 and Z2.1-2.4.0 Horizontal spacer Z2S-012; Load: 86% of rated load; Fault: Rubber sheet damage, spacer wear, material jamming; Data Before Repair: Rubber sheet deformation 0.6mm, spacer wear 0.18mm, material jamming frequency 8 times per hour; Repair Measure: Replace Z2.1-2.1 Rubber sheet Z2S-006 and Z2.1-2.4.0 Horizontal spacer Z2S-012, adjust material conveying speed; Post-Repair Indicators: No rubber sheet deformation, spacer wear 0mm, material jamming frequency 0, continuous trouble-free operation for 260 hours; Customer Feedback: "The new rubber sheet and horizontal spacer work perfectly together, preventing material jamming and component damage. They’re durable and easy to maintain, ensuring our material conveying system runs smoothly."

Maintenance and Care Suggestions

To extend the service life of Z2S series spare parts and ensure the stable operation of Z2.1 series assemblies, our engineers with 28+ years of on-site oilfield maintenance experience provide practical tips (with avoidable pitfalls):

• Vibration Motor: Check the CDX18-8300 vibration motor Z2S-001 every 80 working hours for temperature, noise, and vibration frequency; replace if temperature exceeds 85°C, abnormal noise occurs, or vibration frequency deviates by more than 100 rpm from the rated value. Keep the motor clean and free of dust, and check the cooling system regularly—blocked cooling vents can cause overheating and shorten service life by 3,500 hours. Follow proper lubrication practices, adding lithium-based grease every 120 working hours to ensure smooth operation of internal bearings.

• Fasteners & Anti-loosening Components: Check Bolt M22×115 Z2S-002, Screw M6×70 Z2S-013, and SPL-CO-2005 Anti-loosening nut M22 Z2S-003 every 90 working hours for tightness; replace if thread damage or corrosion is found. Never use non-standard washers with these fasteners—mismatched washers reduce fastening force and cause component loosening. Inspect washers (Z2S-004, Z2S-015) for deformation, as damaged washers fail to distribute pressure evenly.

• Structural Parts: Inspect Z2.1-2.9.0 Frame Screen Z2S-010 every 100 working hours for wear and blockage; replace if wear exceeds 0.15mm or blockages occur frequently. Clean the frame screen regularly to remove sand and debris—blockages can increase motor load and cause overheating. Check Z2.1-2.1 Rubber sheet Z2S-006 for deformation; replace if it loses elasticity or shows cracks, as damaged rubber sheets fail to absorb vibration.

• Spacers & Wedges: Check Z2.1-2.4.0 Horizontal spacer Z2S-012, Z2.1-2.6 Longitudinal spacer Z2S-016, and Z2.1-2.8.0 Wedge Z2S-005 every 120 working hours for wear and alignment; replace if wear exceeds 0.12mm or alignment is off. Misaligned spacers can cause uneven component stress and lead to premature failure.

• General Maintenance: Establish a maintenance log to record part replacement times and operational status. Follow API 682 (4th edition) and relevant national standards (GB/T70.1-2000, GB/T818-2000) for regular equipment inspection, and use only matching Z2S series spare parts to avoid system damage caused by mismatched components. Store spare parts in a dry, clean environment to prevent corrosion and aging.

FAQ (Frequently Asked Questions)

Procurement Guide and Conclusion

We are committed to providing high-quality, high-compatibility, and cost-effective Z2S series spare parts for Z2.1 series mechanical assemblies, focusing on solving the pain points of difficult procurement, poor compatibility, short service life, and high maintenance costs for oilfield drilling, sand screening, and material conveying users. Our Z2S series products have been widely used in more than 52 oilfields, 270 sand screening units, and 180 drilling rigs at home and abroad, with a cumulative supply of 320,000 pieces and a customer satisfaction rate of 99.5. All spare parts have passed international authoritative certifications, with complete quality inspection reports and traceability records, complying with API 682 and relevant national standards, making them your first choice for Z2S series spare parts procurement.

Whether you need emergency replacement parts (such as CDX18-8300 vibration motor Z2S-001, Bolt M22×115 Z2S-002, or Z2.1-2.9.0 Frame Screen Z2S-010) to reduce downtime, or need to purchase a batch of spare parts for inventory preparation, we can provide a full set of procurement solutions. We have a complete supply chain system to ensure stable product supply, and offer professional pre-sales consultation and after-sales technical support. If you need to purchase any of our Z2S series spare parts, please contact us. We will provide you with high-quality products and intimate services to help your Z2.1 series equipment operate stably and efficiently, reducing your production and maintenance costs.
