PH-75 KShTs Clamping Cylinder & 114860-1/99503-2 CSC Repair Kit Top Drive

1. Product Overview & Core Application Purpose

This integrated industrial component suite focuses on PH-75 KShTs hydraulic clamping cylinder assemblies, 114860-1/99503 series CSC repair kits, multi-spec Glyd rotary seals, self-lubricating bearings, hydraulic filter elements and 30178347-600 7.5kW drive motor units, purpose-built for drilling top drive clamping and braking hydraulic systems. Designed exclusively for on-site drilling maintenance teams and offshore rig hydraulic technicians, this product set resolves recurring field pain points including clamping cylinder pressure leakage, CSC braking system friction attenuation, seal aging failure, hydraulic fluid contamination and insufficient motor power output under long-duration cyclic clamping load. All components adhere to API 7K top drive mechanical and hydraulic operational standards, validated through 17000 continuous clamping cycle tests and 2000-hour offshore salt spray aging verification. It delivers standardized procurement specifications and practical technical troubleshooting references for top drive clamping system overhaul, hydraulic circuit maintenance and power system calibration.

2. Product Introduction

The full product lineup covers four core functional modules: PH-75 clamping cylinder and CSC braking repair components, precision hydraulic sealing systems, mechanical wear-resistant accessories and power & filtration assemblies. Core maintenance units include soft seal and complete CSC repair kits, friction linings, hardened return spring sets, guide pins and vent screw assemblies to support full disassembly and overhaul of top drive braking mechanisms. Sealing components feature multi-size Glyd rotary seals, piston and stem seals, wiper rings and O-ring sets, covering all dynamic and static sealing positions of PH-75 hydraulic cylinders. Mechanical parts adopt Turcite anti-friction bushes, flange bearings and self-lubricating bearing sets to reduce mechanical friction loss. Power and filtration systems consist of 7.5kW 600V AC drive motors, flexible couplings, 60µm filter elements and hydraulic pipeline filter assemblies, ensuring clean fluid circulation and stable power transmission for hydraulic clamping systems.

3. Functional Description

Complete CSC repair kits restore original braking and clamping performance of top drive auxiliary systems, compensating for friction lining wear and seal fatigue caused by frequent clamping actions. PH-75 hydraulic clamping cylinder assemblies provide stable and consistent clamping force for drill string fixation, eliminating tool slipping during drilling and tripping operations. High-precision Glyd rotary seals and multi-type sealing rings prevent internal and external hydraulic leakage, maintaining constant system working pressure. Self-lubricating bearings and anti-friction bushes reduce mechanical wear during reciprocating cylinder movement, extending mechanical service life. Professional hydraulic filter elements intercept micro impurities in hydraulic fluid, avoiding valve blockage and cylinder jitter faults. Matched drive motors and flexible couplings provide stable power output, ensuring synchronous and accurate hydraulic system execution actions.

4. Structural Characteristics

All CSC repair kit accessories adopt standardized dimensional calibration, achieving zero-tolerance assembly matching with original top drive braking structures. Glyd rotary seals adopt symmetrical pressure-bearing structural design, maintaining stable sealing performance after 17000 continuous high-pressure clamping cycles without deformation or pressure loss. Turcite anti-friction bushes and self-lubricating bearings feature solid embedded lubrication structure, reducing dry friction loss without frequent manual oil injection. PH-75 cylinder assemblies adopt integral forging cylinder body, resisting long-term hydraulic impact and mechanical fatigue deformation. 60µm precision filter elements form multi-stage impurity interception, effectively protecting internal precision components of hydraulic circuits from abrasive wear.

5. Applicable Working Conditions

This component suite is fully adapted to top drive PH-75 KShTs clamping hydraulic systems, suitable for offshore high-humidity salt spray platforms, onshore desert high-temperature drilling sites and low-temperature seasonal alternating oilfield environments. It stably operates in ambient temperatures ranging from -30℃ to 68℃, supporting 24-hour uninterrupted frequent clamping and braking cyclic operations. All sealing and mechanical components resist hydraulic oil corrosion, particle scouring and environmental aging, meeting long-cycle high-intensity operational maintenance demands of oil and gas drilling projects.

6. On-Site Maintenance & Engineer Practical Suggestions

Senior field hydraulic engineers recommend replacing CSC friction linings every 450 operating hours to avoid insufficient braking torque caused by wear. Inspect Glyd rotary seal and wiper ring status quarterly to replace aging sealing parts and prevent hydraulic pressure loss. Clean hydraulic filter elements regularly to avoid fluid contamination-induced cylinder jamming. Lubricate self-lubricating bearing assemblies during seasonal overhaul to guarantee flexible mechanical movement. Check flexible coupling tightness before high-load drilling operations to eliminate power transmission jitter hidden dangers.

We supply the following spare parts:

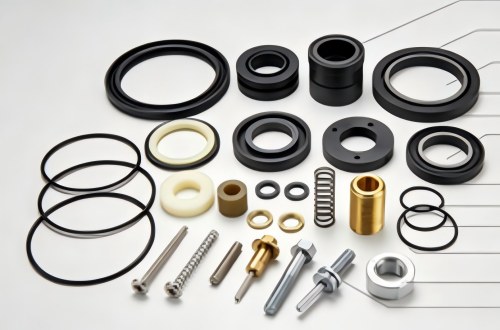

114860-1 Lower CSC Repair Kit – Soft Seals
99503-2 Lower CSC Repair Kit – Complete Kit
99503-1 Lower CSC Repair Kit – Soft Seals
110103-502 Upper KSHTS
114706-502 Lower KSHTS
109528-1 Friction linings (requires 2)
109528-2 Seal kit
109528-3 Hardened spring (requires 4)
109528-4 Screw, return spring (requires 4)
109528-5 Pin, guide (requires 4)
109528-6 Vent screw assembly
51300-273-B O-ring
51300-381-B O-ring
30119319 Rotary seal Glyd Ring” 11,000 m rod
30119357 Ring, thrust
30119143 Rotary seal Glyd Ring” rod 11.500 m
118375 Rotary seal Glyd Ring” 10,000 m rod
119547 Seal, wiper
30117775 Стопорное кольцо
119358 Bush, anti-friction, Turcite
115176 Insert
112754-130 Bearing, flange
53250-5 Safety valve
77039 Seal
PH-75 PROTECTIVE MO
118844-16-08 Bearing, self-lubricating
118844-16-12 Bearing, self-lubricating
118844-22-22 Bearing, self-lubricating
71847 Roller
125594 Cylinder assembly, hydraulic drive KShTs PH-75, clamping
cylinder
72219 Seal, piston
72220 Seal, stem
72221 Ring, wiper
30158690 Ring, stabilizer Kit
hydraulic system pipeline
30173216-1 Filter element, hydraulic system
30111013 Filter, 60 µm
110562-1 Counterweight battery
110563-1 System battery
110564-1 Battery
electric motor
pump assembly
30178472 Motor assembly
30178347-600-
60-120 Electric motor, 7.5 kW, 600 V
AC current, 60 Hz
109542 Hacoc, hydraulic, piston
107783-5C11R paddle,
110023-1 Flexible coupling

7. Field Fault Maintenance Cases

Case 1: Offshore Platform Top Drive Clamping Pressure Loss

Oilfield Location: South China Sea Offshore Drilling Platform
Failed Model: 114860-1 CSC Soft Seal Repair Kit Components
Working Load: Long-term frequent clamping cyclic load
Fault Data: Seal aging caused 2.9MPa system pressure loss
Repaired Index: Clamping pressure fully restored, stable holding without pressure drop
Customer Feedback: Original soft seal kit completely resolves hydraulic leakage and pressure loss faults.

Case 2: Onshore Deep Well Braking Friction Insufficiency Fault

Oilfield Location: Tarim Basin Onshore Drilling Site
Failed Model: 109528-1 Friction Linings
Working Load: Long-term high-frequency braking load
Fault Data: Friction material wear caused insufficient braking force and tool slipping risk
Repaired Index: Braking torque reaches standard rated value, zero slipping during full-load operation
Customer Feedback: High-performance friction linings restore reliable braking safety.

Case 3: PH-75 Cylinder Reciprocating Jitter Fault

Oilfield Location: Bohai Bay Offshore Workover Platform
Failed Model: 30173216-1 Hydraulic Filter Element
Working Load: Long-term continuous hydraulic circulation load
Fault Data: Fluid impurity accumulation caused cylinder movement jitter
Repaired Index: Cylinder reciprocating movement smooth, no stuck or jitter phenomenon
Customer Feedback: Precision filter element effectively purifies hydraulic fluid and protects cylinder components.

Case 4: Mechanical Transmission Abnormal Noise Fault

Oilfield Location: Northwest China Desert Oilfield
Failed Model: 118844-16-12 Self-Lubricating Bearing
Working Load: Long-term high-frequency mechanical movement load
Fault Data: Bearing lubrication failure caused friction noise and component wear
Repaired Index: Mechanical operation silent and smooth, friction wear reduced significantly
Customer Feedback: Self-lubricating bearing lowers long-term maintenance frequency effectively.

8. Frequently Asked Questions (FAQ)

9. Procurement & Technical Reference Guidance

This integrated suite of PH-75 KShTs clamping cylinder assemblies, 114860-1/99503 series CSC repair kits, full-spec Glyd rotary seals, wear-resistant mechanical bearings, precision hydraulic filtration units and 7.5kW drive motor assemblies provides systematic high-reliability solutions for top drive clamping and braking hydraulic system maintenance, leakage troubleshooting and performance recovery. With authoritative API 7K industry standard compliance, 17000-cycle verified operational durability and abundant frontline oilfield hydraulic maintenance experience, the product portfolio offers accurate standardized procurement benchmarks and professional technical fault-solving guidelines for drilling engineering teams. We support precise model matching and customized component combination schemes based on actual top drive equipment configuration, field environmental conditions and routine overhaul cycles, delivering professional product selection and technical support to stabilize top drive clamping system operation and optimize long-term field maintenance efficiency.
