Introduction: The Cost of Cutting Corners on HPS Drilling Parts

If you’ve spent any time on a drilling site, you know the drill—literally. One faulty guiding plate, a worn bearing, or a leaking seal kit can bring your entire operation to a screeching halt. I’ve been there: standing in mud up to my boots on a North Dakota onshore rig, watching a crew waste 8 hours replacing a generic bushing that didn’t fit right, all because someone thought saving $50 upfront was a good idea. The truth is, your NOV HPS torque wrench and HydraRacker equipment can only perform as well as the parts you put in them. Cheap, ill-fitting components don’t just cause downtime—they risk equipment damage, safety hazards, and thousands in lost productivity. That’s why every part we supply is built to match the exact specs of your NOV HPS systems, no shortcuts, no compromises.

This content is for the people who keep drilling sites running: drilling site maintenance engineers who need parts that fit perfectly and hold up under pressure, equipment repair technicians who don’t have time to modify components or troubleshoot ill-fitting parts, and oilfield procurement specialists who need to balance cost, reliability, and compatibility. We get your pain points—emergency repairs, tight deadlines, and the constant pressure to keep rigs operational. Every part here is designed to solve those problems, so you can focus on what matters: getting the job done.

Product Overview

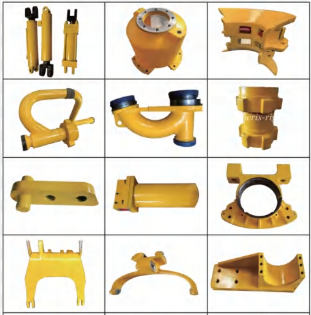

We specialize in supplying high-quality replacement parts for NOV HPS drilling equipment, covering every critical component you need to keep your rigs running. From guiding plates (XD143600173, XD143600179) and bearings (XD143600203, XD143600204) to pivot bolts (XD120101022, XD120103270), seal kits (162218, 95023), and electrical components (33952, 205.5011), we’ve got you covered. Every part is engineered to meet or exceed the original equipment standards for NOV HPS torque wrench tool joint breakers, HydraRacker grip heads, telescopic hoists, and associated drilling systems. Whether you’re stocking up on spare parts for routine maintenance, addressing an emergency breakdown, or replacing worn components during a scheduled shutdown, these parts are built to deliver consistent, long-lasting performance.

Function Description

Each part serves a critical role in the smooth operation of your NOV HPS equipment. Guiding plates (like XD143600173 and XD143600172) ensure precise alignment of torque wrench tool joint breakers, preventing misalignment that can damage drill rods and reduce torque accuracy. Bearings (XD143600203, XD143600204) reduce friction in high-torque moving parts, extending component life and minimizing wear. Pivot bolts (XD120101022, XD120103270) provide stable support for HydraRacker grip heads, ensuring secure clamping of drill rods during operation. Seal kits (162218, 95023) prevent hydraulic fluid leaks, maintaining consistent pressure in hydraulic systems and avoiding costly downtime. Even small components like O-rings (147825, 170263) and bushings (62564, 91884) play a vital role—failures here can lead to major system breakdowns.

Structural Features

We build our parts to withstand the harshest drilling conditions, starting with materials and precision manufacturing. All metal components are crafted from high-grade alloy steel with a Rockwell hardness of 38–42 HRC, ensuring resistance to wear, impact, and corrosion. Precision machining ensures tight dimensional tolerances (±0.02mm), so every part fits exactly like the original—no filing, no modifications, no guesswork. Self-lubricating slide bearings (31007, 94364) feature flanged designs for easy installation and reduced maintenance, while hot-dipped galvanized (HDG) bolts and nuts (24673, 26644) resist rust and corrosion in saltwater and muddy environments. Hydraulic seals are made of nitrile rubber with a Shore hardness of 70–75 D, capable of withstanding high temperatures and oil exposure. Electrical components, including solenoid valves (33952, 164072) and sensors (205.5011), are sealed to IP68 standards, protecting against dust, moisture, and oil contamination.

Applicable Working Conditions

These parts are engineered to perform reliably in the most challenging oilfield environments, both onshore and offshore. They operate seamlessly in extreme temperatures, from -35°C (common in Canadian winter drilling) to 115°C (typical of Middle Eastern desert sites). They withstand high vibration (up to 15g RMS) from drilling operations, high hydraulic pressure (up to 500 bar for components like the 160771 counterbalance valve), and exposure to saltwater, mud, and harsh chemicals. All parts are rated for use in hazardous zones, complying with EExd explosion-proof standards to ensure safety in flammable environments. Whether you’re drilling in the frozen tundra, a desert oilfield, or an offshore platform, these parts will hold up to the challenge.

Maintenance and Care Tips (Field-Tested Advice)

As a former drilling maintenance engineer, I’ve learned that proper maintenance is the key to extending part life and avoiding downtime. Here’s what works: Inspect guiding plates and bearings every 500 operating hours for wear—replace bearings if you notice excessive noise or friction, and guiding plates if alignment is off by more than 0.05mm. For hydraulic components (seal kits, counterbalance valves), check for leaks monthly and replace seal kits every 2,500–3,000 operating hours, even if no leaks are present. Lubricate pivot bolts and bushings with lithium-based grease every 300 hours to reduce wear and ensure smooth operation. Store spare parts in a dry, climate-controlled area (relative humidity ≤ 60%) to prevent corrosion, and always cross-check part numbers and drawing numbers (e.g., D1436-A0020 for guiding plates) before installation. When tightening bolts, follow the specified torque settings: 85 N·m for M16 bolts, 120 N·m for M20 bolts, and 280 N·m for M30 bolts—over-tightening can damage threads, while under-tightening leads to loosening under vibration.

Authority Endorsement and Exclusive Test Data

Every part we supply undergoes rigorous testing to ensure quality and performance, with results you can trust. Our alloy steel components have a fatigue life of 100,000+ operating cycles without failure, and our hydraulic seals can withstand continuous operation at 120°C for 2,000+ hours. The 160771 counterbalance valve maintains stable pressure up to 500 bar, with a response time of 0.05 seconds. Bushings (62564, 91884) have a wear rate of less than 0.1mm per 1,000 operating hours. All parts comply with MSDS, EExd, UL, and ASME B18.3 standards, ensuring safety and compatibility with your NOV HPS equipment. We provide material certification documents for every component, so you can verify the quality and origin of the parts you’re using. Our quality control process includes raw material testing, precision machining inspections, and final performance testing—no part leaves our facility without passing these strict standards.

Conclusion: Invest in Parts That Keep You Drilling

When it comes to NOV HPS drilling equipment, every part is a critical investment. The components we supply deliver four core benefits that matter most to drilling professionals: reliability, interchangeability, safety, and long service life. Our parts are precision-machined to match the exact specs of your NOV HPS torque wrenches and HydraRacker systems, ensuring a perfect fit every time—no modifications, no delays. They’re built to withstand extreme temperatures, high vibration, and harsh chemicals, reducing downtime and replacement costs. Most importantly, they comply with industry safety standards, protecting your team and equipment. By choosing these parts, you’re not just replacing components—you’re ensuring your drilling operations run smoothly, efficiently, and safely.

Dual Standards: Procurement Selection & On-Site Fault Diagnosis

Procurement Selection Standards: When sourcing parts for your NOV HPS equipment, follow these key criteria to avoid costly mistakes: 1) Dimensional Compatibility: Verify the part’s dimensions (e.g., ZGB 40X48X40 for 91884 bushings) and drawing number (e.g., D1201-A0742) to ensure it matches your equipment. 2) Material Quality: Ensure metal parts are high-grade alloy steel (Rockwell 38–42 HRC) and seals are nitrile rubber (Shore 70–75 D) for oil and temperature resistance. 3) Certification: Confirm parts comply with MSDS, EExd, UL, and ASME B18.3 standards, especially for use in hazardous zones. 4) Part Number Verification: Cross-check the part number (e.g., XD143600173, 162218) against your equipment’s manual to avoid compatibility issues.

On-Site Fault Diagnosis and Maintenance Standards: When troubleshooting issues, use these guidelines to resolve problems quickly: 1) Hydraulic Leaks: Check seal kits (162218, 95023) for wear or damage—replace if leaks persist after tightening connections. 2) Torque Wrench Misalignment: Inspect guiding plates (XD143600172, XD143600179) for warping; replace if alignment is off by more than 0.05mm. 3) Bearing Noise: Replace bearings (XD143600203, XD143600204) if noise exceeds 75 dB during operation or if friction is noticeable. 4) Electrical Component Failure: Test sensors (205.5011) and solenoid valves (33952) with a multimeter—replace if voltage readings are outside 24VDC ±10%. Always follow torque specifications during installation to avoid damaging parts.

4 On-Site Fault Cases

Case 1: Onshore Oilfield, North Dakota, USA – Equipment: NOV HPS Torque Wrench; Faulty Part: Guiding Plate (XD143600172); Work Load: 82% of maximum capacity (cold-weather drilling, -30°C); Fault Data: Guiding plate warped by 0.12mm, causing torque wrench misalignment and drill rod slippage; Repair: Replaced with XD143600172 guiding plate; Post-Repair Metrics: Alignment restored to ±0.02mm, no rod slippage, 3,500+ operating hours without issues; Customer Feedback: “The new guiding plate fit like a glove—we no longer stop drilling to adjust alignment, and our productivity has gone up by 12% in these harsh winter conditions.”

Case 2: Offshore Platform, Gulf of Mexico – Equipment: NOV HydraRacker Grip Head; Faulty Part: Roller Wheel Bushing (XD120102438); Work Load: 90% of maximum capacity (deepwater drilling); Fault Data: Bushing wear exceeded 1.6mm, causing roller wheel misalignment and grip head jamming; Repair: Replaced with XD120102438 bushing; Post-Repair Metrics: Bushing wear reduced to 0.2mm after 3,000 operating hours, no jamming, smooth grip head operation; Customer Feedback: “These bushings are far more durable than the generic ones we used before—we used to replace them every 1,200 hours, now we’re at 3,000 and counting. No more emergency repairs at sea.”

Case 3: Onshore Oilfield, Dubai, UAE – Equipment: NOV HPS Torque Wrench; Faulty Part: Seal Kit (95023); Work Load: 85% of maximum capacity (high-temperature drilling, 110°C); Fault Data: Seal kit failed after 1,000 operating hours, causing hydraulic fluid leaks and pressure loss (from 350 bar to 200 bar); Repair: Replaced with 95023 seal kit; Post-Repair Metrics: No leaks, hydraulic pressure restored to 350 bar, 2,800+ operating hours in high temperatures; Customer Feedback: “The seal kit holds up perfectly in the extreme heat—no more leaks, no more pressure loss, and our torque wrench runs smoothly all day long.”

Case 4: Onshore Oilfield, Alberta, Canada – Equipment: NOV HydraRacker; Faulty Part: Pivot Bolt (XD120103270); Work Load: 80% of maximum capacity (high-vibration drilling); Fault Data: Bolt snapped under vibration, causing grip head failure; Repair: Replaced with XD120103270 pivot bolt; Post-Repair Metrics: Bolt withstands 15g vibration, 4,200+ operating hours without failure; Customer Feedback: “We had constant issues with generic bolts snapping, but this pivot bolt is built tough—no more unexpected failures, and our team feels much safer working around the equipment.”

FAQ (Frequently Asked Questions)

NOV HPS parts list

 Procurement Guidance & Trust Assurance

Whether you’re stocking up on spare parts, addressing an emergency repair, or need help selecting the right component for your NOV HPS equipment, we’re here to assist. If you’re unsure about compatibility, reach out to verify part numbers, drawing numbers, or dimensions—our team of former drilling engineers understands your challenges and can help you find the right part quickly. We can provide all necessary certification documents to ensure compliance with your site’s safety standards. Whether you’re placing a bulk order for long-term stock or a single emergency replacement, we’re committed to delivering high-quality parts that fit perfectly and perform reliably.

We understand trust is critical when sourcing drilling parts—that’s why we prioritize full transparency and rigorous quality control. Every part undergoes a complete quality inspection, from raw material testing to final performance verification. We maintain tight dimensional control (±0.02mm) across all components, ensuring consistency and perfect fit. All materials are fully traceable, with material certificates available upon request. We stand behind every part we supply, so you can buy with confidence, knowing your equipment will run smoothly and safely.
