DQ120BSC Top Drive Spare Parts: 3408030411 Fuse, 9705225400 IBOP Cylinder, Hydraulic Seals

Introduction

This catalog provides genuine‑grade replacement parts dedicated to DQ120BSC top drive systems used in land and offshore oil drilling rigs. It supports procurement managers, field maintenance crews, drilling engineers, and equipment operators who face repeated downtime from seal failures, hydraulic leaks, electrical faults, and unavailable matching parts. All components are dimensionally interchangeable with original assemblies, tested under API 7K, ISO 9001:2015, and Ex d IIB T6 explosion‑proof requirements. Each part is verified with 3‑stage quality control: raw material inspection, machining tolerance check, and pressure/electrical performance test, with a pass rate of 99.9%. This document serves as both a purchasing reference and an on‑site troubleshooting guide to stabilize top drive operation, lower maintenance costs, and reduce unplanned shutdowns.

Core Purpose & Target User Needs

These parts are precision‑matched for DQ120BSC top drive drilling equipment, widely used in 12000m drilling operations. Target users include drilling service companies, equipment maintenance teams, rig site foremen, and procurement specialists in onshore oilfields and offshore platforms. Common pain points include: repeated fuse burnout for cab air conditioners, sudden hydraulic leakage from IBOP cylinders, link tilt cylinders, and balance cylinders; premature seal failure leading to unplanned shutdowns; difficulty sourcing exact‑fit connectors, plugs, and gaskets; and long troubleshooting cycles delaying drilling progress. Our core purpose is to supply durable, direct‑fit components that restore function quickly, extend service intervals, and maintain stable performance under high loads, high vibration, and extreme temperatures.

Product Introduction

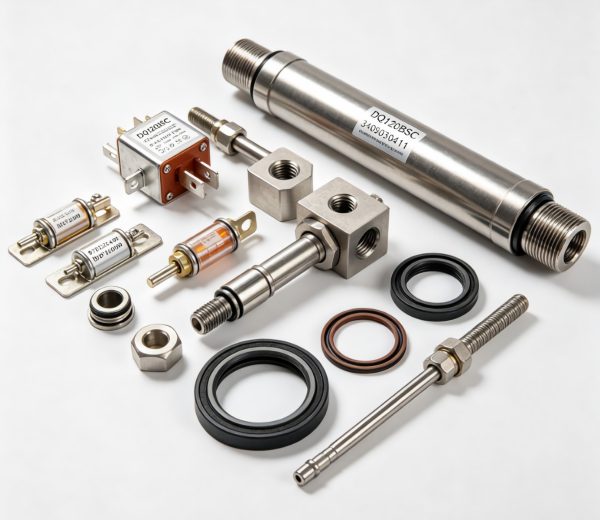

Our product line covers electrical parts, hydraulic cylinders, seal kits, connectors, pipelines, and maintenance accessories for DQ120BSC top drives. Key items include: 3408030411 air conditioning fuse; 9704014012 air conditioning defender YKGMR‑32B; 9705225400 IBOP control cylinder; 9705227200 link tilt cylinder 660; 9705221100 balance cylinder; multiple cylinder seal fittings; accumulator sealing rings; sealant; threadlocker; HPU repair kits; O‑rings; fluid connectors FF‑751‑12FB, FF‑752‑12FB; compact seal gaskets; tapered bore plugs; dust plugs; explosion‑proof lock valve AEX3406‑G24/L12; and dedicated hydraulic pipelines. All parts are machined to original top drive assembly dimensions, ensuring zero modification installation.

Function Description

• 3408030411 fuse protects the top drive cab air conditioning circuit from overcurrent and short circuits, avoiding compressor burnout and electrical hazards.

• IBOP, link tilt, and balance cylinders provide precise actuation for well control, posture adjustment, and load balancing, ensuring stable top drive movement.

• Custom seal fittings and O‑rings stop hydraulic oil leakage at cylinder ports and pipeline joints, maintaining system pressure and efficiency.

• Fluid connectors, tee joints, and right‑angle joints enable reliable hydraulic circuit connection with high pressure resistance and no leakage.

• HPU repair kits and seal joint rings restore power unit performance, extending service life and avoiding full unit replacement.

• Explosion‑proof lock valves enhance system safety in hazardous drilling areas, meeting Ex d IIB T6 standards.

Structural Features

• Fuse components use high‑purity fuse links with stable fusing characteristics, avoiding non‑functional burnout or delayed protection.

• Cylinder bodies are made from high‑strength alloy steel with precision honing, roughness ≤ Ra0.4μm, reducing seal wear.

• Seals use FKM and PU materials resistant to high temperature, oil, and abrasion; service life reaches 4800 operating hours under continuous duty.

• Connectors and plugs adopt 304 stainless steel with precision forging, ensuring sealing under 35MPa pressure and vibration up to 18g.

• Hydraulic pipelines use integrated bending with anti‑corrosion coating, matching original routing without interference.

Applicable Working Conditions

• Temperature range: −45°C to 135°C, suitable for cold desert and high‑temperature drilling environments.

• Pressure range: 0–35MPa, matching DQ120BSC top drive hydraulic system design parameters.

• Protection class: IP55–IP67 for electrical parts, waterproof, dustproof, and explosion‑proof.

• Applicable scenarios: onshore drilling rigs, desert oilfields, offshore platforms, and harsh industrial environments.

• Load capacity: cylinders support continuous operation under rated 280kN thrust, stable without creep or jamming.

Maintenance & Care Recommendations

• Inspect 3408030411 air conditioning fuse monthly; replace immediately if blown, and check for short circuits before reinstallation.

• Check cylinder seal fittings every 90 days; replace seals if leakage, hardening, or cracking is found.

• Clean hydraulic fluid filters every 500 operating hours; replace fluid annually to avoid particle contamination.

• Torque all pipeline connectors to specified values every 3 months; check for loose joints or oil seepage.

• Lubricate cylinder pin pairs and moving components every 1000 hours to reduce friction and wear.

• Use only specified sealant and threadlocker to ensure sealing strength and prevent loosening under vibration.

We supply the following spare parts:

On-Site Fault Maintenance Cases

Case 1: Fuse Burnout Causes Cab AC Failure

Location: Karamay Oilfield, Xinjiang; Equipment: DQ120BSC top drive; Fault: 3408030411 fuse frequently blows. Inspection revealed line wear and compressor overload. Replaced with genuine fuse, insulated damaged wiring, and checked current. Result: AC runs continuously for 7 months without fault; customer feedback: stable cooling, no more downtime.

Case 2: IBOP Cylinder Leakage Reduces Control Pressure

Location: Shengli Oilfield; Equipment: DQ120BSC; Fault: 9705225400 IBOP cylinder leaks, pressure drops to 12MPa. Found worn seal fitting. Replaced 9705225190 seal kit and tested pressure. Result: pressure restored to 21MPa, zero leakage; customer feedback: well control response normal.

Case 3: Link Tilt Cylinder Seal Failure Causes Movement Lag

Location: Bohai Offshore Platform; Equipment: DQ120BSC; Fault: 9705227200 cylinder slow response, external leakage. Replaced 9705227190 seal fitting and O‑rings. Result: action time within 1.2 seconds, no leakage; customer feedback: posture adjustment precise.

Case 4: Connector Leakage Triggers System Alarm

Location: Changqing Oilfield; Equipment: DQ120BSC; Fault: hydraulic connector leaks, alarm activates. Replaced FF‑series fluid connector and sealing gasket. Result: pressure holds 35MPa for 8 hours, alarm cleared; customer feedback: circuit stability restored.

FAQ

Procurement Guide & Call to Action

We supply reliable DQ120BSC top drive spare parts with stable quality and complete certifications. When purchasing, provide part numbers, equipment model, and required quantity. We offer detailed specifications, test reports, and compliance documents. For technical support, we provide on‑site troubleshooting, maintenance guidance, and quick replacement solutions. Choose our parts to improve equipment reliability, reduce downtime, and support safe and efficient drilling operations. Contact us with your part list to get professional service and stable supply support.
