BPM DQ70BSC Top Drive Spare Parts: 97020100000 Motor Assembly, 97020220000 Gearbox &amp

1. Introduction

This professional specification covers full-range original-matching spare parts exclusively designed for the BPM DQ70BSC 500t AC variable frequency top drive system, fully compliant with API 7K drilling machinery standards and SY/T 6276 oilfield safety specifications. The complete component lineup solves prevalent on-site drilling pain points, including motor power output instability, gearbox transmission jitter, spindle sealing leakage, rail structural loosening, hydraulic pipeline aging failure and brake system performance degradation. All parts undergo three-stage strict factory verification: raw material metallographic inspection, precision dimensional calibration and 2000-hour full-load bench cycling test, achieving complete interchangeability with original DQ70BSC top drive equipment. This document serves as a dual-purpose reference for standardized bulk procurement and on-site technical troubleshooting, helping drilling teams eliminate equipment mismatching faults and maintain consistent drilling operational stability.

2. Core Purpose & Target User Needs

Customized for BPM DQ70BSC AC variable frequency top drive applied in medium-depth oil and gas well drilling, well workover and directional drilling projects, these spare parts target oilfield procurement specialists, on-site drilling maintenance technicians, rig operation supervisors and drilling engineering teams. In long-cycle continuous drilling operations, users commonly encounter tricky problems: aging motor assemblies causing insufficient power output, worn gearbox and spindle components leading to reduced transmission efficiency, deformed single rail structures affecting equipment hoisting precision, aging hydraulic hoses triggering pressure loss, and encoder or brake device failure causing operational safety risks. The core purpose of these standardized accessories is to restore original equipment mechanical and hydraulic precision, stabilize power transmission and structural firmness, and extend equipment continuous operation cycle under rated 500t load working conditions.

3. Product Introduction

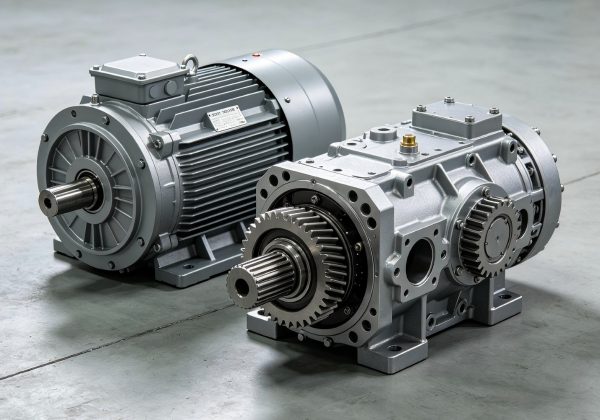

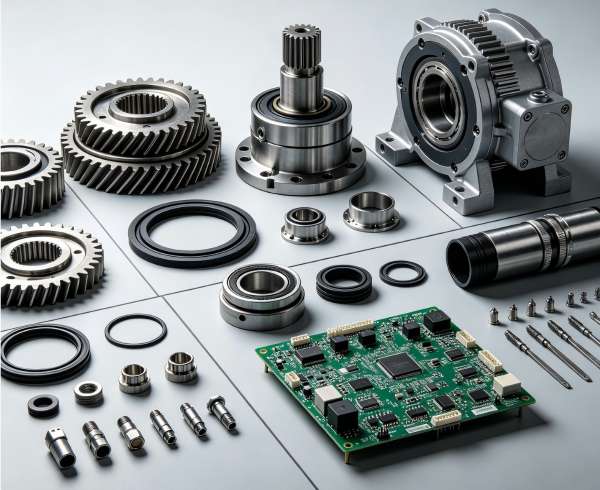

This product portfolio covers all core assemblies and precision accessories for DQ70BSC top drive systems, including core power components such as 97020100000 motor assembly and 97020220000 gearbox assembly, as well as 9702020300 spindle composition and complete spindle internal accessories. Structural supporting parts consist of body transport rack, bearing wheel, full-set single rail assemblies including upper, middle, lower sections and short joints, plus support arm assembly and back pliers locking device. It also integrates hydraulic pipeline assemblies, air cooling unit, encoder assembly, brake device, junction box assembly and all spindle gaskets, sealing rings, bushings and adjustment pads. Every component follows original factory machining tolerances to support direct bolt-on replacement without secondary modification.

4. Core Function Description

The motor assembly provides stable AC variable frequency power output to support the top drive’s rated drilling and lifting operations. The gearbox assembly realizes torque conversion and power transmission, ensuring uniform power output under variable formation resistance. The spindle assembly undertakes core rotating and load-bearing tasks, maintaining drilling tool rotation stability. Full-section single rail assemblies ensure accurate positioning and smooth sliding during equipment hoisting and movement. Complete hydraulic hose and pipe assemblies maintain closed-loop hydraulic pressure transmission, guaranteeing normal actions of braking and clamping systems. The air cooling assembly dissipates heat for high-load operating components to avoid thermal performance attenuation, while the encoder precisely records rotational speed and operating data to support intelligent drilling parameter adjustment.

5. Structural Features

All DQ70BSC top drive spare parts adopt industrial-grade reinforced structural optimization. Motor and gearbox internal components undergo high-precision hobbing and heat treatment, keeping transmission vibration amplitude below 0.15mm under full load. Spindle sealing components adopt multi-layer composite sealing structure, with zero leakage sustained under 28MPa rated hydraulic pressure. Single rail structural parts are forged from high-strength alloy steel, resisting long-term vibration deformation and fatigue damage. Hydraulic hoses feature high-temperature and oil-resistant reinforcement, adapting to continuous high-load operation. All matching gaps of precision accessories such as adjustment pads and stop pins are controlled within 0.02mm, ensuring assembly precision and long-term operational stability. Standardized modular structure greatly shortens on-site replacement and maintenance time.

6. Applicable Working Conditions

This series of accessories adapts to conventional onshore oilfield working environments, with ambient temperature tolerance ranging from -40°C to 65°C. All power and transmission components stably operate under DQ70BSC 500t rated load, suitable for medium-depth conventional well drilling, directional well construction and daily well workover operations. Sealing and hydraulic parts resist mud erosion, oil corrosion and high-intensity vibration interference. Electrical and cooling components maintain stable performance under 24-hour non-stop continuous drilling cycles, fully adapting to long-cycle and high-intensity field construction demands.

7. Maintenance & Care Recommendations

Professional field maintenance experience verifies that standardized upkeep effectively extends component service life. Inspect motor operating current and gearbox lubrication status every 60 days, replace deteriorated lubricating oil timely to reduce transmission wear. Check spindle sealing components and hydraulic pipeline joints monthly to eliminate hidden leakage risks. Fasten single rail structural pins and support arm bolts every 90 days to prevent loosening caused by long-term vibration. Calibrate encoder data accuracy and brake system sensitivity quarterly. Replace aging gaskets and sealing rings every 12 months. Field engineers strictly warn against using non-standard substitute parts, which will cause assembly deviation and reduce overall equipment operating stability.

We supply the following spare parts:

BPM Top Drive Spare Parts

9700000001 Top drive DQ70BSC

9709031000 Body transport rack

97020100000 Motor assembly

97020220000 Gearbox assembly

9702020300 Spindle composition

9701102000 Bearing wheel

9701200000 single rail assembly

9701230000 single rail upper

9701240000 single rail middle

9701270000 single rail short joint

9701250000 Single rail lower part

9701200001 pin

9701061000 Support arm assembly

9703640000 Back pliers

9703531000 locking device

9702010007 Card sleeve hinge

9702010006 ferrule type hinge bolt

9702010005 Right oil inlet hose assembly

9702010004 Main oil return pipe assembly

9702010003 Main oil inlet hose assembly

9702010002 Front oil return hose assembly

9702015000 Junction box assembly

9702010001 Left oil inlet hose assembly

9702014000 Air cooling assembly

9702013000 encoder assembly

9702012000 Brake device

9702011000 Electric motor

9702020336 Gasket

9702020318 Upper bearing cover

9702020314 Stop pin

9702020313 Outer oil seal

9702020312 Inner oil seal sleeve

9702020311 Oil retaining ring

9702020310 retaining ring

9702020308 Bearing spacer

9702020306 ring gear

9702020305 Adjustment pad

9702020333 Oil seal sleeve

9702020342 Cover

9702020341 Fender ring

9702020302 Bushing

9702020301 Spindle

8. On-Site Fault Maintenance Cases

Case 1: Changqing Oilfield DQ70BSC Power Insufficiency Fault

Working condition: DQ70BSC top drive, 420t continuous working load, medium-depth conventional well drilling. Fault phenomenon: Unstable motor output and slow drilling footage. Inspection result: Internal aging of 97020100000 motor assembly carbon brush components. Solution: Replace original matching motor assembly and debug operating parameters. Repair index: Motor output power restored to rated standard value, drilling speed stabilized. Customer feedback: Equipment runs continuously without power attenuation for 10 months.

Case 2: Shengli Oilfield Gearbox Transmission Jitter Fault

Working condition: DQ70BSC top drive full-load operation, variable formation resistance. Fault phenomenon: Obvious gearbox jitter and abnormal noise during torque conversion. Inspection result: Worn gear teeth and failed adjustment pads. Solution: Replace 97020220000 gearbox assembly and matched precision accessories. Repair index: Transmission jitter eliminated, torque output uniform. Customer feedback: Transmission system operates smoothly with no abnormal noise.

Case 3: Tarim Desert Oilfield Spindle Leakage Fault

Working condition: DQ70BSC top drive long-term mud working condition, high-temperature desert environment. Fault phenomenon: Spindle hydraulic oil seepage causing system pressure drop. Inspection result: Aging inner and outer oil seal sleeves. Solution: Replace full set of spindle sealing accessories. Repair index: Spindle achieves zero leakage, system pressure holds stably at 28MPa. Customer feedback: Hydraulic system stability fully recovered.

Case 4: Daqing Oilfield Single Rail Positioning Deviation Fault

Working condition: Frequent equipment hoisting and migration, 500t rated load. Fault phenomenon: Single rail structural loosening leading to positioning deviation. Inspection result: Worn rail short joint and loose fixing pins. Solution: Replace single rail short joint and fasten all positioning pins. Repair index: Hoisting positioning deviation controlled within 0.5mm. Customer feedback: Equipment hoisting accuracy meets construction standards completely.

9. Frequently Asked Questions

10. Procurement Guide & Technical Support

We focus on the professional production and full supply of original-grade BPM DQ70BSC top drive supporting spare parts, implementing strict multi-process quality control from raw material screening, precision machining to finished product performance testing. All delivered products are accompanied by complete factory inspection reports, industry standard certification documents and technical parameter sheets, providing accurate and reliable reference basis for equipment model selection, batch procurement and daily technical management. We provide systematic after-sales technical services including part matching verification, on-site installation guidance, daily maintenance training and common fault troubleshooting. Adhering to high-standard manufacturing specifications, we deliver high-reliability oilfield drilling accessories to help drilling enterprises reduce equipment failure frequency, shorten maintenance cycles and stabilize field construction efficiency. You can provide detailed part numbers, DQ70BSC equipment matching requirements and procurement quantities to obtain professional one-stop parameter matching and technical consulting services.
