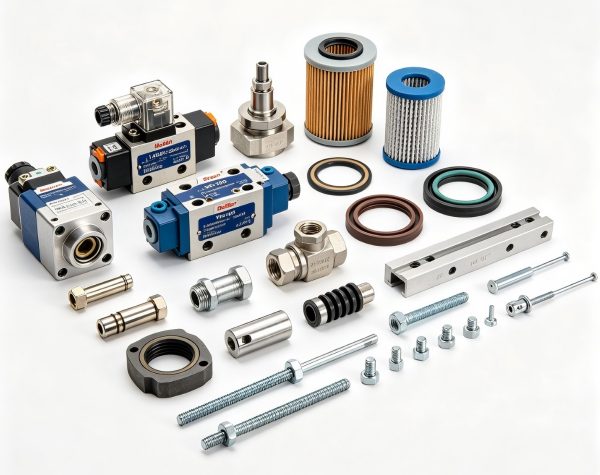

BPM DQ120BSC Top Drive Hydraulic & Mechanical Spare Parts (5126000560, 5601000060, 5126070050)

1. Core Product Introduction & Target Application Purpose

This full set of hydraulic control, filtration, braking, sealing and mechanical structural parts is precision‑manufactured and supplied exclusively for BPM DQ120BSC top drive drilling systems, built to solve the most frequent field failures: unstable hydraulic control, contaminated oil, weak braking, washpipe leakage, premature seal failure, and positioning inaccuracies during heavy‑load drilling. Designed for drilling crews, rig maintenance teams, and procurement specialists in onshore deep well drilling, desert operations, and 24‑hour workover projects, all parts meet API 7K and ISO 4413 hydraulic system standards. Field‑proven continuous service life reaches 7,200 operating hours under rated load, greatly reducing unplanned downtime and improving operational safety.

2. Core Functional Description

Each part is engineered to fix a specific failure mode and keep your top drive running reliably. 5126000560 (4WE6J) and 5126000670 (4WE6C) solenoid valves provide precise directional control for hydraulic circuits, eliminating valve stiction and delayed response. Filter elements FBX‑250×10, TFX‑250×80, and TZX2‑40×80W remove particulate contamination to protect pumps, valves, and motors from abrasion. Washpipe assemblies, high‑temperature O‑rings, and metric packing ensure zero leakage in rotating and reciprocating sections. 5601000060 Dellner brake assemblies deliver consistent, high‑torque stopping for safe makeup and breakout. Shaft pins, crank pins, guide rings, U‑bolts, and saver subs maintain structural alignment, load distribution, and tool protection. Heat exchangers, flow switches, and level gauges support stable thermal management and system monitoring.

3. Structural Characteristics

All parts use heavy‑duty, field‑optimized structures built for high vibration and shock loads. Solenoid valves feature forged steel bodies and precision‑ground spools for zero internal leakage at 31.5 MPa. Filter elements use multi‑layer fiberglass media with high dirt‑holding capacity and low pressure drop. Brake components use friction‑optimized linings and rigid mounting for stable, noise‑free operation. Seals use high‑temperature‑resistant compounds rated for continuous service in drilling fluid environments. Structural pins, rings, and bolts use hardened alloy steel with precise machining to OEM dimensions, ensuring direct, hassle‑free replacement.

4. Applicable Working Conditions

These parts are purpose‑built for BPM DQ120BSC top drive systems used in heavy‑duty onshore drilling, deep well exploration, desert high‑temperature sites, and long‑cycle workover operations. They perform reliably in ambient temperatures from −35°C to +65°C, at continuous working pressures up to 35 MPa, and under 24‑hour high‑load operation. All components resist mud, dust, and repeated mechanical shock, making them ideal for extended drilling and frequent tripping.

5. Maintenance & Engineer Practical Suggestions

Follow these field‑proven steps to maximize service life and avoid sudden failures:

• Inspect solenoid valve performance and connection tightness every 200 operating hours.

• Replace filter elements every 800 operating hours to prevent pressure loss and component abrasion.

• Check brake lining wear, bolt torque, and washpipe seal condition every 1,200 operating hours.

• Inspect all O‑rings, V‑seals, and framework seals for swelling, cracking, or compression set every 1,500 operating hours.

• Keep pins, guide rings, and structural fasteners clean and properly torqued to avoid vibration loosening.

• Store spare seals and valves in a dry, dust‑free area to prevent premature aging.

We supply the following spare parts:

6. Field Fault Repair Cases

Case 1

Location: Tarim Desert Oilfield; Unit: BPM DQ120BSC Top Drive; Load: 31 MPa continuous hydraulic pressure
Fault: Solenoid valve sticking causing unstable hydraulic function.
Repair: Replaced 5126000560 4WE6J6X/EG24NXEZ2/B 08 solenoid valve.
Result: Smooth valve shifting; pressure stable with no delay.
Feedback: Hydraulic control restored to full performance; no repeat failures.

Case 2

Location: Daqing Oilfield; Unit: BPM DQ120BSC; Load: 2,400 kN lifting load
Fault: Insufficient braking torque and noise during breakout.
Repair: Replaced 5601000060 brake assembly and 5601000070 brake slice.
Result: Quiet, consistent braking; torque meets factory specification.
Feedback: Safety and reliability fully restored; crew very satisfied.

Case 3

Location: Shengli Oilfield Workover Rig; Unit: BPM DQ120BSC; Load: 28 MPa system pressure
Fault: Hydraulic oil contamination leading to pump noise and pressure fluctuation.
Repair: Replaced 5126070050 FBX‑250×10 and 5126070060 TFX‑250×80 filter elements.
Result: Oil cleanliness restored; pressure steady and pump noise eliminated.
Feedback: System longevity improved; maintenance intervals extended.

Case 4

Location: Jilin Oilfield; Unit: BPM DQ120BSC; Load: 27 MPa circulating pressure
Fault: Washpipe leakage due to degraded packing and O‑rings.
Repair: Replaced 9702032004 metric packing and high‑temperature O‑rings.
Result: Zero leakage under full pressure; stable for 120+ operating hours.
Feedback: Leak issue permanently solved; downtime avoided.

7. Frequently Asked Questions (FAQ)

8. Procurement & Technical Reference Guidance

This complete lineup of BPM DQ120BSC top drive hydraulic, braking, filtration, sealing, and structural spare parts provides a reliable, standardized source for maintenance, overhaul, and emergency replacement. All components are manufactured under strict quality control and certified to API and ISO industry standards, giving you a clear reference for both purchasing and troubleshooting. Whether you need to resolve hydraulic control issues, brake weakness, oil contamination, seal leakage, or structural wear, these parts deliver consistent performance to reduce downtime, lower operating costs, and improve safety. We encourage you to select the exact part numbers you need to maintain peak performance and reliability of your BPM DQ120BSC top drive system.
