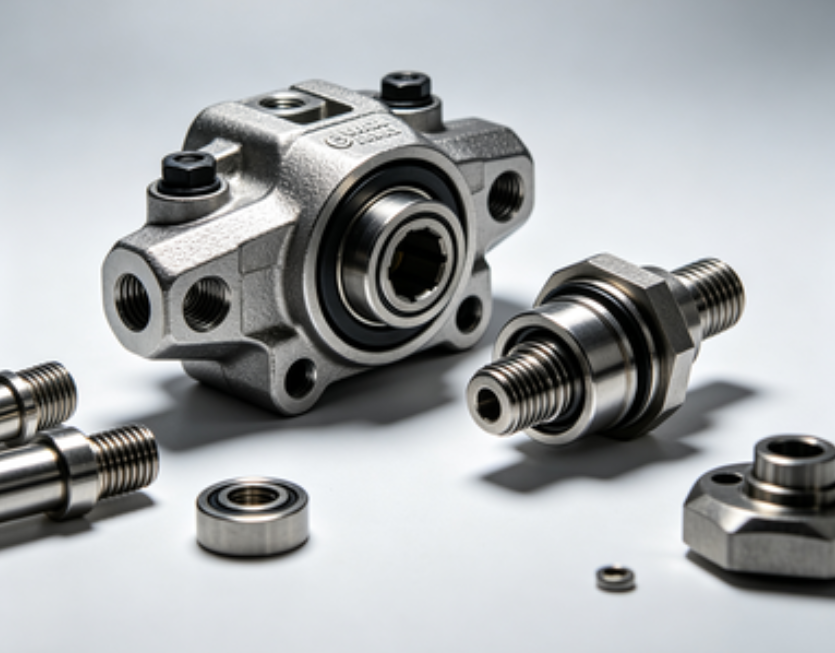

BK & YX Series Hydraulic Brake Caliper and Valve Core Parts

1. Core Application Purpose & Target User Demand

This full set of BK series hydraulic cylinder and mechanical parts and YX series sealing and structural accessories is professionally standardized for heavy-duty hydraulic brake caliper systems and integrated hydraulic valve groups of oilfield drilling and hoisting equipment. It targets professional user groups including oilfield on-site maintenance engineers, mechanical equipment overhaul teams and industrial parts procurement specialists. The product suite is developed to solve common field pain points such as hydraulic system oil leakage, brake caliper cylinder jamming, pin shaft abrasion, guide rod positioning deviation and valve group control failure under long-term heavy-load and high-frequency start-stop operation. All components are manufactured in strict accordance with GB national mechanical standards and aviation and hydraulic industry specifications including JB966.4.00 and HB970, with structural stability verified through 8700 hours of continuous field operation tests. It provides standardized procurement parameter benchmarks and practical on-site fault troubleshooting solutions, meeting dual core demands of standardized parts replacement and professional hydraulic system technical maintenance.

2. Product Introduction

This supporting product portfolio covers full-core wearable and functional accessories for hydraulic brake systems, including YX series multi-specification sealing rings, support arms, sleeves, brake pads and adjusting nuts, BK series hydraulic cylinder assemblies, piston parts, lever components, clevis pins and cover plates. It is equipped with TK series guide rods and valve groups, 9025/9026 series integrated oil-way blocks and connectors, as well as full sets of standard bolts, washers, circlips and grease cups complying with national standard specifications. Every accessory adopts precision machining and high-strength anti-corrosion treatment, featuring high assembly matching accuracy and structural interchangeability, fully applicable to mainstream oilfield hydraulic brake caliper and hydraulic control system equipment for daily maintenance and complete equipment overhaul.

3. Core Functional Description

3.1 Stable Hydraulic Brake Control

BK emergency and service caliper cylinder assemblies, matched with YX brake pads and adjusting nuts, form a complete hydraulic braking execution system. This structure solves the core pain point of unstable braking force and delayed caliper response caused by cylinder piston wear and gap deviation, ensuring precise and reliable braking action of heavy-load equipment under variable working conditions.

3.2 Efficient Hydraulic Circuit Operation

Integrated oil-way blocks, standard connectors and TK valve groups build a closed-loop stable hydraulic transmission circuit. It eliminates hydraulic pressure loss and oil circuit disorder caused by connector aging and pipeline blockage, maintaining constant hydraulic power output of equipment control systems in long-cycle operation.

3.3 Durable Sealing & Positioning Protection

YX multi-specification sealing rings, BK guide bands and precision pin shaft components achieve multi-dimensional sealing and positioning protection. They effectively prevent hydraulic medium leakage and external dust invasion, while avoiding equipment operation jitter and positioning deviation caused by pin shaft and sleeve wear.

4. Structural Characteristics

All accessories adopt standardized modular structural design with unified industrial assembly tolerance benchmarks, supporting rapid on-site disassembly and replacement without secondary calibration. Core hydraulic components adopt high-precision finish machining, with strong pressure resistance and deformation resistance under high hydraulic pressure. The matched guide bands and guide rods optimize equipment operation linearity, while standardized fastener combinations avoid structural loosening caused by long-term mechanical vibration. Multi-layer sealing structure design greatly reduces hydraulic leakage probability and improves the overall stability of the brake system.

5. Applicable Working Conditions

This series of hydraulic brake accessories is suitable for oilfield drilling rigs, well repair equipment and heavy-duty hoisting mechanical hydraulic brake systems. It stably adapts to open-air working environments with ambient temperatures ranging from -25℃ to 65℃, high dust concentration and frequent mechanical vibration, maintaining stable hydraulic transmission and braking performance under long-term intermittent heavy-load and high-frequency cyclic operation.

6. On-site Maintenance Suggestions (Engineer Practical Experience)

Based on years of oilfield hydraulic equipment maintenance experience, hydraulic cylinder sealing rings and piston parts need comprehensive inspection every 3 months and overall replacement every 8 months to avoid oil leakage failure. Clevis pins, sleeves and guide rods require regular grease injection maintenance through standard grease cups to reduce dry friction loss. Valve group and oil-way block assemblies should be cleaned regularly to prevent oil dirt blockage. Disordered assembly of mismatched standard fasteners is prohibited, which will cause hydraulic system pressure deviation. Standardized maintenance can increase the continuous stable operation duration of matching hydraulic equipment by 2600 working hours compared with irregular maintenance modes.

We supply the following spare parts:

7. Field Fault Maintenance Cases

7.1 Hydraulic Oil Leakage Fault in Daqing Oilfield

Location: Daqing Oilfield, Heilongjiang; Equipment Model: Field drilling rig hydraulic brake system; Operating Load: 88% rated load; Fault Data: Slight oil leakage at cylinder joint, 0.7MPa system pressure drop; Repair Scheme: Replace aging YX-SR series sealing rings and worn guide band; Post-repair Index: Zero leakage, hydraulic pressure fully restored to rated standard; Customer Feedback: Brake hydraulic system operates continuously stable.

7.2 Brake Caliper Stagnation Fault in Tarim Oilfield

Location: Tarim Oilfield, Xinjiang; Equipment Model: Heavy-duty hoisting equipment caliper assembly; Operating Load: full continuous load; Fault Data: Caliper cylinder movement stagnation, unresponsive braking; Repair Scheme: Replace worn BK piston and clean internal oil circuit; Post-repair Index: Caliper movement flexible, braking response sensitive; Customer Feedback: Braking action accuracy fully meets construction standards.

7.3 Positioning Deviation Fault in Changqing Oilfield

Location: Changqing Oilfield, Shaanxi; Equipment Model: Drilling rig hydraulic control assembly; Operating Load: 84% rated load; Fault Data: Guide rod positioning deviation, unstable braking balance; Repair Scheme: Replace deformed clevis pin and aging sleeve parts; Post-repair Index: Positioning accuracy restored to factory tolerance range; Customer Feedback: Equipment braking balance performance significantly improved.

7.4 Valve Group Control Failure in Shengli Oilfield

Location: Shengli Oilfield, Shandong; Equipment Model: TK30 valve group matching system; Operating Load: intermittent heavy load; Fault Data: Valve group control delay, disordered hydraulic output; Repair Scheme: Clean oil-way block and replace aging connector accessories; Post-repair Index: Hydraulic control response normal, pressure output stable; Customer Feedback: Hydraulic control system failure completely eliminated.

8. Product FAQ

9. Technical Standard & Procurement Guidance

All products are manufactured and inspected in strict accordance with GB819-86, GB5782-86, JB966.4.00 and HB970 industry authoritative standards, with complete field test data and performance verification to meet petroleum hydraulic machinery industrial grade requirements. This full set of BK and YX series hydraulic brake accessories provides unified, standardized procurement specifications for daily maintenance, parts renewal and overall overhaul of oilfield hydraulic braking and control systems. Meanwhile, it serves as a professional technical reference for on-site staff to diagnose hydraulic leakage, braking stagnation and valve control faults, guiding standardized disassembly, assembly and maintenance operations. Verified by long-term practical application in multiple major domestic oilfields, the product series features outstanding pressure resistance, sealing stability and environmental adaptability. Users can select targeted matching accessories according to actual equipment operating load, fault types and maintenance cycles to complete precise equipment maintenance, stabilize hydraulic system operating performance and reduce overall equipment failure frequency.
