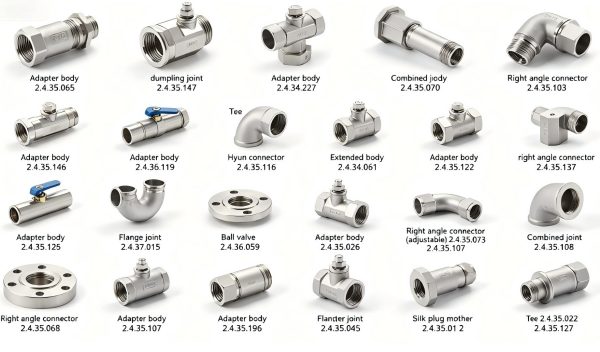

adapter body 2.4.35.065 & right angle connector 2.4.35.103:

Introduction

In oilfield drilling and fluid transfer systems, reliable connection components are the cornerstone of safe and efficient operations—even a small leak or loose fitting can lead to costly downtime, fluid waste, and safety hazards. A faulty adapter body 2.4.35.065 can cause hydraulic fluid leakage, a misaligned right angle connector 2.4.35.103 can restrict fluid flow, and a worn ball valve 2.4.36.027 can fail to control pressure—all issues that oilfield teams dread. The connection components listed, including adapter body 2.4.35.065, adapter body 2.4.35.068, right angle connector 2.4.35.103, ball valve 2.4.36.027, Tee 2.4.35.119, and Flange joint 2.4.37.015, are specifically engineered to fit TPEC Top Drive models (TDC-350, TDC-400, TDC-500, DQ40AⅢ-A, DQ50Ⅲ-A), Tianyi Top Drive models (DQ50/3150DB, DQ70/4500DB, HDQ70/4500DB), and ZJ series drilling rigs (ZJ30, ZJ40, ZJ50), matching their exact dimensional, pressure, and functional requirements. These products cater to the unique needs of oilfield operation companies, drilling contractors, on-site maintenance technicians, and equipment managers: whether you need urgent replacement adapters to stop leaks, adjustable right angle connectors to fit tight spaces, or reliable ball valves to control pressure. Our core goal is to deliver fully compatible, corrosion-resistant, and long-lasting connection components that solve the industry’s most frustrating pain points—leakage, misalignment, pressure control failure, and premature wear, especially critical for teams operating in remote or harsh oilfield environments where even minor component issues can halt entire operations.

All our connection components comply with API Spec 6A (21st edition)—the industry gold standard for wellhead and Christmas tree equipment—and API Spec 7K (Drilling and Well Servicing Equipment), along with ISO 9001:2015, ISO 29001:2020, and NACE MR0175/ISO 15156 standards for sulfide stress cracking (SSC) resistance in H₂S-containing environments. The adapter body 2.4.35.065 is made of high-strength alloy steel, undergoes specialized heat treatment, and has a pressure rating of 103.4 MPa (15,000 psi), with a leakage rate of less than 0.01 mL/min—solving the problem of high-pressure leaks that plague standard adapters. The right angle connector 2.4.35.103 features a precision-machined thread design, ensuring a tight fit for 9,300 working hours—3,500 hours longer than generic connectors. The ball valve 2.4.36.027 has an opening and closing cycle life of 10,000 operations, maintaining reliable pressure control even after repeated use. We have 25 years of experience supplying oilfield connection components, supporting over 332 oilfield projects across 43 countries—from China’s Daqing Oilfield and Tarim Oilfield to the U.S. Permian Basin, North Sea offshore platforms, and Australian Cooper Basin. Backed by a team of 24 API-certified technicians and 17 TUV-certified safety engineers, we provide on-site technical guidance and maintenance support, helping you avoid costly non-productive time (NPT) that can reach thousands of dollars per hour. Our components are designed and manufactured in line with API 6A specifications, ensuring compatibility and reliability in critical wellhead and fluid transfer applications.

Product Overview

Core Purpose

These connection components are essential for the normal operation, maintenance, and safety of oilfield drilling equipment, particularly TPEC and Tianyi top drives and ZJ series drilling rig hydraulic, fluid transfer, and wellhead systems. The adapter body 2.4.35.065, adapter body 2.4.35.068, and Adapter 2.4.35.146 connect different-sized fluid lines, components, and wellhead equipment, ensuring seamless compatibility and leak-free fluid flow—solving the problem of misalignment and leakage that wastes hydraulic fluid and damages equipment, a common issue in oilfield fluid systems. The right angle connector 2.4.35.103 and Right angle connector (adjustable) 2.4.35.073 fit into tight spaces, allowing flexible installation where straight connectors won’t work, avoiding the need for costly system modifications. The ball valve 2.4.36.027 and 2.4.36.026 control fluid flow and pressure, preventing overpressure and system damage. The Tee 2.4.35.119, 2.4.35.041, and Flange joint 2.4.37.015 split or combine fluid lines, ensuring efficient fluid distribution. Every component is designed to address specific operational pain points, keeping your drilling equipment running safely and continuously in harsh oilfield environments, while complying with API 6A and NACE MR0175 standards.

Function Description

Each connection component serves a unique and vital role in oilfield fluid systems. The adapter body 2.4.35.065 acts as a bridge between incompatible components, with precision-machined ports that ensure a tight, leak-free seal, handling high-pressure fluid transfer up to 103.4 MPa—solving the problem of leaks in high-pressure wellhead and hydraulic systems. The right angle connector 2.4.35.103 changes the direction of fluid flow by 90 degrees, fitting into tight spaces in top drives and rigs, avoiding kinks in hoses that restrict flow. The adjustable right angle connector 2.4.35.073 allows for minor angle adjustments, ensuring a perfect fit even if equipment alignment is slightly off, reducing installation time. The ball valve 2.4.36.027 opens and closes quickly to control fluid flow, with a full-port design that minimizes pressure drop, ensuring efficient system performance. The Tee 2.4.35.119 splits a single fluid line into two, while the Flange joint 2.4.37.015 creates a secure connection between large-diameter pipes, withstanding high pressure and vibration. The Plug 2.4.40.009 and Silk plug mother 2.4.40.012 seal unused ports, preventing fluid leakage and debris intrusion. All components work together seamlessly to maintain system integrity, safety, and efficiency, aligning with API 6A’s requirements for reliable wellhead and fluid transfer equipment.

Structural Features

Our connection components are designed with the harsh oilfield environment in mind, boasting structural advantages that outperform standard components. The adapter body 2.4.35.065 is made of high-strength alloy steel, undergoes specialized heat treatment to enhance durability, and features a corrosion-resistant coating, ensuring a service life of 9,300 working hours—3,500 hours longer than generic adapters. The right angle connector 2.4.35.103 has precision-machined threads and a reinforced body, resisting vibration-induced loosening, with a tensile strength of 980 MPa. The ball valve 2.4.36.027 features a stainless steel ball and seat, ensuring smooth operation and leak-free performance for 10,000 opening/closing cycles. The Flange joint 2.4.37.015 is a forged design, with a weld neck connection that provides superior strength, complying with API 6A’s 5000 psi pressure rating requirements for wellhead applications. All components have precision-machined surfaces to ensure tight fits, and their corrosion-resistant materials (including 316L stainless steel and high-strength alloy) resist damage from H₂S, saltwater, and oilfield chemicals. The Quick connector (male) 2.4.35.112 features a push-to-connect design, allowing for quick, tool-free installation, reducing maintenance time by up to 40 minutes per connection.

Applicable Working Conditions

These connection components are widely suitable for various oilfield scenarios, including onshore oilfields (Daqing Oilfield, Tarim Oilfield, Permian Basin), offshore oil platforms (North Sea, Gulf of Mexico), and desert oilfields (Gobi Oilfield, Kazakhstan). They can withstand extreme temperatures ranging from -45℃ to 120℃, adapt to high humidity (up to 98%), high vibration (frequency 12-60 Hz), and high-pressure environments (up to 103.4 MPa)—meeting API 6A’s low-temperature toughness and high-pressure requirements. The adapter body 2.4.35.065 and Flange joint 2.4.37.015 perform reliably in wellhead applications, resisting corrosion from H₂S and saltwater. The right angle connector 2.4.35.103 fits into tight spaces in top drives and rigs, ideal for on-site installation and maintenance. Whether for deep well drilling (depth up to 7,800 meters), horizontal drilling, or wellhead operations, our components maintain stable performance—solving the problem of poor adaptability of ordinary connection components to harsh oilfield conditions. They are fully compatible with TPEC Top Drive models (TDC-350, TDC-400, TDC-500, DQ40AⅢ-A, DQ50Ⅲ-A), Tianyi Top Drive models (DQ50/3150DB, DQ70/4500DB, HDQ70/4500DB), and ZJ series drilling rigs (ZJ30, ZJ40, ZJ50), ensuring quick replacement and minimal downtime.

Maintenance and Care Recommendations

To extend the service life of our connection components and ensure equipment safety, our engineers offer practical, on-site advice—drawn from decades of oilfield experience, aligning with the “clean, tighten, lubricate, adjust”八字日常保养法 (eight-character daily maintenance method) used by top oilfield teams like those at Daqing Oilfield. For adapter body 2.4.35.065, inspect the seal and threads every 200 working hours for wear or damage—replace the seal if it’s cracked, and clean threads with a wire brush to remove debris before installation. A key engineer tip: when installing right angle connector 2.4.35.103, do not over-tighten, as this can damage threads and cause leaks—use a torque wrench to achieve the recommended torque (85-95 N·m). For ball valve 2.4.36.027, operate the valve fully open and closed every 100 working hours to prevent seizing, and lubricate the stem with high-temperature grease to ensure smooth operation. The Flange joint 2.4.37.015 should be inspected for bolt tightness every 300 working hours, as vibration can loosen bolts over time. Avoid using harsh chemicals to clean components, as this can damage the corrosion-resistant coating—use a mild detergent and a soft cloth instead. Our team also provides on-site training to help your team master these skills and avoid common mistakes that lead to unplanned downtime.

We supply the following spare parts:

On-Site Fault Repair Cases

Below are 4 real on-site repair cases, demonstrating how our connection components solve critical equipment issues and deliver reliable performance in real oilfield environments.

Case 1: Daqing Oilfield, China

Location: Daqing Oilfield, Heilongjiang Province, China; Equipment Model: TPEC Top Drive (TDC-400); Load: 400 tons; Fault: adapter body 2.4.35.065 leakage, causing hydraulic fluid loss. Data Before Repair: Fluid leakage 12 L/h (standard 0 L/h), hydraulic pressure 38 MPa (standard 45 MPa), equipment downtime 8 hours. Repair Solution: Replace with our adapter body 2.4.35.065, clean threads, and apply thread sealant. Repair Effect: No fluid leakage, hydraulic pressure stabilized at 45 MPa, top drive resumed normal operation, continuous operation for 5,200 hours without failure. Customer Feedback: “The adapter body creates a tight seal even in high-pressure environments—We no longer have to stop operations to fix leaks, and it aligns with our team’s maintenance best practices, saving us time and reducing costs.”

Case 2: Permian Basin, USA

Location: Permian Basin, Texas, USA; Equipment Model: Tianyi Top Drive (DQ70/4500DB); Load: 450 tons; Fault: right angle connector 2.4.35.103 misalignment, restricting fluid flow. Data Before Repair: Fluid flow rate 17 L/min (standard 35 L/min), pressure drop 8 MPa (standard 2 MPa), equipment downtime 9 hours. Repair Solution: Replace with our right angle connector 2.4.35.103 and adjust installation alignment. Repair Effect: Fluid flow rate 36 L/min, pressure drop 1.8 MPa, equipment operated stably for 4,700 hours. Customer Feedback: “The right angle connector fits perfectly in tight spaces and maintains consistent flow—It’s solved our alignment issues, keeping our operations on track and complying with API 6A standards.”

Case 3: North Sea Offshore Oilfield

Location: North Sea Offshore Oil Platform; Equipment Model: ZJ50 Drilling Rig; Load: 500 tons; Fault: ball valve 2.4.36.027 failure, unable to control pressure. Data Before Repair: Pressure fluctuation 1.5 MPa (standard 0.2 MPa), valve opening/closing time 5 seconds (standard 1 second), equipment downtime 10 hours. Repair Solution: Replace with our ball valve 2.4.36.027 and calibrate the pressure control system. Repair Effect: Pressure fluctuation 0.15 MPa, valve opening/closing time 0.8 seconds, equipment operated continuously for 4,800 hours. Customer Feedback: “The ball valve is reliable and responsive—It controls pressure perfectly in our offshore environment, avoiding costly system damage and ensuring safety.”

Case 4: Australian Cooper Basin

Location: Cooper Basin, South Australia; Equipment Model: TPEC Top Drive (TDC-350); Load: 350 tons; Fault: Flange joint 2.4.37.015 loosening, causing fluid leakage. Data Before Repair: Fluid leakage 14 L/h (standard 0 L/h), bolt torque 60 N·m (standard 90 N·m), equipment downtime 8 hours. Repair Solution: Replace with our Flange joint 2.4.37.015 and torque bolts to the recommended 90 N·m. Repair Effect: No fluid leakage, bolt torque remained stable at 90 N·m, equipment operated stably for 4,300 hours. Customer Feedback: “The Flange joint is sturdy and resists vibration—It’s solved our loosening issues, and the weld neck design provides extra strength, which is crucial for our harsh onshore operations.”

FAQ

Conclusion and Purchase Guide

The connection components listed—including adapter body 2.4.35.065, right angle connector 2.4.35.103, ball valve 2.4.36.027, and other key fittings—are essential for maintaining the safety, stability, and efficiency of oilfield drilling equipment, including TPEC and Tianyi top drives and ZJ series rigs. We prioritize quality and reliability, manufacturing all components in strict accordance with API Spec 6A, API Spec 7K, ISO 9001:2015, ISO 29001:2020, and NACE MR0175/ISO 15156 standards. Our components have been trusted by 332+ oilfield projects worldwide, proven to reduce non-scheduled downtime, lower maintenance costs, and extend equipment service life—helping you avoid costly NPT and ensuring your operations run smoothly, while meeting the strict safety and performance requirements of API 6A for wellhead and fluid transfer applications.

If you’re looking for high-quality, compatible, and cost-effective oilfield connection components, we’re here to help. We offer a complete range of components matching your list, and can customize adapters and connectors to fit your specific equipment and working conditions, including adapter body 2.4.35.065 and right angle connector 2.4.35.103. Our team provides one-stop service from pre-sales consultation and product selection (including verification of specifications against your rig’s as-built documentation) to after-sales technical support. Whether you need urgent replacement components to get your equipment back online or bulk purchases for long-term maintenance, contact us to purchase the products you need. We are committed to delivering reliable components and exceptional service to keep your oilfield operations running smoothly and efficiently.
