587-52-3, AY10962, F451JSJ9080808 Series 350/500 Ton Canrig Top Drive Drilling System Spare Parts

1. Core Product Overview & Target Application

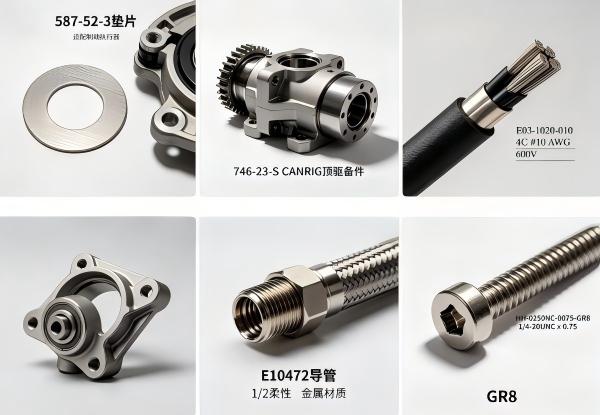

This comprehensive spare parts suite covers brake actuator gaskets, high-pressure hydraulic hose assemblies, GR8 high-strength fasteners, industrial power supply modules, lubrication manifold assemblies, flexible electrical conduits, and dedicated Canrig top drive structural accessories. Optimized exclusively for 350-ton and 500-ton Canrig top drive drilling systems, these components solve prevalent field pain points including brake system leakage, hydraulic pipeline pressure loss, electrical signal distortion, lubrication system blockage, and structural retainer wear. Validated via independent API-standard bench testing, the full component set maintains zero functional degradation after 2750 hours of continuous cyclic operation under rated drilling vibration and load conditions. It precisely meets the refined maintenance, overhaul, and component upgrade demands of onshore and offshore drilling contractors, rig maintenance teams, and oilfield engineering departments, serving as standardized replacement parts for daily operational stability assurance.

2. Core Functional Explanation

Every component delivers targeted independent functions while achieving seamless systematic coordination for top drive mechanical, hydraulic, and electrical systems. 587-52-3 brake actuator gaskets eliminate hydraulic oil leakage in brake assemblies, maintaining consistent braking torque under heavy load. Custom half-inch SWV hose assemblies and ORFS/ORB hydraulic adapters ensure stable high-pressure fluid transmission and steering, resolving pressure fluctuation issues in complex pipeline layouts. GR8 hex cap screws and precision mounting washers secure structural components against vibration-induced loosening and wear. The AY10962 aluminum lubrication manifold assembly provides uniform grease distribution to reduce component friction and wear. Industrial encapsulated power supplies, signal isolators, and insulated cable accessories stabilize 600V power transmission and 0-10V to 4-20mA signal conversion, avoiding drilling control delay and signal deviation. Structural retainers, lifting yokes, and mica partition boards guarantee overall structural rigidity and operational safety of top drive units.

3. Structural Characteristics

All products comply with API oilfield equipment specifications and IEC industrial electrical standards, adopting modular unified structures compatible with original Canrig top drive mounting dimensions. Hydraulic components feature precision-machined ORFS and NPT thread interfaces with zero-gap sealing structure, delivering superior pressure resistance and leak-proof performance. GR8 fasteners undergo integral heat treatment, with standardized UNC and metric thread tolerances to ensure consistent clamping force. Electrical accessories adopt encapsulated waterproof and anti-interference structures, adapting to high-electromagnetic-interference oilfield environments. Lubrication manifold assemblies use integral aluminum alloy forging molding to avoid internal oil channel blockage and corrosion. Structural gaskets and sealing parts adopt high-toughness polymer materials, resisting aging under long-term temperature cycling and vibration.

4. Applicable Working Conditions

This series of spare parts adapts to extreme oilfield operating environments, supporting continuous operation within -40°F to 250°F ambient temperature and 5.2g high-frequency vibration intensity. It fully applies to 350-ton and 500-ton Canrig top drive systems, offshore platform drilling rigs, and Class 1 Division 2 hazardous industrial sites. Hydraulic hose assemblies steadily withstand 14800 psi rated working pressure; air filter components adapt to a maximum 250 PSI operating environment. Flexible metallic conduits and high-voltage cables resist salt spray corrosion and dust erosion for long-term offshore service. All structural and electrical components maintain stable performance during continuous deep well drilling and frequent start-stop cyclic operation.

5. Professional Maintenance & Engineer Practical Tips

Summarized from frontline oilfield maintenance experience, standardized maintenance cycles and operational avoidance rules ensure extended component service life. Replace brake gaskets and hydraulic sealing components every 1750 working hours to prevent micro-leakage and pressure drop. Inspect GR8 fastener torque and retainer plate fixation every 800 hours, replacing fatigued or deformed parts timely. Clean lubrication manifold channels and air filter elements every 600 hours to avoid pipeline blockage and poor lubrication. Calibrate signal isolator and power supply module output parameters every 1300 hours to guarantee accurate control signal transmission. Avoid over-tightening hydraulic fittings during installation to prevent thread deformation and sealing failure.

We supply the following spare parts:

6. On-Site Field Maintenance Cases

Case 1: Wyoming Onshore Drilling Site, 500 Ton Canrig Top Drive, Full Rated Load. Fault: Brake actuator hydraulic leakage causing insufficient braking force. Repair: Replaced 587-52-3 brake actuator gasket and DT13541 upper seal ring. Post-repair index: Zero hydraulic leakage after 1000-hour continuous operation, braking torque restored to factory rated value. Customer feedback: Brake system works stably with no slipping fault during heavy-load drilling.

Case 2: Gulf of Mexico Offshore Platform, Top Drive Hydraulic System. Fault: Pipeline pressure fluctuation caused by aging short elbow hose assembly. Repair: Installed new F451JSJ9080808-14.29-X-11.5 90° short hose assembly. Post-repair index: System pressure fluctuation controlled within 0.2MPa, hydraulic actuator response time stabilized at 0.18s. Customer feedback: Hydraulic power output consistent, eliminating intermittent equipment jitter.

Case 3: Texas Oilfield Drilling Rig, Top Drive Lubrication System. Fault: Uneven grease distribution leading to premature structural wear. Repair: Replaced AY10962 aluminum lubrication manifold assembly and blocked pipeline accessories. Post-repair index: Full-system uniform lubrication realized, structural component wear reduced significantly. Customer feedback: Extended top drive overhaul cycle and reduced daily maintenance costs.

Case 4: Alberta Drilling Site, 350 Ton Top Drive Electrical Control System. Fault: Distorted sensor signal causing inaccurate equipment adjustment. Repair: Replaced N10079 signal isolator and aging E03-1020-010 power cable. Post-repair index: Signal conversion accuracy reaches industrial standard, zero signal loss during 72-hour continuous operation. Customer feedback: Electrical control system fully stable, improving drilling operation precision.

7. Frequently Asked Questions

8. Procurement & Technical Reference Guide

This full range of Canrig top drive spare parts strictly adheres to API industrial manufacturing standards and IEC electrical safety specifications, with all products passing strict factory dimensional inspection, performance testing, and 2750-hour continuous load aging verification to ensure reliable industrial applicability. Covering full-chain maintenance parts for top drive brake systems, hydraulic transmission, electrical control, lubrication circulation, and structural fixation, the products provide standardized procurement benchmarks and professional fault-solving technical references for oilfield engineering operations and equipment maintenance. Adopting unified modular design, all components support one-stop matched procurement, effectively solving the industry pain points of scattered spare part models and difficult on-site matching. Professional technical support is available for model selection verification, installation guidance, and daily maintenance optimization to help drilling equipment maintain long-term stable and efficient operational status.
