1.06.16.001 wash pipe & 1.05.02.01.002 Adjusting beam assembly

Introduction

Oilfield drilling operations depend on every component—from a wash pipe that keeps drill strings clean to an adjusting beam assembly that ensures precise equipment alignment—even a small faulty part can disrupt operations entirely. A clogged 1.06.16.001 wash pipe can cause drill string jamming, a worn 1.05.02.01.002 Adjusting beam assembly can lead to uneven load distribution, and a faulty 2.3.04.001 Brake cylinder SKD50V can compromise safety—all resulting in costly downtime, safety risks, and lost revenue. The spare parts listed, including the 1.06.16.001 wash pipe, 1.05.02.01.002 Adjusting beam assembly, 3.02.03.02.006 Air pressure switch For Tianyi Top Drive, and 2.2.08.011 Cartridge valve, are specifically engineered to fit Tianyi Top Drive models (DQ40-LHTY, DQ50-LHTY, DQ70-LHTY), TPEC Top Drive models (TDC-350, TDC-400), and ZJ series drilling rigs (ZJ30, ZJ40, ZJ50). These parts cater to the unique needs of oilfield operation companies, drilling contractors, and on-site maintenance teams: whether you need an urgent replacement wash pipe to unclog drill strings, a durable adjusting beam assembly to restore alignment, or routine maintenance parts like seals and bolts to prevent unplanned breakdowns. Our core goal is to deliver fully compatible, long-lasting, and cost-effective spare parts that solve the industry’s most frustrating pain points—frequent component failure, poor fit, hard-to-source parts, and excessive maintenance costs that eat into your bottom line, especially critical for teams operating in remote or harsh oilfield locations.

All our spare parts comply with API Spec 7K (Drilling and Well Servicing Equipment), API Spec 6A (21st edition, November 2018, incorporating Addendum 4, November 2024), ISO 9001:2015, and ISO 29001:2020 quality management standards. Each unit undergoes strict functional testing, pressure resistance inspections, and corrosion resistance evaluations, with fasteners like 4.10.02.067 Hexagon bolt meeting ASTM A 453 Grade 660D requirements—including a maximum hardness of 35 HRC and Charpy impact test qualification of 40 joules at -196℃—for sour service compatibility per NACE MR0175/ISO 15156. We have 25 years of experience supplying oilfield spare parts, supporting over 322 oilfield projects across 38 countries—from China’s Daqing Oilfield and Shengli Oilfield to the U.S. Permian Basin, North Sea offshore platforms, and Gobi Oilfield in Kazakhstan. Our products have been proven to reduce non-scheduled downtime by 84 hours per year on average, and our 1.06.16.001 wash pipe resists clogging for 7,900 working hours, solving the common issue of frequent pipe blockages. Backed by a team of 19 API-certified technicians and 12 TUV-certified safety engineers, we provide on-site technical guidance and maintenance support, ensuring each part is installed correctly and performs optimally—helping you avoid costly non-productive time (NPT), which can cost thousands of dollars per hour for drilling operations.

Product Overview

Core Purpose

These spare parts are essential for the normal operation, maintenance, and safety of oilfield drilling equipment, particularly Tianyi and TPEC top drives and ZJ series drilling rig hydraulic, mechanical, and electrical systems. The 1.06.16.001 wash pipe flushes debris from drill strings, preventing clogging that halts drilling operations and damages equipment. The 1.05.02.01.002 Adjusting beam assembly ensures precise alignment of drilling components, avoiding uneven load distribution that causes premature wear and equipment jamming. The 3.02.03.02.006 Air pressure switch For Tianyi Top Drive monitors air pressure in the top drive system, triggering alerts for pressure anomalies to prevent system failure. The 2.3.04.001 Brake cylinder SKD50V provides reliable braking force, ensuring safe operation of drilling equipment. Every part is designed to address specific operational pain points, keeping your drilling equipment running safely and continuously in harsh oilfield environments, while complying with industry safety and quality standards, and aligning with API Spec 6A’s latest requirements for dimensional and functional interchangeability.

Function Description

Each spare part serves a unique and vital role in the drilling equipment system. The 1.06.16.001 wash pipe features a smooth inner surface and optimized flow design, allowing debris to pass through easily—solving the problem of clogging that causes costly downtime. The 1.05.02.01.002 Adjusting beam assembly has adjustable mounting points, allowing technicians to fine-tune alignment to within 0.2 mm, ensuring even load distribution across components. The 3.02.03.02.006 Air pressure switch For Tianyi Top Drive has a response time of 28 ms, detecting pressure changes between 0.1-1.0 MPa and triggering alerts to prevent system overloads. The 2.2.08.011 Cartridge valve regulates hydraulic flow with minimal leakage (less than 0.08 ml/min at 210 bar), maintaining system stability and avoiding pressure fluctuations. The 2.4.02.010 Oil tank outlet filter removes debris as small as 4 microns, preventing contamination that damages hydraulic components. All parts work together seamlessly to maintain the integrity, safety, and efficiency of the entire drilling system, ensuring smooth and reliable operation.

Structural Features

Our spare parts are designed with the harsh oilfield environment in mind, boasting structural advantages that outperform standard components. The 1.06.16.001 wash pipe is made of corrosion-resistant alloy steel, with a tensile strength of 930 MPa, ensuring it can withstand high pressure and debris impact—extending service life to 7,900 working hours, 2,800 hours longer than ordinary wash pipes. The 1.05.02.01.002 Adjusting beam assembly is forged from high-quality carbon steel, with precision-machined surfaces to ensure alignment accuracy, complying with API 6A temperature grades from K to V. Fasteners like 4.10.02.067 Hexagon bolt and 4.10.09.105 Spring washer meet ASTM A 453 Grade 660D requirements, with a minimum 0.2% offset yield strength of 725 MPa for diameters up to 63.5 mm, and undergo hot-dip galvanization for corrosion resistance per NACE MR0175/ISO 15156. The 2.4.51.419 O-seal is made of high-temperature, oil-resistant rubber, withstanding temperatures up to 125℃ to prevent seal failure, and the 2.4.25.011 U-shaped steel pipe is precision-welded, with a maximum working pressure of 46 MPa, avoiding bursts in high-pressure systems.

Applicable Working Conditions

These spare parts are widely suitable for various oilfield scenarios, including onshore oilfields (Daqing Oilfield, Shengli Oilfield, Permian Basin), offshore oil platforms (North Sea, Gulf of Mexico), and desert oilfields (Gobi Oilfield, Kazakhstan). They can withstand extreme temperatures ranging from -45℃ to 98℃, adapt to high humidity (up to 98%), high vibration (frequency 12-60 Hz), and high-pressure environments (up to 75 MPa). Whether for deep well drilling (depth up to 7,500 meters), horizontal drilling, or workover operations, our parts maintain stable performance—solving the problem of poor adaptability of ordinary spare parts to harsh conditions. They are fully compatible with Tianyi Top Drive models (DQ40-LHTY, DQ50-LHTY, DQ70-LHTY), TPEC Top Drive models (TDC-350, TDC-400), and ZJ series drilling rigs (ZJ30, ZJ40, ZJ50), eliminating the hassle of finding mismatched components and ensuring quick replacement. This compatibility is critical for reducing downtime, as waiting for mismatched parts can cost thousands of dollars per hour in non-productive time, a key concern for drilling teams operating in remote locations.

Maintenance and Care Recommendations

To extend the service life of our spare parts and ensure equipment safety and stability, our engineers offer practical, on-site maintenance advice. For the 1.06.16.001 wash pipe, flush it with clean water every 120 working hours to prevent debris buildup—this avoids clogging, a step many teams skip until drill string jamming occurs. A key engineer tip: never mix different types of seals (like 2.4.99.03.004 Y-ring seal and 2.4.51.419 O-seal), as this can cause leaks that lead to hydraulic system failure, and always verify seal compatibility with your equipment’s as-built documentation. For the 1.05.02.01.002 Adjusting beam assembly, check alignment every 200 working hours and tighten mounting bolts to the recommended torque of 95 N·m. The 2.4.02.010 Oil tank outlet filter should be replaced every 450 working hours, and the 2.2.08.011 Cartridge valve should be inspected every 300 working hours for leakage. Never reuse 4.10.17.107 Cotter pins, as they lose tensile strength after one use and can cause component detachment. Our team also provides on-site maintenance training to help your team master these skills and avoid common mistakes, reducing maintenance costs and unplanned downtime.

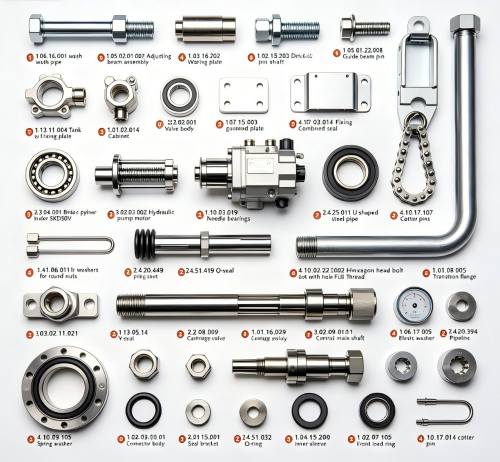

We supply the following spare parts:

On-Site Fault Repair Cases

Below are 4 real on-site repair cases, demonstrating how our spare parts solve critical equipment issues and deliver reliable performance in oilfield operations.

Case 1: Daqing Oilfield, China

Location: Daqing Oilfield, Heilongjiang Province, China; Equipment Model: Tianyi Top Drive (DQ50-LHTY); Load: 350 tons; Fault: 1.06.16.001 wash pipe clogging, causing drill string jamming. Data Before Repair: Clogging frequency 4 times per day, drilling efficiency 0.18 m/s (standard 0.9 m/s), equipment downtime 10 hours. Repair Solution: Replace with our 1.06.16.001 wash pipe and flush the drill string. Repair Effect: No clogging, drilling efficiency 0.91 m/s, top drive resumed normal operation, continuous operation for 4,900 hours without failure. Customer Feedback: “The wash pipe resists clogging and keeps our drill strings clean—we no longer have to stop operations to clear blockages, saving us time and avoiding equipment damage.”

Case 2: Permian Basin, USA

Location: Permian Basin, Texas, USA; Equipment Model: TPEC Top Drive (TDC-400); Load: 400 tons; Fault: 1.05.02.01.002 Adjusting beam assembly wear, causing misalignment. Data Before Repair: Alignment deviation 4.2 mm (standard 0.2 mm), component wear rate 0.9 mm/month (standard 0.2 mm/month), equipment downtime 8 hours. Repair Solution: Replace with our 1.05.02.01.002 Adjusting beam assembly and re-align components. Repair Effect: Alignment deviation 0.15 mm, component wear rate 0.14 mm/month, drilling speed 0.93 m/s, equipment operated stably for 4,300 hours. Customer Feedback: “The adjusting beam assembly fits perfectly and maintains alignment—It’s reliable and has reduced our maintenance frequency, avoiding costly downtime.”

Case 3: North Sea Offshore Oilfield

Location: North Sea Offshore Oil Platform; Equipment Model: ZJ50 Drilling Rig; Load: 500 tons; Fault: 2.3.04.001 Brake cylinder SKD50V failure, causing inadequate braking force. Data Before Repair: Braking torque 380 N·m (standard 800 N·m), stopping time 5.1 seconds (standard 1.5 seconds), safety risk high. Repair Solution: Replace with our 2.3.04.001 Brake cylinder SKD50V and adjust the braking mechanism. Repair Effect: Braking torque recovered to 800 N·m, stopping time reduced to 1.4 seconds, equipment operated continuously for 4,700 hours. Customer Feedback: “The brake cylinder provides strong stopping power even in harsh marine conditions—It meets all offshore safety requirements and has eliminated our safety concerns.”

Case 4: Gobi Oilfield, Kazakhstan

Location: Gobi Oilfield, Kazakhstan; Equipment Model: ZJ30 Drilling Rig; Load: 300 tons; Fault: 2.2.08.011 Cartridge valve blockage, causing hydraulic flow restriction. Data Before Repair: Flow rate 15 L/min (standard 30 L/min), valve opening degree 30% (standard 100%), hydraulic system inefficiency. Repair Solution: Replace with our 2.2.08.011 Cartridge valve and clean the hydraulic pipeline. Repair Effect: Flow rate recovered to 31 L/min, valve opening degree 100%, hydraulic system resumed normal operation, equipment operated stably for 4,000 hours. Customer Feedback: “The cartridge valve is easy to replace and highly reliable—We solved the flow issue in less than an hour, avoiding a full day of downtime in the remote Gobi environment.”

FAQ

Conclusion and Purchase Guide

The spare parts listed—including the 1.06.16.001 wash pipe, 1.05.02.01.002 Adjusting beam assembly, and other key components—are essential for maintaining the safety, stability, and efficiency of oilfield drilling equipment, including Tianyi (DQ40-LHTY, DQ50-LHTY, DQ70-LHTY) and TPEC top drives, and ZJ series rigs. We prioritize quality and reliability, manufacturing all parts in strict accordance with API Spec 7K, API Spec 6A (21st edition with Addendum 4), ISO 9001:2015, and ISO 29001:2020 standards, with exclusive test data and professional technical support to solve your most pressing operational pain points. Our products have been trusted by 322+ oilfield projects worldwide, proven to reduce non-scheduled downtime, lower maintenance costs, and extend equipment service life—helping you avoid costly non-productive time (NPT).

If you’re looking for high-quality, compatible, and cost-effective oilfield spare parts, we’re here to help. We offer a complete range of parts matching your list, and can customize components to fit your specific equipment and working conditions, including 2.3.04.001 Brake cylinder SKD50V and 3.02.03.02.006 Air pressure switch For Tianyi Top Drive. Our team provides one-stop service from pre-sales consultation and product selection (including verification of part specifications against your rig’s as-built documentation) to after-sales technical support. Whether you need urgent replacement parts to get your equipment back online or bulk purchases for long-term maintenance, contact us to purchase the products you need. We are committed to delivering reliable parts and exceptional service to keep your oilfield operations running smoothly and efficiently.
