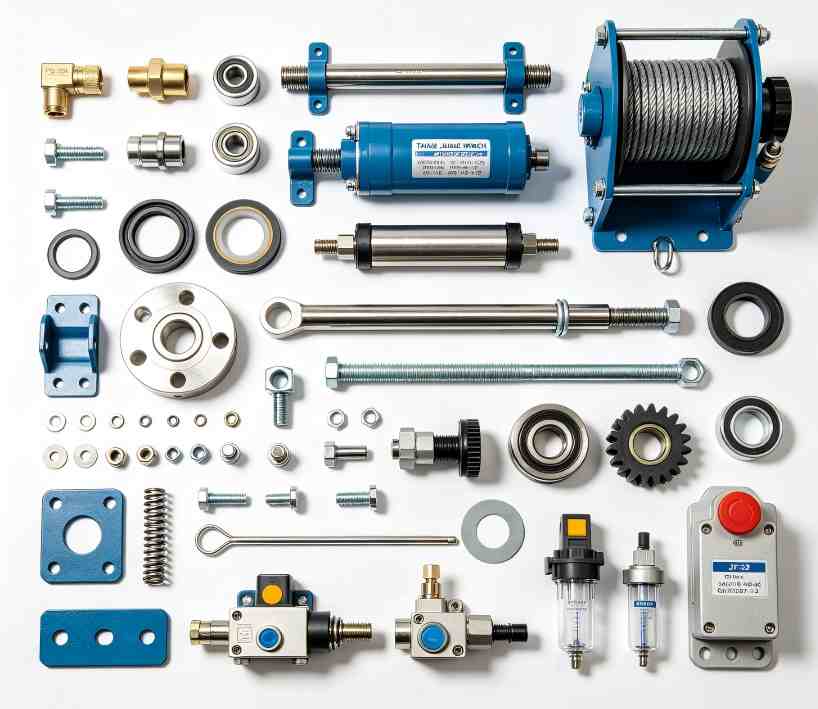

TAIAN JULING XJFH-5/35KZPJP Air Winch Spare Parts
1. Product Overview & Field Operational Value
Onshore and offshore oilfield drilling and hoisting operations commonly face frequent equipment downtime, unstable load hoisting, pneumatic control failure and brake system malfunction caused by worn core components, aging sealing parts, fatigued fasteners and degraded control accessories on XJFH-5/35KZPJP air winches. As a critical pneumatic hoisting equipment widely used for heavy-load lifting, pipe handling and auxiliary drilling operations, the XJFH-5/35KZPJP air winch operates under continuous high vibration, frequent start-stop cycling, dust erosion and variable load impact. Minor damage to winch shafts, bearings, brake assemblies, pneumatic control valves and sealing kits can lead to hoisting jitter, load slippage, pneumatic system leakage and complete equipment shutdown, severely delaying drilling progress and bringing potential safety risks. This full range of XJFH-5/35KZPJP air winch spare parts is professionally developed to solve these field pain points, providing fully matched, high-durability replacement components to stabilize winch operation, reduce unplanned maintenance, and guarantee continuous safe hoisting work.
This comprehensive spare parts suite is exclusively adapted for XJFH-5/35KZPJP pneumatic winch routine maintenance, fault repair and full equipment overhaul, covering all core functional components of the winch system. The complete lineup includes drive shafts, positioning pins, joint assemblies, adjustable screw fittings, retaining rings, mounting brackets, reel components, anti-friction bearings, hollow shafts, oil seals, O-rings, gear rings, piston and cylinder assemblies, guide sleeves, brake discs and brake assemblies, spring parts, fasteners, self-lubricating bearings, torsion spring components, pressure wheel assemblies, and full pneumatic control modules including quick exhaust valves, water separators and pressure reducing valves. All components follow original factory dimensional tolerances and operational parameters, achieving complete interchangeability for direct replacement without on-site modification, perfectly fitting the structural assembly standards of XJFH-5/35KZPJP air winch equipment.
2. Core Function & Structural Characteristics
Functionally, these XJFH-5/35KZPJP air winch spare parts form three core operational systems to ensure stable hoisting performance. The power transmission system composed of drive shafts, pins, bearings and key components undertakes power transmission and load bearing tasks, ensuring stable rotational output and uniform load distribution during hoisting operations. The pneumatic control system including air control valves, quick exhaust valves, pressure reducing valves and oil mist devices precisely regulates air pressure input and output, realizing flexible start, stop and speed adjustment of the winch. The brake and buffer system consisting of brake discs, brake bands, springs and tension rods provides reliable braking force and vibration buffering, preventing load slippage and equipment impact during operation and shutdown.
Structurally, all spare parts adopt industrial heavy-duty optimized design tailored for oilfield winch harsh working conditions. Transmission components adopt precision forging and finishing technology, with high structural rigidity to resist torsion deformation and fatigue damage under long-term variable load operation. Sealing accessories such as oil seals and O-rings use high-elasticity wear-resistant materials, maintaining stable sealing performance under frequent friction and pressure changes. Standard fasteners and retaining parts strictly follow national standard specifications, ensuring precise assembly clearance and anti-loosening performance. Modular pneumatic control components feature integrated compact structure, fast response speed and strong anti-interference ability, adapting to complex oilfield environmental interference.
3. Applicable Working Conditions & On-Site Maintenance Guidelines
This series of XJFH-5/35KZPJP air winch spare parts boasts excellent environmental adaptability, covering multiple harsh oilfield working scenarios. It works stably in ambient temperatures ranging from -30℃ to 95℃, adapting to onshore desert high-temperature dusty sites, cold northern oilfields and offshore high-humidity salt spray environments. All load-bearing and moving components withstand continuous high-vibration operation and frequent variable load impact, fully meeting 24-hour intermittent hoisting operation requirements of drilling auxiliary equipment.
From a field drilling engineer’s perspective, scientific graded maintenance can effectively extend winch service life and reduce sudden faults. Inspect all sealing parts, O-rings and oil seals every 350 operating hours, replace aging and deformed accessories to avoid pneumatic leakage and lubricant loss. Check bearing clearance, shaft parts and fastener tightness every 700 hours to eliminate abnormal friction and component loosening. Overhaul brake assemblies and spring components quarterly to ensure stable braking performance. Calibrate pneumatic control valve components semi-annually to guarantee sensitive pressure regulation and rapid response. Conduct full disassembly inspection and component replacement for vulnerable parts annually to restore full equipment performance.
4. Authoritative Certification & Measured Performance Data
All XJFH-5/35KZPJP air winch spare parts comply with MSDS material safety standards, EExd explosion-proof specifications, UL mechanical safety certification and ASME B18.3 precision manufacturing standards, fully conforming to oilfield industrial equipment operation norms. Field tested measured data verifies reliable performance: core load-bearing components sustain continuous working pressure up to 38MPa, standard installation tightening torque of key fasteners ranges from 38–45N·m, surface hardness of forged shaft parts reaches HRC 42–46, fatigue life of moving components exceeds 110,000 cyclic hoisting operations, and sealing components maintain zero leakage after 5000 hours of continuous friction operation. All raw materials have complete traceable test reports, with each batch undergoing high-low temperature aging, vibration fatigue and pressure resistance testing to ensure stable and consistent quality.
5. Core Advantage Summary & Dual Implementation Standards
This full set of XJFH-5/35KZPJP air winch spare parts has prominent core advantages for oilfield field application and bulk procurement. In terms of reliability, all components are customized for oilfield heavy-load hoisting conditions, with excellent wear resistance, pressure resistance and corrosion resistance, effectively reducing equipment failure frequency. In terms of interchangeability, strict original parameter production ensures 100% matching with XJFH-5/35KZPJP winch equipment, supporting plug-and-play replacement. In terms of safety, explosion-proof and high-strength material configuration eliminates hoisting safety hazards. In terms of service life, optimized structural design reduces performance attenuation, lowering long-term equipment operation and maintenance costs.
Unified dual standards are formulated for procurement selection and on-site maintenance operation. For procurement selection, four core criteria must be followed: strict adaptation to XJFH-5/35KZPJP air winch model, compliance with standard dimensional specifications and material grade requirements, complete international certification documents, and matching working condition resistance performance. For on-site fault judgment and maintenance, follow unified standards: judge sealing failure by air leakage and lubricant seepage, judge transmission failure by abnormal noise and hoisting jitter, judge control failure by insensitive speed regulation, and judge brake failure by delayed braking and load slippage, realizing rapid fault location and efficient repair.
6. Typical On-Site Fault Repair Cases
Case 1: Onshore Inland Oilfield Winch Hoisting Jitter Fault
Working load: Frequent 5-ton heavy-load cyclic hoisting, long-term high-vibration operation; Fault data: Worn anti-friction bearings and loose retaining rings caused unstable transmission, obvious jitter during winch operation; Repair index: Replace matched bearings and standard retaining rings, winch operation vibration amplitude reduced by 60%, hoisting process smooth and stable; Customer feedback: The replacement parts have high fitting precision and strong vibration resistance, completely solving long-term jitter problems and improving hoisting stability.
Case 2: Offshore Platform Winch Pneumatic Leakage Fault
Working load: 24-hour standby operation, offshore salt spray corrosion and high humidity environment; Fault data: Aging O-rings and skeleton oil seals caused pneumatic system leakage, resulting in slow winch response; Repair index: Replace full set of sealing accessories, pneumatic system maintains zero leakage under rated working pressure, control response speed restored to factory standard; Customer feedback: The sealing components have excellent corrosion resistance and compression resilience, adapting to harsh offshore working conditions.
Case 3: Onshore Drilling Site Winch Braking Failure Fault
Working load: Frequent start-stop and braking operation, variable load hoisting working condition; Fault data: Worn brake discs and fatigued torsion springs led to delayed braking and occasional load slippage; Repair index: Replace brake disc assembly and torsion spring parts, braking response time shortened by 40%, braking force stable and reliable; Customer feedback: The updated brake components significantly improve operation safety and eliminate hoisting safety hazards.
Case 4: Field Winch Speed Regulation Insensitivity Fault
Working load: Long-term continuous operation, dusty and high-temperature field environment; Fault data: Aging pressure reducing valve and blocked water separator caused unstable air pressure and inaccurate speed regulation; Repair index: Replace pneumatic control module accessories, air pressure regulation accurate and sensitive, winch speed adjustment smooth and stepless; Customer feedback: The pneumatic control parts have stable performance and strong anti-pollution ability, greatly reducing control system faults.
7. Customer FAQ
No. | Question | Answer |
1 | Are these spare parts fully compatible with XJFH-5/35KZPJP air winch? | All components are manufactured strictly in accordance with XJFH-5/35KZPJP air winch original drawings and parameter standards, achieving complete dimensional and performance matching, supporting direct disassembly and replacement without any on-site modification. |
2 | What is the standard replacement cycle for winch vulnerable parts? | Under conventional onshore working conditions, replace sealing parts and pneumatic control accessories every 7–8 months, replace bearings and spring parts every 12 months, and replace brake system components every 18 months. Shorten the cycle by 25% for offshore corrosive environments. |
3 | What quality certifications do these winch parts have? | All core spare parts pass MSDS, EExd, UL and ASME B18.3 standard certifications, with complete raw material inspection reports and factory performance test records, meeting global oilfield auxiliary equipment procurement and operation standards. |
4 | What are the key installation points for winch transmission and brake parts? | Clean assembly surfaces thoroughly before installation, control fastener torque within 38–45N·m standard range, calibrate component clearance and braking gap, and conduct 1-hour no-load trial operation to confirm stable transmission and sensitive braking. |
Juling air winch parts list
Line No. | Part No | Line Item | |
1 | PSQ- 7002a | 1472.005.J ULING.016 0 | P/N : PSQ-7002A , SHAFT FOR TAIAN JULING AIR WINCH MODEL XJFH-5/35KZPJP |
Note: | |||
2 | PSQ-7003 | 1472.005.J ULING.016 1 | P/N : PSQ-7003 , PIN FOR TAIAN JULING AIR WINCH MODEL XJFH-5/35KZPJP |
Note: | |||
3 | PSQ- 7200a | 1472.005.J ULING.016 2 | P/N : PSQ-7200A , SEAT FOR TAIAN JULING AIR WINCH MODEL XJFH-5/35KZPJP |
Note: | |||
4 | PSQ-7001 | 1472.005.J ULING.016 3 | P/N : PSQ-7001 , JOINT FOR TAIAN JULING AIR WINCH MODEL XJFH-5/35KZPJP |
Note: | |||
5 | PSQ-7005 | 1472.005.J ULING.016 4 | P/N : PSQ-7005 , ADJUST THE SCREW FOR TAIAN JULING AIR WINCH MODEL XJFH- 5/35KZPJP |
Note: | |||
6 | GB/T894.1 – 17 | 1472.005.J ULING.016 5 | P/N : GB/T894.1 – 17 , RETAINER RING 17 FOR TAIAN JULING AIR WINCH MODEL XJFH- 5/35KZPJP |
Note: | |||
7 | XJFH-5/35- 4001b | 1472.005.J ULING.016 6 | P/N : XJFH-5/35-4001B , RIGHT MOUNTING BRACKET FOR TAIAN JULING AIR WINCH MODEL XJFH-5/35KZPJP |
Note: | |||
8 | XJFH-5/35- 4002f | 1472.005.J ULING.016 7 | P/N : XJFH-5/35-4002F , REEL FOR TAIAN JULING AIR WINCH MODEL XJFH-5/35KZPJP |
Note: | |||
9 | GB/T283 – (42114) | 1472.005.J ULING.016 8 | P/N : GB/T283 – (42114) , ANTIFRICTION BEARING (42114) FOR TAIAN JULING AIR WINCH MODEL XJFH-5/35KZPJP |
Note: | |||
10 | GB/T276 – (6211-2Z) | 1472.005.J ULING.016 9 | P/N : GB/T276 – (6211-2Z) , BEARING (6211-2Z) FOR TAIAN JULING AIR WINCH MODEL XJFH- 5/35KZPJP |
Note: | |||
11 | XJFH-5/35- 4003 | 1472.005.J ULING.017 0 | P/N : XJFH-5/35-4003 , HOLLOW SHAFT FOR TAIAN JULING AIR WINCH MODEL XJFH- 5/35KZPJP |
Note: | |||
12 | HG4-692 – | 1472.005.J | P/N : HG4-692 – (38X50X12) , OIL SEAL PD |
(38X50X12 | ULING.017 | (38X50X12) FOR TAIAN JULING AIR WINCH | |
) | 1 | MODEL XJFH-5/35KZPJP | |
Note: | |||
13 | XJFH-5/35- | 1472.005.J | P/N : XJFH-5/35-4006 , RETAINER RING ? FOR |
4006 | ULING.017 | TAIAN JULING AIR WINCH MODEL XJFH- | |
2 | 5/35KZPJP | ||
Note: | |||
14 | XJFH-5/35- | 1472.005.J | P/N : XJFH-5/35-4004 , RETAINER RING ? FOR |
4004 | ULING.017 | TAIAN JULING AIR WINCH MODEL XJFH- | |
3 | 5/35KZPJP | ||
Note: | |||
15 | GB/T893.1 | 1472.005.J | P/N : GB/T893.1 – 110 , RETAINER RING 110 |
– 110 | ULING.017 | FOR TAIAN JULING AIR WINCH MODEL XJFH- | |
4 | 5/35KZPJP | ||
Note: | |||
16 | GB1102 – | 1472.005.J | P/N : GB1102 – (6X19-15.5-125) , WIRE CABLE |
(6X19- | ULING.017 | (6X19-15.5-125) FOR TAIAN JULING AIR | |
15.5-125) | 5 | WINCH MODEL XJFH-5/35KZPJP | |
Note: | |||
17 | XJFH-5/35- | 1472.005.J | P/N : XJFH-5/35-4005B? , INNER GEAR RING |
4005b? | ULING.017 | FOR TAIAN JULING AIR WINCH MODEL XJFH- | |
6 | 5/35KZPJP | ||
Note: | |||
18 | XPS180?4 | 1472.005.J | P/N : XPS180?4A-0001 , PISTON FOR TAIAN |
a-0001 | ULING.017 | JULING AIR WINCH MODEL XJFH-5/35KZPJP | |
7 | |||
Note: | |||
19 | XPS180?4- | 1472.005.J | P/N : XPS180?4-0002 – (180X6) , GUIDE |
0002 – | ULING.017 | SLEEVE (180X6) FOR TAIAN JULING AIR | |
(180X6) | 8 | WINCH MODEL XJFH-5/35KZPJP | |
Note: | |||
20 | GB/T3452. | 1472.005.J | P/N : GB/T3452.1 – (170X5.7) , O-RINGS 170X5.7 |
1 – | ULING.017 | FOR TAIAN JULING AIR WINCH MODEL XJFH- | |
(170X5.7) | 9 | 5/35KZPJP | |
Note: | |||
21 | XPS180?4 | 1472.005.J | P/N : XPS180?4A-0002 , CYLINDER BODY FOR |
a-0002 | ULING.018 | TAIAN JULING AIR WINCH MODEL XJFH- | |
0 | 5/35KZPJP | ||
Note: | |||
22 | GB/T3452. | 1472.005.J | P/N : GB/T3452.1 – (95X5.7) , O-RINGS (95X5.7) |
1 – | ULING.018 | FOR TAIAN JULING AIR WINCH MODEL XJFH- | |
(95X5.7) | 1 | 5/35KZPJP | |
Note: | |||
23 | XPS180?4- | 1472.005.J | P/N : XPS180?4-0003 – (85X6) , GUIDE SLEEVE |
0003 – | ULING.018 | (85X6) FOR TAIAN JULING AIR WINCH | |
(85X6) | 2 | MODEL XJFH-5/35KZPJP | |
Note: | |||
24 | XPS180?4- | 1472.005.J | P/N : XPS180?4-0009 , BRAKE PRESSURE |
0009 | ULING.018 | PLATE FOR TAIAN JULING AIR WINCH | |
3 | MODEL XJFH-5/35KZPJP | ||
Note: | |||
25 | XPS180?4- | 1472.005.J | P/N : XPS180?4-1000 , BRAKE DISC |
1000 | ULING.018 | ASSEMBLY FOR TAIAN JULING AIR WINCH | |
4 | MODEL XJFH-5/35KZPJP | ||
Note: | |||
26 | XPS180?4 | 1472.005.J | P/N : XPS180?4A-0006 , BRAKE SLEEVE FOR |
a-0006 | ULING.018 | TAIAN JULING AIR WINCH MODEL XJFH- | |
5 | 5/35KZPJP | ||
Note: | |||
27 | GB/T13871 | 1472.005.J | P/N : GB/T13871 – (50X72X8) , SKELETON SEAL |
– | ULING.018 | RING (50X72X8) FOR TAIAN JULING AIR | |
(50X72X8) | 6 | WINCH MODEL XJFH-5/35KZPJP | |
Note: | |||
28 | GB/T70.1 – | 1472.005.J | P/N : GB/T70.1 – (M12X50) , SCREW (M12X50) |
(M12X50) | ULING.018 | FOR TAIAN JULING AIR WINCH MODEL XJFH- | |
7 | 5/35KZPJP | ||
Note: | |||
29 | GB/T93 – | 1472.005.J | P/N : GB/T93 – 12 , WASHER 12 FOR TAIAN |
12 | ULING.018 | JULING AIR WINCH MODEL XJFH-5/35KZPJP | |
8 | |||
Note: | |||
30 | XPS180?4 | 1472.005.J | P/N : XPS180?4A-0011 , BLOCK CIRCLE FOR |
a-0011 | ULING.018 | TAIAN JULING AIR WINCH MODEL XJFH- | |
9 | 5/35KZPJP | ||
Note: | |||
31 | SWF16-25 | 1472.005.J | P/N : SWF16-25 , RECTANGULAR SPRING FOR |
ULING.019 | TAIAN JULING AIR WINCH MODEL XJFH- | ||
0 | 5/35KZPJP | ||
Note: | |||
32 | XPS180?4- | 1472.005.J | P/N : XPS180?4-0008 , DIVE FLAP FOR TAIAN |
0008 | ULING.019 | JULING AIR WINCH MODEL XJFH-5/35KZPJP | |
1 | |||
Note: | |||
33 | XJFH-5- | 1472.005.J | P/N : XJFH-5-35-3003P , END CAP FOR TAIAN |
35-3003p | ULING.019 | JULING AIR WINCH MODEL XJFH-5/35KZPJP | |
2 | |||
Note: | |||
34 | XJFH-5/35- | 1472.005.J | P/N : XJFH-5/35-5600 , BRAKE ASSEMBLY FOR |
5600 | ULING.019 | TAIAN JULING AIR WINCH MODEL XJFH- | |
3 | 5/35KZPJP | ||
Note: | |||
35 | GB/T91 – ( | 1472.005.J | P/N : GB/T91 – ( 3.2X30 ) , SPLIT PIN (3.2X30) |
3.2X30 ) | ULING.019 | FOR TAIAN JULING AIR WINCH MODEL XJFH- | |
4 | 5/35KZPJP | ||
Note: | |||
36 | GB/T882 – | 1472.005.J | P/N : GB/T882 – (16X45) , PIN (16X45) FOR |
(16X45) | ULING.019 | TAIAN JULING AIR WINCH MODEL XJFH- | |
5 | 5/35KZPJP | ||
Note: | |||
37 | XJFH- | 1472.005.J | P/N : XJFH-5/35S-9001B , TIE ROD 1, (L=260) |
5/35S- | ULING.019 | FOR TAIAN JULING AIR WINCH MODEL XJFH- | |
9001b | 6 | 5/35KZPJP | |
Note: | |||
38 | XJFH- | 1472.005.J | P/N : XJFH-5/35S-9400C , WELDING TIE ROD 1 |
5/35S- | ULING.019 | FOR TAIAN JULING AIR WINCH MODEL XJFH- | |
9400c | 7 | 5/35KZPJP | |
Note: | |||
39 | GB/T1096 | 1472.005.J | P/N : GB/T1096 – (10X35) , KEY (10X35) FOR |
– (10X35) | ULING.019 | TAIAN JULING AIR WINCH MODEL XJFH- | |
8 | 5/35KZPJP | ||
Note: | |||
40 | XJFH- | 1472.005.J | P/N : XJFH-5/35S-9004 , SUPPORTING FOR |
5/35S- | ULING.019 | TAIAN JULING AIR WINCH MODEL XJFH- | |
9004 | 9 | 5/35KZPJP | |
Note: | |||
41 | GB/T1152 | 1472.005.J | P/N : GB/T1152 – M10X1 , OIL CUP M10X1 FOR |
– M10X1 | ULING.020 | TAIAN JULING AIR WINCH MODEL XJFH- | |
0 | 5/35KZPJP | ||
Note: | |||
42 | XJFH- | 1472.005.J | P/N : XJFH-5/35S-9003D , AXLE FOR TAIAN |
5/35S- | ULING.020 | JULING AIR WINCH MODEL XJFH-5/35KZPJP | |
9003d | 1 | ||
Note: | |||
43 | XJFH- | 1472.005.J | P/N : XJFH-5/35S-9008 , PAD FOR TAIAN |
5/35S- | ULING.020 | JULING AIR WINCH MODEL XJFH-5/35KZPJP | |
9008 | 2 | ||
Note: | |||
44 | XJFH- | 1472.005.J | P/N : XJFH-5/35S-9500 , WELDING TIE ROD 2 |
5/35S- | ULING.020 | FOR TAIAN JULING AIR WINCH MODEL XJFH- | |
9500 | 3 | 5/35KZPJP | |
Note: | |||
45 | XJFH- | 1472.005.J | P/N : XJFH-5/35S-9711 , TIE ROD 2 FOR TAIAN |
5/35S- | ULING.020 | JULING AIR WINCH MODEL XJFH-5/35KZPJP | |
9711 | 4 | ||
Note: | |||
46 | XJFH- | 1472.005.J | P/N : XJFH-5/35S-9710 , TIE ROD 1 FOR TAIAN |
5/35S- | ULING.020 | JULING AIR WINCH MODEL XJFH-5/35KZPJP | |
9710 | 5 | ||
Note: | |||
47 | XJFH- | 1472.005.J | P/N : XJFH-5/35S-9800 , AIR CYLINDER |
5/35S- | ULING.020 | SERIES100X150 FOR TAIAN JULING AIR | |
9800 | 6 | WINCH MODEL XJFH-5/35KZPJP | |
Note: | |||
48 | XJFH-5/35- | 1472.005.J | P/N : XJFH-5/35-9300 , SUPPORT WELDING |
9300 | ULING.020 | FITTING 2 FOR TAIAN JULING AIR WINCH | |
7 | MODEL XJFH-5/35KZPJP | ||
Note: | |||
49 | XJFH-5/35- | 1472.005.J | P/N : XJFH-5/35-5009 , BOLT FOR TAIAN |
5009 | ULING.020 | JULING AIR WINCH MODEL XJFH-5/35KZPJP | |
8 | |||
Note: | |||
50 | XJFH-5/35- | 1472.005.J | P/N : XJFH-5/35-5008 , SPRING SEAT FOR |
5008 | ULING.020 | TAIAN JULING AIR WINCH MODEL XJFH- | |
9 | 5/35KZPJP | ||
Note: | |||
51 | XJFH-5/35- | 1472.005.J | P/N : XJFH-5/35-5007 , SPRING FOR TAIAN |
5007 | ULING.021 | JULING AIR WINCH MODEL XJFH-5/35KZPJP | |
0 | |||
Note: | |||
52 | XJFH-5/35- 5006a | 1472.005.J ULING.021 1 | P/N : XJFH-5/35-5006A , TIE ROD FOR TAIAN JULING AIR WINCH MODEL XJFH-5/35KZPJP |
Note: | |||
53 | GB/T880 – | 1472.005.J | P/N : GB/T880 – (12X70) , PIN (12X70) FOR |
(12X70) | ULING.021 | TAIAN JULING AIR WINCH MODEL XJFH- | |
2 | 5/35KZPJP | ||
Note: | |||
54 | XJFH-5/35- | 1472.005.J | P/N : XJFH-5/35-5004 , TIE ROD FOR TAIAN |
5004 | ULING.021 | JULING AIR WINCH MODEL XJFH-5/35KZPJP | |
3 | |||
Note: | |||
55 | XJFH-5/35- | 1472.005.J | P/N : XJFH-5/35-5005 , SUPPORT PIN FOR |
5005 | ULING.021 | TAIAN JULING AIR WINCH MODEL XJFH- | |
4 | 5/35KZPJP | ||
Note: | |||
56 | GB/T75 – | 1472.005.J | P/N : GB/T75 – (M6X12) , SCREW (M6X12) FOR |
(M6X12) | ULING.021 | TAIAN JULING AIR WINCH MODEL XJFH- | |
5 | 5/35KZPJP | ||
Note: | |||
57 | XJFH-5/35- | 1472.005.J | P/N : XJFH-5/35-5003 , SLIPKNOT BOLTS FOR |
5003 | ULING.021 | TAIAN JULING AIR WINCH MODEL XJFH- | |
6 | 5/35KZPJP | ||
Note: | |||
58 | XJFH-5/35- | 1472.005.J | P/N : XJFH-5/35-5500E , BRAKE BAND FOR |
5500e | ULING.021 | TAIAN JULING AIR WINCH MODEL XJFH- | |
7 | 5/35KZPJP | ||
Note: | |||
59 | GB/T5781 | 1472.005.J | P/N : GB/T5781 – (M12X30) , BOLT (M12X30) |
– (M12X30) | ULING.021 | FOR TAIAN JULING AIR WINCH MODEL XJFH- | |
8 | 5/35KZPJP | ||
Note: | |||
60 | GB/T 70.1 | 1472.005.J | P/N : GB/T 70.1 – (M8?12) , SOCKET HEAD |
– (M8?12) | ULING.022 | SCREW (M8?12) FOR TAIAN JULING AIR | |
0 | WINCH MODEL XJFH-5/35KZPJP | ||
Note: | |||
61 | GB/T 96.2 | 1472.005.J | P/N : GB/T 96.2 – (8X2) , LARGE SERIES (8X2) |
– (8X2) | ULING.022 | FOR TAIAN JULING AIR WINCH MODEL XJFH- | |
1 | 5/35KZPJP | ||
Note: | |||
62 | GB/T 95 – | 1472.005.J | P/N : GB/T 95 – (14X2.5) , PLAIN WASHER |
(14X2.5) | ULING.022 | (14X2.5) FOR TAIAN JULING AIR WINCH | |
2 | MODEL XJFH-5/35KZPJP | ||
Note: | |||
63 | DJFT- | 1472.005.J | P/N : DJFT-50?35YP-6510 , PENDULUM ROD |
50?35YP- | ULING.022 | FOR PRESSURE ROPE FOR TAIAN JULING | |
6510 | 3 | AIR WINCH MODEL XJFH-5/35KZPJP | |
Note: | |||
64 | SF-1 | 1472.005.J | P/N : SF-1 , SELF-LUBRICATING BEARING |
ULING.022 | 1510 FOR TAIAN JULING AIR WINCH MODEL | ||
4 | XJFH-5/35KZPJP | ||
Note: | |||
65 | ZJQH- | 1472.005.J | P/N : ZJQH-5?24B-06008 , SPRING COLLAR |
5?24B- | ULING.022 | FOR TAIAN JULING AIR WINCH MODEL XJFH- | |
06008 | 5 | 5/35KZPJP | |
Note: | |||
66 | ZJQH- | 1472.005.J | P/N : ZJQH-5?24B-06006 , LEFT HELICAL |
5?24B- | ULING.022 | TORSION SPRING FOR TAIAN JULING AIR | |
06006 | 6 | WINCH MODEL XJFH-5/35KZPJP | |
Note: | |||
67 | ZJQH- | 1472.005.J | P/N : ZJQH-5?24B-06007 , RIGHT HELICAL |
5?24B- | ULING.022 | TORSION SPRING FOR TAIAN JULING AIR | |
06007 | 7 | WINCH MODEL XJFH-5/35KZPJP | |
Note: | |||
68 | ZJQH- | 1472.005.J | P/N : ZJQH-5?24B-06009 , TORSION SPRING |
5?24B- | ULING.022 | MANDREL FOR TAIAN JULING AIR WINCH | |
06009 | 8 | MODEL XJFH-5/35KZPJP | |
Note: | |||
69 | DJFT- | 1472.005.J | P/N : DJFT-50?35YP-6520 , PRESSURE |
50?35YP- | ULING.022 | ROLLER HOLDER FOR TAIAN JULING AIR | |
6520 | 9 | WINCH MODEL XJFH-5/35KZPJP | |
Note: | |||
70 | ZJQH- | 1472.005.J | P/N : ZJQH-5?24B-06010 , TORSION GEAR |
5?24B- | ULING.023 | SHAFT FOR TAIAN JULING AIR WINCH | |
06010 | 0 | MODEL XJFH-5/35KZPJP | |
Note: | |||
71 | DJFT- | 1472.005.J | P/N : DJFT-50?35YP-6502 , LONG PRESS |
50?35YP- | ULING.023 | WHEEL FOR TAIAN JULING AIR WINCH | |
6502 | 1 | MODEL XJFH-5/35KZPJP | |
Note: | |||
72 | DJFT- | 1472.005.J | P/N : DJFT-50?35YP-6501 , PRESS WHEEL |
50?35YP- | ULING.023 | FOR TAIAN JULING AIR WINCH MODEL XJFH- | |
6501 | 2 | 5/35KZPJP | |
Note: | |||
73 | GB/T276 – | 1472.005.J | P/N : GB/T276 – 6003 , BEARING 6003 FOR |
6003 | ULING.023 | TAIAN JULING AIR WINCH MODEL XJFH- | |
3 | 5/35KZPJP | ||
Note: | |||
74 | ZJQH- | 1472.005.J | P/N : ZJQH-5?24B-06004 , PRESSURE AXLE |
5?24B- | ULING.023 | RING FOR TAIAN JULING AIR WINCH MODEL | |
06004 | 4 | XJFH-5/35KZPJP | |
Note: | |||
75 | GB894.1 – | 1472.005.J | P/N : GB894.1 – 17 , CIRCLIPS FOR SHAFT 17 |
17 | ULING.023 | FOR TAIAN JULING AIR WINCH MODEL XJFH- | |
5 | 5/35KZPJP | ||
Note: | |||
76 | ZJQH- | 1472.005.J | P/N : ZJQH-5?24B-06005 , SHORT PRESS |
5?24B- | ULING.023 | WHEEL FOR TAIAN JULING AIR WINCH | |
06005 | 6 | MODEL XJFH-5/35KZPJP | |
Note: | |||
77 | GB893.1 – | 1472.005.J | P/N : GB893.1 – 35 , CIRCLIPS FOR HOLE 35 |
35 | ULING.023 | FOR TAIAN JULING AIR WINCH MODEL XJFH- | |
7 | 5/35KZPJP | ||
Note: | |||
78 | JDFT- | 1472.005.J | P/N : JDFT-15?35YP-6520 , SUPPORT SEAT |
15?35YP- | ULING.023 | FOR TAIAN JULING AIR WINCH MODEL XJFH- | |
6520 | 8 | 5/35KZPJP | |
Note: | |||
79 | JDFT- | 1472.005.J | P/N : JDFT-15?35YP-6530 , LEFT SUPPORT |
15?35YP- | ULING.023 | PLATE FOR TAIAN JULING AIR WINCH | |
6530 | 9 | MODEL XJFH-5/35KZPJP | |
Note: | |||
80 | JDFT- | 1472.005.J | P/N : JDFT-15?35YP-6510 , RIGHT SUPPORT |
15?35YP- | ULING.024 | PLATE FOR TAIAN JULING AIR WINCH | |
6510 | 0 | MODEL XJFH-5/35KZPJP | |
Note: | |||
81 | JT-32 | 1472.005.J | P/N : JT-32 , EMERGENCY STOP PNEUMATIC |
ULING.024 | MODULE FOR TAIAN JULING AIR WINCH | ||
1 | MODEL XJFH-5/35KZPJP | ||
Note: | |||
82 | QE-03 | 1472.005.J | P/N : QE-03 , QUICK EXHAUST VALVE FOR |
ULING.024 | TAIAN JULING AIR WINCH MODEL XJFH- | ||
2 | 5/35KZPJP | ||
Note: | |||
83 | QIUD-40 | 1472.005.J | P/N : QIUD-40 , WATER SEPARATOR FOR |
ULING.024 | TAIAN JULING AIR WINCH MODEL XJFH- | ||
3 | 5/35KZPJP | ||
Note: | |||
84 | QSL-40 | 1472.005.J | P/N : QSL-40 , PRESSURE REDUCING VALVE |
ULING.024 | FOR TAIAN JULING AIR WINCH MODEL XJFH- | ||
4 | 5/35KZPJP | ||
Note: | |||
85 | QTY-40 | 1472.005.J | P/N : QTY-40 , OIL MIST FOR TAIAN JULING |
ULING.024 | AIR WINCH MODEL XJFH-5/35KZPJP | ||
5 | |||
Note: | |||
86 | 3A210-08- | 1472.005.J | P/N : 3A210-08-NC , AIR CONTROL VALVE |
NC | ULING.024 | (TWO-WAY / THREE-PORT) FOR TAIAN | |
6 | JULING AIR WINCH MODEL XJFH-5/35KZPJP | ||
Note: | |||
87 | QE-02 | 1472.005.J | P/N : QE-02 , QUICK EXHAUST VALVE FOR |
ULING.024 | TAIAN JULING AIR WINCH MODEL XJFH- | ||
7 | 5/35KZPJP | ||
Note: | |||
88 | GB/T5287 | 1472.005.J | P/N : GB/T5287 – 12 , GASKE 12 FOR TAIAN |
– 12 | ULING.021 | JULING AIR WINCH MODEL XJFH-5/35KZPJP | |
9 | |||
Note: | |||
8. Final Procurement Guidance
This full set of XJFH-5/35KZPJP air winch spare parts covers all transmission, sealing, braking, pneumatic control and fixed assembly components required for daily maintenance, emergency repair and full overhaul of oilfield pneumatic winches. All products implement full-process multi-dimensional quality inspection, with strict dimensional consistency calibration and traceable material qualification records, effectively solving common problems of poor compatibility, insufficient durability and incomplete certification of inferior aftermarket parts. With outstanding operational reliability, complete interchangeability and long service life, these components effectively reduce winch failure rate and comprehensive maintenance costs for oilfield operations. If you need to verify model matching accuracy, consult professional selection suggestions according to working conditions, obtain complete certification documents and performance test data, or customize bulk spare part procurement schemes, you can consult for one-stop technical verification and supply services to ensure long-term stable and safe operation of your XJFH-5/35KZPJP air winch equipment.
