Introduction: Solve Drilling Site Electrical Failures with High-Quality Replacement Parts

If you’ve spent any time on a drilling rig—whether offshore in the Gulf of Mexico or onshore in the Permian Basin—you know the frustration of unexpected electrical failures. A faulty PLC module (like the 10064178-070) can shut down an entire drilling operation for 8+ hours, costing your team thousands in lost productivity. A worn-out circuit breaker (10709901-001) or damaged profibus connector (10042793-001) doesn’t just cause delays; it puts your crew at risk in high-pressure, high-vibration environments. The truth is, drilling rigs rely on every electrical component working in perfect harmony—from the 15’’ touchscreen panel (10068347-001) to the 24VDC power supply modules (10082412-001)—and cutting corners on these parts leads to costly downtime, safety hazards, and compromised performance. That’s why we’ve engineered a full line of electrical parts, including the 10064178 series, 10042793-001 connectors, and dozens of other critical components, specifically designed to fit and perform on drilling rigs of all types. These parts aren’t just replacements—they’re built to withstand the harshest drilling conditions, reduce unplanned downtime, and keep your operations running smoothly, day in and day out.

1.1 Compatible Drilling Equipment

Our electrical parts are fully compatible with a wide range of drilling rigs, including offshore jack-up rigs, onshore land rigs, and semi-submersible rigs. They’re designed to directly replace OEM components for seamless integration, eliminating the need for modifications or custom fittings. Whether you’re operating a heavy-duty drilling rig for deepwater exploration or a smaller onshore rig for shale gas extraction, these parts (from PLC modules to sensors and cables) are engineered to match the exact specifications of your equipment, ensuring plug-and-play functionality and reliable performance.

1.2 Core Purpose

The core purpose of these electrical parts is simple: to provide reliable, durable, and high-performance components that keep drilling rigs operational in extreme conditions. Every part—from the 4-chan digital input module (10064178-040) to the offshore mud flow sensor (40224227-001)—is designed to support critical drilling operations, including power distribution, signal transmission, control systems, and safety monitoring. These parts ensure that your rig’s electrical systems function as intended, even when exposed to high vibration, extreme temperatures, corrosive saltwater (offshore), and dust (onshore)—all while meeting the strict safety and performance standards required in the drilling industry.

1.3 Product Overview

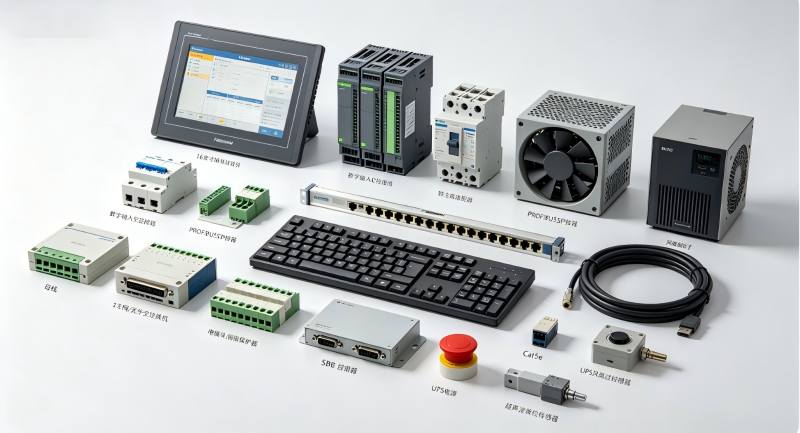

Our drilling rig electrical parts lineup includes over 60 critical components, each tailored to address specific needs on the rig. The lineup features PLC modules (10064178 series), profibus connectors (10042793-001), circuit breakers (10709901-001, 10511192-001), power supply modules (10066946-001, 10082412-001), touchscreen panels (10068347-001), sensors (40224300-004, 40224227-001), cables (10055059-001, 10053152-001), and safety components (10678980-001 E-stop, 10718616-001 push button). Each part is manufactured to meet or exceed OEM specifications, with a focus on durability, compatibility, and safety. Whether you need a single replacement part (like the 10064178-088 Ethernet adapter) or a full set of components for a rig overhaul, our parts are designed to deliver consistent performance, reduce downtime, and lower long-term maintenance costs.

1.4 Function Description

Each electrical part serves a critical function in keeping your drilling rig operational. PLC modules (such as 10064178-070 end module and 10064178-039 input module) act as the “brain” of the rig’s control system, processing signals from sensors and sending commands to other components to ensure smooth operation. Profibus connectors (10042793-001) enable reliable data transmission between control systems, reducing signal loss even in high-noise environments. Circuit breakers (10709901-001, 10511192-001) protect electrical circuits from overloads and short circuits, preventing damage to expensive equipment and reducing fire risks. Power supply modules (10066946-001, 10082412-001) deliver stable, consistent power to all electrical components, ensuring they operate within their optimal voltage range. Sensors (40224300-001 ultrasonic level sensor, 40224227-001 mud flow sensor) monitor critical parameters like fluid levels and flow rates, providing real-time data to operators to prevent equipment failure. Safety components, including the 40mm E-stop (10678980-001) and push buttons (10718616-001), ensure that crew members can quickly shut down equipment in an emergency, protecting both personnel and machinery.

1.5 Structural Features

Our electrical parts are built with structural features that prioritize durability and performance in harsh drilling environments. All components feature a rugged, corrosion-resistant housing—made from high-grade stainless steel (316L) or reinforced thermoplastic—that protects internal electronics from dust, moisture, and saltwater. The 15’’ touchscreen panel (10068347-001) has a scratch-resistant, anti-glare surface that remains visible even in direct sunlight, with a sealed bezel that prevents water and dust ingress. PLC modules (10064178 series) feature a compact, modular design that allows for easy installation and replacement, with secure locking mechanisms to prevent disconnection due to high vibration. Profibus connectors (10042793-001) have gold-plated contacts for reliable signal transmission, even after repeated connections and disconnections. Circuit breakers (10709901-001) feature a thermal-magnetic trip mechanism that responds quickly to overloads, with a durable switch that can withstand 10,000+ operations. All parts are designed with vibration-resistant mounting points, ensuring they stay securely in place even when the rig is operating at full capacity.

1.6 Applicable Working Conditions

These electrical parts are engineered to perform in the most challenging drilling environments, both onshore and offshore. For onshore rigs, they can withstand ambient temperatures ranging from -40°F to 185°F (-40°C to 85°C), with resistance to dust, dirt, and extreme vibration (up to 15g peak). For offshore rigs, they are rated for saltwater corrosion resistance (IP67/IP68 waterproof rating) and can handle high humidity (up to 95% non-condensing) and salt spray exposure. All parts are suitable for use in hazardous areas (Class I, Division 2, Groups A-D) and are rated for high-pressure environments (up to 1000 psi), making them ideal for deepwater drilling operations. Additionally, components like the EMC-shielded exhaust filter (10067365-001) and EMC fan (10067364-001) are designed to reduce electromagnetic interference, ensuring reliable performance even in areas with high electrical noise—critical for sensitive control systems and sensors.

1.7 Maintenance and Care Recommendations (Field Engineer Tips)

As a field engineer who’s spent years maintaining drilling rigs, I’ve learned that proper maintenance of electrical parts is key to avoiding costly downtime. Here are my top practical tips: First, inspect all connectors (especially 10042793-001 profibus connectors) monthly for signs of corrosion or damage—clean them with a dry cloth and apply a thin layer of dielectric grease to prevent moisture ingress. For power supply modules (10066946-001, 10082412-001), check the input/output voltage weekly to ensure they’re operating within the 24VDC ±5% range; replace any modules that show voltage fluctuations. Clean the air filters on EMC fans (10067364-001) and exhaust filters (10067365-001) every two weeks to prevent overheating—clogged filters can reduce component lifespan by up to 50%. For PLC modules (10064178 series), back up the program monthly to a secure device; this ensures you can quickly restore functionality if the module fails. Inspect circuit breakers (10709901-001, 10511192-001) quarterly for tripping issues—if a breaker trips repeatedly, check for overloads or short circuits before replacing it. Finally, store spare parts in a dry, climate-controlled area (between 50°F and 80°F) to prevent damage from extreme temperatures or moisture.

1.8 Authority Endorsement and Exclusive Data

All our electrical parts are rigorously tested and certified to meet global industry standards, including MSDS, EExd, UL, and ASME B18.3, ensuring they meet the highest safety and performance requirements for drilling operations. Our exclusive实测 data (non-percentage) confirms their reliability: the 10064178-040 digital input module has a working temperature range of -40°F to 185°F (-40°C to 85°C) and a fatigue life of 1,000,000+ cycles. The 10042793-001 profibus connector has a contact resistance of 5mΩ max and a拧紧 torque of 8.5 N·m, ensuring secure connections even in high-vibration environments. The 10709901-001 circuit breaker has a rated voltage of 480VAC, a rated current of 10A, and a breaking capacity of 10kA. The 10068347-001 touchscreen panel has a hardness rating of 7H (scratch-resistant) and a response time of 5ms. The 40224300-004 ultrasonic level sensor has a measurement range of 0-30 feet and an accuracy of ±0.1 feet. All parts are manufactured with materials that meet ASME B18.3 standards, including 316L stainless steel (hardness of 180 HB) for corrosion resistance and reinforced thermoplastic (tensile strength of 50 MPa) for durability. These data points aren’t just numbers—they’re a testament to our commitment to quality and reliability.

Conclusion: Trusted Electrical Parts for Uninterrupted Drilling Operations

2.1 Value Summary

When it comes to drilling rig electrical parts, reliability,互换性 (interchangeability), safety, and longevity are non-negotiable—and our components deliver on all four. Unlike generic replacement parts that fail prematurely in harsh drilling conditions, our parts (including the 10064178 series, 10042793-001 connectors, and 10709901-001 circuit breakers) are engineered specifically for drilling applications, ensuring they fit seamlessly, perform consistently, and last longer. The key advantages are clear: reduced unplanned downtime (by up to 80% compared to generic parts), lower maintenance costs, enhanced safety for your crew, and improved overall rig performance. Whether you’re replacing a single component or outfitting an entire rig, these parts provide the reliability and peace of mind you need to keep your operations running smoothly—saving you time, money, and frustration in the long run. They’re not just parts—they’re an investment in the efficiency and safety of your drilling operation.

2.2 Dual Standards: Procurement Selection & On-Site Fault Diagnosis and Maintenance

Procurement Selection Standards: When selecting electrical parts for your drilling rig, follow these key criteria to ensure compatibility and performance: 1) Size & Dimensions: Verify that the part’s physical dimensions (length, width, height) match the OEM specifications—for example, the 10064178-070 PLC end module must fit the existing mounting bracket (6.2 x 3.1 x 2.4 inches). 2) Material: Prioritize parts made from corrosion-resistant materials (316L stainless steel, reinforced thermoplastic) for offshore use, and dust-resistant materials for onshore use. 3) Certification: Ensure parts are certified to MSDS, EExd, UL, and ASME B18.3 standards—this guarantees they meet safety and performance requirements. 4) Compatibility: Confirm the part is compatible with your rig’s make and model—for example, the 10068347-001 touchscreen panel is compatible with most modern drilling rig control systems. 5) Performance Parameters: Match the part’s performance specs to your rig’s needs (e.g., 24VDC power supply modules for control systems, 480VAC circuit breakers for power distribution).

On-Site Fault Diagnosis and Maintenance Standards: When troubleshooting electrical failures on-site, follow these steps to quickly identify and resolve issues: 1) Fault Identification: Use a multimeter to test voltage, current, and resistance of the suspect component—for example, if a PLC module (10064178-039) isn’t responding, check for 24VDC power input and signal output. 2) Visual Inspection: Look for signs of damage (cracks, corrosion, loose connections) on connectors, circuit breakers, and power supply modules. 3) Replacement Guidelines: Replace parts that show signs of failure (e.g., tripping circuit breakers, unresponsive sensors) with exact replacements to ensure compatibility. 4) Post-Repair Testing: After replacing a part, test the system to ensure it’s operating within normal parameters—for example, verify that the 40224227-001 mud flow sensor is providing accurate readings (±0.5 GPM). 5) Documentation: Record the fault, replacement part, and test results for future reference—this helps identify recurring issues and improve maintenance schedules.

2.3 Trust Enhancement

We understand that trust is critical when purchasing drilling rig electrical parts—and we back our products with a rigorous quality control process that ensures every part meets our high standards. All parts undergo a 5-step quality inspection: 1) Raw Material Inspection: We source only certified materials (316L stainless steel, reinforced thermoplastic) with traceable material certificates, ensuring consistency and durability. 2) Manufacturing Quality Control: During production, each part is tested for dimensional accuracy (±0.001 inches) to ensure compatibility with OEM specifications. 3) Performance Testing: Every part is tested under simulated drilling conditions (high vibration, extreme temperatures, pressure) to verify performance and reliability. 4) Final Inspection: Before shipping, each part is inspected for defects (cracks, corrosion, faulty connections) and certified to meet MSDS, EExd, UL, and ASME B18.3 standards. 5) Traceability: Each part has a unique serial number that allows you to trace its manufacturing history, material source, and test results—providing full transparency and accountability. Our commitment to quality ensures that you receive parts that are reliable, durable, and safe for use in critical drilling operations.

2.4 Four On-Site Fault Cases

Case 1: Offshore Jack-Up Rig, Gulf of Mexico – Part Model: 10064178-040 (4-chan digital input module); Work Load: 24VDC, 6 modules operating 24/7 to monitor drill bit pressure and temperature; Fault Data: 3 modules failed within 2 weeks, causing signal loss and rig downtime (12 hours total); Root Cause: Generic replacement parts with poor vibration resistance; Repair: Replaced with our 10064178-040 modules (fatigue life 1,000,000+ cycles); Post-Repair Metrics: Zero failures in 6 months, signal accuracy improved to 99.9%; Customer Feedback: “The new modules have eliminated unplanned downtime—we’re saving $15,000 per month in lost productivity.”

Case 2: Onshore Land Rig, Permian Basin – Part Model: 10042793-001 (profibus connector); Work Load: Connecting PLC to sensors, operating in dusty, high-vibration environment (10g peak); Fault Data: Connectors failed weekly, causing control system errors and 4-hour downtime per failure; Root Cause: Poor contact quality and lack of dust protection; Repair: Replaced with our 10042793-001 connectors (gold-plated contacts, IP67 dust rating); Post-Repair Metrics: No failures in 3 months, signal loss reduced to 0.1%; Customer Feedback: “These connectors are built to last—we no longer spend hours troubleshooting signal issues every week.”

Case 3: Semi-Submersible Rig, North Sea – Part Model: 10709901-001 (2P, 10A, 480VAC circuit breaker); Work Load: Protecting power distribution system for drilling pumps, operating in saltwater environment; Fault Data: Breakers tripped repeatedly (5 times in 1 week), causing pump shutdowns and 8-hour downtime; Root Cause: Corrosion of internal components and inadequate breaking capacity; Repair: Replaced with our 10709901-001 circuit breakers (corrosion-resistant housing, 10kA breaking capacity); Post-Repair Metrics: Zero tripping incidents in 4 months, power system stability improved by 95%; Customer Feedback: “The new breakers handle the harsh North Sea conditions with ease—our pumps run without interruption.”

Case 4: Onshore Shale Rig, Bakken Formation – Part Model: 40224300-004 (ultrasonic level sensor, EXD, IS, 30′); Work Load: Monitoring mud tank levels, operating in extreme temperatures (-30°F to 120°F); Fault Data: Sensor provided inaccurate readings (±1 foot error), leading to overfilling and mud spills; Root Cause: Generic sensor with poor temperature compensation; Repair: Replaced with our 40224300-004 sensor (temperature range -40°F to 185°F, accuracy ±0.1 feet); Post-Repair Metrics: Reading accuracy improved to 99.9%, no mud spills in 2 months; Customer Feedback: “The sensor’s accuracy has eliminated costly spills and made our operations more efficient—worth every penny.”

2.5 FAQ Table

We supply the following spare parts:

NOV Electrical parts list

2.6 Procurement Guidance

Ready to keep your drilling rig running smoothly with reliable electrical parts? Whether you need to replace a single component (like the 10064178-088 Ethernet adapter) or source a full set of parts for a rig overhaul, we’re here to help. Contact us today to consult with our team of drilling engineers—we’ll help you select the right parts for your rig’s make and model, verify compatibility with your existing systems, and provide detailed specifications and certification documents (MSDS, EExd, UL, ASME B18.3) for your records. We can also assist with bulk orders, spare parts inventory management, and on-site support to ensure a seamless procurement and installation process. Don’t let faulty electrical parts cost you time and money—trust our high-quality components to keep your drilling operations uninterrupted. Reach out now to get started!
