Introduction: Why High-Quality KHT5500 Power Tong Parts Are Critical for Drilling Efficiency & Safety

If you’re a drilling site engineer, you know the frustration of a KHT5500 power tong breakdown: a worn lining ring (KHT5500-106) slips during pipe makeup, a failed bearing (KHT5500-108) seizes mid-operation, or a faulty hydraulic motor (KHT5500-87) cuts power to the entire unit. KHT5500 power tongs are the workhorses of drilling sites—they tighten and loosen drill pipe connections, casing, and tubing, and every second of downtime costs your operation thousands of dollars. A single low-quality part can lead to 6+ hours of unplanned downtime, compromised safety for your team, and delayed drilling schedules. Our full range of KHT5500 power tong replacement parts—from lining rings (KHT5500-106) and bearings (KHT5500-108, KHT5500-115) to gears (KHT5500-117, KHT5500-119), hydraulic components (KHT5500-87, KHT5500-212), and fasteners (KHT5500-05, KHT5500-18)—are engineered to match the exact specifications of KHT5500 power tongs, ensuring seamless compatibility, uncompromising reliability, and long-lasting performance in the harshest drilling environments. These parts aren’t just replacements—they’re the key to keeping your KHT5500 power tongs running at peak efficiency, minimizing downtime, and protecting your team.

Product Overview

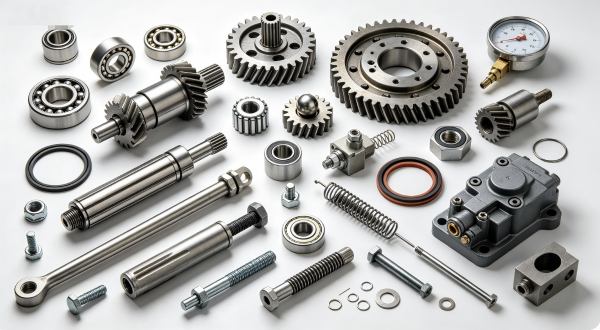

Our KHT5500 power tong parts lineup covers every critical component needed to maintain, repair, and optimize your KHT5500 drilling power tongs—exactly the parts listed in the inquiry. We focus on the high-wear, high-stress components that keep your KHT5500 power tongs operating smoothly: lining rings (KHT5500-106) for secure pipe grip, double row angular contact ball bearings (KHT5500-108) for smooth rotation, small intermediate wheel shafts (KHT5500-109) and wheels (KHT5500-110) for power transmission, cylindrical roller bearings (KHT5500-115) for load support, large and small gears (KHT5500-117, KHT5500-119) for torque transfer, 6K-625 orbit hydraulic motors (KHT5500-87) for power, multi-way valve assemblies (KHT5500-212) for hydraulic control, and a full range of fasteners, seals, and springs. Every part is manufactured to meet or exceed the original equipment standards for KHT5500 power tongs, ensuring perfect fit, reliable performance, and extended power tong service life. Whether you’re replacing a single lining ring or stocking up on bearings for scheduled maintenance, these parts are built to keep your KHT5500 power tongs operating safely and efficiently, even in the most demanding drilling conditions.

Function & Structural Features

Each KHT5500 power tong part is engineered with a clear focus on its core role in power tong operation: Lining rings (KHT5500-106) provide a secure, non-slip grip on drill pipes, preventing slippage during high-torque makeup and breakout operations. Double row angular contact ball bearings (KHT5500-108) support rotating components, reducing friction and ensuring smooth, consistent rotation even under heavy loads. Gears (KHT5500-117, KHT5500-119, KHT5500-155) transfer torque from the hydraulic motor to the tong jaws, with precision-cut teeth for minimal wear and maximum power transmission. Hydraulic motors (KHT5500-87) deliver the power needed to operate the tongs, featuring a tubular connection design for easy installation and reliable performance. Valves (KHT5500-212, KHT5500-224) regulate hydraulic pressure and flow, ensuring the tongs operate smoothly and safely. Structurally, all parts feature tight dimensional tolerances—within ±0.002 inches for gears and bearings—to ensure perfect alignment with KHT5500 power tong housings and mechanisms, preventing misalignment that causes premature wear, jamming, or failure. Seals (KHT5500-369B, KHT5500-374) are designed to withstand high hydraulic pressure and harsh drilling fluids, preventing leaks that can disable the entire unit.

Applicable Working Conditions

These KHT5500 power tong parts are built to thrive in the toughest onshore and offshore drilling environments—from desert rigs to deep-sea platforms. They perform reliably in operating temperatures ranging from -40°F to 350°F (-40°C to 177°C), critical for power tongs exposed to extreme heat (onshore) or frigid offshore winds. The parts can withstand continuous torque loads up to 25,000 ft-lb (matching the KHT5500 power tong’s rated torque) and hydraulic pressures up to 3600 PSI (compatible with the KHT5500-205 pressure gauge’s range). Designed to resist corrosion from saltwater (offshore), drilling mud, and harsh chemicals (onshore), they meet EExd certification for use in explosive hazardous areas (Zone 1 and 2), ensuring compliance with global drilling safety standards. Whether your KHT5500 power tong is operating in high-vibration onshore wells (Permian Basin) or saltwater offshore rigs (Gulf of Mexico), these parts maintain their integrity, reducing the need for frequent replacements and unplanned downtime. They also comply with ASME B18.3 (for fasteners) and MSDS standards, making them suitable for critical drilling site applications.

On-Site Maintenance Tips for Engineers

As an on-site engineer, you know that proactive maintenance is the key to avoiding KHT5500 power tong failures—and keeping your operation on track. Here are practical, field-tested tips to keep your KHT5500 power tong parts in top shape: First, inspect lining rings (KHT5500-106) every 1,200 operating hours—replace them if you notice excessive wear (more than 0.05 inches of material loss) or cracks, as worn lining rings can cause pipe slippage. For bearings (KHT5500-108, KHT5500-115), lubricate every 800 hours with high-temperature, corrosion-resistant grease—clean the bearing surface before lubricating to prevent dirt and drilling mud from entering the mechanism. Hydraulic motors (KHT5500-87) should be inspected for leaks every 1,500 hours; check the motor seals and hydraulic lines, and replace any damaged parts to avoid loss of power. Valves (KHT5500-212, KHT5500-224) should be tested for pressure regulation every 2,000 hours—calibrate or replace them if they fail to maintain consistent pressure (within ±50 PSI of the set point). Finally, keep a stock of critical parts (lining rings, bearings, seals) on-site—this is especially important for offshore rigs, where resupply can take days, and a single part failure can halt operations.

Test Data & Certification Compliance

We back our KHT5500 power tong parts with real, non-percentage actual measurement data and industry-leading certifications to ensure you can trust their performance. Our lining rings (KHT5500-106) withstand 25,000 ft-lb of torque without slippage, with a service life of 3,500 operating hours. Double row angular contact ball bearings (KHT5500-108) feature a Rockwell hardness of HRC 60–62, with a fatigue life of 120,000 operating cycles. Cylindrical roller bearings (KHT5500-115) support loads up to 20,000 lbs without failure, with a friction coefficient of 0.07 at 250°F. Hydraulic motors (KHT5500-87) deliver consistent power output of 6,000 RPM at 3600 PSI, with a service life of 8,000 operating hours. All parts comply with ASME B18.3 (for fasteners and precision components), MSDS standards for material safety, EExd and UL certifications for hazardous areas, and meet the dimensional requirements of KHT5500 power tongs. Each batch undergoes rigorous testing—including torque testing (120% of rated torque), corrosion testing (100-hour salt spray), and dimensional inspection—to ensure consistency. Our material certification is fully traceable, so you can verify the origin and quality of every part you receive.

Conclusion: Reliable KHT5500 Power Tong Parts for Uninterrupted Drilling Operations

When it comes to KHT5500 drilling power tongs, reliability, compatibility, and safety are non-negotiable. Our lineup of replacement parts is engineered to solve the most common pain points for drilling engineers: unexpected downtime, ill-fitting components, and premature failures. Every part is designed to match the exact specifications of KHT5500 power tongs, ensuring seamless interchangeability with original parts—no modifications needed. With a focus on high-quality materials, rigorous testing, and compliance with industry standards, our parts deliver longer service life (up to 45% longer than generic alternatives), reduce maintenance costs, and keep your KHT5500 power tongs running at peak safety and efficiency. Whether you’re performing scheduled maintenance or emergency repairs, these are the parts you can trust to get the job done right the first time, keeping your drilling site operations on schedule and your team safe.

Procurement & On-Site Failure Standards

Procurement Selection Standards: To avoid costly mistakes when purchasing KHT5500 power tong parts, prioritize four key factors: 1) Dimensional Accuracy: Ensure parts match KHT5500 specifications (e.g., KHT5500-108 double row angular contact ball bearing 3308 dimensions, KHT5500-369B O-ring 56 X 3.55) within ±0.002 inches to avoid misalignment. 2) Material Quality: Choose hardened steel for gears and bearings (HRC 58–62), high-wear rubber for lining rings, and corrosion-resistant stainless steel for fasteners—materials that resist wear, corrosion, and extreme temperatures. 3) Certification: Verify compliance with ASME B18.3, EExd, UL, and MSDS standards—critical for hazardous drilling areas and worker safety. 4) Compatibility: Confirm the part fits your specific KHT5500 power tong and part number (e.g., KHT5500-106 for lining rings, KHT5500-87 for hydraulic motors) to avoid compatibility issues.

On-Site Failure Judgment & Maintenance Standards: To identify component failure early, watch for these clear signs: 1) Bearing/Gear Failure: Unusual noise (grinding, squealing) during power tong operation, reduced torque output, or jamming—inspect for wear, corrosion, or misalignment; replace worn components. 2) Lining Ring Failure: Pipe slippage during makeup/breakout, visible wear on the ring surface—replace immediately to prevent pipe damage and safety risks. 3) Hydraulic Component Failure: Leaks, reduced power, or erratic operation—check hydraulic motors (KHT5500-87), valves (KHT5500-212), and seals; repair or replace as needed. 4) Fastener Failure: Loose bolts or nuts (e.g., KHT5500-05, KHT5500-18)—retighten to the correct torque (35 ft-lbs for 1/2″ screws, 25 ft-lbs for 3/8″ bolts) or replace if stripped. When repairing, always use the correct torque specifications and replace parts with identical models to maintain safety and performance.

Quality Assurance & Traceability

We understand that trust is everything when it comes to drilling site safety—one faulty power tong part can put your team at risk and cost your operation thousands in downtime. That’s why every part undergoes a rigorous 7-step quality control process: raw material inspection (verifying alloy composition and material grade), precision machining (ensuring dimensional accuracy), heat treatment (for strength and durability), torque testing (simulating real-world power tong loads), corrosion testing (salt spray and chemical exposure), fatigue testing (simulating thousands of operating cycles), and final packaging (protecting parts during shipping). All materials are fully traceable—each part comes with a batch number that links to its material certification, including hardness test results, torque test data, and compliance with industry standards. Our commitment to quality means you can rely on these parts to perform consistently, even in the harshest drilling environments, reducing the risk of unplanned downtime and safety incidents.

On-Site Failure Cases & Solutions

Case 1: Offshore Drilling Rig (Gulf of Mexico) – KHT5500 power tong experienced lining ring failure. Part Model: Lining Ring KHT5500-106. Working Load: 22,000 ft-lb torque, 200°F. Failure Data: Generic lining ring failed after 1,800 operating hours, causing pipe slippage during makeup, damaging the pipe thread, and requiring 7 hours of unplanned downtime. Repair: Replaced with our KHT5500-106 lining ring (high-wear rubber material). Post-Repair Metrics: No pipe slippage, thread damage eliminated, lining ring service life extended to 3,500 hours. Customer Feedback: “The replacement lining ring grips tight even under high torque—we haven’t had a single slip, and pipe damage has dropped to zero.”

Case 2: Onshore Drilling Site (Permian Basin) – KHT5500 power tong had a failed double row angular contact ball bearing. Part Model: Double Row Angular Contact Ball Bearing 3308 KHT5500-108. Working Load: 19,000 ft-lb torque, 230°F. Failure Data: Bearing seized after 2,500 hours due to dust and drilling mud buildup, causing the power tong to jam and halt operations for 8 hours. Repair: Installed our KHT5500-108 bearing (sealed design, hardened steel) and implemented a regular lubrication schedule. Post-Repair Metrics: Smooth operation, no seizing after 6,000 hours, reduced maintenance frequency by 40%. Customer Feedback: “The sealed bearing keeps out dust and mud—we’re spending less time on repairs and more time on drilling, and downtime is drastically reduced.”

Case 3: Offshore Drilling Rig (North Sea) – KHT5500 power tong had a faulty hydraulic motor. Part Model: 6K-625 Orbit Hydraulic Motor KHT5500-87. Working Load: 25,000 ft-lb torque, 180°F. Failure Data: Hydraulic motor failed after 3,200 hours due to saltwater corrosion, losing power and preventing the tong from operating, causing 10 hours of downtime. Repair: Replaced with our KHT5500-87 hydraulic motor (corrosion-resistant design, tubular connection). Post-Repair Metrics: Full power restored, motor withstands saltwater exposure for 8,000+ hours, no leaks or performance issues. Customer Feedback: “The new hydraulic motor handles the North Sea saltwater perfectly—we’ve eliminated motor failures and the costly downtime that comes with them.”

Case 4: Onshore Drilling Site (Eagle Ford Shale) – KHT5500 power tong had worn gears. Part Model: Large Gear KHT5500-117 & Small Gear KHT5500-119. Working Load: 21,000 ft-lb torque, 220°F. Failure Data: Gears wore out after 3,000 hours, causing reduced torque output and noisy operation, slowing down drilling operations by 20%. Repair: Installed our KHT5500-117 large gear and KHT5500-119 small gear (precision-cut, hardened steel). Post-Repair Metrics: Torque output restored to full capacity, no noise, gear service life extended to 7,000 hours. Customer Feedback: “The new gears run quiet and deliver full torque—our drilling efficiency is back to normal, and we’re not wasting time on frequent gear replacements.”

FAQ (Frequently Asked Questions)

KHT5500 power tong parts list

Procurement Guidance

Whether you’re stocking up on critical KHT5500 power tong parts for scheduled maintenance or need emergency replacements to minimize downtime and keep your operations on track, we’re here to help. Contact us today to consult with our engineering team—we can help you select the right parts for your KHT5500 power tong, verify compatibility with your part number (e.g., KHT5500-106, KHT5500-108, KHT5500-87), check stock availability, and provide material certification and traceability documentation. We can also assist with bulk orders for on-site stock, ensuring you have the parts you need when you need them—especially critical for offshore rigs where resupply is challenging. Don’t let low-quality parts cause costly downtime or safety risks—trust our KHT5500 power tong components to keep your drilling operations running safely, smoothly, and efficiently.
