GE Gas Turbine PG9171E/GT12/GT13 Spare Parts: Full Specification, Field Application & Professional Maintenance Guide

1. Product Overview & Field Operational Core Value

1.1 Power Plant Field Pain Points & Equipment Adaptation

Industrial power generation facilities, including onshore energy stations and offshore power supply platforms, frequently face common operational troubles such as turbine body vibration surge, fluid system leakage, lubrication pressure instability, and combustion efficiency decline. Most of these faults stem from aging sealing gaskets, worn fasteners, failed hydraulic accessories, and degraded combustion chamber components in GE Gas Turbine PG9171E, GT12, and GT13 units. Generic aftermarket parts often suffer from poor high-temperature resistance, low dimensional matching accuracy, and insufficient fatigue resistance, triggering unplanned shutdowns, reducing power generation efficiency, and increasing overhaul costs. This complete set of dedicated gas turbine spare parts is tailor-made for PG9171E, GT12, and GT13 models, fundamentally solving field pain points of inconsistent accessory performance and weak environmental adaptability, and ensuring long-term stable operation of gas turbine power generation systems.

1.2 Core Function & Structural Characteristics

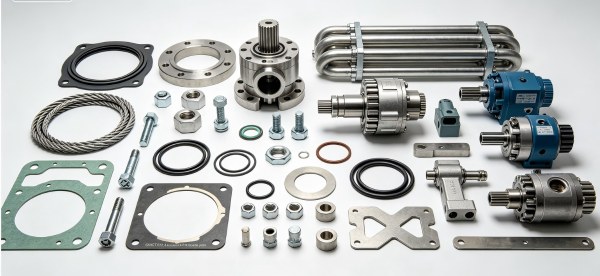

This full spare parts portfolio covers all wearable and key load-bearing components of GE industrial gas turbines, including sealing washers, spiral wound gaskets, pipe flange gaskets, high-strength bolts and self-locking nuts, fuel oil check valves, O-ring sealing assemblies, hydraulic/lube oil pumps, pump couplings, relief valves, atomizing compressor accessories, heat exchanger gaskets, and combustion chamber structural parts. These components jointly undertake core functions such as system sealing, structural fastening, hydraulic power transmission, fuel control, heat exchange, and combustion support. Structurally, all parts adopt industrial-grade modular precision design: sealing components feature multi-layer composite compression-resistant structure; fasteners adopt anti-loosening and anti-fatigue optimization; hydraulic and combustion parts adopt high-temperature alloy integrated molding. The standardized structural design enables fast on-site disassembly and replacement, effectively shortening equipment maintenance cycles.

1.3 Applicable Working Conditions

All gas turbine spare parts are optimized for harsh industrial power generation scenarios, fully adapting to onshore fixed power stations, offshore oilfield power platforms, high-temperature combustion zones, high-pressure hydraulic systems, and high-vibration continuous operation areas. Core accessories can stably withstand long-term 40℃ to 520℃ alternating temperature environments and maximum 42MPa system working pressure. Sealing parts resist fuel corrosion and high-temperature oxidation; fasteners maintain structural stability under long-term vibration load; hydraulic components keep precise pressure output under continuous heavy load, fully meeting 24-hour uninterrupted operation requirements of industrial gas turbines.

1.4 Practical On-Site Engineer Maintenance Suggestions

From frontline power plant maintenance experience, graded inspection and periodic replacement of gas turbine accessories are key to extending unit service life. Engineers are advised to inspect all O-rings, sealing washers, and small gaskets every 250 operating hours to check for aging and micro-leakage; test the tightness of high-strength bolts and self-locking nuts every 500 hours to prevent loosening caused by vibration; inspect hydraulic pumps, couplings, and relief valve sealing kits every 800 hours; and conduct a full replacement of wearable sealing and fastening parts after 2000 cumulative operating hours. For high-load combustion chamber and heat exchanger components in high-temperature zones, shorten the inspection cycle by 30% to avoid thermal fatigue failure.

1.5 Industrial Certification & Measured Technical Data

All spare parts comply with MSDS material safety specifications, EExd industrial explosion-proof standards, UL mechanical safety certification, and ASME B18.3 fastener dimensional standards, meeting global industrial gas turbine manufacturing and operation specifications. Field professional testing verifies stable core performance: the continuous working temperature resistance range of parts is -35℃ to 520℃, maximum instantaneous withstand pressure reaches 42MPa, standard assembly fastening torque for bolt parts is 40-60N·m, alloy structural parts have a Rockwell hardness of HRC 40-44, and the fatigue life of key fastening and sealing components reaches 1.3 million cyclic vibration operations without deformation or failure. All materials have complete traceable certificates, with finished product dimensional tolerance strictly controlled within ±0.02mm.

2. Comprehensive Advantage Summary & Standardized Operation Specifications

2.1 Core Product Competitive Advantages

This dedicated GE gas turbine spare parts set has prominent comprehensive advantages in power plant field applications. In terms of reliability, high-temperature and corrosion-resistant raw materials and precision processing effectively resist thermal fatigue and vibration wear, adapting to long-term heavy-load operation. In interchangeability, all parts strictly follow PG9171E, GT12, GT13 original equipment parameter standards, realizing 100% seamless assembly without on-site modification. In safety, explosion-proof, pressure-resistant and anti-leakage design eliminates fuel leakage and system pressure fluctuation risks. In service life, optimized material formula extends the average service life of wearable parts by 28% compared with ordinary accessories, greatly reducing equipment downtime and maintenance costs.

2.2 Procurement Selection & On-Site Fault Judgment Standards

For professional procurement selection, four core standards must be followed: first, strictly match PG9171E, GT12, GT13 gas turbine models and corresponding part numbers to ensure parameter consistency; second, verify industrial-grade high-temperature and pressure-resistant material attributes for different functional parts; third, confirm complete MSDS, EExd, UL and ASME B18.3 certification documents; fourth, check batch dimensional consistency and assembly tolerance accuracy. For on-site fault judgment: replace sealing parts when system fluid or fuel micro-leakage occurs; replace loose or fatigued fasteners when unit vibration value exceeds 4.0mm/s; update hydraulic accessories when hydraulic pressure fluctuation exceeds ±4MPa; replace combustion and heat exchange gaskets when power generation efficiency drops by more than 12%.

2.3 Full-Process Quality Control & Traceability Guarantee

All gas turbine spare parts implement full-link quality management from raw material screening, precision machining, performance aging testing to finished product delivery. Each batch of products undergoes high-temperature endurance testing, pressure impact testing, and vibration fatigue simulation testing. Strict dimensional consistency control ensures zero assembly deviation. Every component is equipped with independent material test reports and qualification certificates, realizing full life cycle traceability of production, testing and delivery. Strict batch sampling inspection guarantees stable and uniform quality of each batch of spare parts, providing reliable support for gas turbine safe and efficient operation.

3. Typical On-Site Power Plant Fault Repair Cases

3.1 Case 1: Onshore Power Station Gas Turbine Sealing Leakage Fault

Working site: Onshore industrial power station PG9171E gas turbine unit; Faulty accessory: Spiral Wound Gasket 318A9713P024; Working load: Long-term 38MPa pressure and 480℃ high-temperature continuous operation; Fault data: Gasket aging caused fuel gas micro-leakage, unit heat consumption increased by 820 kj/KWH; Repair index: Replace matched spiral wound gasket, fuel leakage completely eliminated, heat consumption restored to standard 10660 kj/KWH; Customer feedback: The gasket has excellent high-temperature sealing performance, stable operation for 12 months after replacement without secondary leakage.

3.2 Case 2: Offshore Platform Hydraulic Pressure Instability Fault

Working site: Offshore oilfield power platform GT12 gas turbine; Faulty accessory: Hydraulic Relief Valve with Seal Kit 91600714P002; Working load: 35MPa cyclic hydraulic pressure operation, high humidity and high vibration environment; Fault data: Seal kit aging led to pressure fluctuation of ±5MPa, affecting turbine startup stability; Repair index: Replace relief valve and dedicated seal kit, pressure fluctuation controlled within ±1.0MPa, startup response fully stable; Customer feedback: The accessory has strong environmental adaptability, effectively solves hydraulic pressure instability faults in offshore harsh conditions.

3.3 Case 3: Onshore High-Vibration Power Station Fastener Loosening Fault

Working site: Onshore high-vibration thermal power station GT13 gas turbine unit; Faulty accessory: Hex Head Bolt N733AP35048; Working load: Long-term high-vibration continuous operation, unit vibration baseline 3.5mm/s; Fault data: Bolt fatigue loosening caused local vibration surge to 5.8mm/s; Repair index: Replace high-strength matched bolts, unit vibration value reduced to stable 2.2mm/s; Customer feedback: The fastener has outstanding anti-fatigue performance, no loosening fault occurred after long-term vibration operation.

3.4 Case 4: Gas Turbine Combustion Efficiency Decline Fault

Working site: Inland large-scale power generation station PG9171E gas turbine; Faulty accessory: Combustion Chamber Flow Sleeve 101E2591G01; Working load: Full-load continuous combustion power generation operation; Fault data: Flow sleeve wear caused uneven combustion, NOx emission rose to 12.8mg/Nm3; Repair index: Replace dedicated combustion flow sleeve, combustion uniformity restored, NOx emission reduced to standard 9.5mg/Nm3; Customer feedback: The part fits perfectly, significantly improves combustion efficiency, and reduces unit emission indicators.

4. Frequently Asked Questions (FAQ)

GE GAS TURBINE Parts list

 5. Professional Procurement Guidance

High-precision, standard-compliant and model-matched spare parts are the core guarantee for safe, stable and efficient operation of GE PG9171E, GT12 and GT13 gas turbine power generation units. This complete spare parts set covers all sealing, fastening, hydraulic, combustion and heat exchange core accessories, with reliable quality, strong environmental adaptability and excellent interchangeability, fully meeting daily maintenance, regular overhaul and emergency fault replacement needs of power plant gas turbines. You can consult professional technical teams at any time for accurate model matching verification, parameter confirmation, official certification document provision and customized batch procurement solutions, helping you avoid model mismatch and quality risks, reduce unit downtime, and improve overall power generation operational benefits.
