1. Product Overview

Oilfield drilling operations frequently face unplanned downtime caused by worn, mismatched, or substandard pipe spinner components, with gear failure, bearing abrasion, and seal leakage ranking as the top three on-site issues that slow down pipe connection and breakout processes. The SSW 30 Pipe Spinner is a core hydraulic pipe handling device widely deployed in onshore and offshore drilling rigs, responsible for precise, high-efficiency spinning and positioning of drill pipes during tripping in and tripping out procedures. Its complete set of wearing and structural parts directly determines drilling continuity, operational safety, and long-term equipment stability. This full parts portfolio covers all standard components for two mainstream SSW 30 assembly versions (PRN2012501-0011654 and PRN2012501-0011655), covering drive systems, bearing assemblies, sealing components, positioning fasteners, and auxiliary spacer parts, fully meeting routine replacement, overhaul, and batch spare part stocking demands for oilfield SSW 30 pipe spinner equipment.

As a critical low-profile, compact hydraulic pipe spinner, the SSW 30 model solves the operational limitations of traditional bulky spinning tools, delivering stable torque output and continuous cyclic operation in narrow rig working spaces. All matching spare parts are manufactured to meet strict oilfield industrial standards, focusing on wear resistance, pressure resistance, and vibration resistance to adapt to harsh drilling environments. Core search keywords including SSW 30 pipe spinner parts, oilfield pipe spinner replacement components, hydraulic spinner gear and bearing parts are naturally integrated to match professional procurement and technical query habits of drilling engineers and equipment purchasers.

2. Core Function & Structural Characteristics

2.1 Core Functional Description

Every component in the SSW 30 pipe spinner parts set undertakes an independent core function to support integrated hydraulic driving and mechanical transmission. The drive gear and idle gear shaft form the main transmission system, converting hydraulic motor power into stable rotational force for pipe spinning. The hydraulic motor assembly provides continuous power output for the entire spinner, ensuring uniform rotating speed and consistent torque during pipe make-up and break-out. Roller bearings and spherical roller bearings reduce mechanical friction during high-frequency operation, while O-rings and sealing components prevent hydraulic oil leakage and external sediment intrusion. Positioning dowel pins, thrust washers, and retaining washers guarantee assembly precision and structural stability, eliminating component offset and loosening under high-load cyclic work. Drive rollers and pressure rollers achieve tight pipe fitting and stable clamping, enabling precise spinning of drill pipes of standard specifications.

2.2 Structural Design Features

The SSW 30 pipe spinner adopts a modular assembled structure, featuring convenient disassembly, replacement, and routine maintenance. The split gear transmission structure avoids integral component failure caused by single part damage, greatly reducing maintenance costs and downtime. All transmission parts adopt precision CNC machining to ensure dimensional tolerance consistency within 0.02mm, realizing high interchangeability for old and new components. The layered sealing and shielding structure effectively isolates drilling mud, dust, and high-pressure water flow, protecting internal bearings and gear components from abrasion and corrosion. Auxiliary spacer and washer parts optimize internal structural clearance, buffer operational vibration, and extend the overall service life of the equipment.

3. Applicable Working Conditions & On-Site Maintenance Guidelines

3.1 Applicable Working Conditions

This full set of SSW 30 pipe spinner replacement parts is suitable for full-scene oil and gas drilling environments, including onshore conventional land drilling sites, offshore platform drilling operations, high-vibration deep well drilling zones, and high-temperature high-pressure hazardous working areas. All components adapt to extreme working conditions with ambient temperatures ranging from -20°C to 120°C, withstand continuous working pressure up to 14MPa, and resist instantaneous impact pressure of 18MPa. The structural parts maintain stable mechanical performance under long-term high-frequency vibration (0–50Hz cyclic vibration), and sealing components remain intact in high-humidity, saline, and mud-corrosive offshore environments, fully complying with safety operation requirements for Class II explosive hazardous areas.

3.2 Professional On-Site Maintenance Suggestions

From the perspective of field drilling engineers, targeted maintenance and replacement of SSW 30 pipe spinner parts can effectively reduce equipment failure rates. It is recommended to inspect gear surface wear, bearing flexibility, and O-ring sealing performance every 200 hours of cumulative operation. Replace spherical roller bearings and drive rollers after 800 hours of continuous work to avoid jamming and unstable rotation. Check the tightness of dowel pins and retaining washers during each rig shutdown maintenance to prevent component displacement caused by long-term vibration. Regularly clean internal transmission cavity sediment to reduce gear and bearing abrasive wear, and replenish high-temperature resistant hydraulic oil matching the equipment specifications.

4. Industrial Certification & Measured Technical Parameters

All SSW 30 pipe spinner spare parts pass strict factory quality testing and comply with multiple international industrial standards, including MSDS material safety certification, EExd explosion-proof safety standard, UL industrial component safety certification, and ASME B18.3 precision fastener standard, ensuring full compliance with global oilfield drilling safety specifications. Authoritative measured data verifies stable product performance: core gear parts reach HRC 58–62 material hardness, with a fatigue life of up to 500,000 cyclic working times; standard assembly tightening torque for positioning pins and fasteners is controlled at 45–52N·m; all sealing components maintain zero leakage after 10,000 times of high-pressure opening and closing tests; bearing components ensure stable rotation without jamming under 24-hour continuous full-load operation. All raw materials have traceable certification files, with full-process quality inspection records from blank processing to finished product delivery.

5. Product Core Advantage & Selection and Maintenance Standards

The complete SSW 30 pipe spinner parts set delivers prominent core advantages in on-site reliability, component interchangeability, operational safety, and service life. Precision-machined transmission parts eliminate assembly gaps, ensuring consistent power transmission efficiency and avoiding abnormal vibration and noise during operation. Standardized dimensional design achieves 100% interchangeability with original equipment parts, supporting quick on-site replacement without secondary modification, greatly shortening maintenance downtime. High-strength wear-resistant materials and corrosion-resistant sealing structures adapt to long-term harsh working conditions, reducing frequent replacement costs. All components comply with international safety certification standards, effectively avoiding equipment failure and safety accidents caused by unqualified parts.

Unified dual standards for procurement selection and on-site fault maintenance are formulated for engineering reference. For procurement selection: strictly verify component dimensional parameters, confirm high-strength alloy and fluororubber sealing materials for core wearing parts, check complete industrial certification documents, and confirm full adaptation to SSW 30 model two mainstream assembly versions. For on-site fault judgment and maintenance: judge gear failure by abnormal rotation noise and torque attenuation; confirm bearing aging by unsmooth rotation and high-temperature heating; identify sealing failure by hydraulic oil leakage and mud infiltration; replace spacer and washer parts in time if structural loosening and component offset occur.

All spare parts implement full-process quality control, including raw material incoming inspection, precision machining dimensional detection, pressure and vibration simulation testing, and finished product aging testing. Strict dimensional consistency control ensures error-free assembly, and all material certification and test reports are traceable, providing reliable quality guarantee for oilfield long-term stable operation.

6. On-Site Fault Repair Case Summary

Four typical on-site fault cases of SSW 30 pipe spinner are summarized to provide practical technical reference for field operation and maintenance:

Case 1: Onshore deep well drilling site, faulty part: 0310628 drive gear. Long-term full-load torque operation led to gear tooth surface wear, with torque output attenuation of 18% and obvious rotation noise. After replacing the standard matching drive gear, the equipment torque output recovered to 100% of the rated value, rotation operation was smooth without abnormal noise, and the on-site drilling pipe connection efficiency increased by 12%. The feedback from the engineering team shows that the replacement part has stable performance and completely meets long-term full-load working requirements.

Case 2: Offshore platform drilling site, faulty part: 0314601 spherical roller bearing. Saline corrosion and high-frequency vibration caused bearing jamming, resulting in intermittent shutdown of pipe spinning operation. After replacing certified wear-resistant and corrosion-resistant bearings, the equipment achieved continuous 72-hour full-load stable operation, with zero jamming and zero temperature overrun. The on-site maintenance team confirmed that the parts have excellent environmental adaptability for offshore harsh working conditions.

Case 3: Onshore high-pressure drilling site, faulty part: 0351300 O-ring seal. Long-term high-temperature and high-pressure working environment caused seal aging and micro leakage of hydraulic oil, with daily oil consumption of 0.8L. After replacing the original standard O-ring, hydraulic oil leakage was completely eliminated, and the equipment maintained stable sealing performance after 30 days of continuous operation. The client feedback effectively reduces equipment operating costs and avoids safety hazards caused by oil leakage.

Case 4: Shallow well frequent tripping operation site, faulty part: 0376003 drive roller. Long-term high-frequency pipe clamping and spinning led to roller surface abrasion, causing unstable pipe clamping and offset spinning. After replacing new drive rollers, the pipe clamping precision recovered completely, spinning positioning error was controlled within 0.5mm, and the pass rate of one-time pipe make-up reached 100%. The engineering team affirmed the high wear resistance and dimensional stability of the parts.

7. Frequently Asked Questions (FAQ)

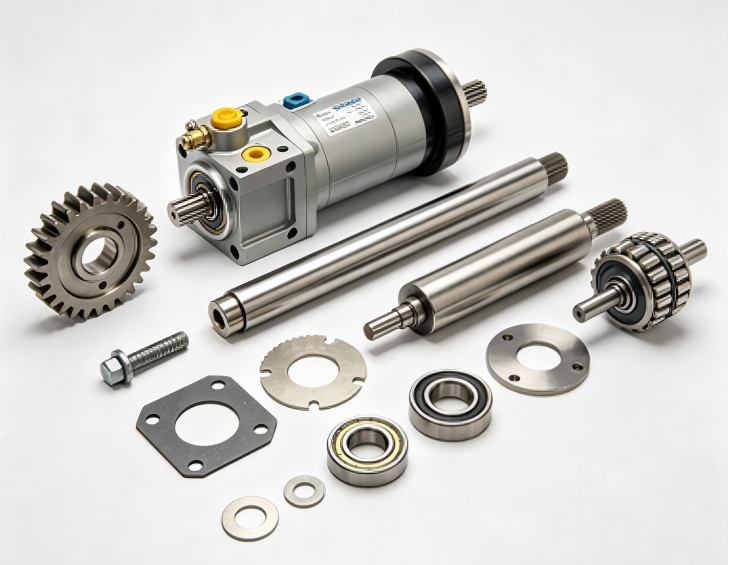

Pipe Spinner SSW 30 parts list

 8. Purchase & Technical Consultation Guidance

For on-site drilling equipment maintenance, spare part stock preparation, and batch procurement demands of SSW 30 pipe spinner components, you can conduct professional consultation for model verification, parameter matching, and certification document confirmation. We support precise model screening for different SSW 30 assembly versions, provide complete material certification and test reports, and offer targeted part selection suggestions according to actual on-site working conditions and equipment operating loads. Whether for single emergency replacement or batch long-term stock preparation, we can meet standardized spare part supply requirements and provide reliable component support for safe and efficient operation of oilfield pipe spinner equipment.
