1. Product Overview

Onshore and offshore drilling and workover sites frequently face operational delays and safety risks caused by pipe spinner transmission jitter, air drive system failure, gearbox leakage, chain wear, and roller mechanism jamming. As a high-torque pneumatic and hydraulic pipe spinning device, the SPINMASTER 950 pipe spinner undertakes rapid pipe make-up and break-out operations, delivering stable torque output to improve drilling efficiency and reduce manual labor intensity. Long-term exposure to continuous vibration, variable air pressure impact, dust pollution, and cyclic load operation easily leads to aging of internal bearings, seal failure, air valve blockage, chain stretching, and idler roller mechanism wear, resulting in insufficient spinning torque, unsmooth equipment operation, and unplanned rig downtime. This full set of dedicated spare parts covers all core wearable and maintenance components for the SPINMASTER 950 pipe spinner, including 031-24625-SRK reducer gearbox repair kits, 031-AR-KIT air drive repair kits, multi-model bearings and sealed bearings, throttle valve assemblies, hydraulic door valves, drive chains, idler roller components, and various spacers and bushings. High-traffic SEO keywords such as SPINMASTER 950 pipe spinner spare parts, SPINMASTER 950 gearbox repair kit, oilfield pipe spinner air drive replacement parts are naturally integrated to match the search intentions of field maintenance engineers and industrial procurement teams.

2. Core Function & Structural Characteristics

2.1 Functional Description

Every component in the SPINMASTER 950 spare parts system performs targeted independent functions while forming a complete transmission, pneumatic drive and tensioning auxiliary system. The reducer gearbox repair kit integrates all wearable sealing and transmission accessories for the gearbox, solving gear wear, oil leakage and transmission efficiency reduction problems to ensure stable torque output of the reduction system. Air valve assemblies and throttle valve assemblies control air intake flow and pressure, realizing precise adjustment of pneumatic drive speed and torque, avoiding unstable operation caused by air pressure fluctuation. The air drive assembly and its special repair kit provide core pneumatic power support for pipe spinning, maintaining sensitive and reliable power response under continuous cyclic operation. Various standard, sealed and flanged bearings reduce friction loss of rotating parts, supporting high-speed and high-load stable rotation of gears, chains and idler rollers. Drive sprocket spacers, idler roller spacers, and bushings control assembly gaps accurately, preventing component friction and jitter caused by displacement. Chains and chain guards undertake power transmission and safety protection functions, while idler roller assemblies and matching seals, retainer rings ensure stable tensioning and guiding of the transmission chain. The hydraulic door valve controls the opening and closing action of the equipment hydraulic door, realizing safe clamping and releasing of drill pipes.

2.2 Structural Features

All SPINMASTER 950 spare parts adopt original industrial standardized modular design, perfectly matching the equipment’s transmission ratio, pneumatic loop parameters, assembly clearance and installation dimensions. Gearbox and air drive repair kits adopt integrated matching design, covering all easily damaged accessories required for one-time overhaul, simplifying on-site maintenance procedures. Bearing components adopt high-precision sealing and anti-vibration structure, with strong dustproof and wear-resistant performance, adapting to harsh outdoor drilling environments. Pneumatic valve parts adopt quick-response valve core structure with stable sealing performance, resisting air pressure impact and frequent switching fatigue. Transmission parts such as chains and sprockets adopt high-strength forging process, with strong tensile resistance and deformation resistance. The idler roller assembly adopts combined positioning structure, with precise gap coordination and stable operation, effectively reducing chain wear and vibration noise. All components feature excellent universal interchangeability, supporting plug-and-play replacement without on-site secondary modification.

3. Applicable Working Conditions & On-Site Maintenance Suggestions

3.1 Applicable Working Scenarios

This full set of spare parts is exclusively adapted to the SPINMASTER 950 pipe spinner, widely applicable to onshore conventional oil and gas drilling yards, offshore platform workover operation zones, high-vibration derrick working areas, and dusty high-risk industrial operation areas. All components stably operate in ambient temperatures ranging from -30°C to 65°C, adapt to 0–70Hz long-term mechanical vibration, and work stably under rated air pressure of 100 PSI and hydraulic pressure of 2000 PSI. High-strength transmission parts resist cyclic torque impact up to 2272 ft-lbs, and sealed components effectively block dust, mud and moisture erosion, fully meeting 24-hour uninterrupted high-frequency pipe spinning operation requirements.

3.2 Practical Field Maintenance Guidelines

From a professional drilling equipment maintenance engineer’s perspective, standardized inspection and replacement of SPINMASTER 950 wearable parts are key to avoiding sudden equipment failure. It is recommended to check chain tension and bearing lubrication status every 150 working hours, adjust spacer gaps and replenish high-temperature lubricating grease in time. Inspect pneumatic valve sensitivity and air drive response speed every 300 hours, clean valve core impurities or replace aging valve assemblies to prevent air path blockage. Check idler roller rotation flexibility and seal tightness monthly to avoid dust entering and bearing wear. Conduct full overhaul with gearbox and air drive repair kits every 800 cumulative working hours, replace worn bearings, aging seals and stretched chains, and calibrate transmission gaps to restore equipment original working efficiency. Avoid long-term overload torque operation to prevent premature fatigue damage of transmission components.

4. Certification Standards & Verified Technical Parameters

All SPINMASTER 950 pipe spinner spare parts pass strict factory performance testing and comply with multiple international authoritative standards, including MSDS material safety certification, EExd on-site explosion-proof specification, UL mechanical safety standard, and ASME B18.3 precision manufacturing standard, fully meeting oilfield drilling equipment operation specifications. Verified field test data ensures stable component performance: core bearing parts reach HRC 55–60 material hardness with a fatigue life of 700,000 high-frequency rotation cycles; high-strength chains withstand 120kN tensile load without deformation; pneumatic valve components maintain stable working performance after 500,000 switching cycles; standard assembly tightening torque for spacer and bushing fasteners is controlled at 42–48N·m; sealing parts resist low-temperature brittle damage at -30°C and high-temperature aging below 65°C; all dimensional tolerances are controlled within ±0.1mm to ensure precise assembly.

5. Core Advantages & Dual Application Standards

This dedicated SPINMASTER 950 spare parts portfolio boasts outstanding advantages in operational reliability, full interchangeability, environmental adaptability and long service life. All components are precisely manufactured in strict accordance with original equipment specifications, achieving 100% dimensional and performance interchangeability, supporting fast on-site replacement and minimizing drilling rig downtime losses. High-strength wear-resistant and low-temperature resistant materials adapt to harsh outdoor drilling environments, effectively reducing component failure frequency and long-term maintenance costs. Optimized pneumatic and transmission structural design solves common faults such as slow spinner response, insufficient torque and chain jamming, improving equipment operational stability and construction efficiency. Full specification coverage of overhaul kits, transmission parts and pneumatic components realizes one-stop spare part matching for daily maintenance and full equipment overhaul.

Unified dual standards for procurement selection and on-site fault maintenance are formulated for professional engineering application. Procurement selection standards: strictly verify part numbers, installation dimensions and performance parameters to match SPINMASTER 950 pipe spinner; confirm component material strength, low-temperature resistance and wear resistance adapting to field working conditions; check complete international certification documents and factory test reports; ensure all parts meet oilfield explosion-proof and high-load operation standards. On-site fault judgment and maintenance standards: judge bearing failure via abnormal equipment noise and rotational jitter; identify air drive and valve faults via slow spinning response and insufficient torque; confirm transmission failure via chain vibration and unsmooth operation; judge sealing failure via air leakage and oil seepage, and replace matching parts timely to eliminate hidden operational risks.

All spare parts implement full-process quality control, covering raw material performance testing, precision dimensional inspection, high-load fatigue simulation and extreme temperature aging verification. Strict dimensional consistency control and traceable material certification eliminate unqualified products, providing reliable guarantee for long-term stable operation of SPINMASTER 950 pipe spinner equipment.

6. Typical On-Site Fault Repair Cases

Four practical oilfield SPINMASTER 950 equipment fault cases provide targeted technical reference for field maintenance teams:

Case 1: Onshore cold-region oilfield drilling site, faulty part: 031-24625-SRK reducer gearbox components. Long-term low-temperature operation and load impact caused gear wear and internal oil leakage, resulting in 18% torque attenuation under rated 2272 ft-lbs working load and unsmooth pipe spinning. After using the complete gearbox repair kit for overhaul, equipment torque output recovered to rated standard, oil leakage was completely eliminated, and stable operation was maintained for more than 10 consecutive months.

Case 2: Offshore platform workover site, faulty part: 031-AR-KIT air drive assembly accessories. Salt fog corrosion and frequent switching caused air path sealing failure and slow power response, leading to delayed pipe spinning action and reduced construction efficiency. After replacing the professional air drive repair kit, the pneumatic system response speed returned to factory standard, air path sealing was intact, and no intermittent failure occurred under long-term cyclic operation. The field team feedback greatly improved operational stability.

Case 3: Onshore conventional oilfield high-frequency operation site, faulty part: 031-AR25 sealed bearing. Long-term high-speed rotation and dust erosion caused bearing wear and increased friction, resulting in obvious equipment vibration and abnormal noise. After replacing the matching precision sealed bearing, equipment operation became smooth, abnormal vibration and noise disappeared completely, and transmission friction loss was significantly reduced.

Case 4: Oilfield dusty drilling working area, faulty part: 031-25 transmission chain. Long-term dust abrasion and tensile fatigue caused chain stretching and loose meshing, leading to transmission jitter and unstable spinning speed. After replacing the high-strength matching chain and calibrating idler roller gaps, the transmission system ran stably, meshing accuracy was fully restored, and pipe spinning operation accuracy met construction requirements.

7. Frequently Asked Questions (FAQ)

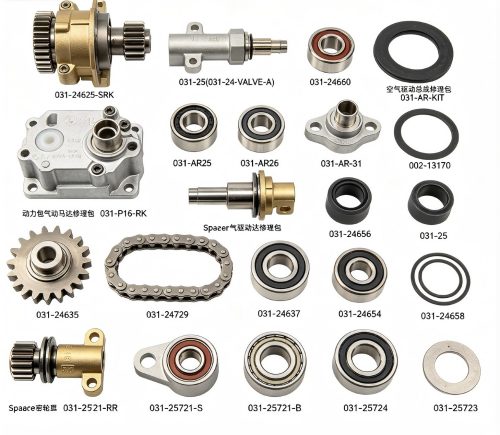

SPINMASTER 950 Parts List

 8. Professional Procurement & Technical Consultation Guidance

If you have demands for SPINMASTER 950 pipe spinner emergency fault repair, daily wearable part replacement, and long-term bulk spare part inventory reserve, you can obtain one-stop professional technical matching and procurement services. We support precise model screening and parameter verification according to actual equipment working load, operating environment and fault types, provide complete certification documents and performance test reports, and offer targeted equipment maintenance overhaul suggestions. Whether for single emergency replacement of bearings, valves and transmission parts or batch standardized procurement of full set repair kits, we can meet oilfield high-standard operation requirements, ensuring long-term safe, stable and efficient operation of your SPINMASTER 950 pipe spinner equipment.
