1. Product Overview

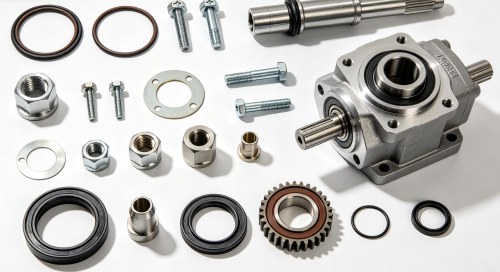

Oilfield drilling and workover operations often suffer costly downtime due to power swivel fluid leakage, seal failure, packing wear, and hydraulic power attenuation. As a core rotating and fluid circulation component of drilling rig systems, the Bowen Power Swivel undertakes continuous high-pressure mud circulation, rotary torque transmission, and dynamic sealing work throughout the drilling process. Long-term exposure to high vibration, variable temperature cycles, and abrasive mud media easily causes aging of rubber seals, wear of packing assemblies, loosening of locking fasteners, and failure of oil seal components, leading to mud leakage, pressure loss, unstable rotational speed, and even sudden equipment shutdown. This full set of dedicated spare parts covers all wearable and maintenance core components for Bowen Power Swivel, including 3568-010 and 568-243 O-rings, 72355 regular-duty packing sets, wash pipe locking pins, packing nuts, lantern rings, spacers, multiple model oil seals, and matching hydraulic motor assemblies. High-value SEO keywords such as Bowen Power Swivel spare parts, power swivel packing set replacement, oilfield swivel seal and o-ring components are naturally integrated to match professional search habits of drilling maintenance engineers and bulk procurement teams.

2. Core Function & Structural Characteristics

2.1 Functional Description

Each component in the Bowen Power Swivel spare parts system performs independent targeted functions while forming a complete dynamic sealing and power transmission system. O-rings serve as primary static and dynamic sealing elements, blocking mud and hydraulic fluid leakage at assembly gaps to maintain internal system pressure stability. The wash pipe lock pin and socket set screws realize precise positioning and anti-loosening fixation of the wash pipe structure, preventing component displacement and structural failure under high-speed rotation and vibration. Upper and lower packing nuts, matching packing sets, and lantern rings form the core mud sealing assembly, resisting high-pressure mud impact and abrasive wear to ensure zero leakage of the fluid circulation channel. Plain spacers maintain precise assembly gaps between sealing components, avoiding extrusion deformation and premature seal failure. Multiple upper, lower, and pinion oil seals isolate lubricating oil and external mud, preventing oil leakage and mud contamination of internal transmission structures. The grease fitting ensures convenient periodic lubrication of the packing assembly to reduce friction wear, while the dedicated hydraulic motor provides stable power support for the entire swivel rotary operation.

2.2 Structural Features

All Bowen Power Swivel spare parts adopt original standardized modular structural design, perfectly matching the equipment’s assembly tolerance, structural clearance, and working logic. Rubber sealing parts adopt integral molding technology with uniform density and excellent compression resilience, adapting to frequent pressure fluctuation and rotational friction. Packing sets adopt regular-duty multi-layer composite structure, with strong wear resistance and pressure resistance for long-term mud scouring working conditions. Fastening and positioning components adopt precision thread design with standardized tightening parameters, ensuring firm assembly and reliable anti-loosening performance. Split combined sealing structure composed of nuts, rings, spacers and packing supports partial disassembly and targeted replacement, greatly simplifying on-site maintenance procedures. All parts feature high dimensional consistency and universal interchangeability, realizing plug-and-play replacement without on-site modification.

3. Applicable Working Conditions & On-Site Maintenance Suggestions

3.1 Applicable Working Scenarios

This full set of power swivel spare parts is specially adapted for Bowen Power Swivel equipment, widely applicable to onshore oil and gas drilling sites, offshore platform workover operations, high-vibration derrick working areas, and high-pressure fluid circulation hazardous zones. All components stably adapt to working temperatures ranging from -20°C to 80°C, withstand maximum continuous working pressure of 35MPa, and resist abrasion and corrosion from water-based and oil-based mud media. Sealing parts maintain stable physical properties under 0–65Hz long-term rotary vibration, and metal structural parts resist fatigue deformation under cyclic high-load operation, fully meeting 24-hour uninterrupted drilling operation requirements.

3.2 Practical Field Maintenance Guidelines

From the perspective of professional drilling equipment maintenance engineers, standardized inspection and replacement of swivel wearable parts are key to eliminating leakage failures. It is recommended to check O-ring elasticity and surface wear every 200 working hours, replacing aging and cracked seals in time. Inspect packing set tightness and mud leakage after every 400 hours of operation, and replenish grease through the grease fitting to reduce friction loss. Check lock pins and set screw fastening status monthly to prevent thread loosening caused by vibration. Conduct full disassembly inspection every 800 cumulative working hours, replace worn oil seals, deformed lantern rings and failed packing sets, and calibrate assembly gaps to restore original sealing performance. Avoid long-term over-pressure operation to prevent accelerated aging of sealing components.

4. Certification Standards & Verified Technical Parameters

All Bowen Power Swivel spare parts pass strict factory performance testing and comply with multiple international authoritative standards, including MSDS material safety certification, EExd explosion-proof specification, UL industrial safety standard, and ASME B18.3 precision thread manufacturing standard, fully complying with oilfield drilling equipment operation specifications. Verified field test data ensures stable performance: rubber sealing parts reach 80–85 durometer hardness with a fatigue life of 600,000 compression cycles; metal fastening components adopt high-strength carbon steel with tensile strength up to 850MPa; standard thread assembly tightening torque is controlled at 38–45N·m; packing sets stably resist 35MPa high-pressure medium scouring without deformation; hydraulic motor components maintain 99.9% power output stability under continuous full-load operation, with all dimensional tolerances controlled within ±0.08mm.

5. Core Advantages & Dual Application Standards

This dedicated Bowen Power Swivel spare parts portfolio boasts outstanding advantages in operational reliability, full interchangeability, environmental adaptability and long service life. All parts are strictly manufactured per original equipment specifications, achieving 100% assembly and performance interchangeability, supporting fast on-site replacement and minimizing drilling downtime losses. High-quality wear-resistant and corrosion-resistant materials adapt to harsh mud scouring and high-vibration working environments, effectively extending component service life and reducing frequent maintenance costs. Optimized sealing structure design thoroughly solves common swivel leakage problems, improving equipment operational safety and stability. Full specification coverage of wearable and core power components realizes one-stop spare part matching for daily maintenance and overhaul.

Unified dual standards for procurement selection and on-site fault maintenance are formulated for professional engineering application. Procurement selection standards: verify part numbers, thread specifications and dimensional parameters to match Bowen Power Swivel models; confirm seal material wear resistance and pressure grade adapting to mud medium and working pressure; check complete international certification and factory test reports; ensure all components meet oilfield explosion-proof and high-load operation standards. On-site fault judgment and maintenance standards: judge seal failure via mud micro-leakage and system pressure drop; identify packing wear via continuous seepage at the swivel outlet; confirm loose fasteners via abnormal vibration and noise; judge hydraulic motor faults via insufficient rotary power and speed reduction, and replace matching parts timely to restore equipment performance.

All spare parts implement full-process quality control, covering raw material performance testing, precision dimensional inspection, high-pressure sealing simulation, and vibration aging verification. Strict dimensional consistency control and traceable material certification eliminate unqualified products, providing reliable guarantee for long-term stable operation of Bowen power swivel equipment.

6. Typical On-Site Fault Repair Cases

Four practical oilfield power swivel fault cases provide targeted technical reference for field maintenance teams:

Case 1: Onshore conventional oilfield drilling site, faulty part: 3568-010 O-ring. Long-term high-pressure mud scouring caused seal aging and micro-cracking, resulting in 0.8MPa system pressure drop under rated working load and slight mud leakage. After replacing the standard 3568-010 O-ring, system pressure recovered to 35MPa rated value, leakage was completely eliminated, and equipment operated stably for more than 11 consecutive months.

Case 2: Offshore platform workover site, faulty part: 72355 regular-duty packing set. Long-term rotary friction and mud abrasion caused packing wear and gap enlargement, leading to continuous mud seepage at the swivel packing position. After replacing the matching 72355 packing set, the dynamic sealing performance was fully restored, no seepage occurred under full-load cyclic operation, and the field team confirmed stable and reliable sealing effect.

Case 3: Onshore shale gas drilling site, faulty part: 27285 upper oil seal. Seal aging and oil permeability caused internal lubricating oil leakage, resulting in insufficient lubrication and increased equipment operating noise. After replacing the new upper oil seal, lubricating oil leakage stopped completely, equipment operation noise decreased significantly, and transmission component wear was effectively controlled.

Case 4: Oilfield high-temperature drilling working area, faulty part: 82099 wash pipe lock pin. Long-term high vibration caused pin loosening and positioning deviation, leading to unstable swivel rotation and periodic jitter. After replacing the standard lock pin and recalibrating assembly clearance, the equipment rotation became smooth and stable, and no abnormal vibration or jitter fault recurred.

7. Frequently Asked Questions (FAQ)

Bowen Power swivel parts list

8. Professional Procurement & Technical Consultation Guidance

If you have demands for Bowen Power Swivel emergency fault repair, daily wearable part replacement, and long-term bulk spare part inventory reserve, you can obtain one-stop professional technical matching and procurement services. We support precise model screening and parameter verification according to actual equipment working pressure, temperature, mud medium and fault types, provide complete certification documents and performance test reports, and offer targeted equipment maintenance and part replacement optimization suggestions. Whether for single emergency replacement or batch standardized bulk procurement of sealing parts, packing assemblies, structural fasteners and hydraulic components, we can meet oilfield high-standard operation requirements, ensuring long-term safe, stable and efficient operation of your Bowen power swivel equipment.
