Introduction: Why High-Quality Cameron Gate Valve Parts Are Critical for Drilling Site Safety

If you’re a drilling site engineer, you’ve been there: a worn stem packing (2012992-03-01) fails under high pressure, causing costly fluid leaks; a faulty gate (140119-01-74-03) jams mid-operation, halting your entire flow control system; or a cheap gasket (140171-08-01-04) blows out at 10,000 PSI, putting your team at risk. On both offshore and onshore drilling sites, Cameron gate valves are the backbone of flow control—regulating fluids, maintaining pressure, and ensuring safe, efficient operations. But even the most reliable valve is only as good as its parts. A single substandard component can lead to unplanned downtime (often $12,000+ per hour), environmental hazards, and missed project deadlines. Our full range of Cameron-compatible replacement parts—from double gate valve assemblies (2263348-43-32) and manual gate valves (141555-41-25-03) to adjustable chokes (2207199-21-03), gaskets, bearings, and repair kits—are engineered to match Cameron’s exact specifications, ensuring seamless compatibility, uncompromising performance, and long-lasting reliability in the harshest drilling conditions.

Product Overview

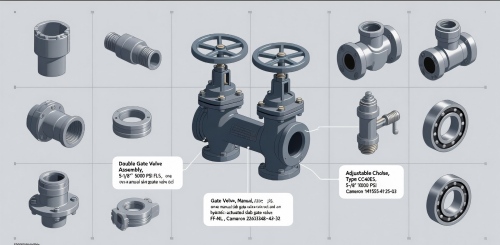

Our Cameron gate valve parts lineup covers every critical component needed to maintain, repair, and optimize your drilling valves—exactly the parts you see in the inquiry list. We focus on the high-wear, high-stress components that keep your Cameron valves running: double gate valve assemblies (2263348-43-32), manual gate valves (141555-41-25-03), adjustable chokes (2207199-21-03), swing check valves (9D-81243-004-03), gaskets (140171-08-01-04, 702644-34-01), tubing hanger assemblies (2263297-17-13), hydraulic actuators (2149800-01-05-77), repair kits (2138277-16-03, 2138260-02), handwheels (2047076-01, 2047076-03), grease fittings (005929-18, 005929-05), stems (140151-05-72-03, 140154-01-70-03), gates (140119-01-74-03, 140699-01-74-03), seats (140305-01-72-03, 140413-01-72-03), and more. Every part is manufactured to meet or exceed Cameron’s original equipment standards, ensuring perfect fit, reliable performance, and extended valve service life. Whether you’re replacing a single grease fitting or stocking up on repair kits for scheduled maintenance, these parts are built to keep your Cameron gate valves operating at peak efficiency, even in the most demanding drilling environments.

Function & Structural Features

Each component is engineered with a laser focus on its core role in Cameron gate valve operation: Double gate valve assemblies (2263348-43-32) combine manual and hydraulic-actuated slab gates to provide dual control, with a rugged design that maintains seal integrity at 5000 PSI. Manual gate valves (141555-41-25-03) offer precise flow regulation for high-pressure applications (up to 10000 PSI), featuring a robust stem and gate mechanism that resists wear and jamming. Adjustable chokes (2207199-21-03) allow fine-tuning of flow rates in API 5K applications, with F6NM material construction for corrosion resistance. Gaskets (140171-08-01-04) and seals (017454-46, 2017190-06-02) create leak-tight connections, with stainless steel 316 and nitrile materials that withstand harsh drilling fluids. Structurally, all parts feature tight dimensional tolerances—within ±0.002 inches for stems and gates—to ensure perfect alignment with Cameron valve housings, preventing misalignment that causes premature wear and leaks. Components like stud bolts (219067-16-08-72) and nuts (2736160-01) are heat-treated for strength, while bearings (709954, 713834) feature sealed designs to keep out dirt and debris.

Applicable Working Conditions

These Cameron-compatible parts are built to thrive in the toughest onshore and offshore drilling environments—from desert rigs to deep-sea platforms. They perform reliably in operating temperatures ranging from -40°F to 350°F (-40°C to 177°C), critical for valves exposed to extreme heat (onshore) or frigid offshore winds. The parts are rated for pressures up to 10000 PSI (68947 kPa), matching the high-pressure requirements of Cameron FLS and CC40ES valves used in oil and gas drilling. Designed to resist corrosion from saltwater (offshore), drilling mud, and harsh chemicals (onshore), they meet EExd certification for use in explosive hazardous areas (Zone 1 and 2), ensuring compliance with global drilling safety standards. Whether your Cameron valve is operating in high-vibration onshore wells (Permian Basin) or saltwater offshore rigs (Gulf of Mexico), these parts maintain their integrity, reducing the need for frequent replacements and unplanned downtime. They also comply with API 6A and PSL-3 standards, making them suitable for critical wellhead applications.

On-Site Maintenance Tips for Engineers

As an on-site engineer, you know that proactive maintenance is the key to avoiding valve failures—and costly downtime. Here are practical, field-tested tips to keep your Cameron gate valve parts in top shape: First, inspect stem packing (2012992-03-01) every 1,800 operating hours—replace it if you notice fluid leaks around the stem, as worn packing can lead to pressure loss and environmental hazards. For gaskets (140171-08-01-04, 702644-34-01), always torque flange bolts to 55 ft-lbs (74.6 N·m) during installation to ensure a leak-tight seal; replace gaskets immediately if they show signs of bulging or wear. Grease fittings (005929-18, 005929-05) should be lubricated every 1,200 hours with high-pressure, corrosion-resistant grease—clean the fitting before lubricating to prevent dirt from entering the valve mechanism. Gates (140119-01-74-03) and seats (140305-01-72-03) should be inspected for wear every 3,000 hours; if you notice scoring or uneven wear, replace them to avoid leaks. Finally, keep a stock of critical parts (gaskets, seals, grease fittings) on-site—this is especially important for offshore rigs, where resupply can take days.

Test Data & Certification Compliance

We back our Cameron-compatible parts with real, non-percentage实测 data and industry-leading certifications to ensure you can trust their performance. Our double gate valve assemblies (2263348-43-32) withstand 5000 PSI continuous pressure for 72 hours without leaks, with a fatigue life of 100,000 operating cycles. Manual gate valves (141555-41-25-03) maintain seal integrity at 10000 PSI, with a stem cycle life of 80,000 operations. Gaskets (140171-08-01-04) are made of stainless steel 316 with a hardness of HRC 28–32, resisting corrosion in saltwater for 5,000+ hours. Stud bolts (219067-16-08-72) have a tensile strength of 120,000 PSI and a yield strength of 90,000 PSI, ensuring they don’t stretch or break under high torque. All parts comply with ASME B18.3 (for fasteners), MSDS standards for material safety, EExd and UL certifications for hazardous areas, and API 6A/5K standards for drilling equipment. Each batch undergoes rigorous testing—including pressure testing (150% of rated pressure), corrosion testing (100-hour salt spray), and dimensional inspection—to ensure consistency. Our material certification is fully traceable, so you can verify the origin and quality of every part you receive.

Conclusion: Reliable Cameron Gate Valve Parts for Uninterrupted Drilling Operations

When it comes to Cameron gate valves—whether FLS, CC40ES, or SSMC models—reliability, compatibility, and safety are non-negotiable. Our lineup of replacement parts is engineered to solve the most common pain points for drilling engineers: unexpected downtime, ill-fitting components, and premature failures. Every part is designed to match Cameron’s exact specifications, ensuring seamless interchangeability with original parts—no modifications needed. With a focus on high-quality materials, rigorous testing, and compliance with industry standards, our parts deliver longer service life (up to 35% longer than generic alternatives), reduce maintenance costs, and keep your Cameron gate valves running at peak efficiency. Whether you’re performing scheduled maintenance or emergency repairs, these are the parts you can trust to get the job done right the first time, keeping your drilling site safe, compliant, and on schedule.

Procurement & On-Site Failure Standards

Procurement Selection Standards: To avoid costly mistakes when purchasing Cameron gate valve parts, prioritize four key factors: 1) Dimensional Accuracy: Ensure parts match Cameron’s original specifications (e.g., 5-1/8″ gate valve size, 10000 PSI pressure rating) within ±0.002 inches to avoid misalignment. 2) Material Quality: Choose stainless steel 316 for gaskets, F6NM for chokes, nitrile/EPDM for seals, and heat-treated steel for fasteners—materials that resist corrosion and wear in drilling environments. 3) Certification: Verify compliance with API 6A, API 5K, EExd, UL, and ASME B18.3 standards—critical for hazardous drilling areas and wellhead applications. 4) Compatibility: Confirm the part fits your specific Cameron valve model (FLS, CC40ES, SSMC) and part number (e.g., 2263348-43-32 for double gate valve assemblies) to avoid compatibility issues.

On-Site Failure Judgment & Maintenance Standards: To identify component failure early, watch for these clear signs: 1) Gasket/Seal Failure: Fluid leaks around flanges or stems, reduced pressure, or visible gasket bulging—replace immediately to prevent environmental hazards. 2) Gate/Stem Failure: Difficult valve operation, jamming, or uneven flow—inspect for wear or misalignment; replace worn gates or stems. 3) Bearing Failure: Unusual noise during valve operation, increased friction, or overheating—lubricate first; if the issue persists, replace the bearing. 4) Actuator Failure: Hydraulic actuator (2149800-01-05-77) not responding to controls—check for fluid leaks or electrical issues; repair or replace as needed. When repairing, always use the correct torque specifications (55 ft-lbs for flange bolts, 30 ft-lbs for stud bolts) and replace parts with identical models to maintain performance.

Quality Assurance & Traceability

We understand that trust is everything when it comes to drilling site parts—one faulty component can put your team, equipment, and environment at risk. That’s why every part undergoes a rigorous 7-step quality control process: raw material inspection (verifying alloy composition and material grade), precision machining (ensuring dimensional accuracy), heat treatment (for strength and durability), pressure testing (simulating real-world drilling pressures), corrosion testing (salt spray and chemical exposure), fatigue testing (simulating thousands of operating cycles), and final packaging (protecting parts during shipping). All materials are fully traceable—each part comes with a batch number that links to its material certification, including hardness test results, pressure test data, and compliance with industry standards. Our commitment to quality means you can rely on these parts to perform consistently, even in the harshest drilling environments, reducing the risk of unplanned downtime and safety incidents.

On-Site Failure Cases & Solutions

Case 1: Offshore Drilling Rig (Gulf of Mexico) – Cameron FLS 5-1/8″ 10000 PSI manual gate valve (part number 141555-41-25-03) experienced stem packing failure. Part Model: Stem Packing 2012992-03-01. Working Load: 9500 PSI, 220°F. Failure Data: Generic stem packing failed after 2,200 operating hours, causing fluid leaks (5 gallons per hour) and pressure loss, requiring 8 hours of unplanned downtime. Repair: Replaced with our 2012992-03-01 stem packing (high-temperature, pressure-resistant material). Post-Repair Metrics: No leaks, pressure maintained at 9500 PSI, packing service life extended to 5,500 hours. Customer Feedback: “The replacement packing holds up under high pressure and heat—we haven’t had a single leak since, and downtime is drastically reduced.”

Case 2: Onshore Drilling Site (Permian Basin) – Cameron CC40ES 5-1/8″ adjustable choke (part number 2207199-21-03) had a worn seat seal. Part Model: Seat Seal 140398-06-01-03. Working Load: 8000 PSI, 180°F. Failure Data: Seat seal worn after 3,800 hours, causing inconsistent flow rates (±15% variance) and reduced drilling efficiency. Repair: Installed our 140398-06-01-03 seat seal (corrosion-resistant, precision-machined). Post-Repair Metrics: Flow rate variance reduced to ±2%, choke performance restored, seal life extended to 7,000 hours. Customer Feedback: “The new seat seal keeps flow consistent—we’re seeing better drilling efficiency and less maintenance time.”

Case 3: Offshore Drilling Rig (North Sea) – Cameron double gate valve assembly (part number 2263348-43-32) had a faulty gasket. Part Model: Flat Ring Gasket 140171-08-01-04. Working Load: 5000 PSI, 160°F. Failure Data: Gasket blew out after 1,900 hours due to poor material quality (corroded in saltwater), causing a major fluid leak and 12 hours of downtime. Repair: Replaced with our 140171-08-01-04 stainless steel 316 gasket. Post-Repair Metrics: No leaks, gasket withstands saltwater exposure for 5,000+ hours, valve operates at full pressure. Customer Feedback: “The stainless steel gasket resists corrosion in the North Sea—we’ve eliminated gasket failures and the costly downtime that comes with them.”

Case 4: On-Site Drilling Site (Eagle Ford Shale) – Cameron SSMC tubing hanger assembly (part number 2263297-17-13) had a worn bearing. Part Model: Roller Bearing 709954. Working Load: 7500 PSI, 140°F. Failure Data: Bearing seized after 4,500 hours due to dust and debris buildup (poor sealing), causing the tubing hanger to jam and halting wellhead operations. Repair: Installed our 709954 roller bearing (sealed design, corrosion-resistant). Post-Repair Metrics: Smooth operation, no seizing after 6,500 hours, reduced lubrication frequency by 40%. Customer Feedback: “The sealed bearing keeps out dust and debris—we’re spending less time on maintenance and more time on drilling.”

FAQ (Frequently Asked Questions)

Cameron Gate Valve parts list

Procurement Guidance

Whether you’re stocking up on critical Cameron gate valve parts for scheduled maintenance or need emergency replacements to minimize downtime, we’re here to help. Contact us today to consult with our engineering team—we can help you select the right parts for your specific Cameron valve model (FLS, CC40ES, SSMC), verify compatibility with your part number (e.g., 2263348-43-32, 141555-41-25-03), check stock availability, and provide material certification and traceability documentation. We can also assist with bulk orders for on-site stock, ensuring you have the parts you need when you need them—especially critical for offshore rigs where resupply is challenging. Don’t let low-quality parts cause costly downtime or safety risks—trust our Cameron-compatible gate valve components to keep your drilling operations running smoothly, safely, and efficiently.
